Product Code: LBNY-0005-121000260
Categories: Automobile Cutways and Models Lab

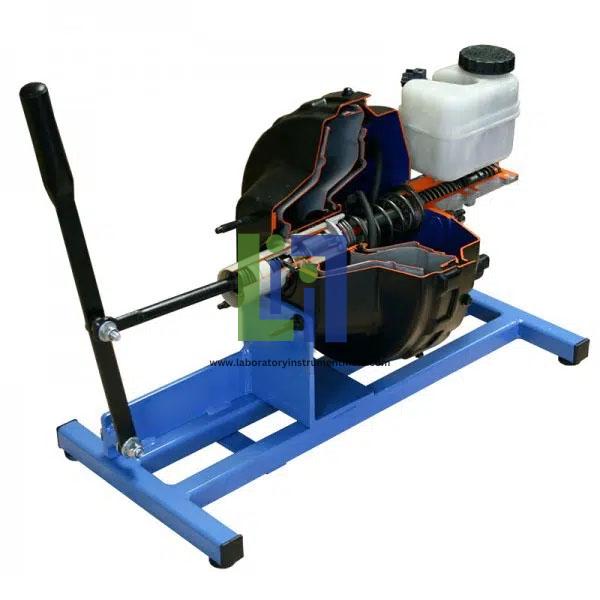

The trainer is equipped with a braking handle that simulates the brake pedal for educational purposes. The Cutaway Active Brake Booster And Master Cylinder allows to visually demonstrate the operation and internal parts of a vacuum brake booster and master cylinder. On a vehicle when the driver depresses the brake pedal, the movement is transformed into hydraulic pressure that is delivered to hydraulic cylinders at the four wheels through pipes and hoses using an incompressible fluid.
Educational Advantages:
Demonstrates how the vacuum brake booster assists the brake pedal to create system pressure.
Demonstration of vacuum brake booster and enhanced features to support the Advanced Track system.
Main Features:
Brake pedal position (BPP) sensor.
Brake booster diaphragm.
Active brake booster solenoid/brake pedal force switches.
Active brake booster solenoid.
Cutaway master cylinder.
Cutaway Active Brake Booster And Master Cylinder
