Palletizer: Palletize cases up to three layers
Pick And Place: Place parts inside boxes through a three axes manipulator
Automatic Warehouse: Transport, store and retrieve boxes from a rack
Batching: Mix three primary colors (red, green and blue) in order to obtain a desired color
Sorting: Transport cases from the entry bay to the elevators, sorting them by height.
Features:
Real time physics that closely emulates what happens in real life
3D real time sound
Friendly user interface
Easy and fast to setup

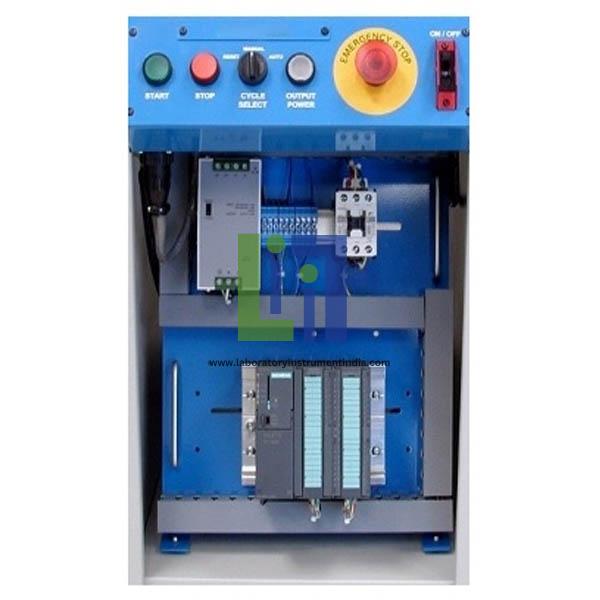

PLC Siemens of the Simatic
3D realistic graphics
Total interactivity with the systems.

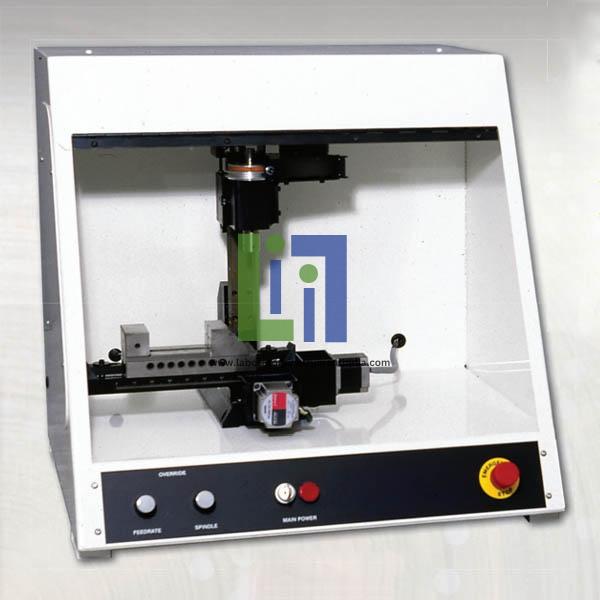

CNC Mill Learning System includes a variety of real-world components including a mobile workstation, electro-pneumatic vise with filter regulator, tooling package, robot-to-CNC interface, and an electro-pneumatic chip blower. In addition to integrated automation machining skills, learners will study about CNC programming fundamentals. Because CNC mills are used to create a variety of parts and components, learners entering the manufacturing industry will find this learning systemâ„¢s hands-on practice and real-world skills invaluable. The CNC Mill Learning System allows learners to use a Servo Robotic Assembly Station. This combination provides hands-on practice for incorporating machining and CNC Mill integration within an automated lines process. The CNC Mill Learning System also features world class interactive multimedia curriculum, an install guide, and a student reference guide.
Features:
Provides hands-on practice for incorporating machining within an automated process.
Study basic CNC programming, CNC mill safety, and the fundamentals of operating a CNC mill.
Includes with, a compact 3 axis milling machine with variable spindle speeds and feedrates
Use an in conjunction with Mechatronics System.

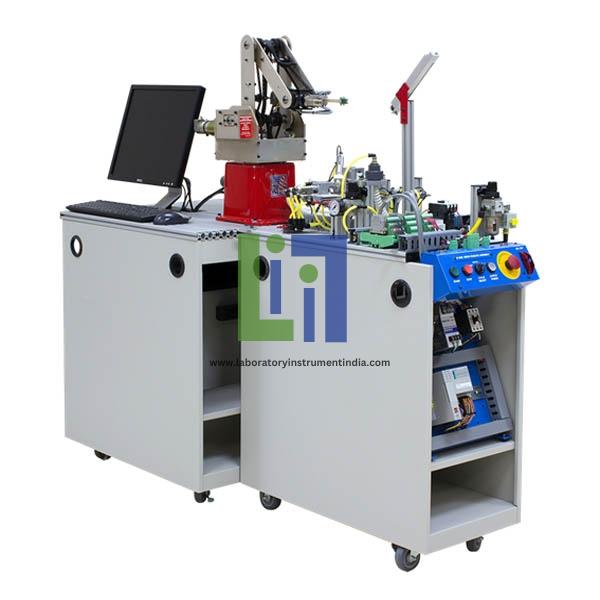

Servo robot on the Mechatronics Servo Robotic Assembly Station will load valve bodies.
Industrial type components must be educationally adapted byusing a modular panel system to permit the step by step assembling from thesimplest circuit to the most complex system. This trainer has a modular structure and it consists of panels installed on a vertical frame. It is supplied with a theoretical and practical manual. This laboratory is designed for the study of Control of a DC motor to allow the student a practical training, based on the performance ofguided experiments. The modularity of this system can give the students a direct and immediate approach to thetopics, offering the opportunity to study various subjects, performing severalexperiments as following:

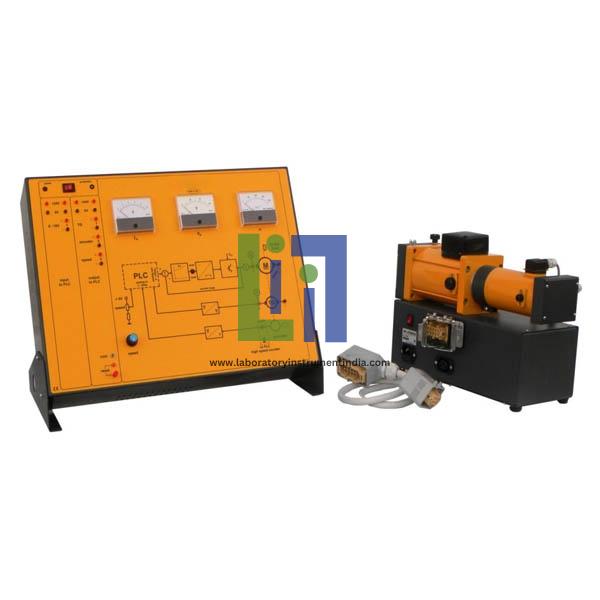

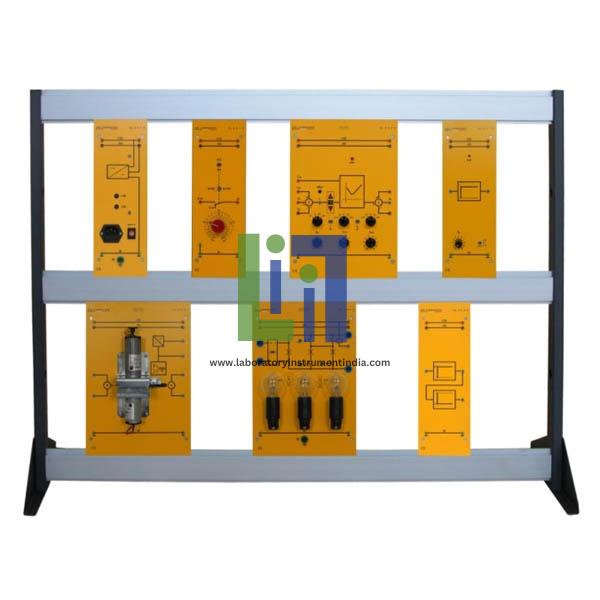

P, PI and PID controls of the speed of a DC motor using theCHR method
Control of a DC generator.
This trainer has a modular structure and it consists of panels installed on a vertical frame. It is supplied with atheoretical and practical manual. Industrial type components are educationally adapted by using a modular panelsystem to permit the step by step assembling from the simplest circuit to themost complex system. This laboratory is designed for the study of Flow control application to allow thestudent a practical training, based on the performance of guided experiments. The modularity of this system cangive the students a direct and immediate approach to the topics, offering theopportunity to study various subjects, performing several experiments asfollowing:
Analysis of flow control features
Measurement systems features.
This Trainer Is Composed As Follows:
Work bench complete with:
4 wheels (the 2 front wheels are lockable)
3 drawers with locking systems with key for storing components.
50mm (horizontally and vertically) for quick clamping of hydraulic components without using additional tools.
1 clipboard located on the side of the work bench.
Metal working panel fully plastic coated; panel dimensions:950 x 1050 mm. With 5 mm holes every.
Speed measuring with a generator or with an encoder via frequency/voltage converter. Speedreference set by means of potentiometer or selector switches and under PLCcontrol. The system has been designed for the study of programmablelogic control techniques in the control of the speed of a separately excited dcmotor. Possibility of acceleration anddeceleration ramps programming. Pointer meters for motor speed, voltage andarmature current connection to PLC through terminals or connectors. The speed regulation includes two control loops: hardware current loopwith over current limiting and speed loop with external PLC control. The PI controller modulates the PWM circuit that drives the powerstage consisting of switching transistor.
....
This trainer has a modular structure and it consists of panels installed on a vertical frame. The analysis of the interactions between controllers and processes is complicated by the possible presence of noise sometimes, thelatter can trigger a series of oscillations with consequences, potentially serious, for the process. This laboratory is designed to study processes and controllers suitably combined tosimulate and to study the most common problems related to the Continuous Automatic Control. In this configuration, the student can study the causes of the above mentioned instabilities, in order to find possible solutions.
....

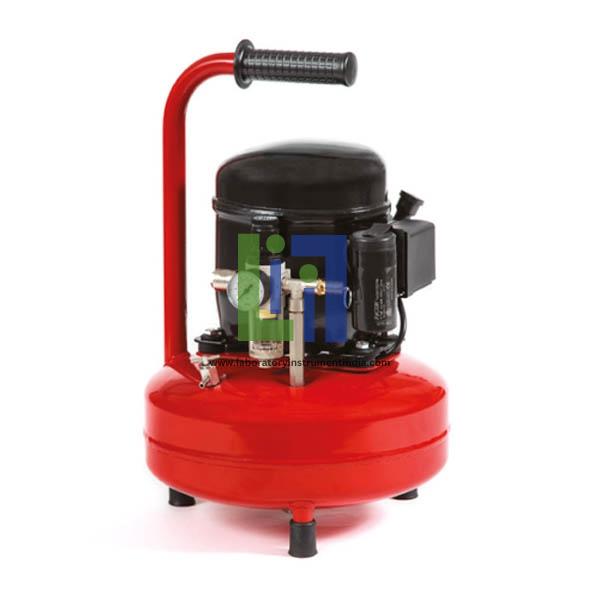

With very low noise level for small capacity.
Air intake: 50 litres/min.
Max. working pressure: 8 bar or 116 PSI
Tank capacity: 24 litres
Noise level: 40 dB
Motor power: 0.34 kW or 0.45 HP
Dimensions: 40 x 40 x 60 (h) cm.
Weight: 25 kg.

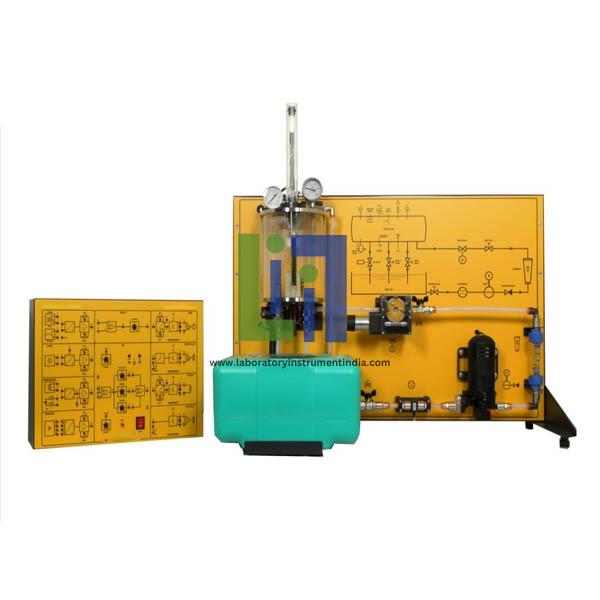

This trainer has amodular structure and it consists of panels installed on a verticalframe. It is supplied with a theoretical and practical manual. Industrial type components are educationally adapted by using a modular panel system to permit the step by step assembling from the simplest circuit to the most complex system. This laboratory is designed for the study of the Level Control Application to allow the student a practical training, based on theperformance of guided experiments. The modularity of this system can give the students a direct and immediate approach to the topics, offering the opportunity to study various subjects, performing several experiments as following:
Pumps features:
Measurement systems features
Level control with adjuster P
Level control with adjuster PI
Level process features
Level control with adjuster PID
Level control with a 2 position controller.

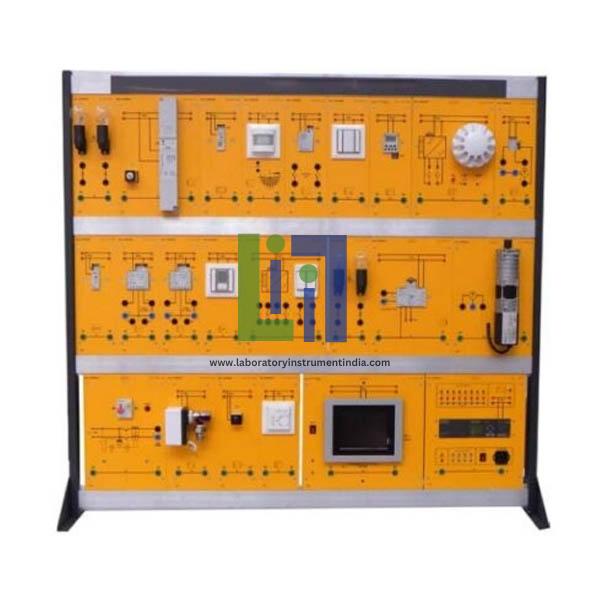

This trainer has amodular structure and it consists of panels installed on a verticalframe. It is supplied with a theoretical and practical manual. This laboratory is designed for the study of the LightControl application to allow the student a practical training, based on theperformance of guided experiments. Industrial type components are educationallyadapted by using a modular panel system to permit the step by step assemblingfrom the simplest circuit to the most complex system. The modularityof this system can give the students a direct and immediate approachto the topics, offering the opportunity to study various subjects, performingseveral experiments as following:

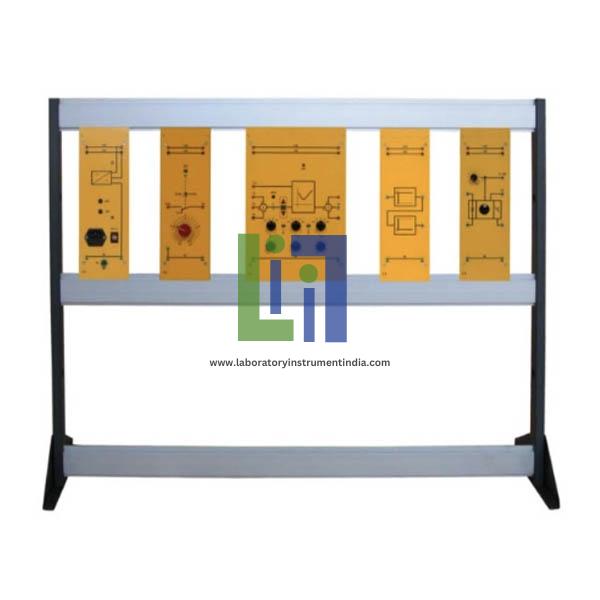

P, PI and PID light controls using the CHR method.
Industrial type components are educationally adapted byusing a modular panel system to permit the step by step assembling from thesimplest circuit to the most complex system. This laboratory is designed for the study of the lightingplants and to allow the student a practical training, based on the performanceof guided experiments. The configuration allows theperforming of the following exercises:
Double Pushbutton
Brightness Control
Dimmer
IT TX/RX.
Industrial type components are educationallyadapted by using a modular panel system to permit the step by step assemblingfrom the simplest circuit to the most complex system. This laboratory is designed for the study of the temperaturecontrol application to allow the student a practical training, based on theperformance of guided experiments.

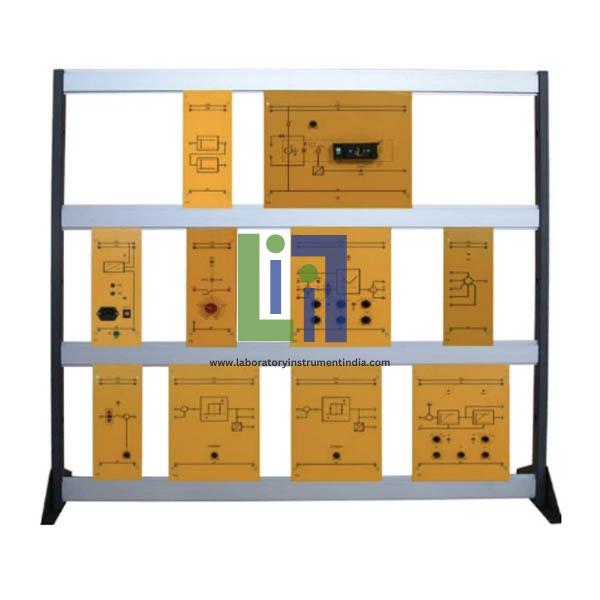

With this laboratory it is possible to perform the followingexperiments:

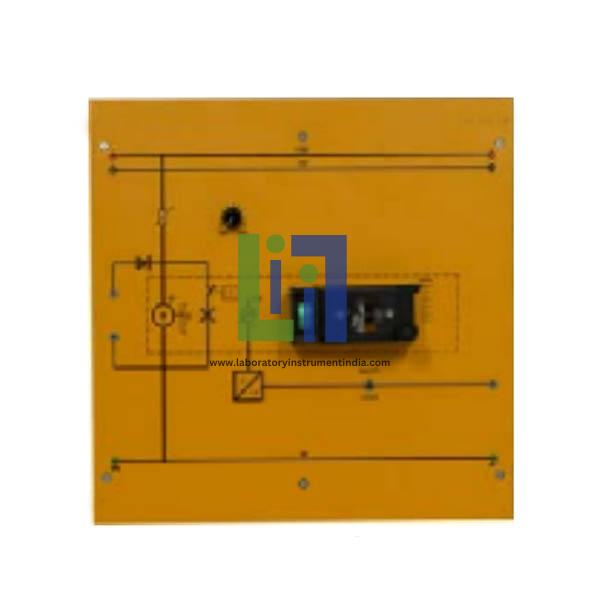

The two position controller with delayed feedback in thetemperature process
The two position controller with elastic feedback in thetemperature process
The two position controller in the temperature process
P, PI and PID controls of the temperature process using theCHR method
The three range controller in the temperature process.

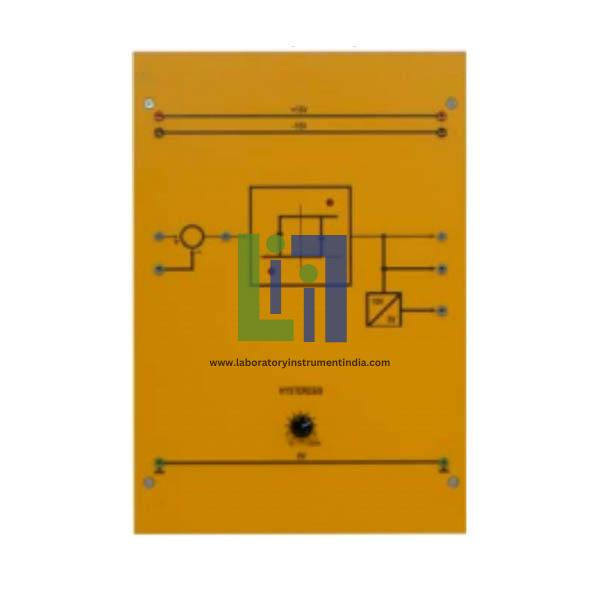

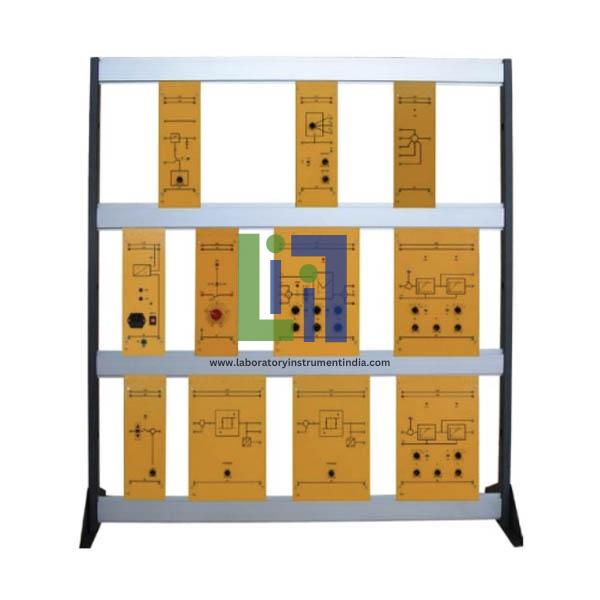

This laboratory is designed for the study of DiscontinuousAutomatic Control systems where the controller is composed of an element withdiscontinuous intervention. This trainer has a modular structure andit consists of panels installed on a vertical frame. It is suppliedwith a theoretical and practical manual. A discontinuous controller is characterized by anoutput having two or more fixed states and its value is switched among thesestates according to the input value. The modularity of this systemcan give the students a direct and immediate approach to the topics, offeringthe opportunity to study various subjects, performing several experiments asfollowing:
Two position controllers, three range controllers
Sampling acquisition techniques
The three range controller in a 2nd order process
The two position controller in a 1st order process
The two position controller with elastic feedback in a 2ndorder process
The two position controller with delayed feedback in a 2ndorder process
The sampling control in a 4th order process.

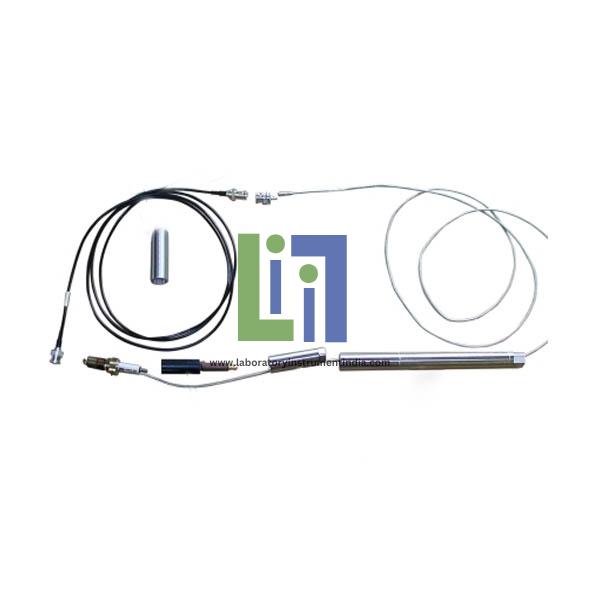

The pressure transducer is directly exposed to the combustion chamber pressure when the spark plug is inserted. The spark plug itself retains its full functionality. For experiments using cylinder pressure indication on the test engine, the normal spark plug is exchanged for a modified spark plug. This modified spark plug is fitted with a micro pressure transducer. The pressure transducer is connected to the measuring amplifier in the electronic indication system. The core component of the pressure transducer is a heat resistant piezo-electric quartz crystal, which outputs a charge signal proportional to the pressure.
Learning Objectives/Experiments:
Cylinder pressure measurements on internal combustion engines.

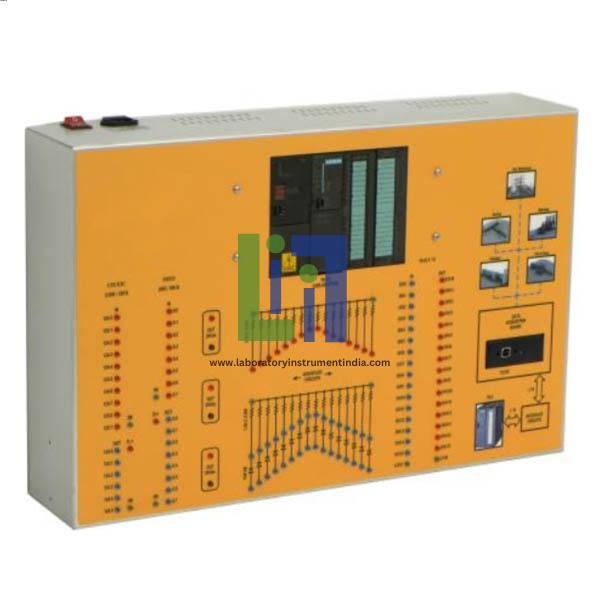

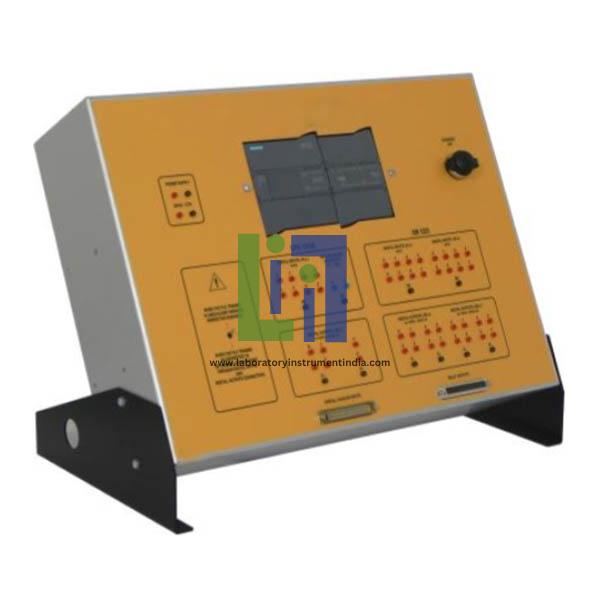

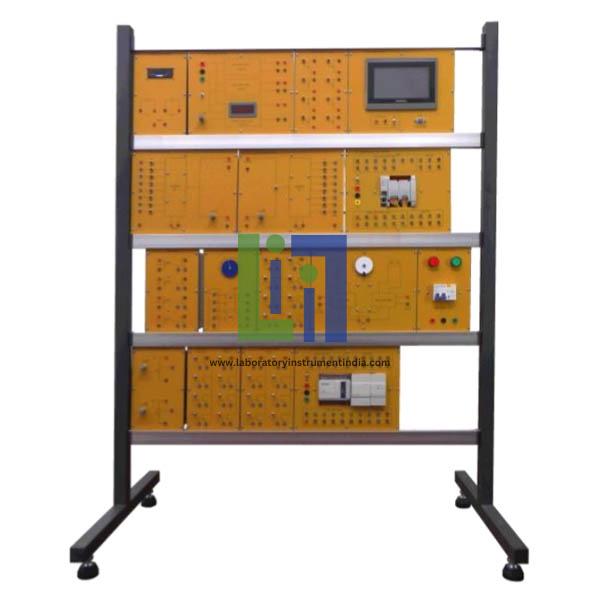

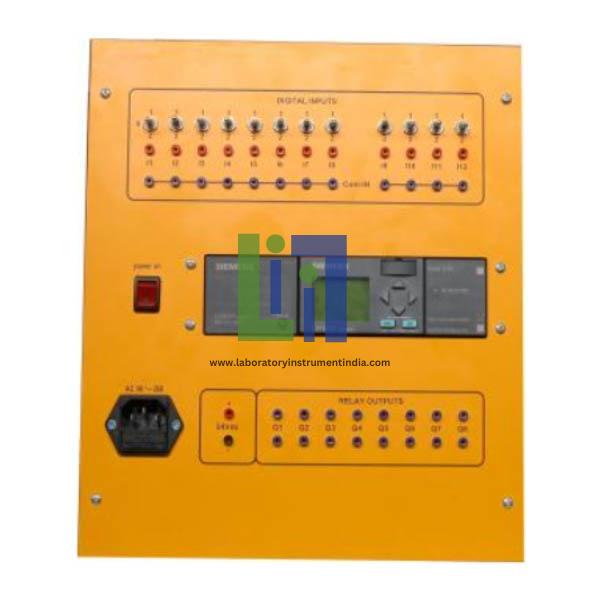

The PLC Programmable Logic Controller And Automation Training System has a built-in powerful industrial PLC employing the latest technology features which allows the management of all the typical variables of an industrial process. The PLC Programmable Logic Controller and Automation Training System is today the core of most of the control systems. The PLC programs can be managed by a PC and dedicated software for Windows. The system is supplied with manuals which describe all parts of the unit, the installation and utilization procedures, as well as many exercises with the relative results. In fact, very often in any automated system the commands and controls are processed and executed by PLC. The unit makes available in a single structure all the equipment required to carry out exercises at any level of complexity, from the simplest to the most demanding.
....

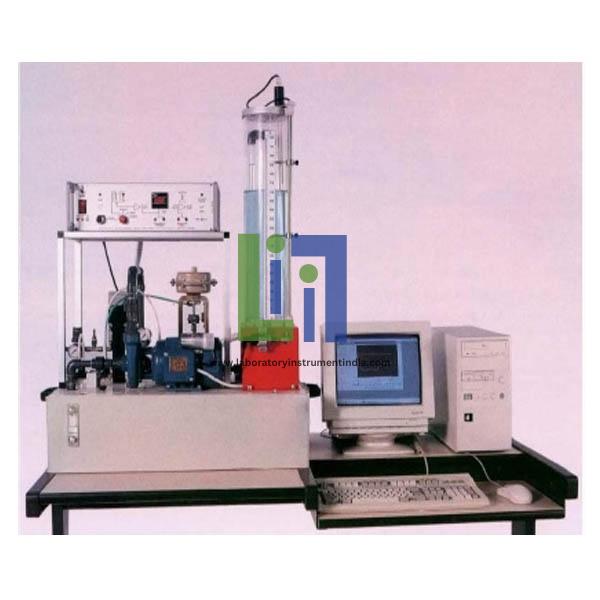

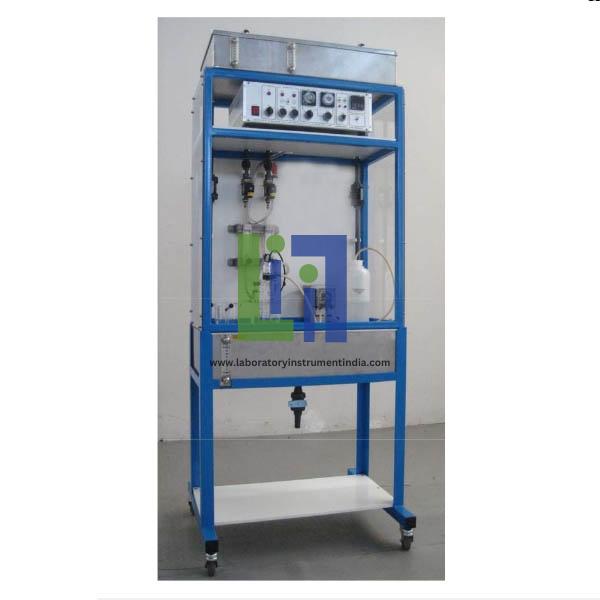

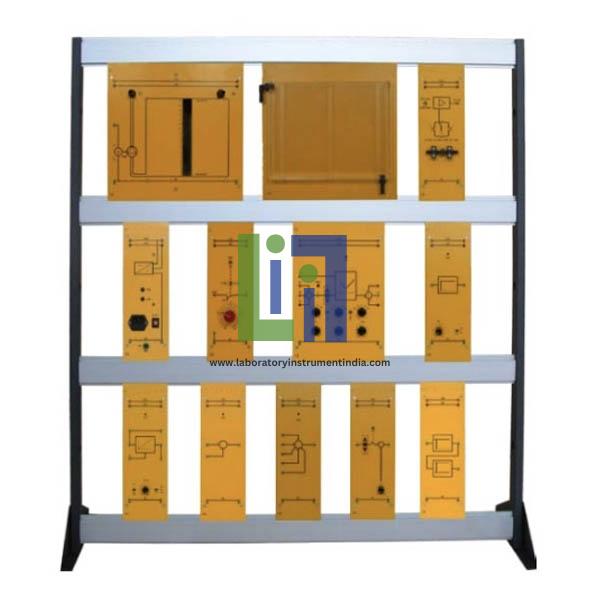

Level Control AND Regulation Study Unit makes it possible to analyse the behavior of a control loop where the controlled quantity is the water level in a tank. The unit can be had in two versions, where the control element consists of a pneumatic valve or a motorised electricvalve. Students can examine the effects of the different control parameters on the performance of the control chain and the stability of the system; furthermore, they can become familiar with the components commonly adopted in modern industrial applications, as the system is entirely made of industrial quality components. The behavior of the controlled quantity can be followed visually so that the students can grasp the basic concepts of control and regulation techniques in an intuitive manner.
....
The automatic data acquisition and analysis system for Personal Computer allows to take the measurements automatically, plot on screen or print out and file the test data. The Pressure Transducers Study Module allows to study the calibration methods for a signal conditioner instrument connected to a pressure transducer and to verify the system linearity, repeatability and hysteresis.
....
The Acceleration Module is suitable to study the behaviour of a system by using a piezoresistive acceleration transducer.
....
Pressure Control And Regulation Study Unit makes it possible to analyse the behavior of a control loop where the controlled quantity is the pressure of the air ina tank. Pressure control is one of the main problems encountered in factory automation and process control. Students can examine the effects of the different control parameters on the performance of the control chain and on the stability of the system; furthermore, they can become familiar with the components commonly adopted in modern industrial applications, as the system is entirely made of industrial quality components. With this trainer, all the tests can be performed through a Personal Computer and a special software for Windows. This makes the problem of choosing the most suitable control technique very interesting. Compared to other quantities such as the level or the temperature the pressure varies as a function of the regulating signal in a very quick way.
....
A solution flows, by falling, into mixing tank where also a noise solution is sent by falling from tank called Noise. Thanks to solenoid valves and and manual valves and the control the two flows is achieved, and measured directly by means of flow meters and. The purpose of the process is to control the pH of a solution initially held in tank called Main. Stirrer allows to get homogeneous solutions inside process tank. The pH of the solution present in mixing tank is measured by means of probe converted into electrical signal and supplied to electrical unit by means of signal transmitter. From sampling tank it is possible to take a sample of the controlled solution held in tank in order to measure the pH with other gauges.
....
Universal Industrial Process Simulator is effected by means of series R-C pneumatic circuits. Universal Industrial Process Simulator module allows to simulate the process, the regulating element, the measurement and transmission of the controlled quantity and to generate step or ramp noises.
The Universal Industrial Process Simulator is composed of Three sections:
Controlled quantity transmission,
Process simulation and noise generation,
Actuators.
The board enables the encoder to update the buffer and the latter can be read and cleared from the Personal Computer. A special software program running in the MS-Windows environment enables the students to perform the tests through the Personal Computer. Interfacing with the PC is via a board fitted with a digital buffer containing the angle position of the encoder. The unit includes all the measuring instruments necessary for the execution of the tests and numerous measuring points to check the most important signals with the aid of external instruments. Study Unit On DC Motor Position Control With Incremental Encoder makes it possible to study the position control techniques for a DC motor by means of an incremental encoder and a Personal Computer.
....

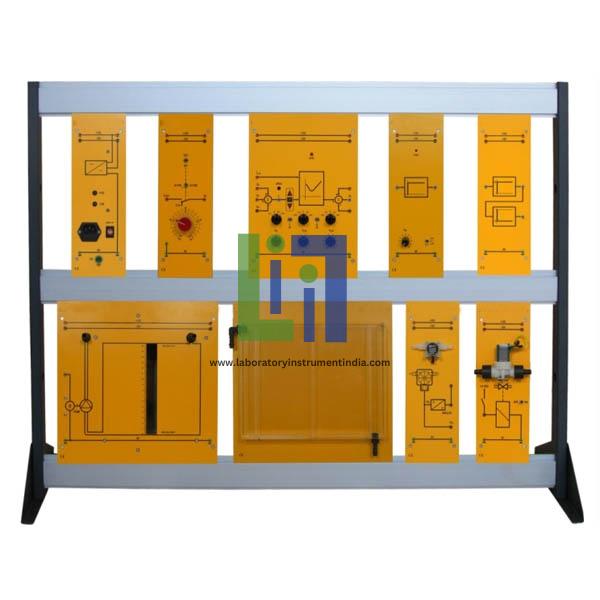

Flow Control And Regulation Study Unit makes it possible to analyze the behaviour of a control loop where the controlled quantity is the flow rate of a liquid in a circuit. Students can examine the effects of the different control parameters on the performance of the control chain and on the stability of the system; furthermore, they can become familiar with the components commonly adopted in modern industrial applications, as the system is entirely made of industrial quality components. The unit can be had in two versions, where the control element consists of a pneumatic valve or a motorised electric valve. Compared to other quantities such as the level or the temperature the flow rate varies as a function of the regulating signal ina very quick way. This makes the problem of choosing the most suitable control technique very interesting.
....
Temperature Control And Regulation Study Unit makes it possible to analyse the behavior of a control loop where the controlled quantity is the temperature of aliquid in a tank. Students may test out the use of different types of regulators, as are currently employed in industrial applications, and thetests can be performed in highly realistic conditions, as the system is entirely made of industrial quality components. Temperature control is one of the main problems encountered in factory automation and process control. It is also extremely interesting for teaching purposes, because temperature varies very slowly over time and therefore makesit possible to apply different control techniques and to assess the effects of the control parameters involved. It is suitable to an interdisciplinary laboratory, because it includes mechanical, chemical, electronic and EDP contents. With this trainer, all the tests can be performed through a Personal Computer and a special software for Windows.
....
A special software program operating in MS-Windows environment enable to perform the execution of tests through a Personal Computer. The Temperature Transducers Study Module allows the calibration of instruments connected to temperature transducers, such asthermo couples and thermo resistances, and it demonstrates experimentally the concept of measure uncertainty. The unit includes all the measuring instruments necessary for the execution of the tests and numerous measuring points to check the most important signals with the aid of external instruments.
....
The basic module includes the electrical equipment and the components for the Level control. The Modular Process Control Trainer system is a modular and low cost trainer based on Personal Computer and suitable to study the Process Control techniques. It is possible to carry out the laboratory activity in an extremely productive way using the potential of a Personal Computer. Some additional kits allow to fulfill the Flow, Pressure, Temperature, pH and conductibility control by using most of the basic module components.
....
Stepping motor, 200 step/rev, max torque = 60 N· cm
No. 2 limit micro switches
Graduated disc, 0 360
Encoder (200 pulse/rev)
Gear motor 90/1 rev.
Electric supply box consisting of:
a) Ammeter for measuring the motor absorbing current
b) Diagram on front panel showing the circuit working
c) Bushings for measuring relevant signals
d) Piloting card for stepping motor with USB interface
The movement is obtained through pneumatic cylinders, commanded by On-Off solenoid valves, allowing to reach 8 positions to lift and to lower the gripper and to open and close the grip. Pneumatic robots are widely utilised in the industry for the movement of parts with limited dimensions and weight at high working rate. The use of industrial components operating with lubricated air assures high accuracy.
....
The possibility of further integrations or updating in the future is obviously ensured. The Transducers And Automation Modular Laboratory is an extremely flexible and efficient modular training system for the study of industrial transducers and relevant electronic circuits of signal conditioning and conversion. By means of its modular composition, it is possible to choose the optimal configuration according to any specific educational requirements and available budget. A Personal Computer Data Acquisition System is also available in order to allow the computerized measurements to determine the transducer characteristics.
....
It allows to perform educational exercises of programming, control and regulation on the axis movement. The operation phases correspond to the industrial techniques of loading and unloading used on the flexible lines. The Hydraulic Pick And Place Modular Robot robot has been designed with the proportional and on/off hydraulic technologies, electronic control. The unit is supplied together with a complete handbook.
....
Force Module included a precision balance which allows to load the cell both in traction and in compression more over balance and transducer are protected by a transparent case. Together with the loading cell and its signal conditioner, a cell loading structure is provided. Force Module enables the study of a force transducer, the calibration of its signal conditioner and the verification of the system linearity, repeatability and hysteresis.
Characteristics:
Digital voltmeter
Analogue output of universal use ± 2 V (for A/D converter card).
Synoptic on the front of the power supply unit.
Signal conditioner with bridge stabilized power supply and amplification stage of signal with variable gain.
The electrical equipment supplies the electrical feeding to all the components of the system, allows the manual command of the single axis or their automatic control through programs of complex cycles. The system allows to simultaneously or independently control two axes and to face the most important basic problems concerning industrial automation and specifically robotics.
....
The trainer is supplied with an exhaustive manual including a technical description of all the components operating and maintenance instructions and many exercises.

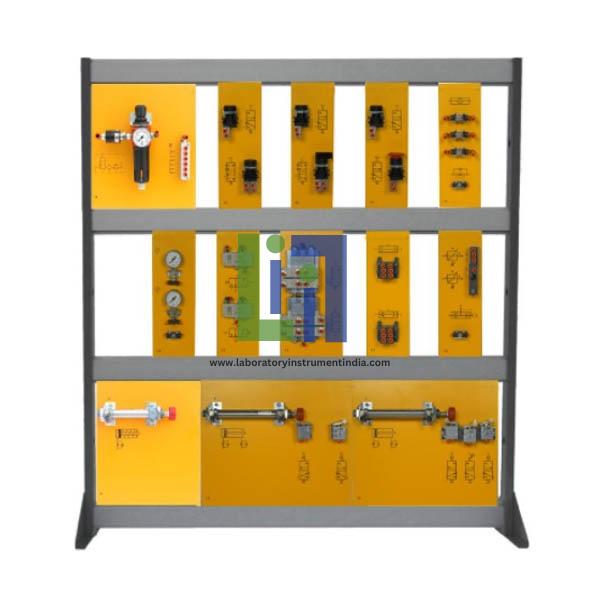

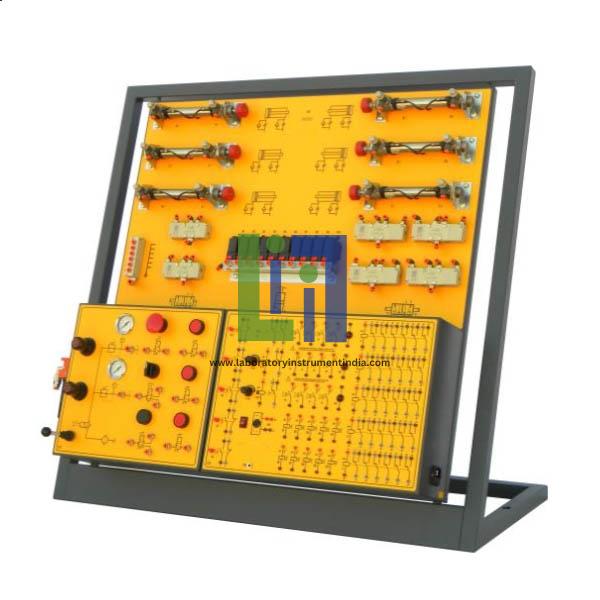

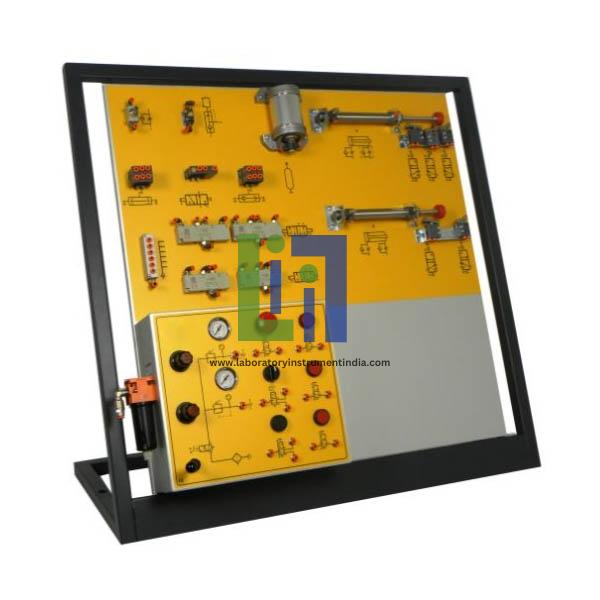

The unit Basic Pneumatics Trainer is the economic version of the Modular Pneumological Tutor.
The unit is made of painted steel plate and can be utilised on any support bench.
The unit requires an external pneumatic supply. A compressor is supplied as a optional.
The unit has been designed to study and experiment the fundamental pneumatics.
The correct implementation of electronics has enabled considerable flexibility of the system with the possibility to control and adjust the hydraulic quantities automatically and continuously. The hydraulic trainer has been designed using high-tech hydraulic components presently employed in industrial automation.
The Proportional Valves Test Bench trainer allows to:
Simulate machine cycles by setting the parameters and with the possibility of adjustment and control under static and dynamic conditions.
Study the behavior of hydraulic circuits with varying hydraulic parameters and load conditions
Measure the characteristics of proportional pressure, flow and direction valves
The control board contains all the reading points for the main signals and the adjustment and calibration points of the proportional valves under static and dynamic conditions.

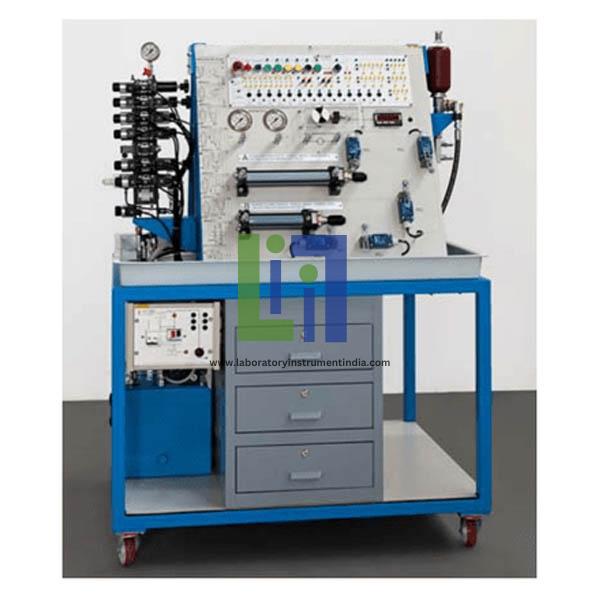

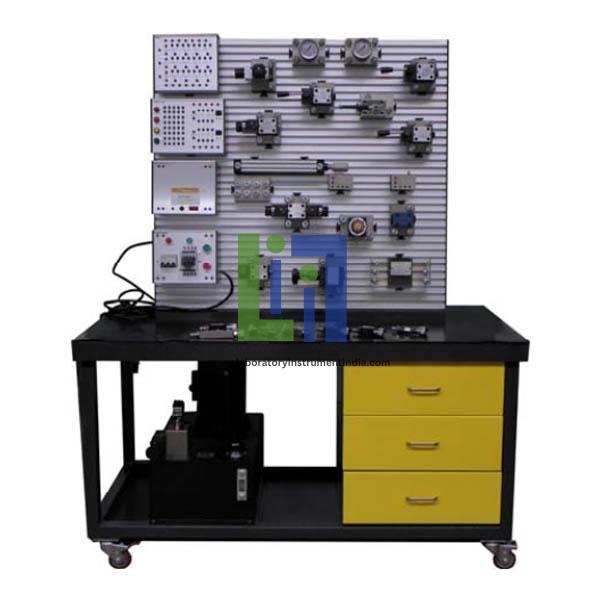

The Basic Oil Power Hydraulics Trainer is supplied with an exhaustivemanual, including a technical description of all the components, operating andmaintenance instructions and manyexercises. The unit Basic Oil Power Hydraulics Trainer is the economic version of the Modular oilpower hydraulic trainer. The panelrequires an external oil power supply unit, supplied as a optional. The unit ismade of a panel carrying the industrial type components needed to study basi coil power hydraulics. The Basic Oil Power Hydraulics Trainer consists of a top desk panelcarrying the following components:
....
The automatic data acquisition and analysis system for Personal Computer allows to take the measurements automatically plot on screen or print out and file the test data. The Angular Speed Module module allows to study two standard measuring systems for the angular speed of shafts, such as the generator and the phonic wheel.
....
The Modular Pneumological Tutor has een designed to study and experiment the fundamental pneumatics the pneumological techniques and the cascade pneumatic circuits.
Support Panel
Support Panel is made of painted steel plate and can be utilized on any support bench in sloping or horizontal position.
It is suitable for technical andprofessional training at different levels. It consists of a trolley mounted structure with a hydraulic power supply unit and two panels, one for the basic oil power components and one for On/Off and proportional electrical control. The panels can be used independently, using an external hydraulic power supply with suitable characteristics. Modular Oil Power Hydraulic Trainer is a modular system specially designed to test out the techniques for the transfer of fluid power and electro hydraulic control techniques. The two panels are functionally independent, but can be coupled so as to form a double-faced structure, whichis installed onthe trolley mounted frame.
The trainer is supplied with anexhaustive manual, including a technical description of all the components, operating and maintenance instructions and many exercises. The Modular Oil Power Hydraulic Trainer can be easily interfaced with PLC or anotherprogrammable logic controller available to theuser in order to program complex operating cycles.
The Transparent Oil Power Components Study Unit is composed of:
Overhead projector.
Set of transparent oil power components
Set of technical cards
Set of colour slides
Trolley-mounted furniture with support plane for the components storage, a drawer for tools, a support for projector
Over the furniture there is fitted an hydraulic power generator with the following characteristics:
Working pressure: 10 bar
Pressure limiting device
Manometer
Aluminium tank: 12 I
Single-phase electric engine 0.5 HP - 220 V single-phase 50 Hz
Air inlet valve in the circuit to evidence the flow.
The sectioning procedure has been carefully studied to show the operating principles thus becoming a very important educational aid. Provides the components under sectioned version to visualize the technologies used their construction. You can find the same components fitted on our trainers for the study of pneumologic. Industrial type pneumatic components which are container in a suitable suitcase and are usually utilized in the industrial automation control circuits.
....

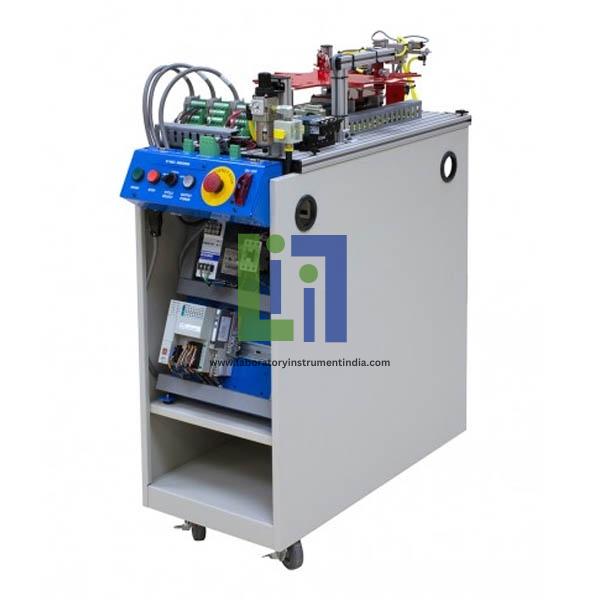

The Orientation-Processing station teaches interfacing, problem solving, programming, sequencing and operation for index tables, stepper motors, homing sensors, fiber optic sensors, part transfer, parts orientation, and capacitor sensors. The Orientation Processing Station is a small mechatronics system in itself with multiple, integrated technologies that can be used stand-alone or in combination with other stations. The Orientation Processing Station is a mobile workstation with slotted work surface that contains an operator station, 8-station rotary index table, pick and place pneumatic robot, fiber optic gauging module, part transfer module, finished parts storage module, parts set, a pneumatic distribution module as well as an electrical distribution module, an electro-pneumatic valve manifold, and a digital I/O interface module. This station performs the role of parts orientation and an optional simulated machine operation in the process of assembling a working industrial directional control valve. Industrial safety and operation are emphasized on all mechatronic stations.
Features:
Inductive Sensors
Capacitive Sensors
Homing Sensors
Stepper Motors
Part Transfer
Parts Orientation
Index Tables.
Integration skills across multiple stations as well as skills specific to an individual station are covered in the balance. Overall system skills include discrete I/O handshaking, system start-up/halt, system stop reset, and FMS programming. The Programming For Educational Training boasts a robust 10 Learning Activity Packets (LAPs). Stations can be easily moved apart to function as individual workstations by releasing two quick connects and one plug-in cable. Stations can also be mixed and matched, enabling instructors to build and change the system as budgets allow or needs change. All mechatronics stations teach operation, sequencing and programming skills. Many mechatronics station combinations are available to support your needs. The first two LAPs concentrate on skills core to all stations: an introduction to mechatronics design, systems concepts, safety, machine operation, sensors, pneumatic pick & place, and electrical pick & place. The Programming For Educational Training includes the Allen-Bradley Programmable Controller, a PLC Portable Mounting Console, 24 VDC Power Supply, Master Control Relay, a Student Learning Activity Packet Set, a Teachers Assessment Guide and an Installation Guide.
Features:
Operation, sequencing, and programming skills
Optional Online eBooks
Introduction to Mechatronics
Discrete I/O handshaking
Student Reference Guide.

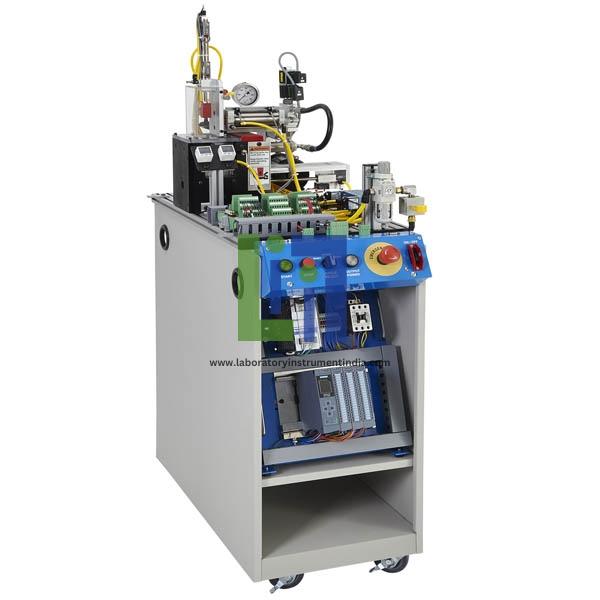

Electro Hydraulic Testing Station learning system features a hydraulic press module, part clamp module, hydraulic power unit, and more Among other demonstrations, the clamp module will pick up a test valve and the hydraulic press module will hold a test manifold against the valve body. Electro Hydraulic Testing Station allows learners to gain valuable product testing skills used in automated processes by studying topics like station operation and adjustment, module sequencing, and station sequencing. Learners will use these and other components to practice operating, programming, and adjusting real-world mechatronics equipment. Electro Hydraulic Testing Station learning system will allow learners to practice and study how products are tested on an automated line, how these skills are integrated within a larger automated process, and an example of how hydraulics are utilized on an automated line. Uses components that learners will find on-the-job in order to give the best opportunity to build confidence and industrial competencies.
Features:
Allows learners to practice and study how products are tested on an automated line, how these skills are integrated within a larger automated process, and an example of how hydraulics are utilized on an automated line
Allows learners to gain valuable product testing skills used in automated processes by studying topics like station operation and adjustment, module sequencing, and station sequencing
Includes a hydraulic press module with horizontal hydraulic cylinder and electro-hydraulic valve; hydraulic power unit; pressure transducer system; part clamp module; an operator station with lockout.

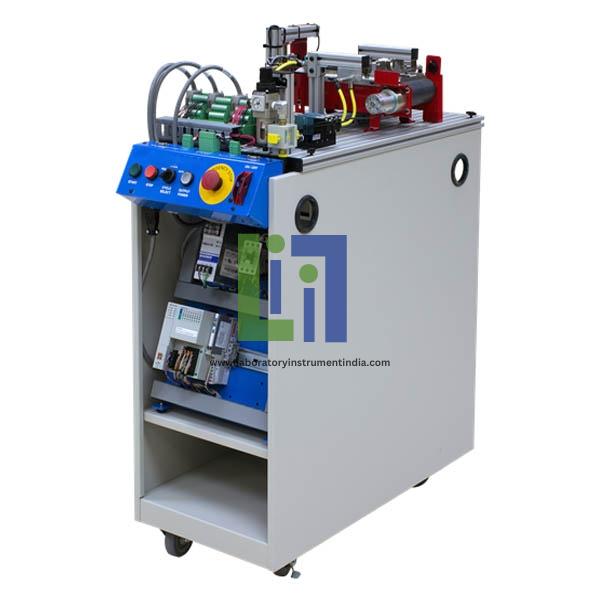

The Sorting Buffering Station training station teaches interfacing, problem solving, programming, sequencing and operation for sorting, queuing, flat belt conveyors, photoelectric sensors, and inductive sensors. Sorting Buffering Station is training mobile workstation. The Sorting Buffering Station is a small system in itself with multiple, integrated technologies that can be used stand-alone or in combination with other stations. The Sorting Buffering Station is a mobile workstation with slotted work surface that contains an operator station, belt conveyor module, part sorting module, buffer module, proximity sensing module, parts set, a pneumatic distribution module as well as an electrical distribution module, an electro-pneumatic valve manifold, and a digital I/O interface module. This station performs the role of sorting parts by material type in the process of assembling a working industrial control valve. Industrial safety and operation are emphasized on all mechatronic stations.
Features:
Flat Belt Conveyors
Sorting
Inductive Sensors
Photoelectric Sensors
Queuing.
This station performs the role of assembling a working industrial directional control valve using a combination of servo robotic and pick and place technologies. The Servo Robotic Assembly Station trains students for pick and place assembly, and teaches interfacing, problem solving, programming, sequencing and operation for servo robotics, gravity feeders, pneumatic screw feeders, and part insertion. Servo Robotic Assembly Station, 5 of the 870 Mechatronics Learning System. The Servo Robotic Assembly Station is a small mechatronics system in itself with multiple, integrated technologies that can be used stand-alone or in combination with other stations. The Servo Robotic Assembly Station has two mobile training workstations with slotted work surfaces that contain an operator station, Pegasus II servo robot with teach pendant, spring/knob feed module, screw/knob engagement module, spool insertion module, screw feed module, parts presentation module, finished parts storage module, parts set, assembly shuttle module, a pneumatic distribution module as well as an electrical distribution module, an electro-pneumatic valve manifold, and a digital I/O interface module. Industrial safety and operation are emphasized on all mechatronic stations.
Features:
Pick and Place Assembly
Servo Robotics
Pneumatic Screw Feeders
Gravity Feeders
Part Insertion.
Integration skills across multiple stations as well as skills specific to an individual station are covered in the balance. Overall system skills include discrete I/O handshaking, system start-up/halt, system stop/reset, and FMS programming. The first two LAPs concentrate on skills core to all stations: an introduction to mechatronics, systems concepts, safety, machine operation, sensors, pneumatic pick & place, and electrical pick & place. Stations can also be mixed and matched, enabling instructors to build and change the system as budgets allow or needs change. Stations can be easily moved apart to function as individual workstations by releasing two quick connects and one plug-in cable. Many station combinations are available to support your needs. All mechatronics stations teach operation, sequencing and programming skills.
Features:
Operation, sequencing, and programming skills
Optional Online eBooks
Introduction to Mechatronics
Discrete I/O handshaking
Student Reference Guide.

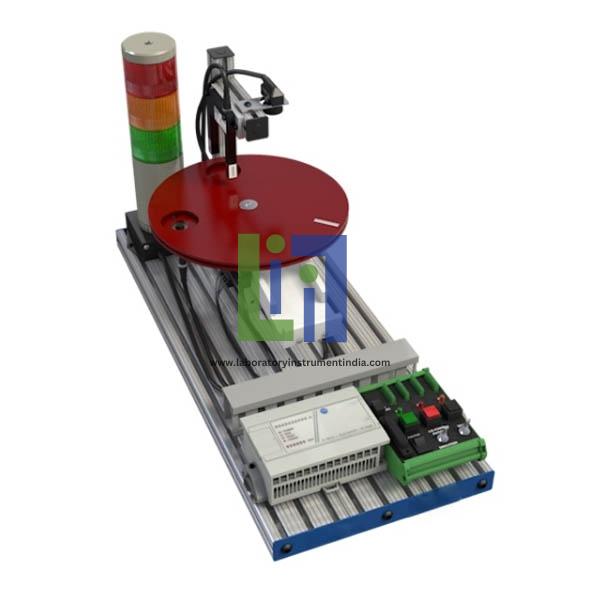

Tabletop Mechatronics learning system features a pick-and-place, gauging, and inventory station, all of which fit on a standard tabletop! Mechatronics is an integral part of the automotive, pharmaceutical and chemical industries, just to name a few. Tabletop Mechatronics is a portable, durable, affordable learning system that forms a fully automated line to teach real-world mechatronics skills. Each mechatronics station include a PLC control unit that features an inputs, 6 outputs, and much more! These stations also include curriculum that covers basic PLC programming and I/O training simulators with pushbuttons, selector switches, and output indicators so that learners can program and operate the PLC before moving actuators on the station. The impact and applications of mechatronics grows by the day, so industries need skilled workers who understand these complex systems.
Features:
Heavy Duty Industrial Components for Long Life
Plug and Play Interchangeable Controllers
Portable for Training in Multiple Settings
Pneumatic and Electric Stations
Three Individual Stations Form One Mechatronics Line
Affordable Solution for Mechatronics Training
Dual Function: Operator Station and I/O Simulator for PLC Training
Safe 24 VDC Power
Outstanding Automation Curriculum.

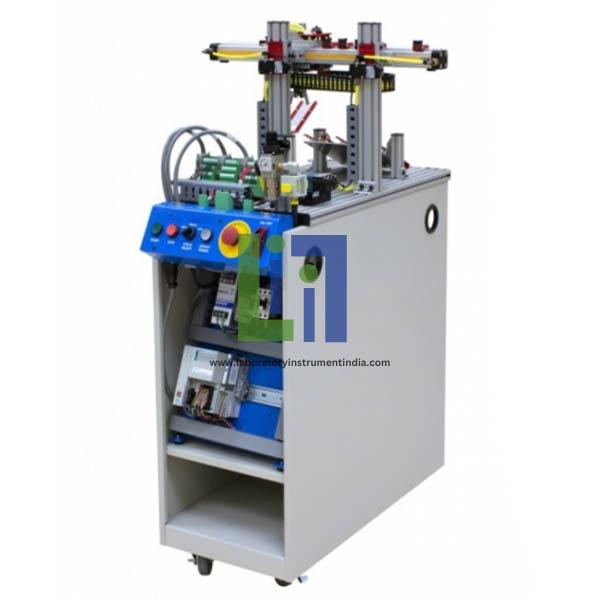

Inventory Storage Station is a mobile workstation with slotted work surface that contains an operator station, a programmable position pneumatic robot, 4-channel parts storage module, a parts presentation module, a pneumatic distribution module as well as an electrical distribution module, an electro-pneumatic valve manifold, and a digital I/O interface module. This mobile training workstation sorts the completed assemblies of working industrial directional control valves, and trains on part retrieval methods. The Inventory Storage Station teaches automated manufacturing inventory, including interfacing, problem solving, programming, sequencing and operation for pick and place storage, pneumatic grippers and brakes, infrared sensors, and a programmable pneumatic traverse module.
Optional Multimedia Curriculum:
This thorough, exceptionally detailed curriculum is built to begin with the basics and steadily advance to more complex concepts and skills. Unmatched multimedia utilizes text, audio, and stunning 3D animations that engage learners in both theoretical knowledge and hands-on skills. Through partnerships with key industry leaders and leading edge educators, developed the right balance of knowledge and applied skills needed to train learners to work in their chosen field.
Features:
Pneumatic Grippers and Brakes
Pick and Place Storage
Programmable Pneumatic Traverse Module
Inductive Sensors
Infrared Sensors
Magnetic Reed Switches.

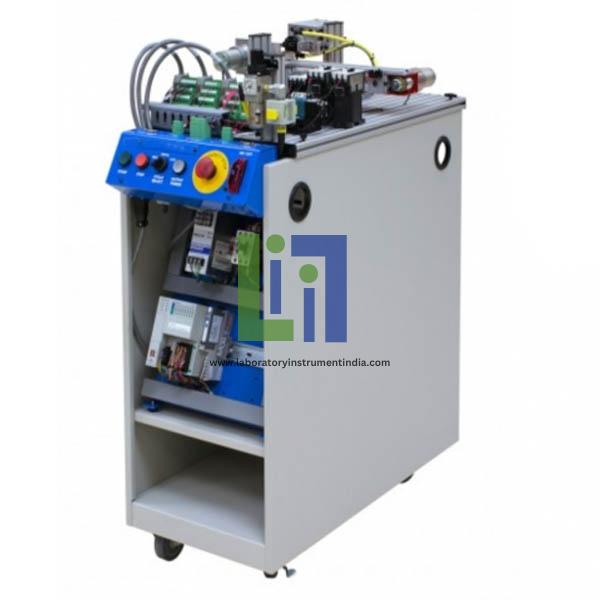

The Torque Assembly Station teaches interfacing, problem solving, programming, sequencing and operation for an automated Torque Assembly Station, electric traverse slide, DC motor torque, variable speed motors and clutches. This station assures that the assembly components are properly tightened in the process of assembling a working industrial directional control valve. Torque Assembly Station is mobile training station 6 of the Mechatronics Learning System. The Torque Assembly Station is a mobile workstation with slotted work surface that contains an operator station, screw torque module, part clamp module, electric traverse module, a pneumatic distribution module as well as an electrical distribution module, an electro-pneumatic valve manifold, and a digital I/O interface module. The Torque Assembly Station is a small mechatronics system in itself with multiple, integrated technologies that can be used stand-alone or in combination with other training work stations. Industrial safety and operation are emphasized on all mechatronic stations.
Features:
Electric Traverse Slide
Inductive Sensor
Variable Speed Motors
Pneumatic Gripper
DC Motor Torque
Clutches
Magnetic Reed Switches
Automated Torque System
Variable Speed PWM (Pulse Width Modulator).

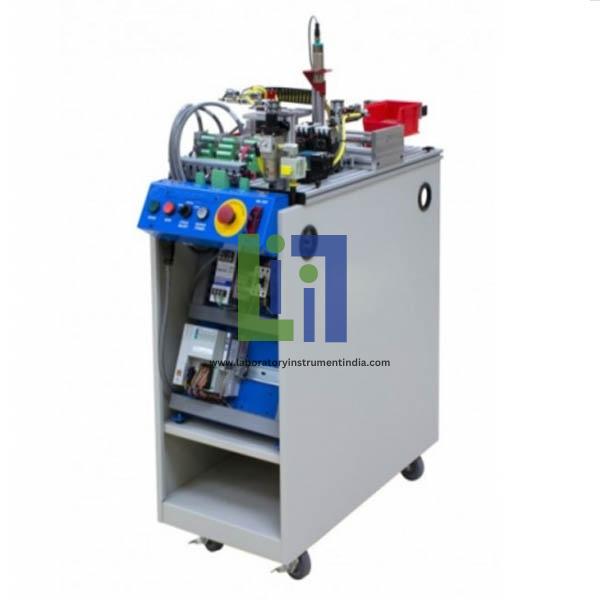

The Gauging Station teaches interfacing, problem solving, programming, sequencing and operation for go no-go gauging, analog sensor adjustment, non-servo electric traverse axis, synchronous belt drive, ball screw drives and part rejection/transfer. The Gauging Station is a small mechatronics system in itself with multiple, integrated technologies that can be used stand-alone or in combination with other stations. The Gauging Station is a mobile training workstation with slotted work surface that contains an operator station, ultrasonic measurement module, proximity gauging module, part transfer module, part reject module, finished parts storage module, parts set, a pneumatic distribution module as well as an electrical distribution module, an electro-pneumatic valve manifold, and a digital I/O interface module. Industrial safety and operation are emphasized on all mechatronic stations. The Gauging Station performs a number of quality inspections in the process of assembling a working industrial directional control valve.
Features:
Non servo Electric Traverse Axis
Inductive Sensor
Ultrasonic Sensor
Analog Sensor Adjustment
Magnetic Reed Switches
Go/No-Go Gauging
Synchronous Belt Drive
Limit Switches
Photoelectric Sensor
Ball Screw Drives.
Pick And Place Feeding Station starts the process of assembling a working industrial directional control valve. The Pick And Place Feeding Station is a mobile workstation with slotted work surface that contains an operator station, powered feed module, finished parts storage module, parts set, a pneumatic distribution module as well as an electrical distribution module, pneumatic pick and place manipulator, an electro-pneumatic valve manifold, and a digital I/O interface module. The Pick And Place Feeding Station teaches interfacing, problem solving, programming, sequencing and operation for pneumatic robots, material feeding systems, powered parts feeders, vacuum grippers, hall-effect sensors, and magnetic sensors.
Optional Multimedia Curriculum:
This thorough, exceptionally detailed curriculum is built to begin with the basics of material feeding and handling systems and steadily advance to more complex concepts and skills. Unmatched multimedia utilizes text, audio, and stunning 3D animations that engage learners in both theoretical knowledge and hands-on skills. Through partnerships with key industry leaders and leading edge educators, developed the right balance of knowledge and applied skills needed to train learners to work in their chosen field.
Features:
Powered parts feeder
Pneumatic robot
Hall-effect sensor
Magnetic sensor
Photoelectric sensor
Vacuum gripper
Material feeding system.
The module is complete with two single pole switches to operate very easily on it showing the interfacing possibilities with a traditional domestic plant. The Push Button Interface is a binary input and output device with four channels; each of them may be used either as an input for potential free switch push button contacts or as an output for control of a light emitting diode (LED).
....

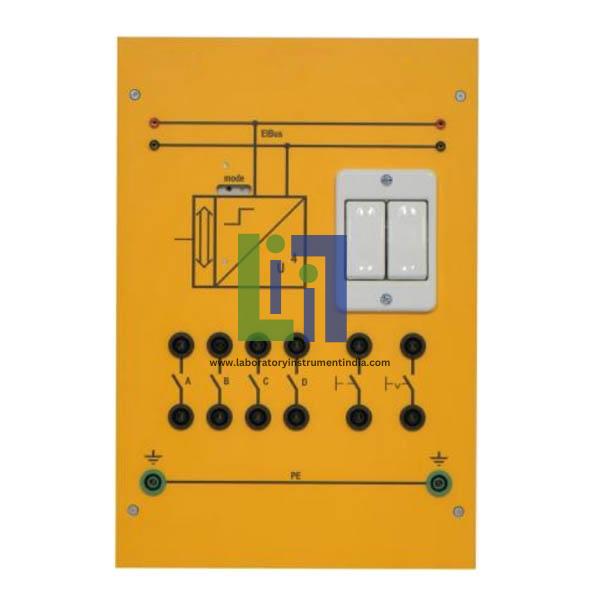

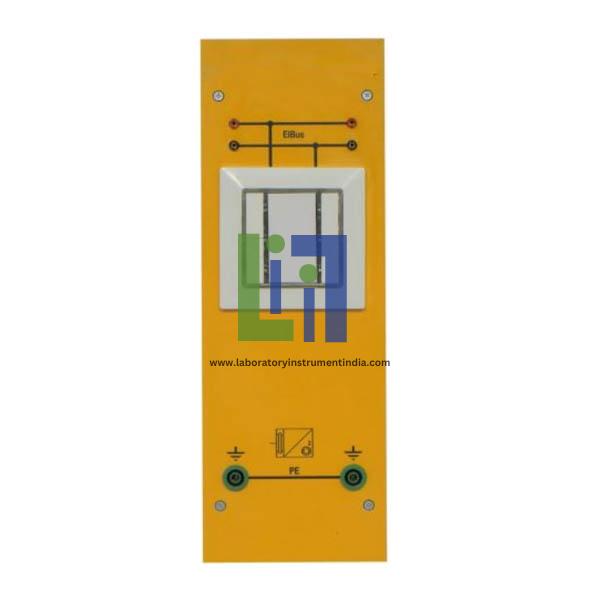

This Double Push Button module has four switch buttons that, horizontally aligned, or as single buttons for sending values, may be used as a pair of buttons (e.g. for defined switching/dimming, or control of shutters and blinds), single button switching/dimming or single button control of blinds.
....
It has a voltage and current regulation and is therefore short circuit proof; it can supply DC 24V power from an additional pair of terminals. The Power Supply unit provides and monitors the power necessary for the system operation with safety extra low voltage: the integrated choke prevents the data telegrams from short circuiting on the bus line.
....

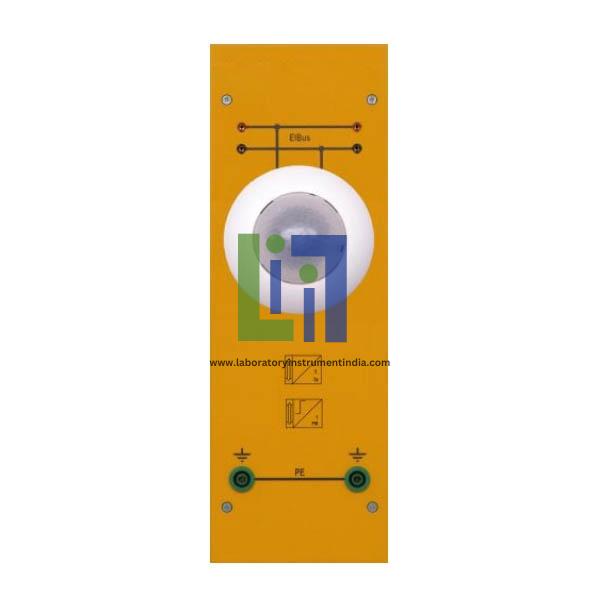

The detector signal can be analyzed via two separate communication channels, termed motion detector and presence detector. Another main application is the automatic control of the lighting on an office workplace. Presence Detector And Brightness Sensor is a presence/motion detector with integrated constant light level control. It contains an independent light sensor with integrated 2Â level light control (switching) and constant light level control (dimming). Presence Detector And Brightness Sensor communicates via actuators or other devices.
....

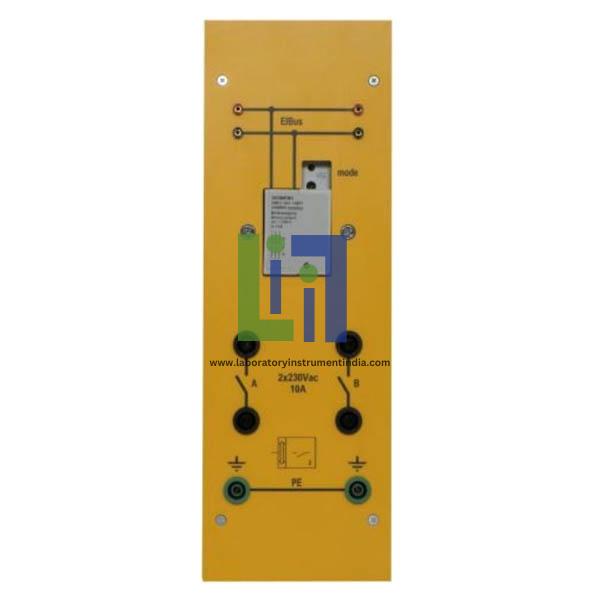

Each of the outputs can be assigned various tasks depending on the application program used: i.e. the Binary Output consists of the device (HW) and its application program (SW). The Binary Output is a device that can switch two separate groups of electric devices via its two outputs.
....

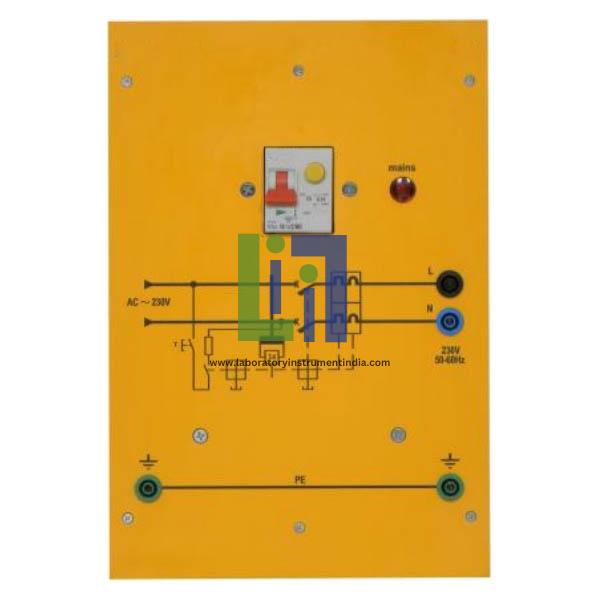

Residual current circuit breaker with overload protection for connection to the single phase mains.
....

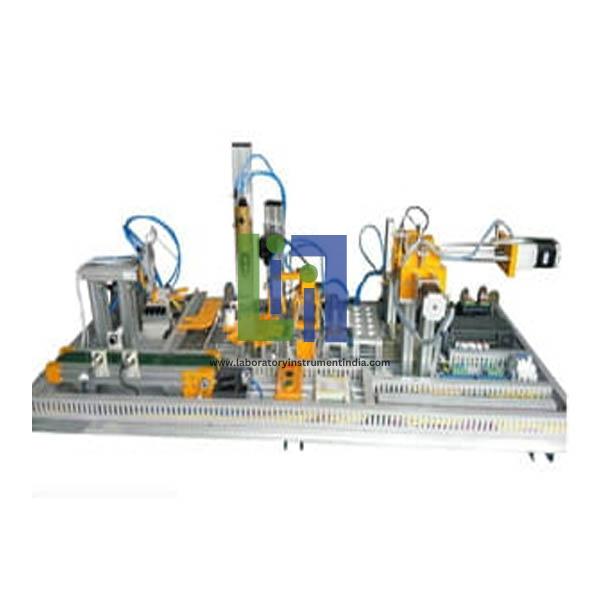

CIM automation products is especially designed for engineering graduates. Students can study the theory and work with the system to get a sound knowledge of the CIM, which allows for transversal applications in the following areas: Automation, Pneumatics, Mechatronics, Electronics, Process Control, etc. Our system is composed of different modules, each one reproducing a single basic application that is commonly used in the industry. Computer-Integrated Manufacturing (CIM) is a method of manufacturing in which the entire production process is controlled by computer. Typically, it relies on closed-loop control processes, based on real-time input from sensors. The whole system is controlled by one Programmable Logic Controller (PLC) and it can be configured to perform a complete process. Each module is implemented with real electronics, mechanics and pneumatics components and has a specific function. As an integrated computer system, the output of one activity serves as the input to the next activity, through the chain of events.
....
This Trainer Is Composed As Follows:
Hydraulic power unit assembled onto the metal structure, under the panel; 4.5 liters /min., noise level 60 db 1 meter, pressure relief valve, oil level viewfinder, air inlet filter, oil return filter, 1 pressure gauge, oil reservoir 30 liters, on ÂÂoff control box with two push buttons and motor overload protection.
Work bench complete with metal working panel with holes for clamping the hydraulic components without using additional tools, 4 wheels and 3 drawers for storing components.
Pressure relief valves 2 125 bar (2 off )
One way flow restrictor
Shut off ball valve
Two way flow restrictor
T distributor with pressure gauge
Four connections distributor on manifold with pressure gauge 0 .. 100 bar
One way restrictor (non ÂÂreturn valve)
Cross distributor, 4 connections
Pressure compensated one way flow regulator
Double acting differential cylinder
Piloted one way restrictor
2/2 manual acting valve, spring return
3/2 manual acting valve, spring return
4/2 manual acting valve, spring return
4/3 manual acting valve, spring centred
Set of 12 hoses with quick female connectors
Set of tubes for testing pressure drops
Workbook with theory and practices.
The trainer is composed of:
A control module, containing the interface circuits for the sensors and the actuators and the ON/OFF, proportional, integral and derivative control circuits (PID).
An educational board with a pressurized vessel and a set of sensors and actuators for level, pressure, temperature and flow;
Technical Features:
Water tank capacity: 20 litres approx.
Pressurized vessel capacity: 5 litres approx.
Level sensors:
On reed ON/OFF sensor
Linear variable differential transformer (LVDT)
Temperature sensors:
Bi metallic direct reading thermometer
Platinum thermo resistance
Flux sensors:
Flowmeter, direct reading
Flowmeter 8000 pulses/ litre
Pressure sensors:
Manometer, direct reading
Strain gauge.
Pneumatics is a flexible system composed of a vertical frame where the modules are easily inserted for the execution and/or the demonstration of the pneumatic circuits; it also allows obtaining several sequential cycles, by following standard techniques and procedures. A modular system provides teachers with the best tool for developing training courses related to both logics and pneumatics/electro Pneumatics control techniques. Through our trainers, students have the possibility of studying a collection of main components, for a better understanding of pneumatics and electro-pneumatics techniques. The standard symbols of the different components are clearly shown on the modules, to facilitate the connection of both the air pipes and the electric cables, besides explaining the function of each component. Pneumatic connections are performed by means of pipes and fast release joints; electric connections are through 2 mm. cables, since the electric devices and components (sensors, coils, relays, etc.) need a low power consumption and, therefore, the supply voltage can be low and safe (24Vdc).
....
The kneading machine in this system is based on the machines that are commonly used in the food industry. Industrial kneading machines are widely used in food, medicine, rubber, paper and other industries. With reference to the actual teaching needs, the system includes the PLC control, variable frequency control, temperature control and touch screen control that are commonly used in industry, and covers the experimental trainings in sensor detection technology, food process control, power distribution technology and other subjects. They can realize stirring for a variety of raw materials and can also achieve heating at the same time.
General Features:
The trainer is composed of three independent modules:
The kneading machine,
The main electrical cabinet,
The control cabinet.
The board allows performing the most important experiments in industrial electrical plants. All the components are identified through a clear synoptic diagram showing their type and symbol. The components are connected to the board front panel through 2 mm terminals for what concerns the low voltage controls and through 4 mm safety terminals for the connections to the mains. The board includes:
1 bipolar switch, 1 - 0 - 2
1 thermal relay
1 power supply, 24 V
2 timers
5 signaling lamps
5 push-buttons
5 remotely controlled switches with relevant auxiliary contacts.
The board is complete with a kit of connecting leads. On the back side of the board there are switches to allow for the introduction of faults by the teacher. Power supply: single-phase from mains.
....
The trainer can be controlled by MCU and PLC. It integrates different technologies, such as belt drive transmission technology, stepper motor driving, position detection, PLC and microprocessor technology. Electric Six Axis Manipulator trainer simulates the operation of an industrial robot, such as: overall rotation, arm rotation, forearm rotation, wrist rotation, gripper rotation, gripper opening/ closing.
....
The trainer includes a metal frame supporting the following modules:
Trainers for demonstrations and experiments in the electropneumatic field.
An air supply vertical board, providing 1 lever main switch, 1 filter, 2 pressure regulators with 2 pressure gauges, 1 mushroom and 3 digital 3/2 push-buttons, 1 lever 5/2 selector and 1 digital 5/2 push button.
An electro-pneumatic board, that, in addition to providing the terminal board for limit switches and valve solenoids, includes: 1 emergency and 4 control push-buttons, 1-2PDT switch, 1 delayed pickup and 1 delayed drop-out time relay, 5 auxiliary contactors with 6 changeover contacts each and 3 signal lamps.
A pneumatic board, where all the components are mounted and identified through a clear symbol. They include: 6 magnetic doub1e-acting cylinders with 12 flow regulators and 12 proximity sensors, 4 stable and 2 unstable 5/2 valves, 10 unstable 2/2 solenoid valves and 1 splitter. Supplied with 50 m of ¸4 and 3 m of ¸6 plastic tube, 1 tee and 5 plugs, as well as 1 pipe cutter, service manual and exercise book with experiments.
It has been developed as an open system; allowing the study of each system in autonomous way, each hardware component is independent from the other ones, connecting other existing equipment of the laboratory. Brushless DC Motor Trainer is a complete system for the study of 3 disciplines (DC brushless motor, PLC and Human Machine Interface HMI), important in both industrial and civil sectors.
....
Trainers for demonstrations and experiments in the pneumatic field. The trainer includes a metal frame supporting the following modules:
An air supply vertical board, providing 1 lever main switch, 1 filter, 2 pressure regulators with 2 pressure gauges, 1 mushroom and 3 digital 3/2 push-buttons, 1 lever 5/2 selector and 1 digital 5/2 push-button.
A pneumatic board, where all the components are mounted and identified through a clear symbol. They include: 2 double-acting cylinders with 3 return orifice check valves, 4 roller lever and 1 lever 3/2 valves, 2 stable and 2 unstable 5/2 valves, 2 AND, 2 OR and 1 NOT, 1 throttle valve, 1 capacity, 1 fast relief valve and 1 splitter. Supplied with 75 m of ¸4 and 3 m of ø 6 plastic tube, 10 tees and 10 plugs, as well as 1 pipe cutter, service manual and exercise book with experiments.
It is subdivided in two sections: in the lower section there are all the input and output transducers, while in the upper side there are all the signal conditioning systems as well as the instrumentation. Sensors And Transducers Trainer teaches the operating principles of the sensors/transducers which are most widely used in industry.
....
The automatic control is performed through a PLC, whose program manages the displays signaling vacant and full places for both zones and the opening and closing of the in and out barriers. Two Zone Parking Garage Simulator represents a two-zone parking garage where it is possible to realistically simulate the sequences that a car driver has to perform when he wants to use an automated parking garage. The number of cars in the parking garage is displayed through LED.
....
2 way valve with switching amplifier.
....
Five input summing point; the remaining inputs, one inverting and one non inverting, can be used to add the noise variables; three of them, non inverting, can be used in the realization of particular configurations of the controller, using separately the elements P, I and D.
....
Photocell on the lift car door to stop its closing in presence of an obstacle
Booking to be effected through buttons with flashing signaling, on priority basis and independently from the lift car position
The model consists of a real three-stop scaled down lift and allows an innovative approach to PLC control and management. The model includes:
Motor protection thermal relays simulated by buttons
Lift car deceleration, either up and down, near the stop floor
Lift car up-down and position visual signaling at each floor
Lift car geared motor, hoist and electromagnetic brake
Floor, safety and lift car deceleration limit switches
Reproduction of the inside lift car switch panel
Connection to PLC through terminals or connectors
Lift car and floor door open-shut motors
Installation graph on the panel
Fault simulator through micro-switches.
Simulated Controlled System allows the simulation of different processes,such as: 1st and 2nd order processes, integral action processes, proportional action processes, double integral action processes.
....
It allows analyzing the behaviour of an element with proportional transfer function able to oscillate, with a delay of the second order, both in the time domain and in the frequency domain.
....
A halogen lamp represents the heating element; a fan and a shutter valve allow, a PTC sensor provides the feedback signal; besides the reaching of a uniform temperature within given safety limits, also the insertion of noise variable. Temperature Control System represents a process for the control of the temperature, suitable for analysing continuous and discontinuous closed loop control systems.
....
Dead Time Element allows the insertion of an adjustable real dead time in those processes which are characterized by it.
Technical features:
Power supply: +15 V ; 0 V ; 15 V
Dead time Tt = 10 ms .... 100 ms/ 100 ms .... 1 s
Potentiometer fine setting.
Led indicators of over range.
Signal voltage range:Â10V, ..., +10V
Proportional coefficient of the module KS = 1
Three position switch for coarse setting and exclusion of the dead time.
The automatic control is performed through a PLC, whose program manages the displays signaling vacant and full places, both at the entrance and at every floor, the lighting intensity at each floor, the opening and closing of the in and out barriers, regulated by the presence of at least one car detected by special sensors, and the smoke and fire detectors. The system represents a two storey parking garage where it is possible to realistically simulate all the sequences that a car driver has to perform when he wants to use an automated parking garage. The number of cars in the parking garage is displayed through LED, whose control is assigned to an electronic circuit separated from the PLC.
....
Set of leads for connecting the terminals of the modules.
....
Slide valves allow you to change the configuration of the controlled system. Filling Tank used to demonstrate the characteristics of the controller system. Also includes a set of 10 transparent sheets, with a graduated horizontal scale and with a vertical one, for a manual recording of the characteristics of the controlled system, suitable to the use of markers soluble in water. Includes plug in devices for the sensors used to measure the level of the liquid.
....
Receptacle With Pump is used in conjunction with the filling tank.
Technical features:
Signal voltage range: 0 . . . +10 V Â
Power consumption of the pump: 10 W max.
Vessel capacity: 1.5 l approx. Â.
Lift car door open indication. Upper and lower limit switches to avoid programming mistakes. Lift car upÂÂ down manual cycle with automatic PLC control and management. Lift Simulator simulates a three ÂÂstop lift with real processing procedures. The lift car motion is displayed by LED. Booking obtained through buttons, on priority basis and independently from the lift car position. Connection to PLC through terminals. Power supply: single phase from mains.
....
Digital Input Output Simulator includes 8 switches for PLC input and 8 LED for PLC output. Power supply: single-phase from mains. Panel type simulator that must includes 8 switches for PLC input and 8 LED for PLC output. The connection to the PLC can be carried out through terminals.
....
The dialogue between the semaphores of the two roads allows the alternation of the green signal as a function of the traffic intensity, while the pedestrian crossing is on request. The automatic control of the semaphore system is performed through PLC not with the normal cyclic timing: only the presence of at least one car determines the green signal of the relevant semaphore, allowing the transit of all the cars between the two detecting sensors. Smart Traffic Lights Simulator system represents a crossing between two one way streets, each controlled by a semaphore and provided with three pedestrian crossings with semaphores, too. The present cars are displayed through LED, whose control is assigned to an electronic circuit separated from the PLC.
....
The board includes 2+2 inputs, at 4-20 mA and 0-10 V respectively, and 4 outputs at 4-20 mA/0/1-5 V, smoothly variable through potentiometer; the input indication is of bar type, the current voltage display is of digital type; through meters that can be switched. Moreover, 4 outputs at 24 Vdc/1 A are available, internally powered. Power supply: single-phase from mains. Complete with educational manual and software. The simulator is essential and indispensable for operation and understanding of the analogue modules of the PLC. The connection to the PLC can be carried out through terminals or connector.
....
The sampling frequency can be provided by the generator which is integrated in the module or by an external signal. Used to discontinuously sample the behaviour of a continuous control on a process.
....
The board includes 32 switches on 4 columns for PLC input enabling, with a LED signaling the on/off state of the individual switch and the possibility of marking the references on special tags that can be cancelled; moreover, 4 outputs at 24 Vdc/1 A are available, internally powered. The simulator allows studying and analyzing the programming techniques through automatisms which are freely and imaginatively implemented. Moreover, it allows the PLC potentialities to be pointed out. Power supply: single-phase from mains. The connection to the PLC can be carried out through terminals or connector.
....
Derivative action controller suitable for closed loop continuous control systems.
....
Integral action controller suitable for closed loop continuous control systems.
....
Proportional action controller suitable for the closed loop continuous control systems.
....
It is provided with an input summing point to which the reference variable (non inverting input) and the controlled variable (inverting input) are connected. Two position controller for discontinuous closed loop control systems. The controller is provided with two binary outputs at different voltages. By means of two led the binary state of the controller, whose hysteresis can be changed, is visualized.
....
Gain And Off set Adjust allows the proportional adaptation of the external signals to the normal voltages used in the automatic control systems.
....
Two input summing point, one non inverting input and one inverting input.
....
Amplifier as matching element between signal voltage levels and standard voltages used in automatic control systems.
....
The modular frame is a tubular steel structure, treated with electrostatic painting. It has 4 lines for manual and fast fixation of the modules without the need for tools. Programmable Logic Controllers Modular Trainer allows the study of the PLC and HMI. The components, as well as their terminals and access points, are identified with the respective symbol printed in silk-screen. All terminals and connection points are available through 2 or 4mm. terminals (according to the voltage).
Module with switches for digital input signals simulation. It includes 8 contact pulse switches, NC/NO.
Module with switches for digital input signals simulation. It includes 4 contact pulse switches, NC/NO and 4 contact retention switches, NC/NO.
Module with switches for digital input signals simulation. It includes 8 fixed contact switches with retention, NC/NO, for simulating the logic levels.
Module with step motor, with 4 bit electronic driver, with light indication for each bit.
Module with 4 relays for 10 A and 24 Vdc coil, suitable for PLC with NPN or PNP outputs.
Module with 8 led for light indication of output digital signals, suitable for PLC with NPN or PNP outputs.
Module with DC motor and encoder, suitable for PLC with NPN or PNP inputs.
Module with Analogue/Digital converter, 8 bits A/D converter, with analogue signals input from 0 to 10 Vdc or from 4 to 20 mA.
Module for Digital/Analogue converter, 8 bits D/A converter, with maximum analogue output signals adjustable from 0 to 10 Vdc or from 4 to 20 mA.
Module with 2 linear potentiometers for simulation of voltage or current signals (4 to 20 mA and 0 to 12 Vdc).
Module for analogue signals measurement. Possibility to measure 2 signals simultaneously. One of the inputs is suitable for current signals from 4 to 20 mA and the other for voltage signals from 0 to 10 Vdc.
Supplied with a set of 30 connection cables, 2 and 4 mm, and an experiment manual.
Programmable Logic Controller 26 In/22 Out unit has technical and functional characteristics similar to the ones of the Programmable Logic Controller 26 In/22 Out, but it is composed of a CPU with 24 digital inputs, 2 analogue inputs and 22 relay outputs.
....
Simulation of the inputs through switches and externally through terminals. The programming software is also supplied to allow programming the PLC from the computer, if so preferred. Easy to be programmed from its own panel, without computer. It is composed (including the extension module) of 12 digital inputs and 8 relay outputs.
....
