The instrumentation includes temperature sensors, two differential water pressure sensors, a mechanical level sensor (float switch) and an electronic level sensor (conductivity). It includes a variable volume process tank, a hot water tank with electric heater and indirect heating/cooling coil, a hot water pump, two non-dedicated pumps, three on/off solenoid valves and a proportioning valve. This allows the configuration to be quickly changed, offering a wide variety of different loops. The inlets and outlets of the various pumps, valves and tanks incorporate self-sealing quick release fittings.
The contains everything that is needed to perform a range of single-loop process control experiments in conjunction with a PC.
A pressure regulating valve with filter is also included to isolate the equipment from fluctuations in the water supply pressure. The flexible nature of the system also allows for a wide variety of different disturbances to be applied to the loops to allow the effectiveness of the control parameters to be compared. As all these disturbances are under software control, they can be repeated precisely during the optimisation process, thus allowing an excellent degree of fine-tuning to be implemented.
....
The Rotameter is used for the flow measurement. The pressure at the valve inlet is measured with the help of manometer. The air regulator and pressure gauge is provided for regulating air supply. The setup is specially designed for various experimental and demonstrative capabilities. The Stainless Steel water tanks with pump are provided for continuous water circulation. These units along with necessary piping and fitting are assembled in a painted MS Structure. The product consists of Pneumatic control valves of Linear and Equal % type.
....

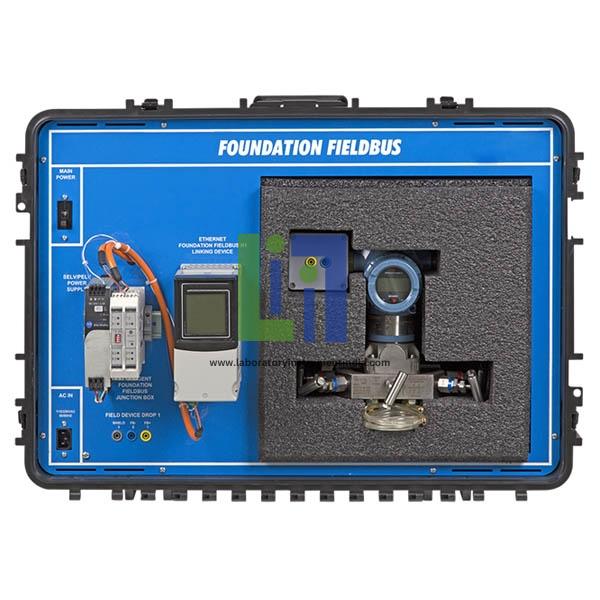

Foundation Fieldbus is an all-digital, multi-drop communication system used for basic and advanced flow control, temperature control, and tank level control utilized primarily in places like oil refineries, chemical plants, and paper mills. Specifically, this learning system covers major Foundation Fieldbus Process Control topics, including an overview of Foundation Fieldbus Industrial Network Communication technology, H1 Foundation Fieldbus wiring and connections, device configuration, and field device calibration and operation. Foundation Fieldbus Process Control Learning System covers a popular industrial method for calibrating and troubleshooting valves and transmitters connected to a network.
Learners will also us world-class, highly interactive multimedia to gain insight into the theoretical aspects of Foundation Fieldbus and to follow along with step-by-step explanations of hands-on skills, such as identifying the components of a Foundation Fieldbus segment and configuring a Foundation Fieldbus field device. The Foundation Fieldbus Process Control Learning System connects to the Level/Flow Process Control Learning System and the Portable PLC Learning System to teach this highly-effective communication protocol.
Features:
Foundation Fieldbus is an all-digital, multi-drop communication system used in oil refineries, chemical plants, and paper mills
Foundation Fieldbus is a popular industrial network for calibrating and troubleshooting valves and transmitters
Curriculum focusses on Foundational Fieldbus network concepts, applications, and functions.
Real-world process control components allow for real-world skill building.

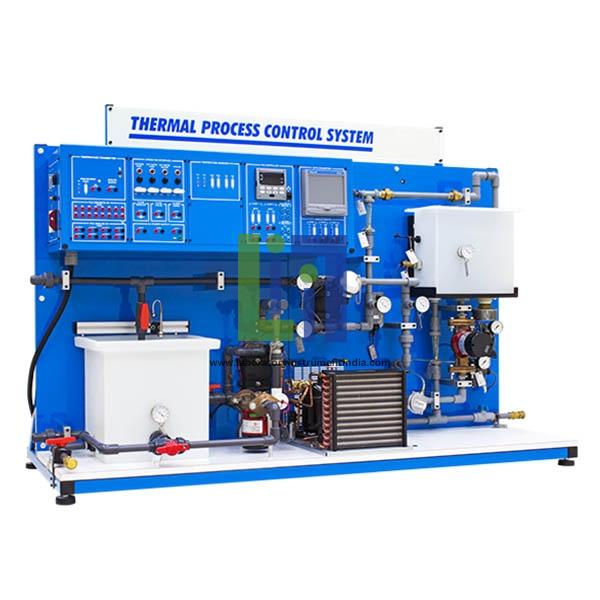

The Temperature Process Control Learning System includes a heavy-duty, welded steel workstation with industrial quality components, which are mounted and plumbed in two water flow circuits, a process loop and heating loop, to control the temperature of water flowing in the process loop. Temperature Process Control Learning System allows learners to study and practice calibrating, adjusting, installing, operating, and tuning thermal process control systems in industrial applications. All electrical components are connected to the control panel to allow students to measure signals and connect the devices in a wide variety of control configurations including PID control, on/ off control, and manual control. Process control systems provide precise control of liquids and gases in a wide variety of industrial applications including food processing, chemical manufacturing, and bio-technology.
Features:
Refrigeration-Based Cooling
3 Types of Temperature Sensors
Industrial Quality
Student Reference Guide
PLC Compatible
Extensive Instrumentation.
The workstation is constructed of heavy-duty, welded steel. Industrial quality components are mounted and plumbed in a closed loop circuit to control the water flow between two tanks or the liquid level in one tank. The Level And Flow Process Control Learning System teaches two of the most common types of process control systems, flow and liquid level, and the basic concepts on which other systems are based. All components are connected to banana jacks on the control panel to allow students to measure signals and connect the devices in a wide variety of control configurations. Students will learn to calibrate, adjust, install, operate, and connect process control systems in industrial applications. The process control simulator includes a bench-top workstation, process control network, control panel, student learning materials for both theory and lab, and teachers guide.
This allows students to study a wide range of process control methods. The relay control includes manual input switches, control relays, solenoid valves, and float switches to perform automatic on/off liquid level control. Level And Flow Process Control Learning System offers 3 types of controllers: relay control, the standard, and two options: PID controller and PLC control. Manual valves are used to switch between the PID and on/off control methods. The PID controller option enables variable electronic control of either liquid level or flow and the PLC controller option enables both on/off and PID control of the system.
Features:
Interchangeable Components
Built-In Instrumentation
Industrial Standard Components
Student Reference Guide
Heavy Duty Welded Steel Workstation
Industrial Safety Devices
3 Types of Controller Options
PLC Interface
Multimedia Curriculum Available.

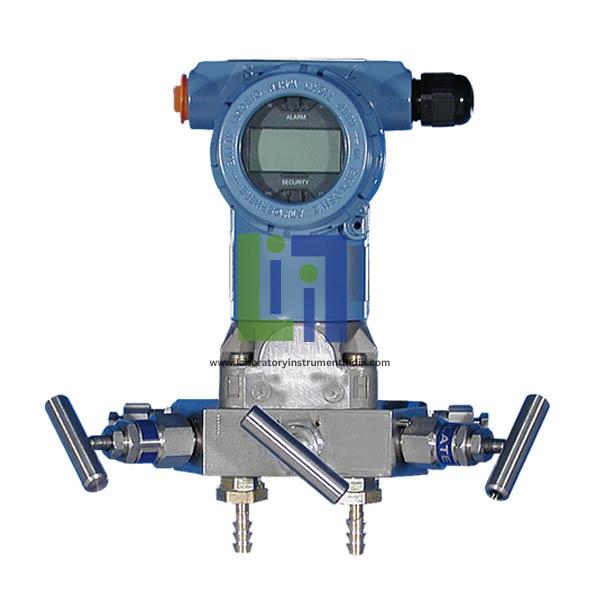

The Smart Flow Transmitter Learning System includes an industrial quality transmitter and student learning materials for theory and lab. The transmitter mounts to the workstation console and connects to 3 optional flow transducers: pitot tube, venturi, and orifice plate. The Smart Flow Transmitter Learning System adds to Process Control Learning System to provide a 4-20 mA feedback signal that is proportional to the flow rate measured by transducers that sense differential pressure.
Features:
Industrial-quality component
Student Reference Guide
Senses the differential pressure within the system.

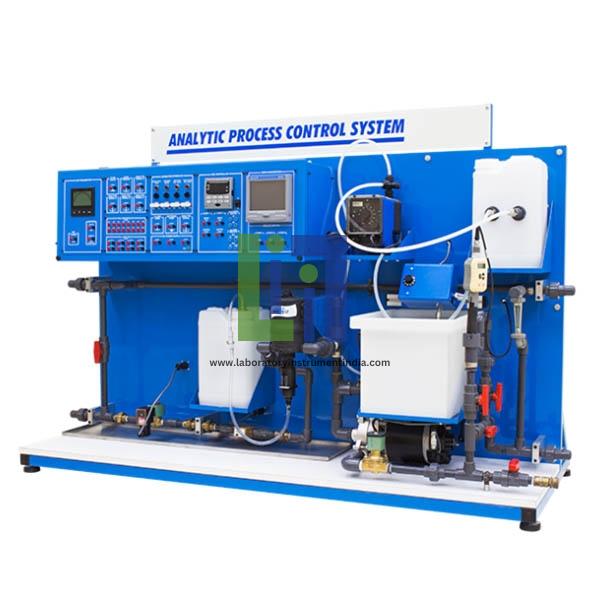

Analytical Process Control Learning System allows learners to explore a wide range of analytical process control topics, including analytical process control, pH electrodes, pH meters and transmitters, loop controllers, and many more. Analytical Process Control Learning System covers major topics and skills involved with controlling and modifying the chemical properties of a substance, which is important to industries such as pharmaceutical companies, beverage companies, and refineries.
These analytical chemical process skills will prepare learners for industrial process applications that theyll see on the job. The Analytical Process Control Learning System process control simulator includes a tabletop workstation with a control panel, PLC interface, and industrial pumps, tanks, and piping. Learners will use these components to perform skills such as manually setting and controlling an electronic metering pump, testing the pH of a solution using pH test strips, and connecting and operating a continuous loop pH control system.
Features:
Piping By-Pass Network
Injector and Metering Pumps
Continuous Stirred Tank Reactor (CSTR)
PH Transmitter and Probe
Student Reference Guide
Option: Advanced Analytical Control Module
Optional Online eBooks.

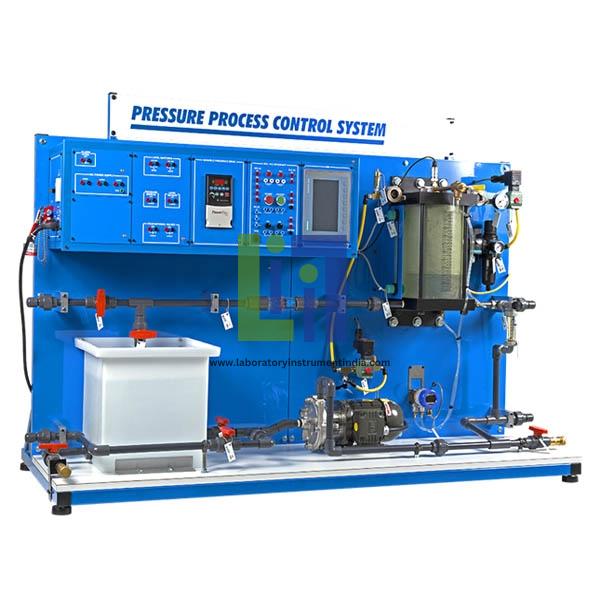

Pressure Process Control Learning System simulator features an exposed component layout built to enhance a learners understanding of a pressure process control systems operation. This functionality allows learners to study important industrial gas blanket applications as well as gain valuable hands-on experience in practicing a broad range of pressure process operations in both manual and automatic modes. Pressure Process Control Learning System offers the ability to control liquid level and tank pressure simultaneously using a human machine interface (HMI), programmable automation controller (PAC), and variable frequency drive (VFD) that are found in real-world industrial fields such as pharmaceutical, bio-technology, and power generation. Additional industrial-grade components on this learning system include: level sensors, which learners can use to set alarms; a centrifugal pump for producing liquid flow; and several valves to show their function and operation in a loop control system. This training simulator is compact enough to fit through a standard door, yet broad enough to offer all of the skills and topics a learner needs.
Features:
Highly Interactive Multimedia to Engage All Learners
Use with Additional Process Control Systems
Control Liquid Level and Tank Pressure Simultaneously
Practice Real-World Pressure Control using an Industrial-Grade PAC
Student Reference Guide.
This Flow Control Apparatus is designed to demonstrate automatic control of the ow of water delivered by a centrifugal pump. The present invention relates to a flow control apparatus for a positive-displacement pump such as rotary-vane pump, plunger pump, gear pump, and more particularly to the flow control apparatus for keeping a flow rate of fluid discharged from the pump at the high rotational speed which is lower than a flow rate of fluid discharged from the pump at the low rotational speed. The unit enables students to investigate the effects of changing the parameters of the control algorithm (proportional band, integral action and derivative time) on the control capability of the system.
....
pH Control Apparatus is designed to demonstrate the control of the acidity of a water supply by chemical dosing. Control of pH is an important aspect of water treatment in water cooling systems, hot water heating systems and boiler feed water. The pH Control Apparatus is designed to demonstrate the control of the acidity of a water supply by chemical dosing. Two methods are available to control the addition of the dosing chemical, either slug (on-off) dosing or continuous controlled injection. Both methods can be demonstrated with this apparatus. Optional equipment is available to convert the apparatus into a Ratio Control Apparatus. Two methods are available to control the addition of the dosing chemical, either slug (on-off) dosing or continuous controlled injection.
....

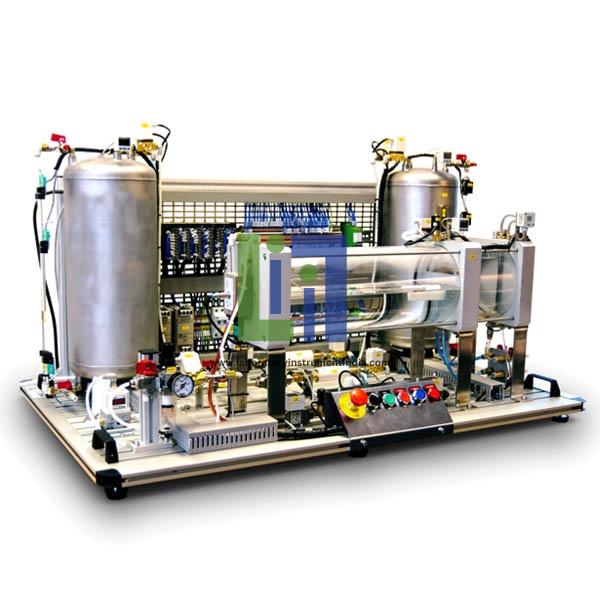

The water being the heaviest in gravity stays at the bottom while the oil floats on top and the gas occupies the void space in the vessel. A combination of refined oil, water and air enters the vessel, the flow is directed to the spherical end of the vessel where primary separation occurs and then flows through the vessel where it meets the coalescer. At the secondary separating section, the fluids are allowed to slow down and separate by gravity.
External Capabilities:
Learn basic principles of control and operation of a three-phase separator
Evaluation of emulsion chemistry possible (stable & unstable emulsion)
Effect of water-oil ratio on residence time
Effect of varying operating conditions on separation
Effect of continuous-phase medium on droplet size and separation
Variation of water cut to show the effect on separation and residence time
Effect of flow rate on emulsion formation
The effect of density difference on separation
Effect of step change on overall process
Effect of gravity separation on small SG.
This Level Control System is designed to allow numerous level control experiments to be performed within a typical laboratory session. This invention relates to an improved type of electronic liquid level control apparatus, yand more particularly toa relatively. A simple electronic type 'of controller which may be utilized to maintain substantially accurate liquid levels, within small liquid receiving chambers. A for use with very small liquid receiving chambers, such as -may be used 'in laboratory apparatus or pilot plants, or they are not adapted for use with extremely high pressure'equipment because of yinadequate packing glands or sealing means. Still other types of liquid level 'controllers are adapted to operate overa relatively wide range of level variations and are not sensitive to small changes ,in liquid' level. The unit enables students to investigate the effects of changing the parameters of the control algorithm and changes can be made to the process conditions by adjustment of the ow into the vessel. Many of the present-forms of liquid level ycontrollers are of a type which are not suitable.
....
This Pressure Control Apparatus is designed to demonstrate automatic control of the pressure within a vessel. The present invention relates to an automatic pneumatic pressure control apparatus for use as an electropneumatic transducer or a pneumatic pressure actuator employing such an electropneumatic transducer, and a method of controlling such an automatic pneumatic pressure control apparatus. The unit enables students to investigate the effects of changing the parameters of the control algorithm (proportional band, integral action and derivative time) on the control capability of the system.
....
The operation of these level sensing devices can readily be investigated since they may be removed from the Demonstration Unit, dismantled and re-assembled, without the attendant problems which would occur on an operational boiler. The simulated boiler itself is constructed from a clear acrylic tank and thus the demonstration unit provides a clear visual appreciation of the operating characteristics of the various level controls i.e. float operated magnetic, reed or electronic system using electrode sensors. An arrangement of up to date integrated circuits is used to simulate boiler pressure and burner control together with the sensing and control systems associated with modern boiler systems. A Boiler Water Gauge is fitted to the Boiler Drum so that possible misuse of this item can be demonstrated clearly and safely. This Gauge can also be used to demonstrate the method of changing a sight glass for such a gauge under simulated working conditions, a circumstance which can be safely taught on this Demonstration Unit. These systems would not normally all be fitted in the same boiler but are included in this unit to give the student an appreciation of the characteristics of each system. Conversion of water from the boiler into steam is simulated so that the level sensors need to operate as in a true Boiler system.
....
The water finally flows back into the sump tank T1, the heat introduced into the system being removed by a water cooler, HE1. V2 simulates a vessel used for a hazardous process reaction, demanding the use of flame proof control equipment in its immediate vicinity, thus providing a logical reason for the use of pneumatic and interfaced control equipment. The process which forms the basis of operation of the various control loops and equipment is illustrated in. Water is fed to a centrifugal pump from sump tank T1 and then to a water heater HE2 before passing into two vessels V1 and V2, mounted in series and simulating a reactor system. Four standard areas of control are presented.
....
The Raw Water Filtration module houses the Raw Water vessel, two independent sand filters and Filtered Water vessel. The degassed liquid is then pumped forward through the Anion Bed. The Cation Bed and Anion Bed require a regenerating every 5hours to maintain the optimum condition of the resins. Water from the Filtered water vessel is pumped forward through the Cation vessel; this then enters the degasser vessel after experiencing a carbonate removal process. Within the Acid Dosing vessel is a 5% dilution of Hydrochloric Acid, which is used to regenerate the Cation Bed. Mains water is transferred into the raw water vessel, which is then pump forward through either one of the sand filters into the filtered water vessel. On the Dosing module there is a an acid dosing vessel, caustic dosing vessel, Cation Bed, Anion Bed and Degasser vessel. In the Caustic Dosing vessel is a 4% dilution of Sodium Hydroxide; this is used to regenerate the Anion Bed.
....
The unit provides for various investigations including single phase flow, hydrostatic and dynamic pressure investigations, hold-up time and slip velocity, 2-phase separation and superficial velocity, drift velocity in air/water flow, 2-phase flow, 2-phase and 3-phase flow separation rates, bubble structures and bubble sizes. The Multiphase Flow Unit which is particularly suitable for oil and gascourses enables students to study 2- and 3-phase flow (oil, water and compressed air) by means of once through experimental runs followed by gravitational separation. The unit is operated via a touch-screen PC with SCADA software and may be specified with an electrical capacitance tomography sensor option for advanced studies in flow and bubble structure imaging.
Features:
Industries largest operating envelope
Exceptional dynamic response time
Compact and robust design
Qualified and covers all environments
No separation required
No moving parts
100% gas void fraction capability.
The unit provides students with the opportunity of investigating the effects of a change of controller parameters (proportional band, integral and derivative times) on the control capability of the system. The Temperature Control Apparatus illustrates the control of temperature in a simulated reactor vessel by controlling the supply of coolant (air) in response to changes in process conditions. The unit is made up of typical items of control equipment currently used in industrial applications, thereby providing an excellent opportunity for familiarisation.
....
Features:

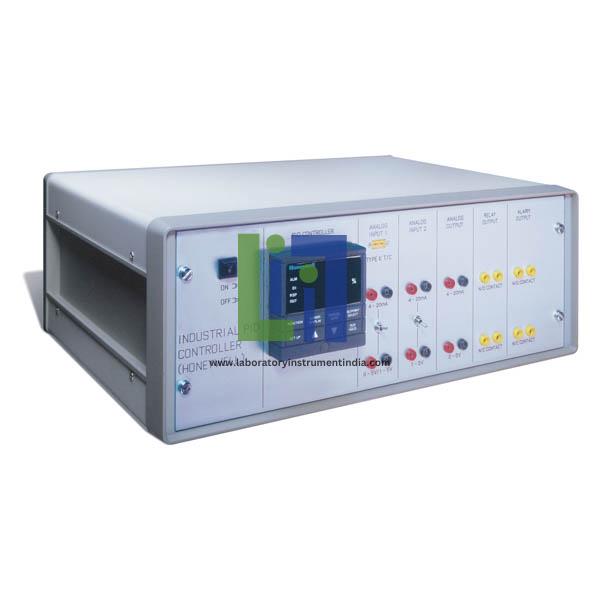

Incorporates widely used industrial PID controller.
Temperature/time profile set-point ramp facility
Fuzzy and adaptive tuning
PID with alarm and relay outputs
Configuration in engineering units
Serial communications RS232 and RS485
Alternative control algorithm
Dual set-points
Introduction to SCADA, (supervision of the controller by a PC) using Windows based serial communication software.

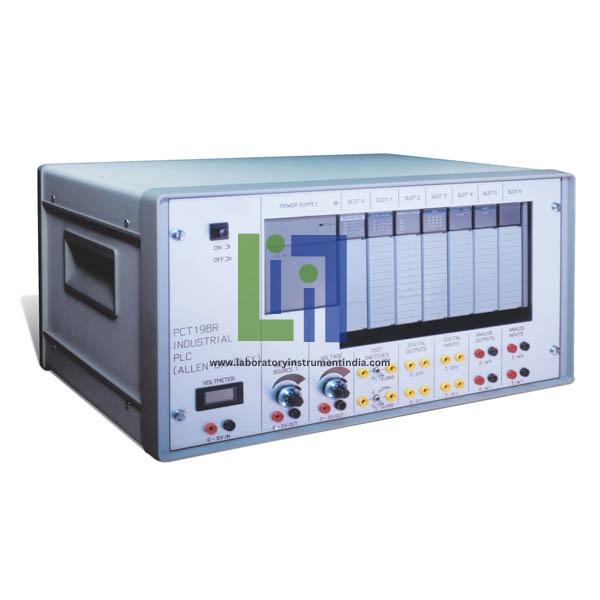

An industrial PLC with RS485 and RS232 serial communications
Rear panel connectors for six analogue inputs, two analogue outputs, eight digital inputs and eight digital outputs
Ladder logic software is provided on disk
Front panel connections for two digital inputs, two digital outputs, two analogue inputs, two analogue outputs, two voltage sources and one voltmeter.
Using this console also enables the sensor data to be logged and displayed on a computer (using the interface), but with the control functions being implemented in the hardware, rather than the computer software. The enables all of the single loop configurations to be implemented without using a computer.
....

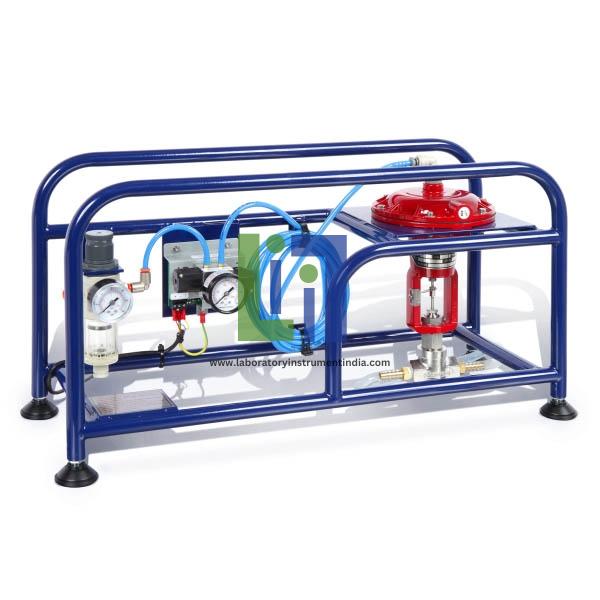

Retaining the flexible concept of the whole range, it can be plumbed into many of the flow control loops, and provides a good illustration of pneumatic valve technology. This is a pneumatic control valve, plus associated components, for use with the system.
....

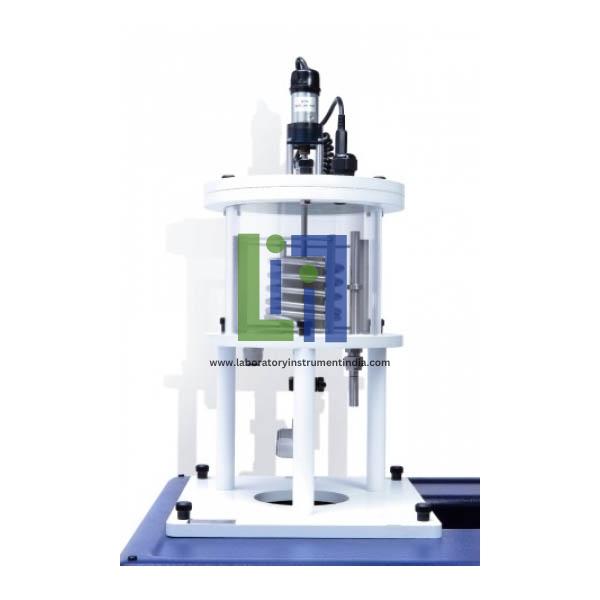

Again these all take place with the repeatability advantages that electronic and software control brings. The addition of the process vessel allows more complex process control problems to be addressed, including remote set point demonstrations.
Single loops in combination:
Temperature control of reactor contents by varying heating fluid flow rate
Temperature control of heating fluid by varying heater power
Conductivity control of reactor contents by varying flow rate of one component.
Temperature, level, flow and conductivity control loops can be implemented
Manual control, single feedback loops, through to sophisticated cascade loops and distributed supervisory control of the whole process by a remotely located computer can be demonstrated
The effect of dead time and heat recycle can be demonstrated

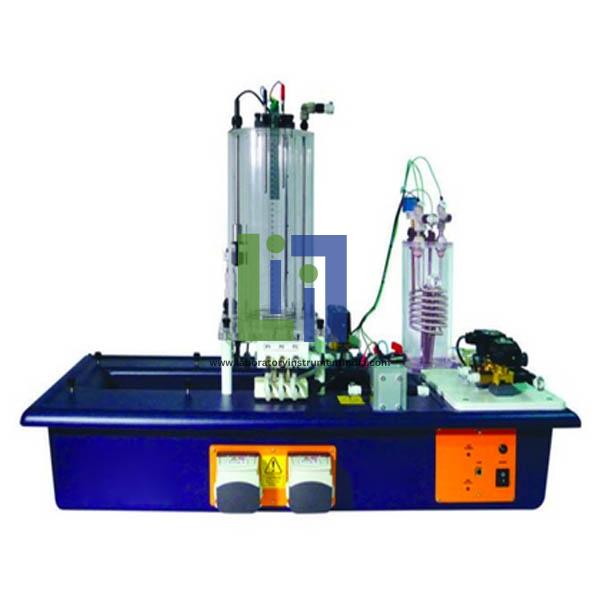

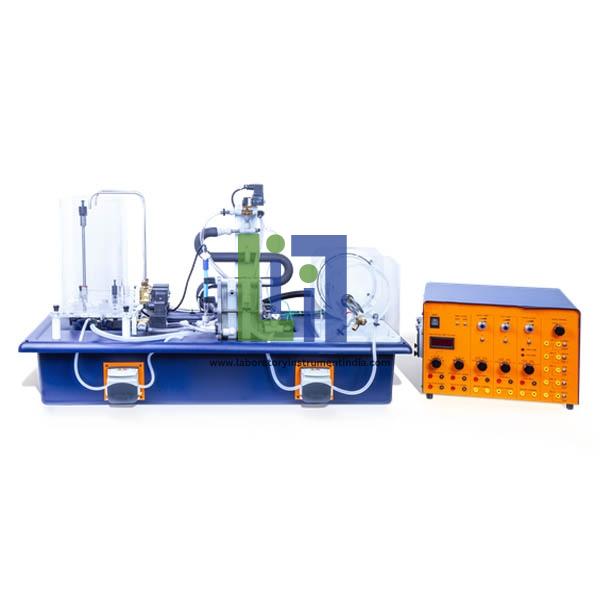

A bench mounted process plant trainer with multiple streams both interacting and noninteracting. The process plant incorporates a miniature three-stage plate heat exchanger heated from a hot water circulator, two independent feed tanks, a holding tube with product divert valve and two variable-speed peristaltic pumps

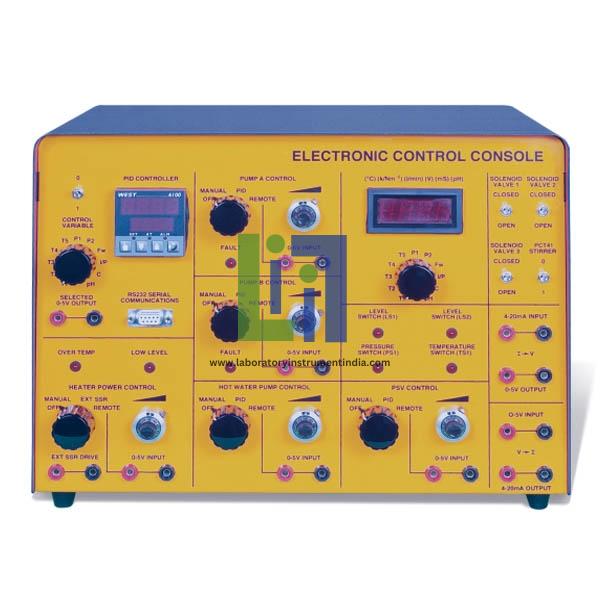

An electrical console provides measurement and control of the process plant and enables a variety of control techniques including manual operation, on/off control, control from an external signal and control from a PC or PLC
The equipment incorporates electrical fault simulation and control, data logging software, and a USB computer interface.
Features:
Multiple inputs, multiple sensors, multiple control strategies
Operational sequencing, including startup and shutdown
Recycle implications on process control
Effects of dead time
Manual control, single feedback loops, through to sophisticated cascade loops
Temperature, level, flow and conductivity control loops can be implemented.
The Essentials of Process Control (EPC) range of products takes students through the fundamentals and principles of process control and progresses to give them a thorough grounding in the control of physical processes. Four independent process units demonstrate level, flow, temperature and pressure as the controlled variable.
The effect of making changes to the system or to the controller configuration can be quickly investigated by applying repeatable disturbances or step changes to the process. The concepts of closed loop control, including on/off control, proportional control, proportional/integral and proportional/integral/derivative (PID) control can be explored and demonstrated. Some units also cover both time proportioning and analogue control of the same parameter. Comparison of the responses obtained with different control settings clearly demonstrates the need for correct matching of the controller to the system characteristics. Each process is supplied complete with software that allows it to be controlled using a Windows PC via a USB connection.
The plc has the control algorithms implemented in ladder logic and so are fully accessible to the user. To demonstrate industrial control systems, two further controlling devices are available, a full function commercial PID controller with autotune, and a programmable logic controller (PLC). This is demonstrated by a sensor calibration apparatus designed specifically to demonstrate this subject. Another fundamental aspect of process control is an understanding of sensors and how they are calibrated.
Features:
Open Loop and Closed loop processes
Time proportioning control
Onset of instability
Manual loop tuning
On/off control (Fixed Dead Band)
P, PI and PID control
Underdamping and overdamping
Effect of Sample Time and Cycle Time
Sensor Calibration
Effect of filtering on sensor outputs
Commercial PID controllers
Ladder Logic controllers
Sensor electrical characteristics
Autotuning.
