Introduction to sand casting: student experiments with 3 different patterns (bell, anvil and anchor).
Case for the study of foundry fundamentals.
The student will practice in first place with symmetrical pieces and after this with asymmetrical ones.
Operations of ramming up of the moulding sand, melting of the metal, pouring, forming and fettling can be performed step by step.

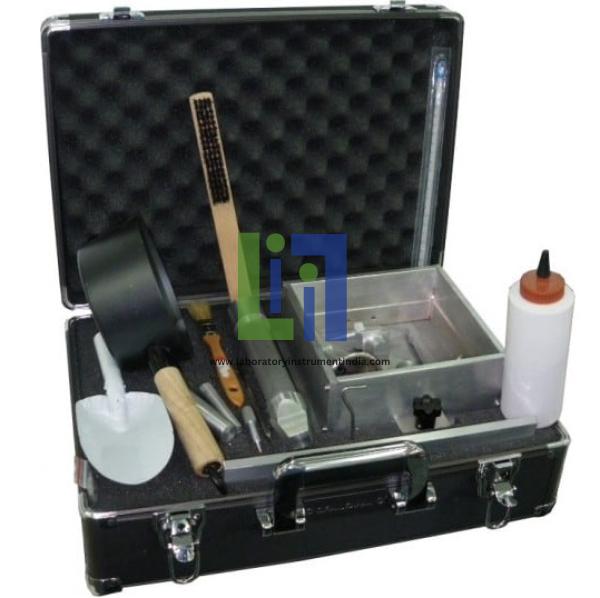

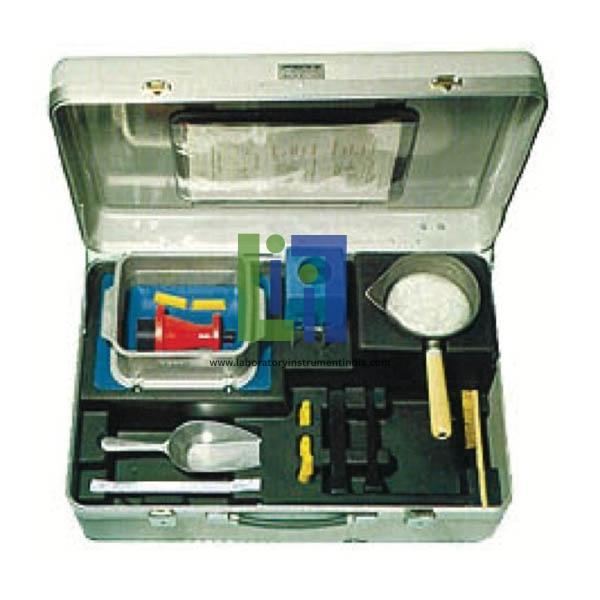

Training set in a case, containing:
Aluminum pattern plate.
Aluminum cope and drag box, screwable.
3 different plastic patterns:
The Anvil as a split, asymmetrical pattern demonstrates the shrinkage cavitation.
The Anchor, as a split, symmetrical pattern.
The bell as a natural or an one-piece pattern.
Rammer.
Bell clapper.
Bell mountings.
Small downgate and big downgate.
Pattern-draw tool.
Shovel.
Scraper.
Thermometer.
Soucepan.
Pencil brush.
Separating agent.
Lancet.
Brush.
Pattern plate with pattern of epoxy-resin in one piece
Core die, core iron
Moulding tools
Aluminum cope and drag box, screwable
Worksheets for instructor and students
15 kg moulding sand in a separate container
Thermometer
Pouring ladle with 5 kg Woods metal (melting point 70C).

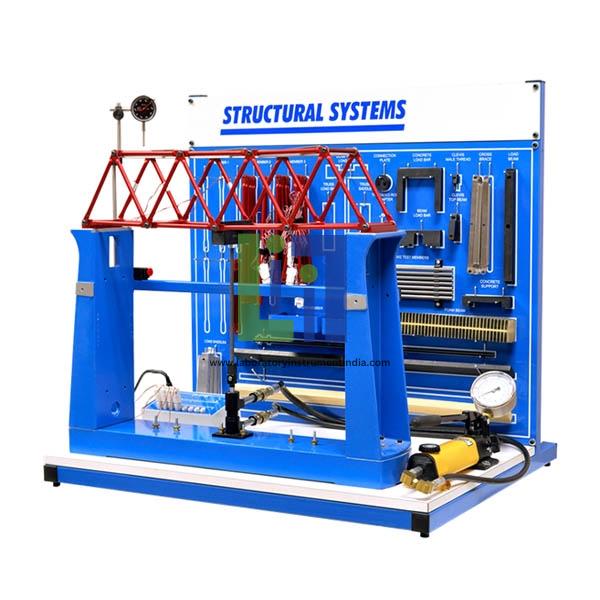

The Design of Structures Learning System also introduces learners to the various roles that civil engineers can assume in the residential, transportation, and industrial fields. The learning system features world-class curriculum that intertwines theoretical lessons, such as how to calculate the bending stress in beams, with practical skills like building and testing a Warren Truss bridge. Design of Structures Learning System covers the design, construction, and analysis of structures such as bridges, buildings, and tunnels.
These components will help learners to build skills that can be applied in the workplace, which is one example of how transforms the global workforce one life at a time. The Design of Structures Learning System includes components such as two bridge component sets that can be used to construct a variety of Truss bridges, a beam component set to show how different loads affect beam stress, and a data acquisition system to test the stress on various components.
Features:
Construct Test Bridges
Practice Data Acquisition Skills
Learn Roles of Civil Engineers
Learn from Highly Interactive Multimedia.
Calculate the Bending Stress in Beams.

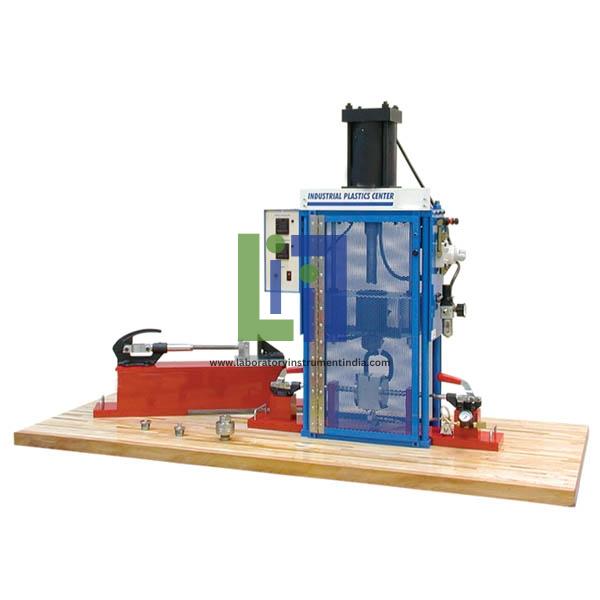

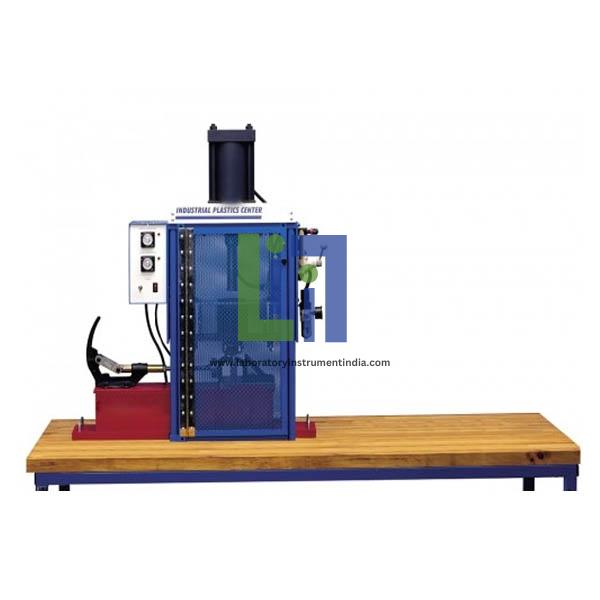

The Plastics Technology 1 Learning System includes a temperature control system, 4 oz. shot material feed system with electro-pneumatic control, dual heater system, barrel and nozzle, safety enclosure, heavy-duty workstation, 8 ton clamping system, mold offset plates, set of injection starter molds, interactive curriculum for both theory and lab, and a teachers assessment guide.
Plastics Technology 1 Learning System is designed to teach modern technical skills in plastics and polymer science using injection molding. Understanding how to work with plastics is an important technical skill for engineers, technicians, and operators. They impact virtually every aspect of modern industry.
Learners will practice skills such as setting the temperature and pressure for a molding operation, troubleshooting molding operations, mounting and aligning molds, operating an injection molding machine, determining the runner and sprue diameter for a specific plastics mold, designing a plastics part and mold based on shrinkage and warpage considerations, using CAD/CAM with mold design, and multi-cavity mold design and operation.
Features:
Plastics Product Design
Plastics Problem Solving
Industrial Quality Plastics Machine
Written and Multimedia Style Cirriculum.
The Plastics Technology 2 Learning System includes a clamping system, extrusion die for use with blow molding, pneumatic blow system, starter mold for blow molding, extrusion die, interactive curriculum for both theory and lab, and a teachers assessment guide.
Plastics Technology 2 Learning System adds to the Plastics Technology 1 Learning System to teach plastics blow molding and extrusion. Extrusion is used for two dimensional shapes like pipe, tubing, etc. and can be used in combination with blow molding. Blow molding is a popular method for processing plastics, consuming about 10% of all plastics worldwide, due to its economic cost and low finishing requirements. x
Students will learn skills such as creating a plastics part using a blow molding operation, troubleshooting blow molds, designing a blow mold using CAD/CAM, creating a blow mold using a CNC machine, creating a plastics part using an extrusion operation, and testing an extrusion for uniform diameter.
Features:
Extrusion Operation and Troubleshooting
Written and Multimedia Style Cirriculum
Blow Mold Development
Blow Mold Operation and Troubleshooting.

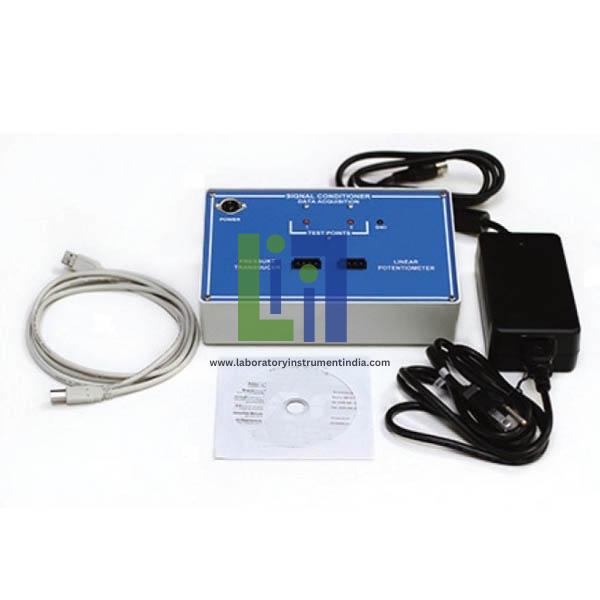

Data Acquisition and Analysis System Upgrade includes USB DAQ signal conditioner unit with eight analog channels, MCC DAQ software, and USB cable, power supply, data acquisition and analysis software. This system upgrades Data Acquisition and Analysis Systems with a computer card from the Materials Engineering 1 Learning System, Materials Engineering 1 Learning System Quality Assurance, and Materials Technology 1 Learning System to USB.
....

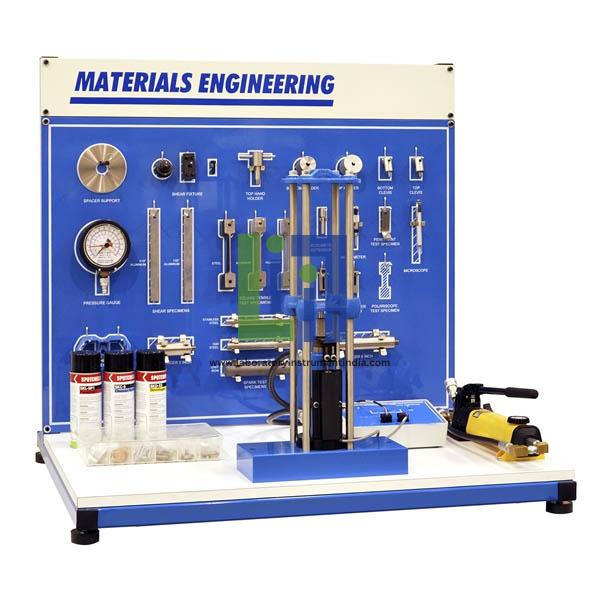

Materials Engineering Learning System uses industrial quality components to teach students how to evaluate and use different industry grade materials. The Materials Engineering Learning System allows students to conduct a wide array of tests including tensile testing on steel alloys.
Material strength properties affect the performance and safety of almost every product made. As technology has advanced, material choices have broadened and become more complex. Students learn industry-relevant skills in materials testing (tensile, compression, hardness, and shear), computerized data acquisition, chemistry of metals, interpretation of industry-standard numeric identification systems of various types of metals (steel, aluminum, brass, and copper), material strength analysis, and product design. Engineers and technicians alike must be able to select the proper material for an application and analyze material properties when a product fails.
Features:
Excellent preparation for study of engineering, manufacturing, industrial maintenance
Data analysis and problem solving
Understanding of realistic array of industrial materials such as steel, copper, aluminum, and brass
Visualization of material stress
Industrial quality components and relevant skills.
This apparatus is especially suitable for measuring moving load, evenly distributed load and point load. Its left sided hinge promotes trouble free rotation and horizontal movement of its arch. Three Hinged Arch Unit is used to stud unsymmetrical and symmetrical design of its structure, to conduct comparison based analysis of measured and calculated horizontal thrust during lifting load and so on. Interchangeable feature of its arch segment, application specific design and simple maintenance process are its key attributes. Side hinges located in its arch section provide required support and help to form its three hinge design. We are an eminent manufacturer and supporter of Three Hinged Arch Unit.
Features:
Ergonomic structure
Simple to handle
Long working life
Cost effectiveness.
The system is formed by a frame attached to a rigid base and loads can be applied by mass hangers and a range of masses or weights. The horizontal and vertical deflections of the frame can be measured by means of dial gauges.
The portal frame unit has been designed to determine the deflection at the load point for a rectangular portal frame subjected to horizontal and vertical loads.
Plastics are used in nearly every industrial area from automotive to food and beverage. The curriculum also covers safety data sheets (SDS) and plastics system purging. Plastics Technology Learning System is an all-in-one trainer that can perform injection molding, blow molding, and extrusion molding! With the ability to hold four ounces of plastics, the Plastics Technology Learning System can perform multiple molding shots without learners needing to refill the system and wait for the plastic to melt. Besides strong hand-on learning, the Plastics Technology Learning System features thorough theoretical knowledge that not only intricately explains the processes, operation, safety, and troubleshooting of the three major types of molding, but also offers curriculum in basic chemistry and then provides an in-depth look at polymers and the properties of plastics. Additionally, this system features two digitally-controlled heater jackets located on the systems barrel and nozzle to create dual temperature zones, which is a standard feature on industrial plastics machines.
Features:
Hands-on skills
Teaches vital plastics concepts
Includes industrial plastics center with a temperature control system.
The tie rods support a two section roadway that is equipped with a central hinge to demonstrate the bending moment. The roadway can be loaded using various weights. Two mechanical dynamometers measure the bearing forces. The set is intended for use with the universal test frame and demonstrates the behaviour of a suspension bridge as often to be seen in reality. Tie rods are hung from a double supporting cord, the length of the rods varies such that the cord is hung in a parabola shape. In this way the force distribution between the cords and roadway is determined for varying load cases. The forces in the supporting cords are measured using a further set of weights.
....
Bench-top unit mounted on a structure of anodized aluminum, with painted steel panel, and with regulable in heigh legs.
....
The Unit Includes:

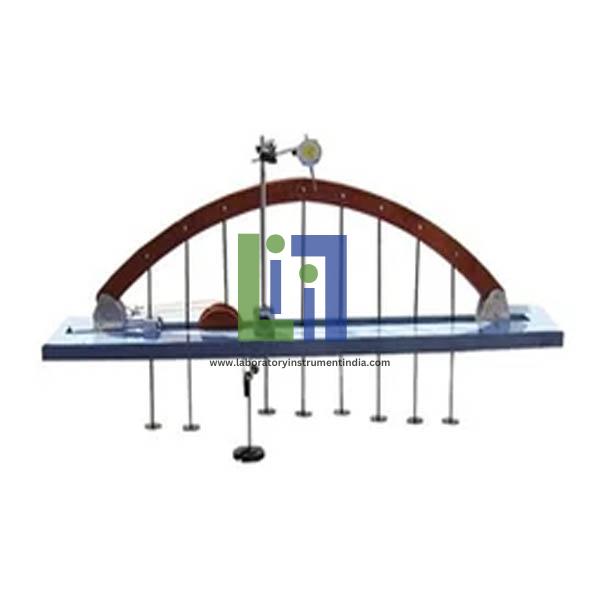

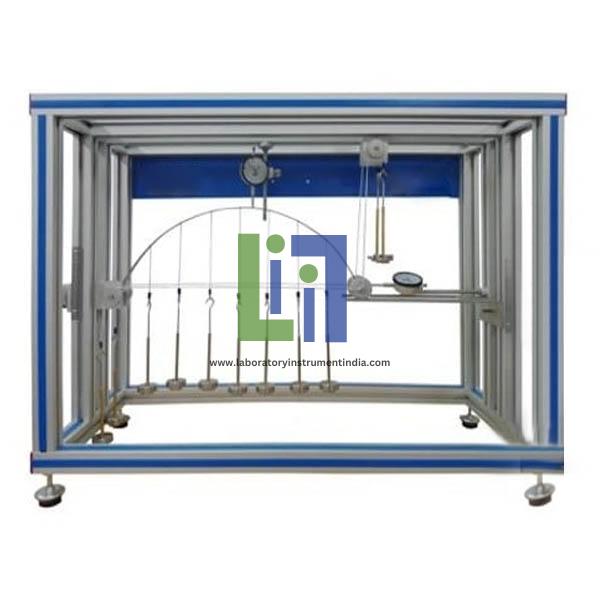

Parabolic arch made of tempered steel with 7 cords with hangers to hang the weights from them (uniformly distributed load or point load):
Cross section: 20 x 1.5mm.
Length: 500mm.
Height: 200mm.
Frame, of anodized aluminum, with measurement system to level the ends of the parabolic arch.
All the elements of the unit are made of aluminum, stainless steel and treated steel.
Bench-top unit mounted on a structure made of anodized aluminum profiles, with a painted steel panel and with legs.
Two Pinned Arch Unit
....
The unit includes:
Anodized aluminum frame.
Strain gauge to measure force on each bar.
A load application device with a force gauge mountable on different node discs. Range: -500 ... 500 N, graduations: 10N. This device allows to generate straight and inclined external force.
Five node discs, two of them are used to hinge the truss structure to the frame of the unit.
10 bars made of stainless steel.
Unit mounted on an anodized aluminum frame with painted steel panel.
....
Unit mounted on an metallic frame.
A Bending Bar:
A mechanical load application device. It includes a spindle, a cross-arm and a flywheel.
Dial gauge with adjustable dial for direct deflection measurement, range: 0-20mm., graduations: 0.01mm.
Material: stainless steel. Dimensions: 680 x 25 x 12 mm
The bar is supported on ball bearings at two points, allowing to apply a purely bending stress.
Free And Forced Vibration Unit
....
These bars can form several plane truss structures with different angles between bars.
Maximum bar force: 200 N
The unit includes:Anodized aluminum frame.
Two-part buckling bar with a central elastic joint:
The support of the two parts is pinned-pinned (articulated-articulated).
Length: 550 mm (length of each part: 275 mm).
Cross-section: 20 x 20 mm.
Device to apply compressive load:
Compressive force range: 25-125N.
Load application lever with scale, lever ratio: 1:2-1:5.

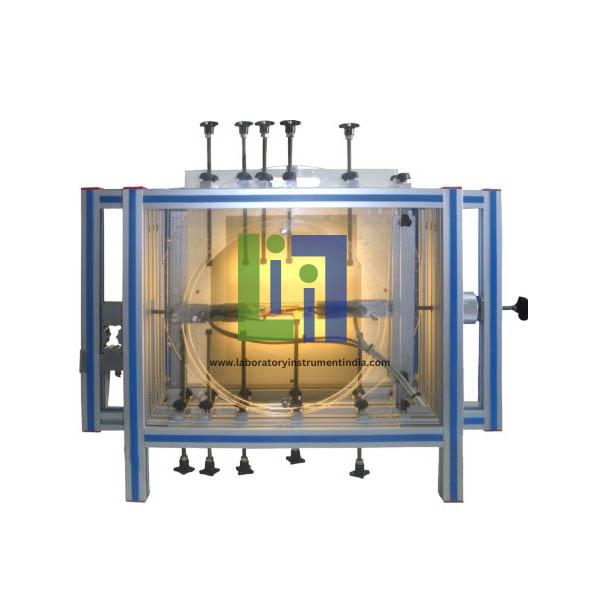

It is very suitable for the introduction and study of photoelasticity: optical elements, isochromatic, isoclinic, band order, band factor, edge tensionsing, and for strain and stress analysis and measurement with strain gauges.
Unit for photoelasticity practices, illustrating the subjects of the Photoelasticity theory, the Elasticity theory, Strength of Materials, and Structure theory.
Using this unit photoelastic experiments and practices of transparent test specimens (models) may be performed.
With the aid of the system it is possible to analyze and process the captured data during test experiments, making measurements with strain gauges.
These specimens show a full color and high contrast results and are also made of a special very hard material that avoids breaking during daily use.
Using this unit photoelastic experiments and practices of transparent test specimens (models) may be performed.
Unit for photoelasticity practices, illustrating the subjects of the Photoelasticity theory, the Elasticity theory, Strength of Materials, and Structure theory.
The different test specimens are subjected to loading by external forces and have poralised light shone through them.
A load application element can apply tensile, bending, compressive, and distributed and punctual loads to the specimen.
It is very suitable for the introduction and study of photoelasticity: optical elements, isochromatic, isoclinic, band order, band factor, edge tensionsing, etc.
The stresses and strains occurring in the test specimen are represented as bright spots or figures of different colours, and we can visualise the distribution of stress.

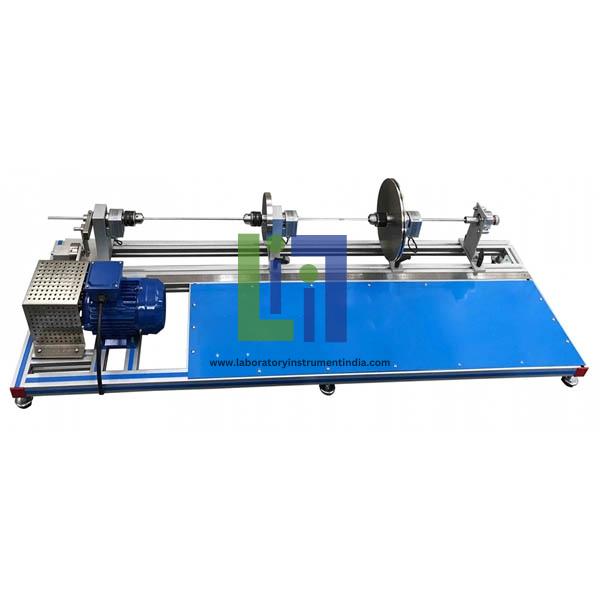

The Computer Controlled Torsional Vibration Unit is an unit designed to study the torsional vibration, the torsional stiffness and the behaviour of a torsional vibration system with two and three torsional weight vibrator.
Vibrations are transmitted into the torsion bar by means of an electrical motor, which speed is computer controlled. The bar is supported by the base with movable pillars.
An adjustable damper can influence in the vibrations. Shaft encoders on the chucks provide the amplitude of vibration as an electrical signal.
Rigid weight discs, of several diameters and inertia, and pivoting bearings can be located at unlimited positions along the bar.
To facilitate the theoretical comprehension, the exercises are made with a metal torsion test bar, the main element of the unit.
Weight discs can be fixed to the bar with the aid of chucks and flanges; this way, it is possible to assemble torsional vibration systems with one, two or three weights.
The Unit Includes:
The strain gauges are inside a transparent cover that protects them and make them clearly visible for the visualization of the process.
Anodized aluminum frame.

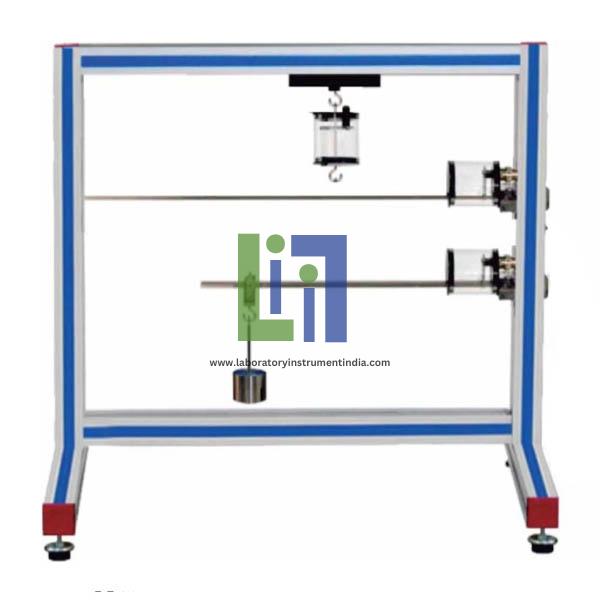

Three strain gauge test specimens (bars), each with strain gauge measuring points in full bridge circuit:
Tension test bar:
Material: stainless steel.
Length: 50mm.
Cross-section: 2x10mm.
Torsion Test Bar:
Material: stainless steel.
Length: 500mm.
Diameter: 10mm.
Bending test bar:
Material: stainless steel.
Length: 400mm.
Cross-section: 4x25mm.
Strain gauge measuring point: full bridge, 350.
It includes a 1N weight holder and a 5N weight holder, and an adjustable rider.
Set Of Weights:
10 x 0.5N.
1 x 5N.
1 x 20N.
2 x 10N.
Console:
Digital display for the strain gauge.
Metallic box.
Strain gauge connector.
Amplifier:
Zero balancing adjustment.
Measuring range: +/-2mV/V.

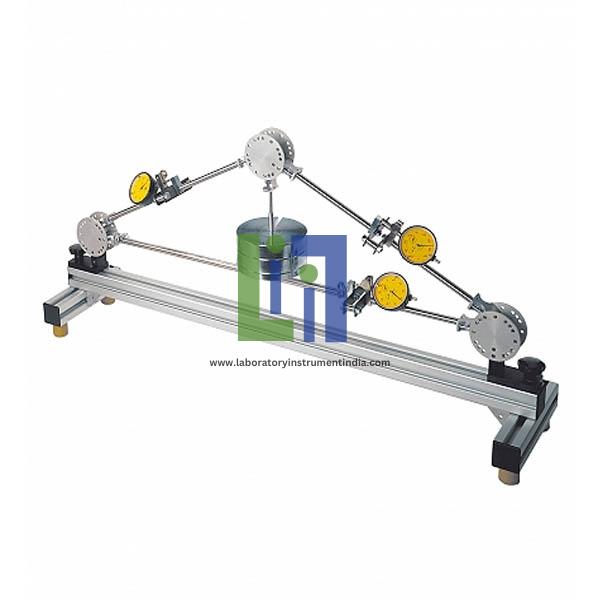

The unit consists of three members, three node discs and a set of weights with a weight holder. Each member is formed by a longitudinally bar, a spring and a dial gauge. These bars can form numerous simple bar structures with different angles. The bar forces occurring during the exercises are measured by the deformation of the springs situated in the middle of the bar with the dial gauges.
The Unit for studying Forces in a Simple Bar Structure represents a simple bar structure that allows the measurement of bar forces and the comparison of the experimental results with the calculations and the graphical method.
The set of weights and a weight holder are used to apply external load in the upper disc of the simple bar structure.
The method of joints and the calculations are used to determine the bar forces in the different bar structure to compare with the experimental results.
The members are joined by three node discs such that the joints can move freely. Snap-locks allow to engage the bars in the discs. Two of the discs also form the support of the simple bar structure, it can move freely and is fixed to the section base of the unit.
This piston also has an in-built pressure relief valve. The oil from the relief valve returns to the pump reservoir connection by means of flexible pipe. The first piston is located axially; it extends beyond the end of the tube and is drilled to suit a pressure gauge and a high pressure flexible rubber hose connecting the hand operated pressure pump to the unit.

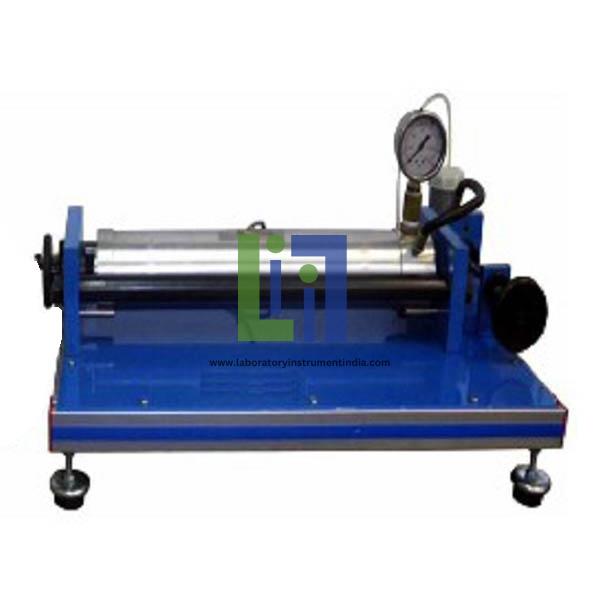

The thin cylinder unit and hand operated pump are mounted on a bench-top base plate.
A thin wall tube contains two pistons.
The cylinder unit which is resting on the four pins is supported on a frame and located axially by a fixed stop and an adjustable stop.
The second piston is free to move axially within the tube, but its travel out wards is limited by a plate and end-cap.
Maximum test pressure: 40 bar.
Technical data about the thin cylinder unit:
Reservoir Capacity: 75 cm3
Pre-set relief valve setting: 450psi approx.
Cylinder material: Aluminium alloy.
Recommended oil: Castor oil
Gauge Factor: 2.0
Pressure gauge (Manometer): 0-50 bar.
Strain gauges: Foil type.

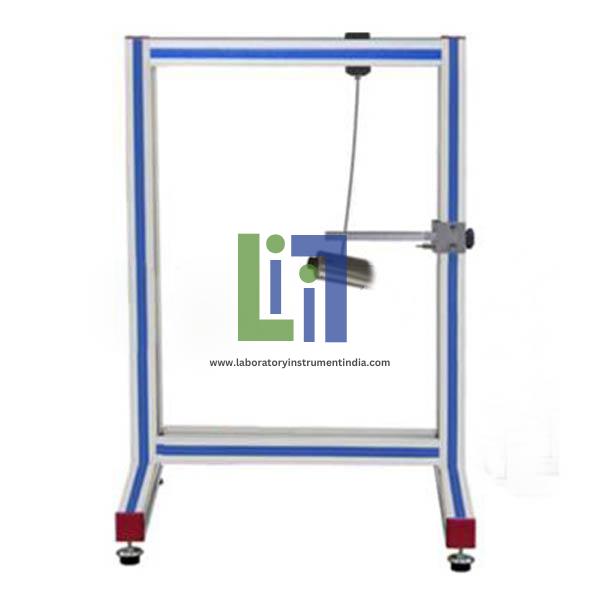

Free Vibration Unit
....
The deflection of the bar as result of the travel of the dynamometers and the horizontal alignment can be compensated and regulated using two adjustment bolts. This demonstration unit facilitates the experimental investigation of the progression of the bending moment and shearing forces on a bar subject to point loads. Due to the use of a low friction joint with two degrees of freedom at 1/3 of the span and two dynamometers, the measurements can be recorded directly from the bar. The bar is loaded with graduated sets of weights that can be attached at any point on the bar. In addition, the section principle commonly used in mechanics can be demonstrated.
....
Anodized aluminum frame.
Bending bar:
Material: aluminum allow.
Section: 20 x 3 mm.
Length: 650 mm.
Fixable meter ruler for bar deflection:
Range: ±150 mm
Electronic console, including:
Digital display for the position sensor.
Position sensor connector.
Cables and accessories, for normal operation.
Set of weights:
Material: stainless steel
Position sensor to measure the oscillation amplitude.
12 weights of 100 g. each one.
The unit is mounted on a structure of anodized aluminum profiles with painted steel plates, which has adjustable legs installed.

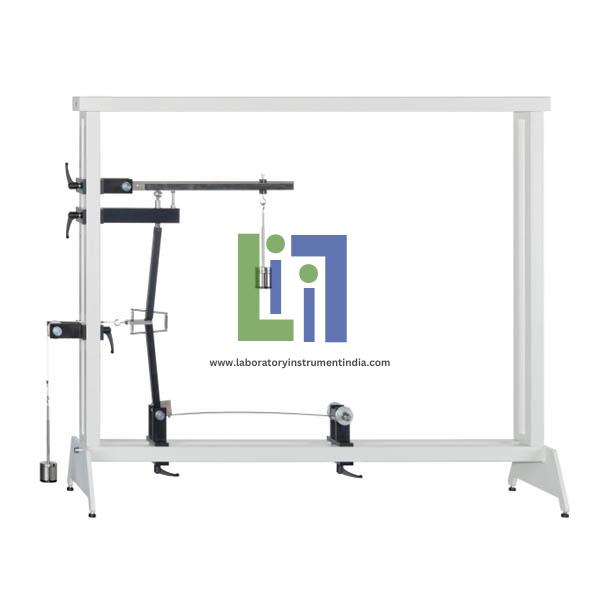

The unit basically consists of:Two porticoes:
A 50 cm. height portico, where the experimental strut will be subjected to load by means of a spring balance situated at the upper part and which will tend to elevate the lower beams, so the experimental strut will be subjected to compression.
A 1 m. height portico, where the test struts are placed. It is designed to accommodate struts of different height by using two pins. Therefore, at the upper and lower parts, there are special clamps to subject the strut to the desired ends conditions.
Regulation nut which, together with a bubble level, will allow to equilibrate the horizontal beams.
Bubble level to equilibrate the system.
Bench-top unit mounted on a structure of anodized aluminum profiles, with painted steel panel, and with legs.
....
Suitable for Lab environments as well as Production from Low to Medium Test Volume
Automatic application, holding and removal of test loads
Selectable Dwell Times
Best combination of quality, accuracy and cost-effectiveness
Load Cell for Measurement of Test Forces
Accurate and fast
No need of handling heavy weights or cleaning the messy oils.

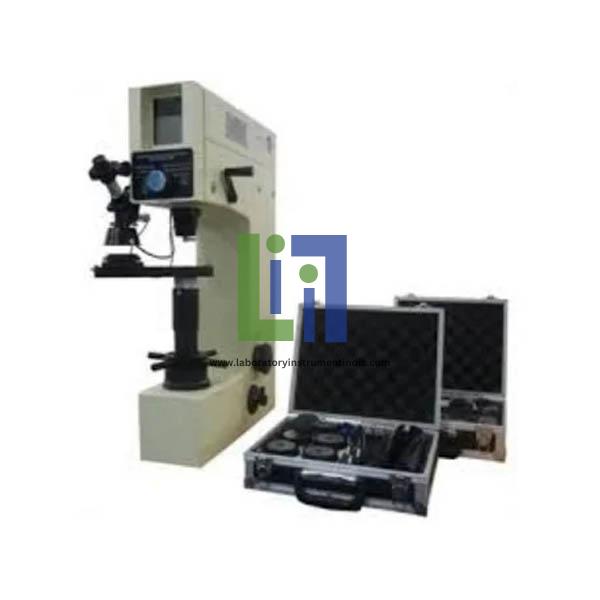

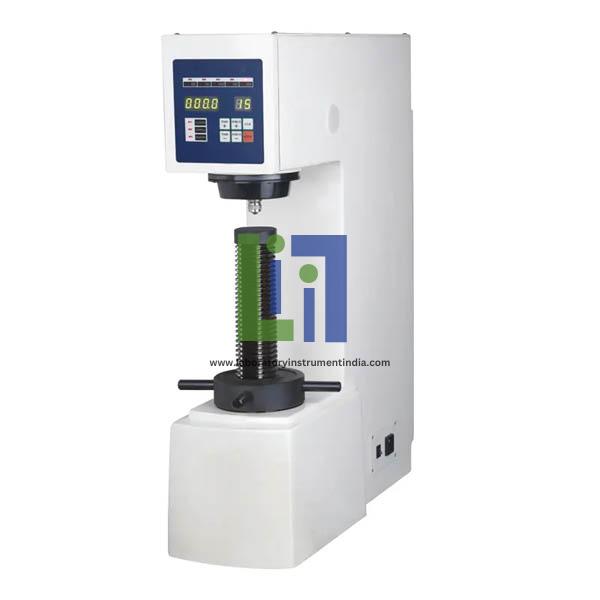

The Brinell, Vickers and Rockwell Hardness Testing Unit consists of a hardness testing machine that determines the three main types of hardness (Brinell, Vickers and Rockwell) in metals, hard alloys, quenched steels, etc. The Rockwell method generates a small size imprint during the test. It employs small quenched steel balls of different diameter or cones made of diamond for the indentation.
A penetrating ball of specific diameter is used in the Brinell hardness test to press the surface of the test piece with a specific force. The unit employs balls of 2.5 mm. and 5 mm.
Besides it can also be used to measure the hardness of other materials, such as rigid plastics, bakelite, etc.
The Vickers method allows to measure the hardness of practically all metallic materials, regardless their state and thickness. It employs a square base pyramid-shaped indenter. Such indenter is applied perpendicularly to the surface whose hardness is going to be measured.
The most common method used to calculate the hardness of a metal is measuring the indentation strength with the aid of a tool of specific geometry. It consists on measuring the imprint generated when exerting a preset load on the test piece for a certain time.
Bench-top unit mounted on a structure of anodized aluminum profiles, with painted steel panel, and with legs.
....
The main frame is supported on aluminum blocks. The two guides are made of stainless steel, the rest of the components are aluminum.
The unit is mounted on an anodized aluminum structure with painted steel panel.
Test rods: standard supply of 3 test rods: steel, brass and aluminum. They are 8 mm in diameter and 350 mm in length. They have marks every 50 mm, to make the performance of practical exercises at different lengths easier.
The two guides of the unit on which the mobile clamp slides are for testing rods of different lengths.
Fixed clamp, consists of two bearings which allow it to turn. It has an arm on which the force is applied. It has a notch placed 60 mm from the longitudinal axis of the test rod, to carry out the measurements. The dial gauge should be placed on this notch to properly measure the deformation. The clamp is made of stainless steel.
Mobile clamp located at one end that has a crank in the bottom to adjust the test rod to the desired length. It is made of stainless steel.
The unit is mounted on a structure of anodized aluminum profiles with painted steel plates , which has adjustable legs installed.
The unit basically consists of:Two porticoes:
A 50 cm. height portico, where the experimental strut will be subjected to load by means of a spring balance situated at the upper part and which will tend to elevate the lower beams, so the experimental strut will be subjected to compression.
A 1 m. height portico, where the test struts are placed. It is designed to accommodate struts of different height by using two pins. Therefore, at the upper and lower parts, there are special clamps to subject the strut to the desired ends conditions.
Balance 0-50 kg to measure the strut compression load, with 200 g accuracy.
Weight of 1 kg.
Bubble level to equilibrate the system.
Dial gauge, measurement range: 0-20 mm, precision: 0.01 mm, to check the strut flexion according to the experimental strut is subjected to load.
Regulation nut which, together with a bubble level, will allow to equilibrate the horizontal beams.

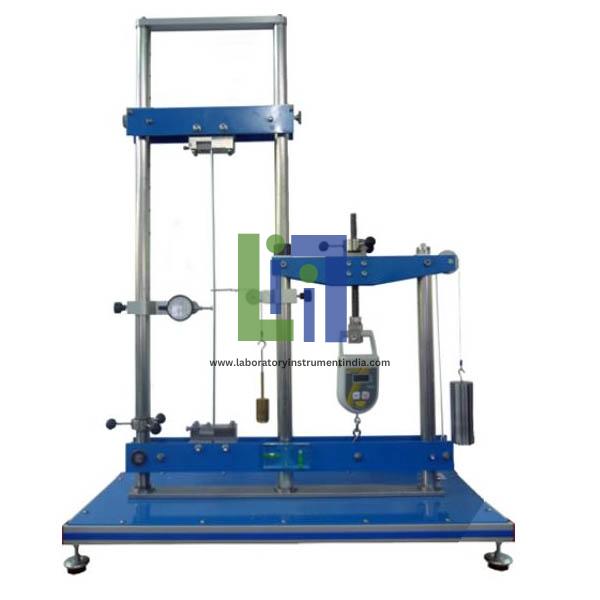

The unit allows to study the buckling of pieces of different lengths, ranging from 300 mm. to 625 mm, to which different support conditions can be applied:
Rigidly fixed end conditions.
Pin-joined end conditions.
One end pinned and the other fixed.
To measure the compression force exerted on the structure, there is a system composed of an elastic ring whose deformation is measured.
The compression force will be directly proportional to the deformation registered in a dial gauge.
To carry out the practical exercises correctly, it is very important to apply the force with an only axial component. For that purpose, the unit has a differential screw placed at one end, which allows the system compression.
The unit is supplied with a number of interchangeable test sections to give a wider knowledge and understanding to the students. The Computer Controlled Air Duct Systems Unit examine how the air can be distributed in a building. The student can plan, design and construct different air duct systems with several components such as pipes, bends, branches, reducers, filters, valves, etc.
....

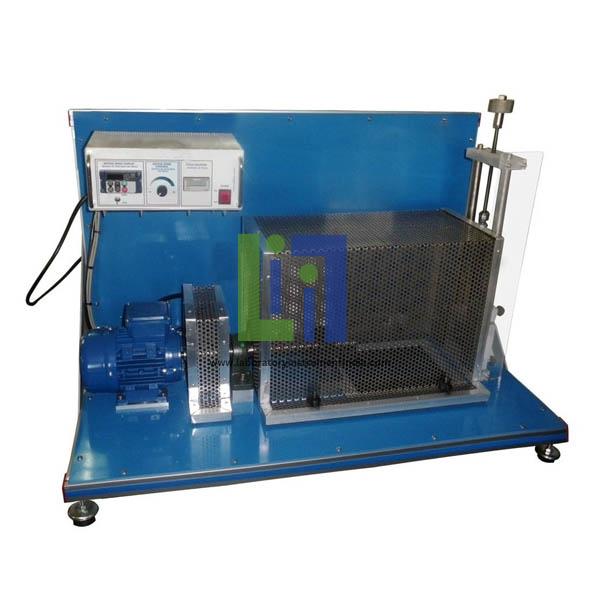

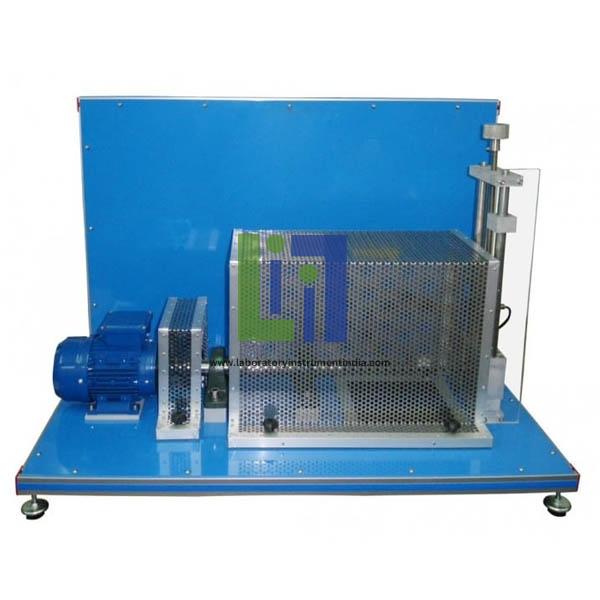

Bench-top unit for fatigue strength testing.
Metallic protective covers, one for the motor axis zone, and other for the test specimen zone, with safety protection system to avoid accidents.
Anodized aluminium structure and panels in painted steel.
Safety switch that stops the motor when the metallic protection is removed.
Diagram in the panel with similar distribution to the elements in the real unit.
Motor speed control by a frequency regulator, controlled by the control software (from the computer (PC)).
Electrical motor of 0.37 kW, maximum speed: 1500 rpm.
A rigid enclosure with acoustic lining may be placed over either noise source and attachments allow investigation of sound attenuation in ducts.
Each of two microphones may be connected to a DBA Filter and illuminated bar display to show relative loudness.
A self-contained unit for the demonstration of the methods of noise and vibration control. Variable control of both voltage sources allows speed control of both motors. An integral 240v electric motor and gearbox together with a 12v fan unit provide two noise sources.
Resilient mountings and mount bypass equipment allows investigation of modes of vibration at various frequencies and transmission of noise through solids.
With this unit, it is possible to determine the basic principles of the fatigue strength testing.
On the panel's right side, it is placed the system with which the test specimen is loaded. This system is composed by a sping balance, which is joined to a threaded spindle by its upper end, while on its lower side, it is joined to an articulated guided system, in which it is held the right side of the test specimen. When turning the threaded spindle clockwise, we transmit a vertical force upwards to the test specimen.
On the lower panel of the unit, it is fixed an electric motor which axis is joined to an end of the test specimen (test bar) by means of a coupling. As well, this axis has a disc, which by means a device will count the number of turns of the motor.
In order to guarantee the force verticality, the system has two guides to avoid horizontal displacements during the transmission of stress.
The applied force can be directly measured using the spring balance.
On the upper panel, the unit control box is mounted, containing: the main (on/off) switch of the unit; the cycle counter that shows us the quantity of turns the motor's axis carries out; the motor's speed control that permits us increase or diminish the turning speed of the electric motor; the motor speed display that shows us the frequency in Hz, which is being transmitted to the motor at every moment; and the on/off switch of the electric motor.
Likewise, in order to assure the constant application of the load, besides of allowing the test specimen rotation on its axial axis, the system also permits the alignment of the coupling with the test specimen, due to the deformity suffered by bending.
Both the area where the test specimen is located and the motor axis outcome are covered with a protection cover, without it the unit does not work, since it is provided with a safety system to avoid accidents.
The designed for training in ventilation engineering. The individual components in the ventilation system are fitted with pressure measuring glands. The power consumption of the fan is indicated on the switch cabinet using a voltmeter and an ammeter. For this purpose, an inclined tube manometer with 2 measuring ranges and a digital handheld unit for the measurement of the air velocity are included, along with numerous other components. Once the trainee has built a ventilation system independently, the effects of bends, branches, regulator flaps on the airflow rate, the air velocity, as well as the pressure loss can be investigated. The components are the same as those used in ventilation engineering.
....
Table unit for the investigation of the creep behaviour of different materials
Tensile stress range 5...25N/mm²
Position measurement gauge 0...10mm, resolution 0.01mm
Experiments above or below room temperature possible with conditioning box
Flat specimens made of lead and PE
Specimen cross-section 2x5mm, measured length 25mm.
Aluminium cope and drag box, screwable
Pouring ladle with 5 kg Woods metal (melting point 70C)
Worksheets for instructor and students
Pattern plate with pattern of epoxy-resin in one piece
Core die, core iron
15 kg moulding sand in a separate container
Moulding tools
Thermometer.
Acoustic Insulation Test Unit
....
The aluminium structure is covered by a painted steel panel.
The unit for impact testing with the Charpy and the Izod pendulums is mounted on an aluminum structure that provides the device great rigidity.
