Pressure and Vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement. The flow rate of water is measured using measuring tank and Digital Timer provided in our Impact of Jet Apparatus. Impact of Jet Apparatus consists of a centrifugal pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop water circulation.
Features:
Water Circulation Closed loop.
Powder Coated Painted structure
Simple to operate & maintain
Compact & stand-alone set up
MS Tanks with FRP Lining.
Experiments :
To investigate the forces produced by a water jet striking a flat or a curved surface.

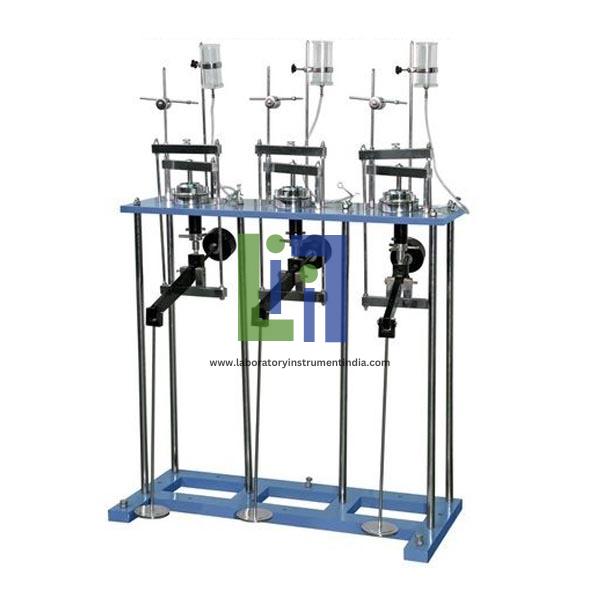

The load bridge group is supported in high accuracy self-aligning seat balls. Rigidly manufactured from aluminous alloy casting to provide a high degree of accuracy with any frame distortions under load.
....

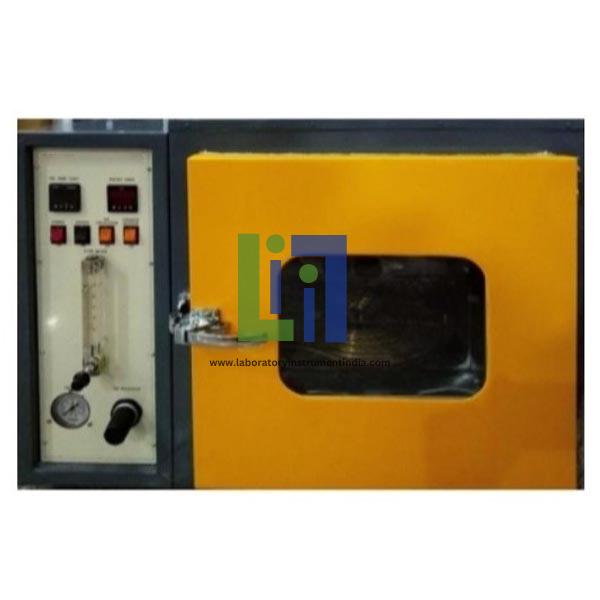

The rolling thin film oven (RTFO) test is used to measure the effect of heat and air on a moving film of semisolid asphalt binder. The results of this treatment are determined from measurements of the binder properties before and after the test. The superpave PG binder specification looked for tests which would closely simulate field performance. Hotmix asphalt binder experiences significant aging during the manufacturing and laying process. Repeat ability of the test is directly related to the accuracy with which the oven temperature can be maintained and the re producibility of the thermal rise time of the system. Investigating this phenomenon within a laboratory environment, with a repeatable and simple test is very useful within the design process.
....-lab-352483438.jpg "Perforated Plate With Adjustable Stem (Swell Plate)")

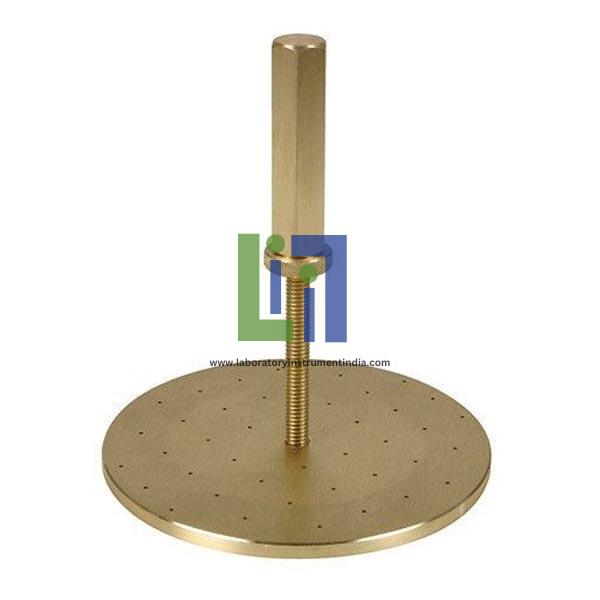

Contact end of the stem is easily locked in place with a knurled nut. Perforated 5-7/8" (149mm) dia. base with adjustable stem.
Features:
Easy to insert and remove
Adjustable stem for locking plate.

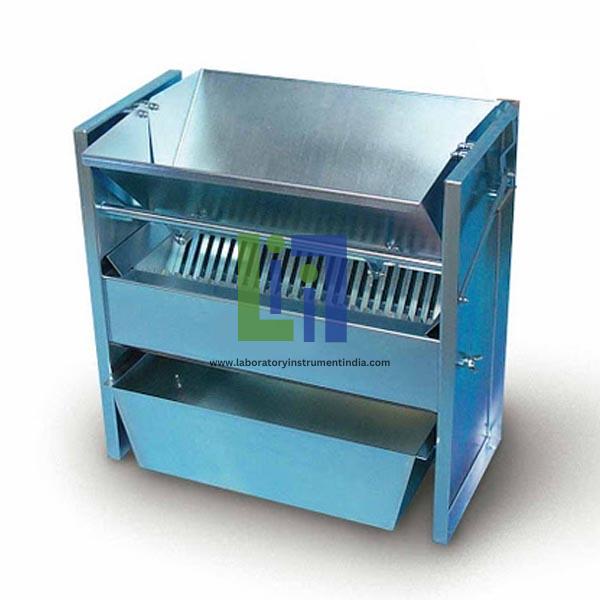

Designed for the reduction of test samples which are too large in volume to be conveniently handled. Complete with two collecting pans. Clam shell hopper: 30 litres capacity. Very sturdily constructed, it is totally Cadmium Plated for rust protection. It handles any material from Sand sizes up to diameter 108 mm. Each Chute bar is 12 mm wide so that openings of 12-24-36-48-60-72-84-96-108 mm are possible.
....

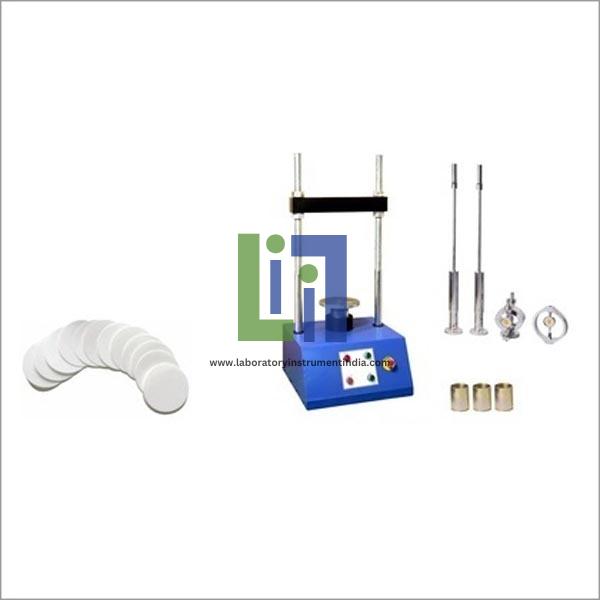

It consists of body housing, a geared screw jack and motor drive mechanism suitable for operation on 230 V, 50Hz, Single Phase, A.C. supply.
Marshall Apparatus Consists Of:
50KN capacity
Robust construction
Safety cut-off switch
Rate of travel 50.8mm/min

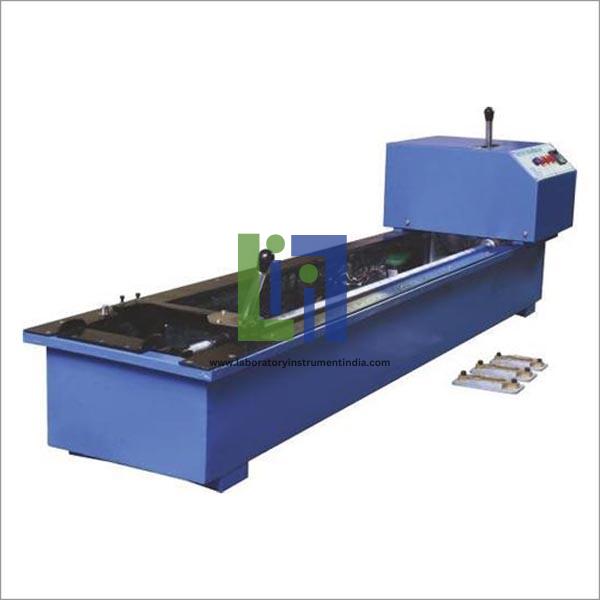

The machine consists of a carriage moving over a lead screw. An electric motor driven reduction gear unit ensures smooth constant speed and continuous operation. Designed to test three specimens simultaneously.
....

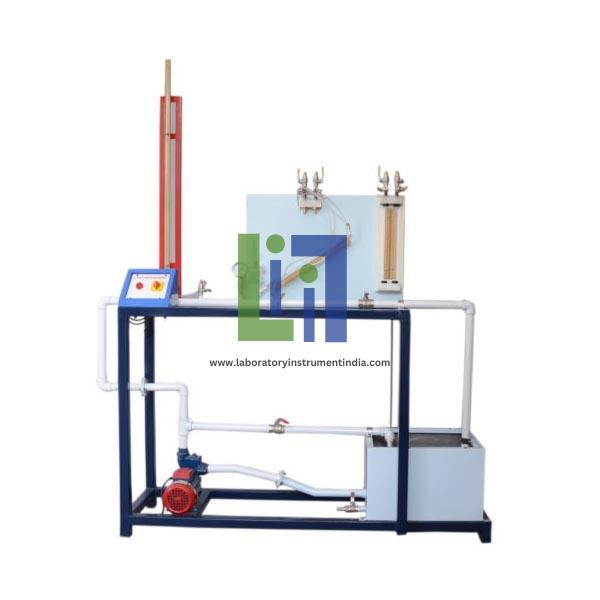

Sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line. The set-up consists of different pressure measurement devices fitted in a pipe line, in which an Orifice is fitted to create the pressure difference.
Learning Objects/Experimentation:
To measure the pressure and pressure difference by pressure gauge, single column manometer, U Tube manometer & Inclined tube manometer.v
To demonstrate the working of different pressure measuring devices.
Requirment For Operation:
Water Supply (Initial fill)
Floor Drain required.
Electricity Supply: Single phase, 220 VAC, 50 Hz, 5-15 amp.
Combined socket with earth connection.
Mercury (Hg) for manometer (750 gm).
Floor Area Required: 1.5 m x 0.75 m.

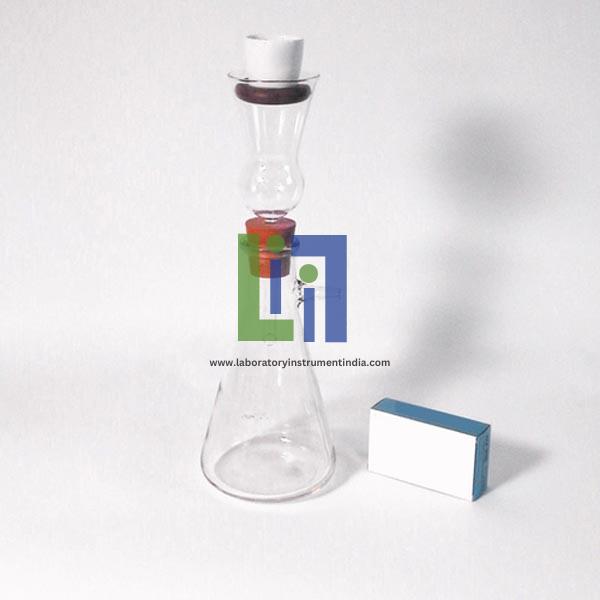

Present set-up is self-contained water re-circulating unit, provided with a Rubber ring for Gooch crucible, Gooch crucible, Filter discs, fiber glass, 25 ml dia. Pack of 100. Including: filter flask 500 ml capacity, funnel for Gooch crucible.
Purpose
Used for the determination of solubility.

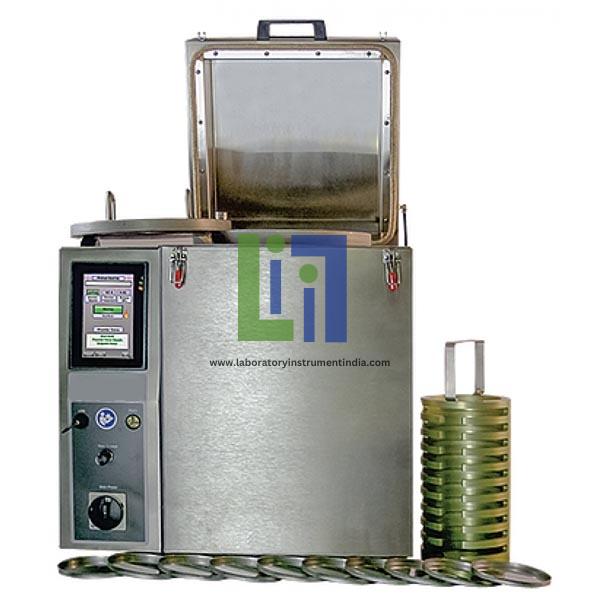

The Pressure Aging Vessel pressure aging vessel is used to simulate in-service oxidative aging of asphalt binder according to procedures developed by the Strategic Highway Research Program (SHRP). The Pressure Aging Vessel consists of a vertical, stainless steel pressure vessel in a stainless steel cabinet with encased band heaters, a precision sample holder for simultaneous testing of ten specimens, a set of ten TFOT specimen trays, a pressure controller, temperature controller, pressure and temperature measurement devices, temperature and pressure recorder, and a specimen loading and unloading tool. The offered product is manufactured and designed using the finest quality components with the help of contemporary technology. The offered product is delivered to our buyers only after its proper checking on different such as dimensional accuracy, performance, finish, etc.
The Pressure Aging Vessel features a compact, benchtop design with integral ASME code section VIII, division 1; 1992 A 93 pressure vessel controlled using a 7", full-color, touch-screen display, which is tilted for greater visibility. Operating pressure is 2.10 0.05 MPa (304psi). Temperature uniformity is ±0.5°C. Temperature is 80 to 115°C and programmable from 50 to 150°C. Between 80 to 115°C the tolerance is well within ±0.1°C.

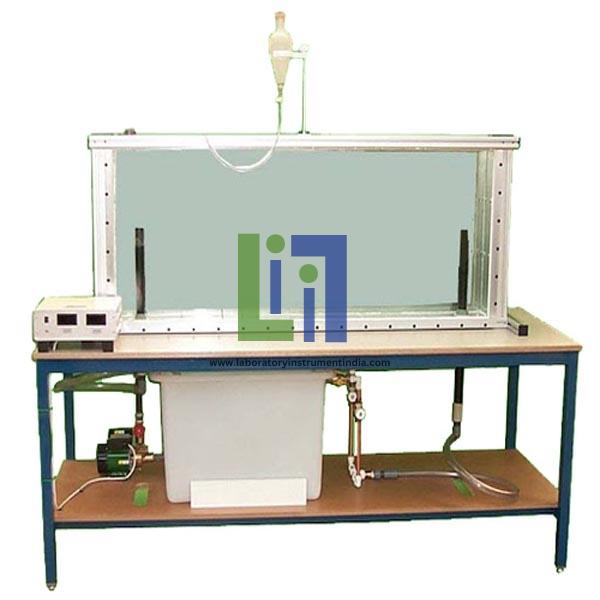

It consists of a self-contained bench. Glass fronted tank, aluminium rear wall, 6 pressure tappings, adjustable overflow, low and high range flow-meters with digital readout, sump tank and pump, dye injector, model set and instruction manual. a set of models. 230V, 50Hz. This bench is used for experimental studies of seepage and permeability problems in porous media.
....

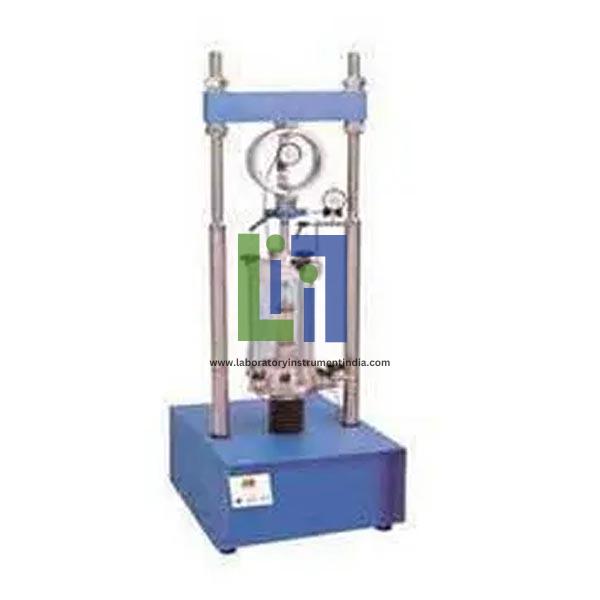

Once the specimen is assembled in the triaxial cell, required parameters like strain rate, confining pressure and back pressure are programmed through the computer. Digital Triaxal is totally automated stress path system for soils and conforms to the test requirements of All the modules namely load frame, confining pressure, back pressure, pore pressure or volume change are totally controlled by the dedicated computer.
Controlling and data acquisition is supported by window based software. which can perform tests under the following conditions:
Shear in UC, UU, CU, CU & CD
Stress path triaxial test
K0 consolidation and swelling test.

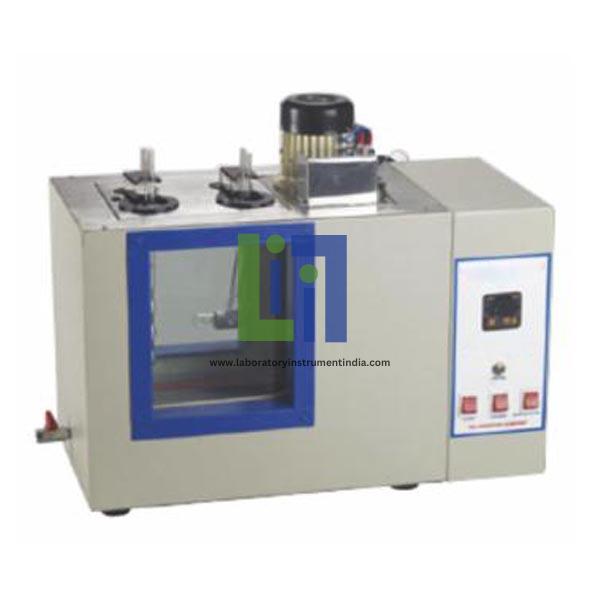

Our offered bath is thoroughly checked on various parameters to ensure zero-defect. This bath is widely used in national laboratories and pharmaceutical industries. This bath is designed and developed under the strict supervision of our experienced professionals in accordance with the international quality standards.
Features:
Ideal for controlling the temperature accuracy
Durable glass bath for optimum heat preservation
Desktop based all-in-one design for easy operations and portability
Intelligent signal sampling for accurate data measuring and parameter reading
Accurate viscometer for improving experimental efficiency
Easy cleaning and drying of viscometer tubes.
High precision digital display
Electric stirrer for ensuring uniform temperature of bath.

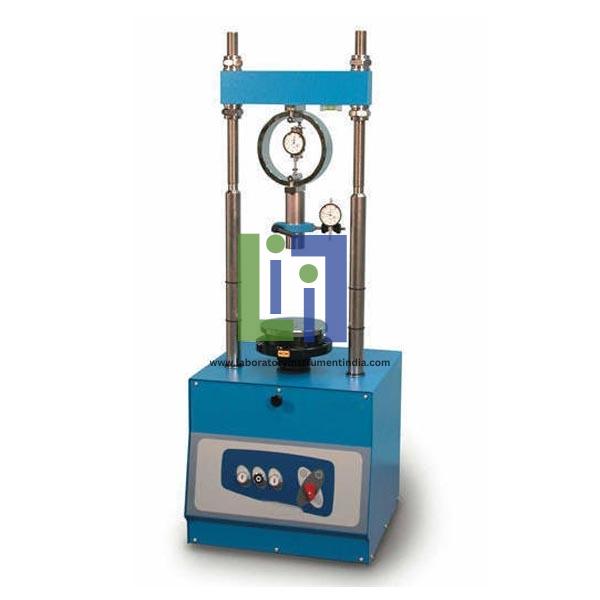

Upper beam an be adjusted in height. Foreseen of fast approach device of the base plate and electric end of stroke switches of the load plate to save the machine from wrong manipulations. CBR loading machine motorized 50 KN ASTM version 1,27 mm/min Load is applied through a screw jack driven by an electric motor at a constant penetration rate of 1,27 mm/min achieved by a built in gear box and assured also under load.
....

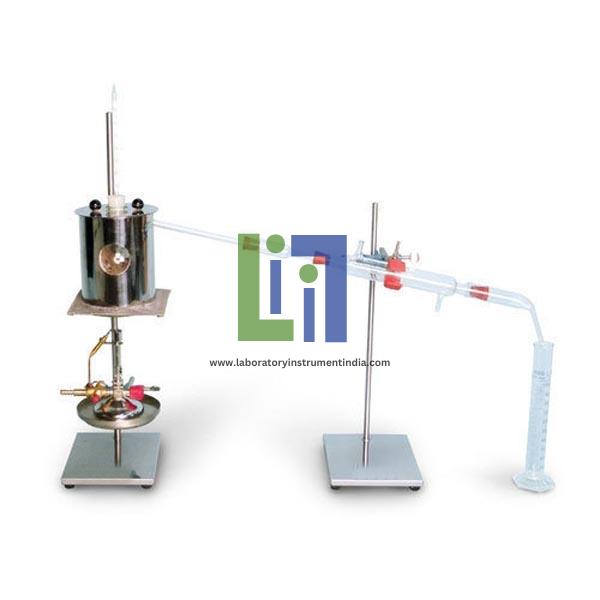

Complete with one distillation flask of 500 ml and one 100 ml crow receiver but without thermometer. Electric hot plate heated with energy regulator. The apparatus consists of a heavy gauge shield, lagged with asbestos cover in two parts and wire gauge. The shield is supported on a platform with chimney arranged for fitting to stand.
Purpose:
Used to measure the amount of the most volatile constituents in cut-back asphaltic products.
