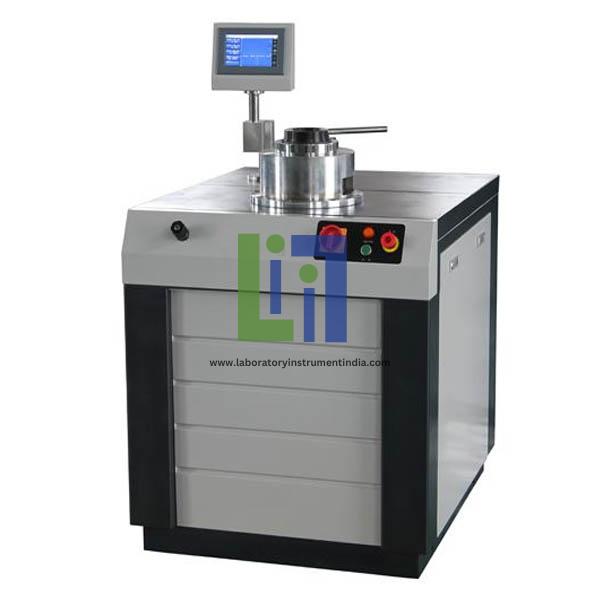

Use ball screw, high accuracy

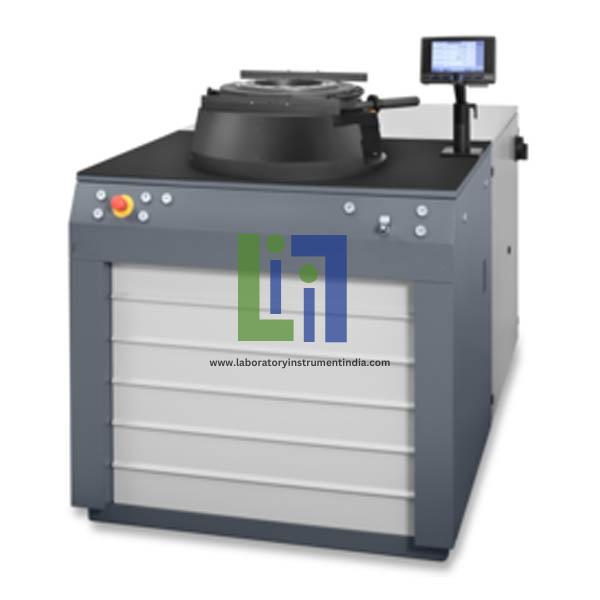

High coaxial degree.
Can set the depth and load
Special differential circuit, power and peripheral interface full isolation design, anti-interference ability
Through the special differential circuit with FPGA internal pure hardware high precision digital displacement device makes test results more accurate and reliable;
FPGA, Single Chip and with 100 m data processing speed to make sure data wont be missed
Collecting and processing data at the same time, Control stability efficient
7 inch TFT industry true color touch display, graphics beautiful, operating more humanization;
Electrical design satisfy EMC safety standards
Two way and a high precision AD collection, stamping load and clamping force is more exquisite,
limit position protection, full scale overload protection function.
Cup drawing Display error 0.01mm
Max force 300kN
Clamp force 300kN
Clamping force relative error 2%
Test force range 2%100%
Test force display error 1%
Displacement resolution 0.002mm
Stamping stroke 120mm
Clamp stroke 40mm
Stamping speed 130mm/min
Plate maximum width 200mm
power 3.7kW/AC380V/50Hz
frame 930mmx1260mmx1400mm
weight About 1800kg
Cup drawing Display error 0.01mm
Max force 300kN
Clamp force 300kN
Clamping force relative error 2%
Test force range 2%100%
Test force display error 1%
Displacement resolution 0.002mm
Stamping stroke 120mm
Clamp stroke 40mm
Stamping speed 130mm/min
Plate maximum width 200mm
power 3.7kW/AC380V/50Hz
frame 930mmx1260mmx1400mm
weight About 1800kg
High coaxial degree.
Special differential circuit, power and peripheral interface full isolation design, anti-interference ability
Through the special differential circuit with FPGA internal pure hardware high precision digital displacement device makes test results more accurate and reliable;
FPGA, Single Chip and with 100 m data processing speed to make sure data wont be missed
7 inch TFT industry true color touch display, graphics beautiful, operating more humanization;
Collecting and processing data at the same time, Control stability efficient
Two way and a high precision AD collection, stamping load and clamping force is more exquisite,
Electrical design satisfy EMC safety standards
limit position protection, full scale overload protection function.
