Experiments:
Heat transfer
Multi-variable control up to three variables can be monitored and individually controlled
ON/OFF control experiment includes investigation of over shoot and undershoot, Frequency response of model process
Thermal inertia and variable-time constants
The flexible design of the equipment allows the user to develop many other analysis and control exercises to suit their needs. It is good for extended or advanced control experiments, and is ideal for student project work.
ON and OFF time ratio, rates of heating and cooling, offset and hysteresis
Proportional, proportional + integral, or proportional + integral + differential control.

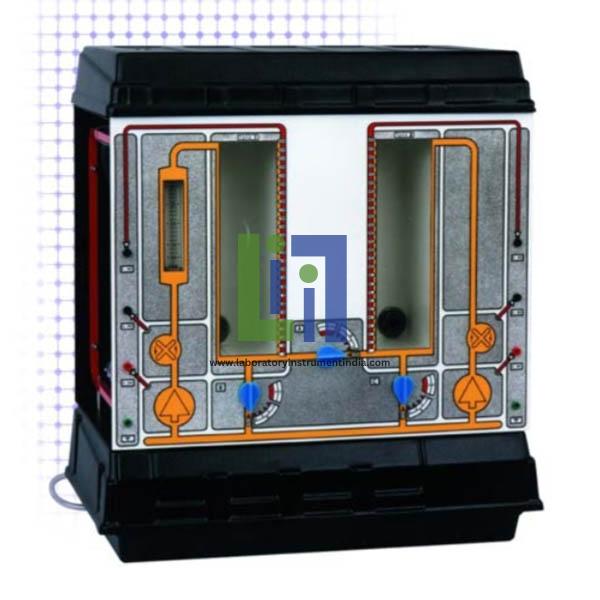

Experiments:
Design and operation of analogue proportional, proportional + integral, or proportional + integral + differential control controllers
System dynamics in process systems
Steady-state errors and closed-loop transient responses
Ziegler/Nichols controllers tuning rules
Calibration of transducer and actuator circuits
Multivariable control
Flow control
Step-change tuning
State feedback
The flexible design of the equipment allows the user to develop many other analysis and control exercises to suit their needs. It is good for extended or advanced control experiments, and is ideal for student project work.

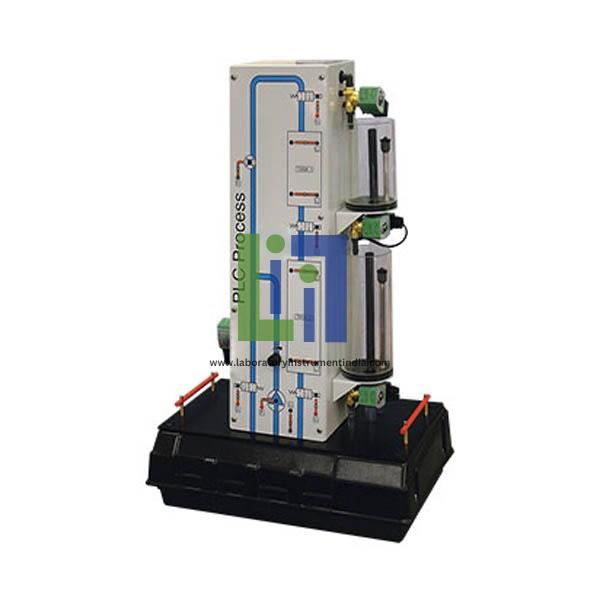

The apparatus has two transparent tanks, mounted one above the other. A variable-speed pump transfers water from the reservoir (in the base of the unit) into the upper tank. PLC Process gives students and engineers practical experience of the principles and application of programmable logic controllers (PLCs). The object is to connect and program an external, programmable logic controller to monitor and control the level and flow rate of water in a two-tank system. The pump control is on or off, but a manual control allows the user to set the speed. A float switch in the reservoir monitors the level of water. The water can drain down to the lower tank and then back into the reservoir. Solenoid valves may be individually opened or closed to control and redirect the movement of the water.
....

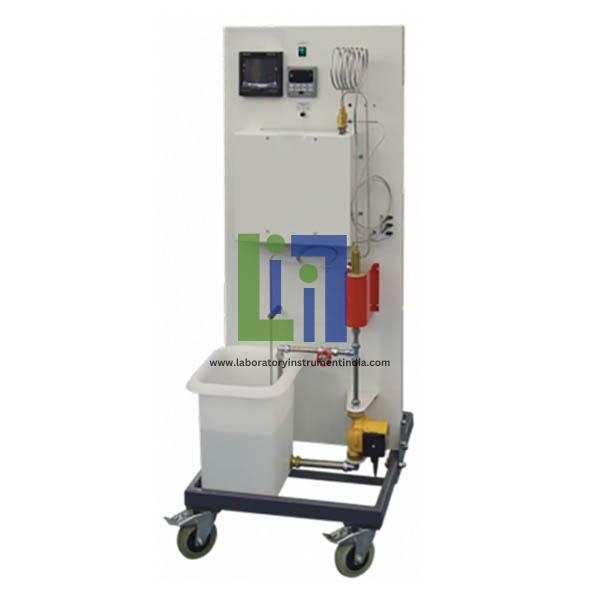

The Temperature Process Training System is a compact and mobile unit for a wide range of experiments in temperature control. It gives students a greater understanding of the stability of simple control systems. The self-contained unit can do many experiments, but it can also connect to the optional Computer Control System for distributed control.
The main parts are:
Industrial controller with auto tune feature
Temperature transmitter
Thermocouples
In-line heater
Three-speed pump
Two-channel chart recorder
Heat-exchanger and fan
Reservoir
Delay coil.

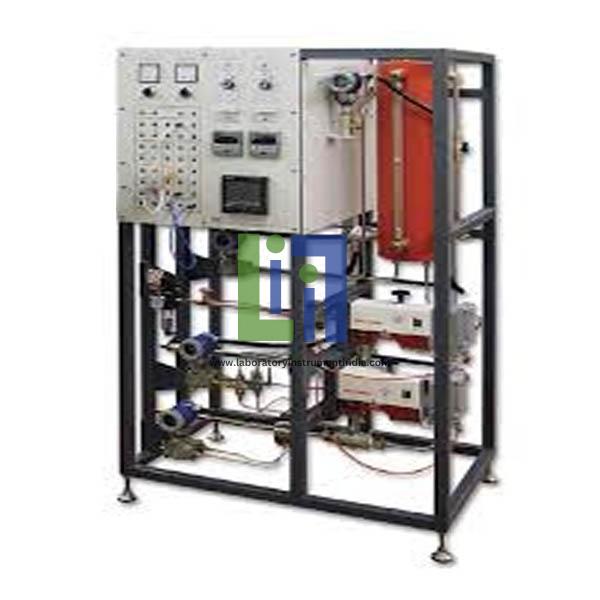

The Control and Instrumentation Study Station uses industry-standard parts to teach industrial process control. Two valves control the flow of the water supplies into a process vessel. Hot and cold water supplies connect to the study station. It is an excellent tool to help train plant technicians and process control engineers.
The process vessel has three jobs:
A pressure vessel with a pressure-relief valve for safety
A liquid-level reservoir with a sight gauge
A temperature-mixing chamber for the hot and cold water flows

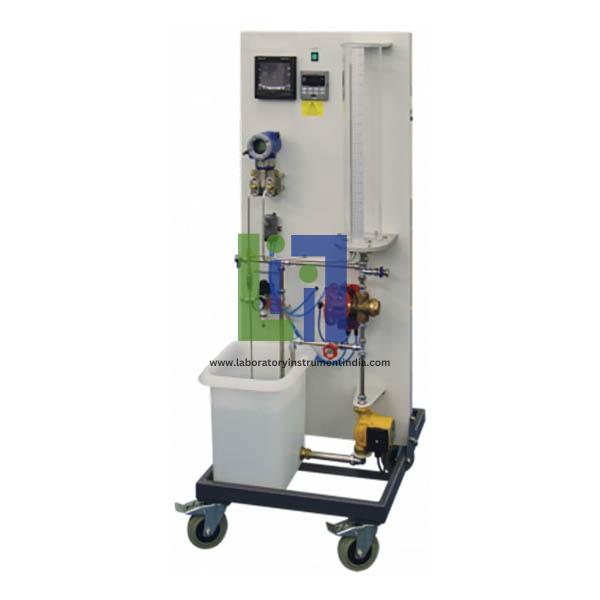

The Level Process Training System is a compact and mobile unit for a wide range of experiments in flow control. It gives students a greater understanding of the stability of simple control systems. The self-contained unit can do many experiments, but it can also connect to other products in the range for extra experiments. For cascade control of flow and level, it can link to the optional Flow Process Training System. For distributed control, it can connect to the optional Computer Control System
....

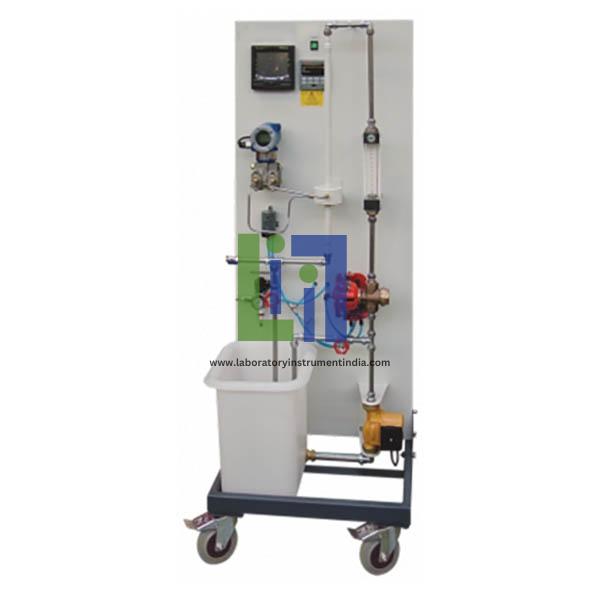

The self-contained unit can do many experiments, but it can also connect to other products in the range for extra experiments. For cascade control of flow and pressure, it can link to the optional Pressure Process Training System. The Flow Process Training System is a compact and mobile unit for a wide range of experiments in flow control. It gives students a greater understanding of the stability of simple control systems. For distributed control, it can connect to the optional Computer Control System. For cascade control of flow and level, it can link to the optional Level Process Training System.
The main parts are:
A gap-type (rotameter) flow meter
Fixed orifice and pressure transmitter
Industrial controller with auto-tune feature
Two-channel chart recorder
Three-speed pump
Pneumatic control valve
Reservoir.

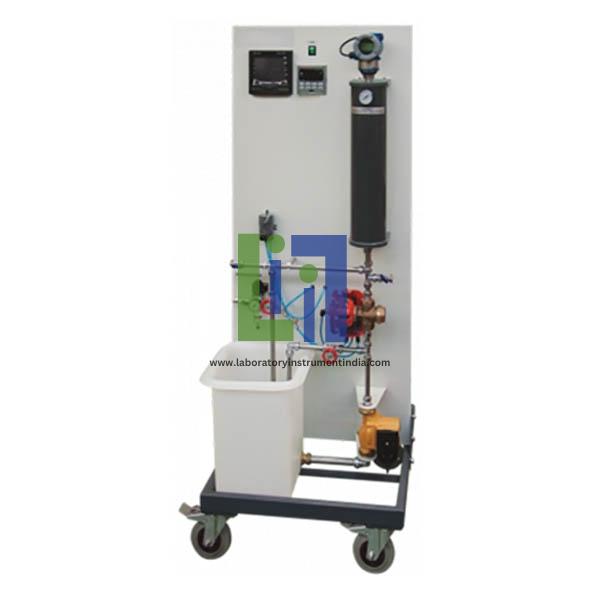

The self-contained unit can do many experiments, but it can also connect to other products in the range for extra experiments. The Pressure Process Training System is a compact and mobile unit for a wide range of experiments in pressure control. It gives students a greater understanding of the stability of simple control systems. For distributed control, it can connect to the optional Computer Control System. For cascade control of flow and pressure, it can link to the optional Flow Process Training System.
The main parts are:
Industrial controller with auto-tune feature
Current-to-pressure converter
Gauge pressure transmitter
Pressure accumulator
Three-speed pump
Reservoir
Two-channel chart recorder
Pneumatic control valve.

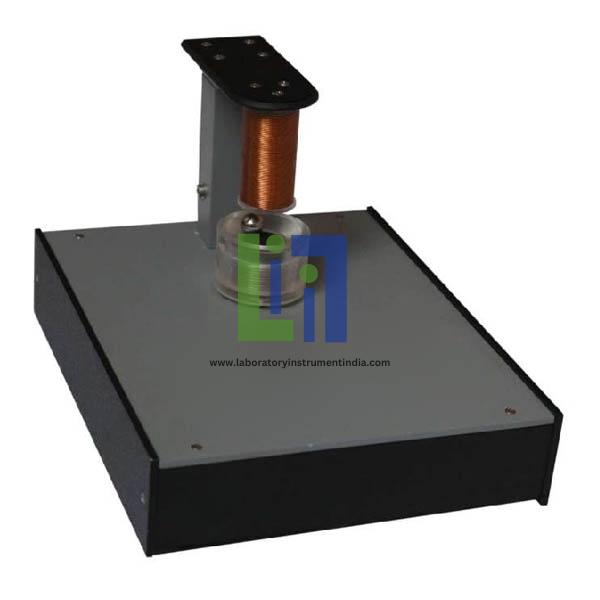

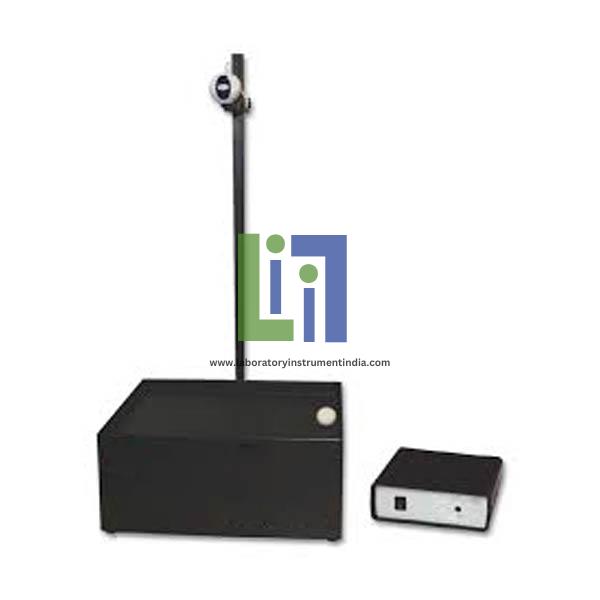

The basic control task is to control the vertical position of the freely levitating ball in the magnetic field of the coil. The Magnetic Levitation Apparatus is a non-linear, dynamic system with one input and one output. The Magnetic Levitation Apparatus shows control problems with non-linear, unstable systems. The apparatus consists of a steel ball held in a magnetic field produced by a current-carrying coil. Any imbalance and the ball will move away from the set-point position. A sensor measures the position of the ball. At equilibrium, the downward force on the ball due to gravity is balanced by the upward magnetic force of attraction of the ball towards the coil. A power amplifier with overheat protection drives the coil.
....

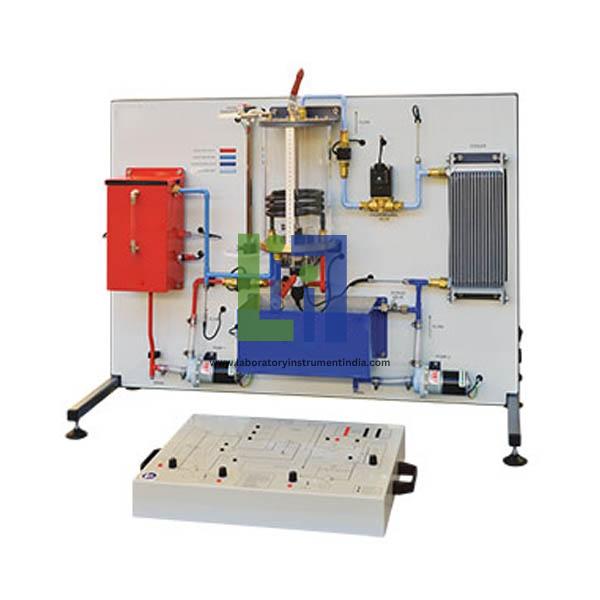

Process Trainer is an educational package that mimics industrial process engineering. The fully integrated, selfcontained teaching apparatus gives a comprehensive range of process control experiments, from basic to advanced. Using water as the working fluid, the equipment allows safe, practical experiments on control of flow, liquid level, temperature and pressure. Students can study each of these separately or in combinations.
....

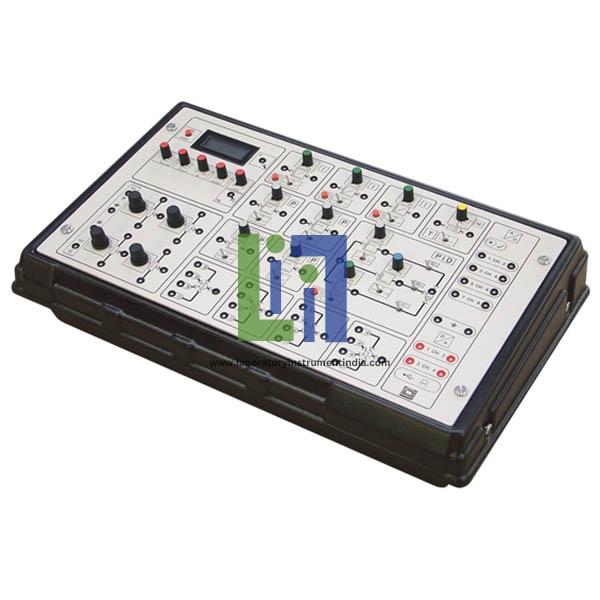

The Controller is for use with most products in Control Engineering range, but it will work with any other compatible laboratory equipment.
These blocks mimic the important parts of industrial controllers. Clear diagrams on the front panel of the controller show the blocks, each of which has its own set of connection sockets. This compact unit has analogue electronic circuits connected in blocks. The user connects the blocks in any way that they need and then connects them to their chosen products in the range.
The blocks include:
Fully adjustable potentiometers that can work as setpoints or attenuators
A function generator and digital voltmeter
Proportional and integral blocks
A complete three-term PID (proportional, integral, derivative) block
Phase lead
Summing junctions.
The Ball and Plate Apparatus shows the problems of the of an unstable system. The apparatus consists of a plate pivoted at its centre so the plate can tilt in two directions.
The basic control task is to control the ball position. The ball is free to roll on the plate.
Stepper motors tilt the plate. A servo system with a stepper motor control card controls the motors. A camera with an intelligent vision system measures the ball position.
The equipment includes:
A data acquisition board for your computer
Camera with USB connection
Ball and plate model
Power supply
The data acquisition board fits into a suitable computer (not included) to link with the Ball and Plate Apparatus and control its motors.
Software (included)
Interface library for programming at the system level
Demonstration program with PID controllers

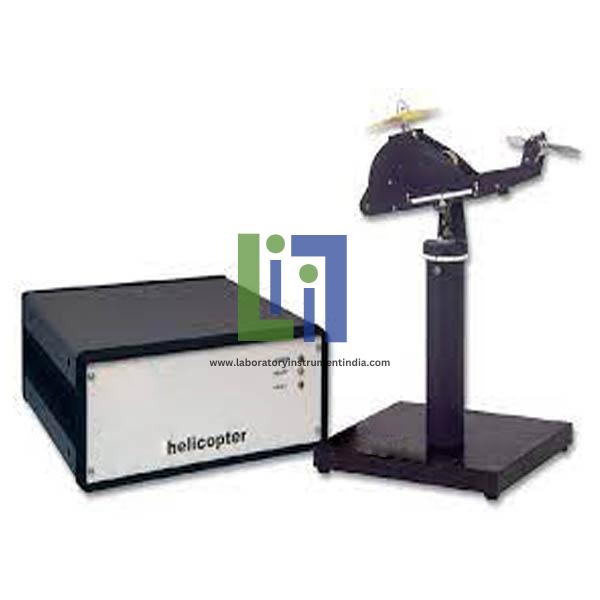

The model simulates a helicopter with horizontal and tail rotors to give pitch and yaw control. The control system must keep the helicopter stable and allow for a change in the centre of gravity. When operating near the steady state, the electromechanical system can be linearized to a six-order model. Sensors measure the yaw and pitch angles. This gives a two-input and two output system, with cross-coupling. Students use the educational manual (supplied) to help identify plant dynamics and create a control system.
The equipment includes:
The model helicopter on a stand
A protective steel cage to put around the helicopter for safety
An interface unit
A data acquisition board for your computer.
This training kit contains pulse generator of different frequency levels, DC power supply system, data switches and breadboard. Ideal for projects of schools and colleges, this trainer has inbuilt PC board for its trouble free operation. Offered Digital Interface Trainer acts as unique computer system. It serves as a wonderful medium to learn how to write into ROMs and RAMS. Its digital section contains buffered LED readout system, logic switches and clock frequency system. We are an eminent supplier and manufacturer of best grade Digital Interface Trainer. The entire structure of this trainer is installed on metal base that has locks and handles.
Features:
Error free operation
Single PC board based design
Fast functioning.

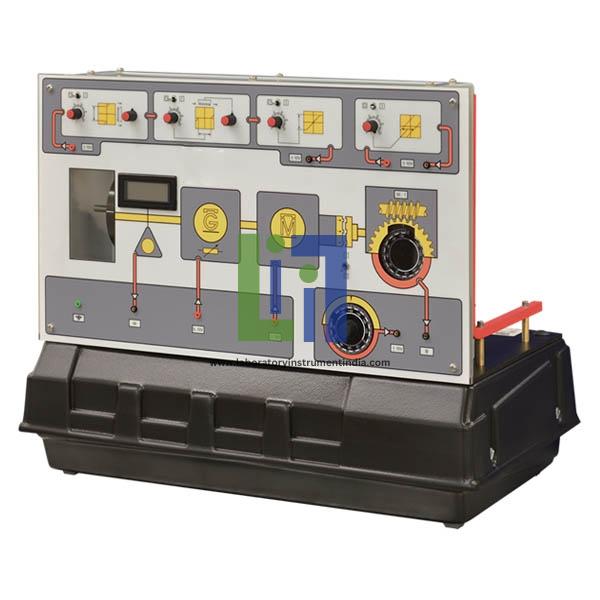

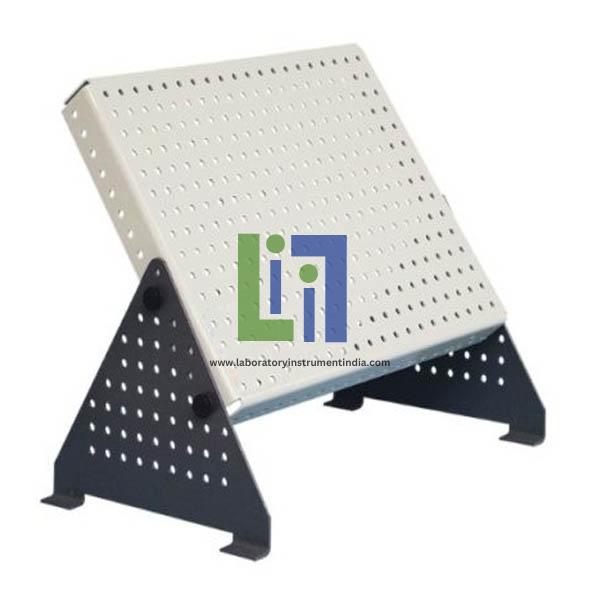

Engineering Science Work Panel
....
Experiments:
Proportional and proportional plus integral control of servo-system speed
Disturbance cancelling and feed forward control
Response calculation and measurement
Angular position control: proportional control and velocity feedback
Basic tests and transducer calibration
Non-linear system characteristics.
Angular position control and the influence of non- linearities.
It is good for extended or advanced control experiments, and is ideal for student project work. The flexible design of the equipment allows the user to develop many other analysis and control exercises to suit their needs.

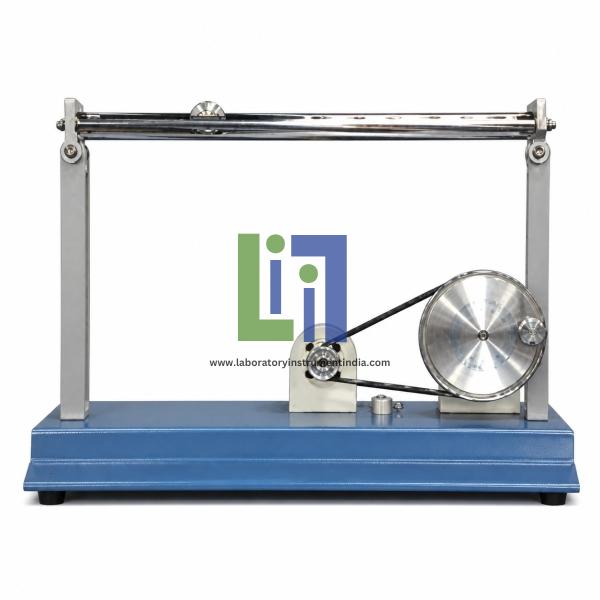

Experiments:
The flexible design of the equipment allows the user to develop many other analysis and control exercises to suit their needs. It is good for extended or advanced control experiments, and is ideal for student project work.

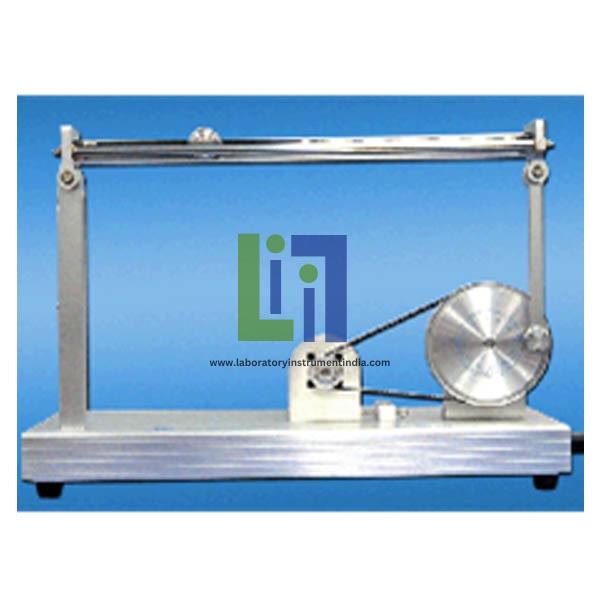

Design of state re-constructors to obtain estimates of ball velocity and position
Design of analogue phase-advance compensators
Measurement of system dynamics by transient and closed-loop methods
Essential Services.
Bench space needed: 1.5 m x 750 mm
Electrical supply: 90 VAC to 250 VAC, 0.4 A, 50/60 Hz, with earth.
Ball And Hoop Apparatus
....
Experiments:
System dynamics in process systems
Design and operation of analogue proportional, proportional + integral, or proportional + integral + differential control controllers
Steady-state errors and closed-loop transient responses
Ziegler/Nichols controllers tuning rules
Calibration of transducer and actuator circuits
Multivariable control
Step-change tuning
Flow control
State feedback
The flexible design of the equipment allows the user to develop many other analysis and control exercises to suit their needs. It is good for extended or advanced control experiments, and is ideal for student project work.
Experiments:
The measurement of system dynamics from step response information.
Inner loop feedback compensation.
The use of dither signals in the compensation of system non-linearities.
P+I controller design.
It is good for extended or advanced control experiments, and is ideal for student project work. The flexible design of the equipment allows the user to develop many other analysis and control exercises to suit their needs.

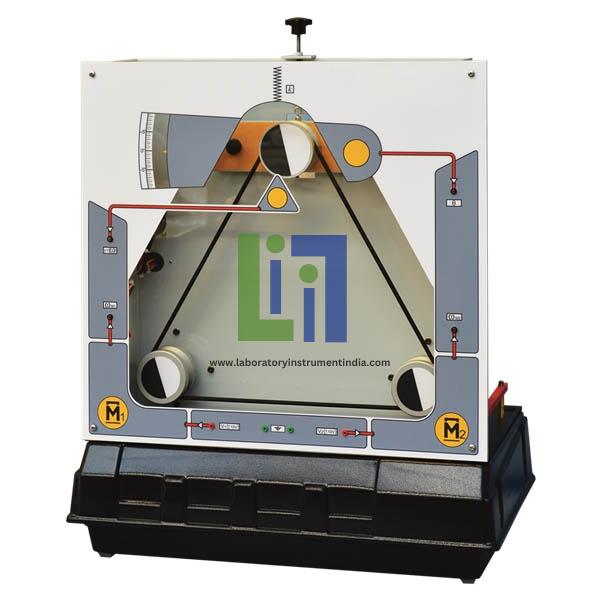

Experiments:
Simultaneous control of speed and tension
Independent control of speed and tension
The flexible design of the equipment allows the user to develop many other analysis and control exercises to suit their needs. It is good for extended or advanced control experiments, and is ideal for student project work.
Practical methods of controlling multi-variable electro- mechanical systems.
