The Archimedes principle states: The magnitude of the force equals the weight of the fluid that the object displaces. An alternative method of measuring the buoyancy force is to measure the amount of fluid displaced when the object is floating in the fluid tank. The level before and after immersion is monitored using the integral scale on the outside of the fluid tank. Test object shapes are solid cylinder, cube, sphere and cone are supplied as standard, there are also three identical shapes that are made from different materials, these are aluminium, brass and steel. The change in position of the counter weight gives rise to a reduced moment thus indicating the magnitude of the buoyancy force being applied to the object. Each test object is water proofed to avoid inaccuracies of results and corrosion over time. When the test objects are suspended the moment lever arm is brought to the horizontal by moving the balance hanger and monitoring the small spirit level until level. When the test object is lowered into the fluid the counterweight is adjusted to bring the moment lever arm back to the horizontal. The fluid tank can be filled with water or another medium, i.e. anti-freeze, oil etc. The samples attach to the moment lever arm using a cord and lowered into the fluid tank by lowering the cord accordingly, a scale on the lever arm allows the user to also record the amount of distance the shape has been lowered.
....
This is often seen in an ice skater performing a pirouette. First they spin round on an axis corresponding to their body, arms outstretched. When they raise their arms above their head, the increase in spin in considerable. Conservation of linear momentum is well understood and often demonstrated to students. Rather than go to an ice rink, students can perform this experiments in the laboratory. Equally important is the conservation of angular momentum. It is not easy to do meaningful experiments on this, but a highly visual demonstration of almost dramatic impact is the effect of reducing the radius of a rotating mass.
The resulting increase in angular velocity is considerable.
The weights are moved to the outer ends of their travel, away from the centre of rotation. The arm is then spun rapidly by hand, and the weights pulled towards the centre by the cord.
A bench mounted vertical board has a rotating arm along which two weights can be moved by a pull cord operated by the student or demonstrator.
Features:
Used for demonstration only, no measurements are intended. Demonstrates basic concepts of conservation of angular momentum through visual observation.
Low cost, effective teaching Self-contained Wall mounted High visual impact "hands-on" experience
Range of Experiments.
The apparatus consists of a jib restrained by two chain ties making a triangulated three dimensional structure.
A load is hung from the jib end, and the geometry returned to its unloaded state using a knurled collar before taking the spring balance readings
The bottom of the jib is pivoted to the wall mounted plate and the tie attachment locations can be varied independently at their wall ends.
The jib and both ties are fitted with spring balances so that the internal forces can be measured.
Integral linear and angle scales
To be a table top apparatus for investigating plane and spatial equilibrium of moments and for performing vector addition.
To incorporate friction free movement using air bearing
Solid and sturdy base plate with integral feet.
Comprehensive technical manual for student and lecturer
To be able to use up to six forces simultaneously
To be supplied with set of weights.
Experiments on the law of gravity on an inclined plane and on the angular acceleration of discs
2 rotating discs with self-centering conical pins
l x w x h 1200 x 300 x 280mm
Plane 1000mm, adjustable
Three spirit levels, three alignment bolts

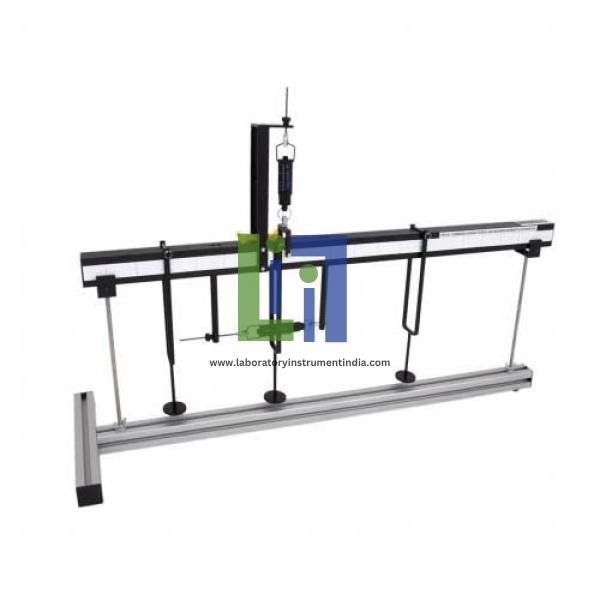

To comprehend the action of shear and moment of resistance in a beam
To consist of 2 simple supports; a rigid aluminium alloy beam cut into two unequal lengths, with a frictionless hinge at the joint which permits minimal vertical movement, whilst allowing bending
To be part of a range of experiments designed to both demonstrate and experimentally confirm basic engineering principles
Analogue spring balance measures direct force at the cut section
Moment lever arm mechanism allows bending moment to be calculated
To observe the action of shear force and bending moment at a section in a beam and to compare the measured and theoretical values
Multiple load positions achievable
Set of slotted weights included
To be bench top mounted.

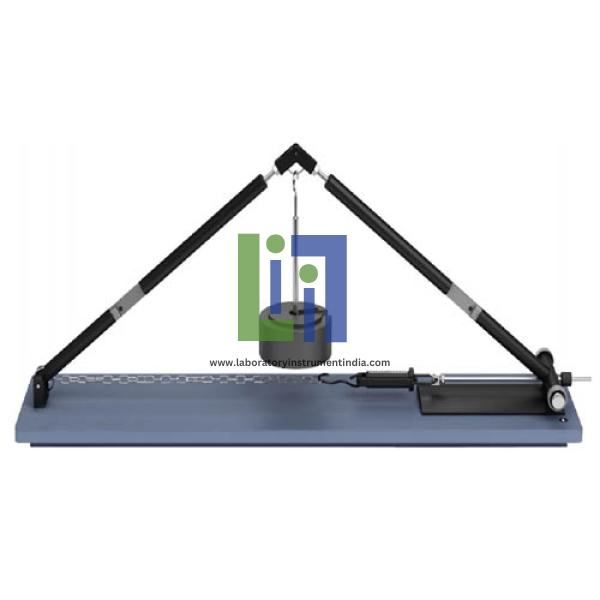

The unit consists of a metallic base structure which provides the support locations for the structure. It has a spring balance which shows the elongation and hence the force acting on movable end due to the load applied on the top of the structure via a hanger. Three members are connected in a triangular shape to form a toggle joint. The base structure is fixed at one end but its other end is movable.
This unit is designed to study the characteristics of toggle joint. Toggle joint is a structure which has three members connected in a triangular shape. Its length can change due to the load applied at the top of the triangular structure. Two of its members have fixed lengths but third member (base member) has a variable length.

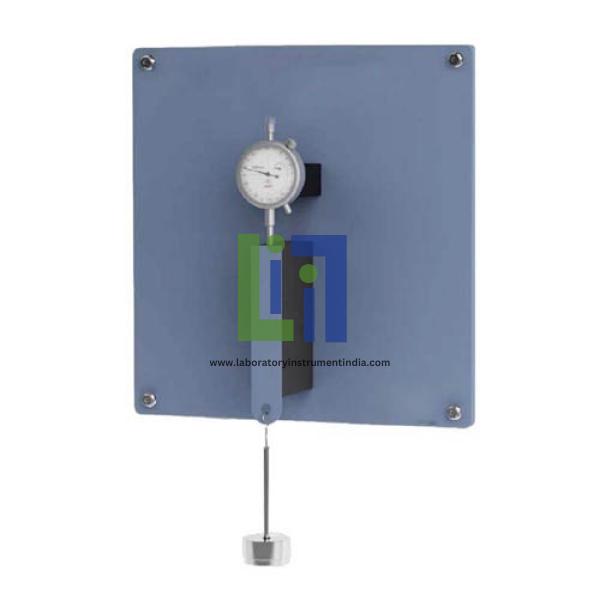

The unit has dial gauge attached to the upper end of the rubber block to measure the amount of deformation. The unit consists of a frame that is attached to wall. To produce shear strain in the rubber block, load is applied to metallic strip via a hanger. A rubber block is affixed to its surface. The rubber block has a metallic strip fastened to its surface.
This apparatus is designed to study the shear strain in a rubber block due to the shear stress applied on it. When a force acts parallel to the surface of any object, it produces shear strain in it.
Features:
Dynamic design
Suave surface
Corrosion resistance.

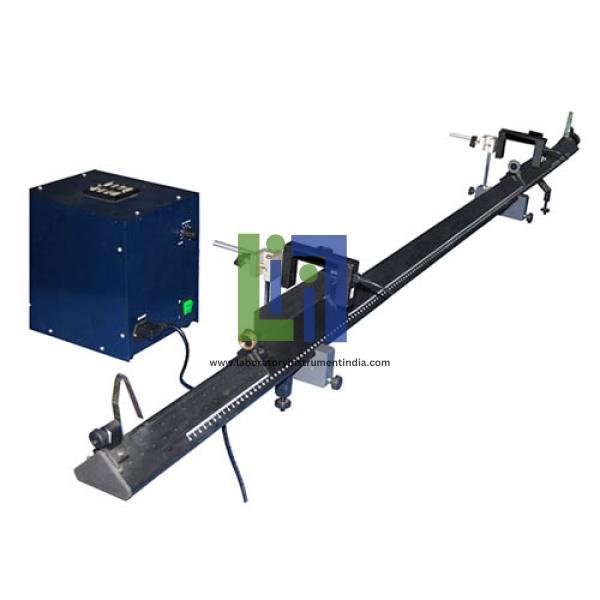

Versatile unit allowing the study of Conservation of Linear momentum
To comprise of two trolleys which runs on a precision air track which can be inclined to the horizontal
Trolleys projected along air track using catapult mechanism
Trolley mass to be adjusted by adding weights
To be a versatile apparatus which covers other kinetic principles such as motion, acceleration, Newton’s laws of motion, velocity
Comprehensive technical manual
Set of slotted weights included
To be supplied with timing gates and timer.
Experiment bench top apparatus for demonstrating the fundamentals of simple planar systems of forces.
Two weights set supplied.
Individual components to be stored in portable case.
All spares and accessories supplied.
To be supplied with vertical mounting panel and pen.
To cover topics as follows: Equilibrium of forces, addition and resolution of forces with force parallelogram, principles of levers, moment and moment equilibrium, forces in supports.

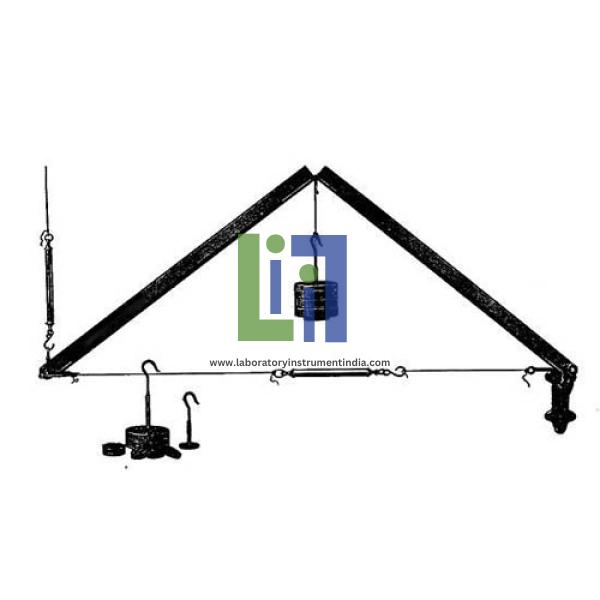

The apparatus consists of two rafter struts and a restraining tie mounted on a self contained, bench top base.
Evaluation of co-planar forces in the struts and tie of a basic roof truss
Effect of changing tie bar length
Loading at the hinged apex by load hanger
The tie length, and hence angle of truss, variable
Both struts and tie incorporate linear, direct reading spring balances to measure forces
An instruction manual for student and lecturer provided
Struts and tie re-adjustable to original lengths
Set of weights.

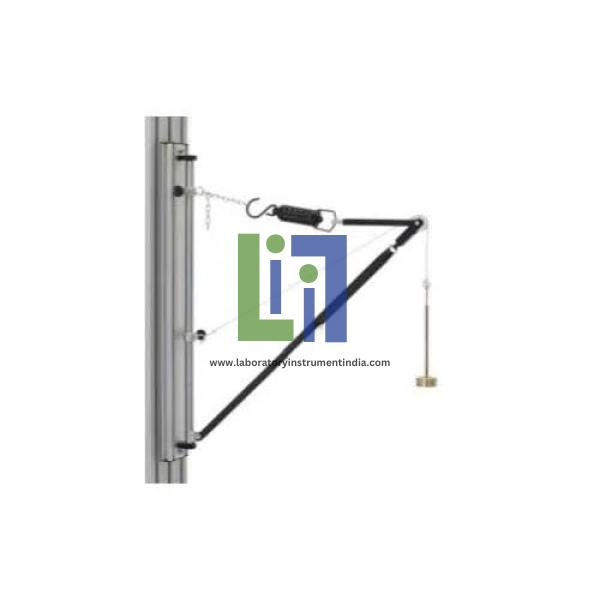

The wall mounted crane consists of a compression jib, and a tension tie which is adjustable, and both incorporate a linear, direct reading spring balance to measure the forces in them
Determination of forces in the crane members
Confirmation by theory and polygon of forces
Set of weights
Comprehensive technical manual
Set of slotted weights included
A load hanger applies loads through the junction of the two
Folds flat when not in use. Jib and ties re-adjustable to the original length.

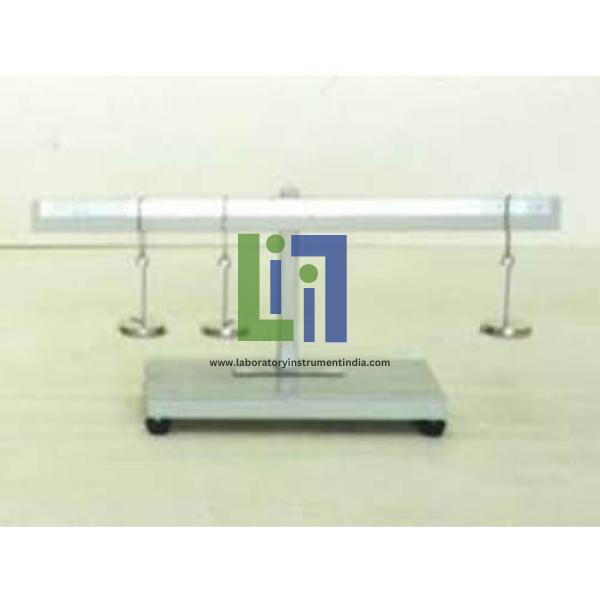

The student has to determine the moment necessary to overcome this rotation and keep the beam level. This equipment provides a simple easy to understand experiment on the equilibrium of moments. On a practical level, this principle is used in the measurement of goods, such as in chemical balances and steelyards. Several loads can be put on the beam at various positions. These will make the beam rotate.
....
Self-contained, wall mounted

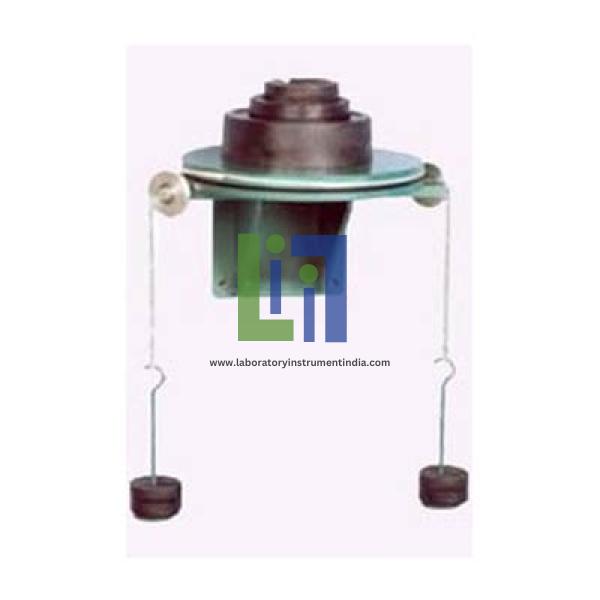

Interchangeable brake lining friction material
3 diameters of friction plate to be supplied
Variable plate pressure using calibrated weights supplied
Comprehensive instruction manual for students and lecturer supplied.
To enable determination of coefficient of friction and minimum torque to maintain rotation
Torque application to be applied using cord and hangers.
Range of Experiments:
Measurement of loads and moments on a lever.
Comparison with calculated results and validation of the principle of equilibrium

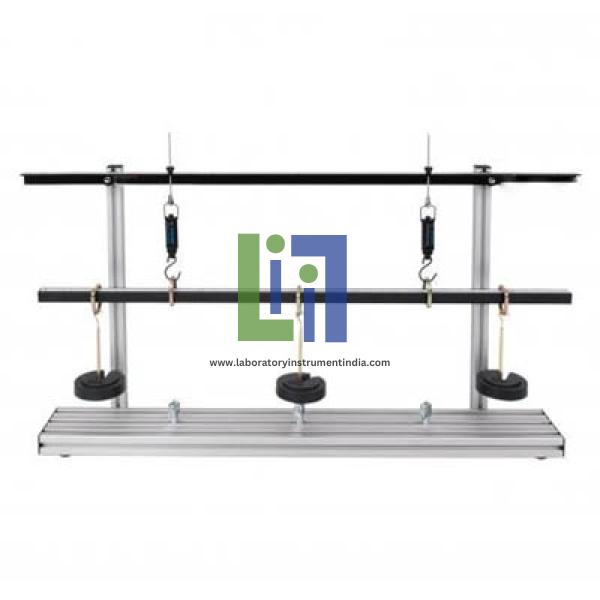

Experimental determination of the reaction forces in the supports of a simply supported beam under various loadings.
Features:
Practical verification of equilibrium of vertical force or moments.
Simply supported beams or levers can be set up.
Low cost, effective teaching
Self-contained.
Bench mounted.
Loads and supports can be placed in any position.
Direct measurement of reactions by spring balances.

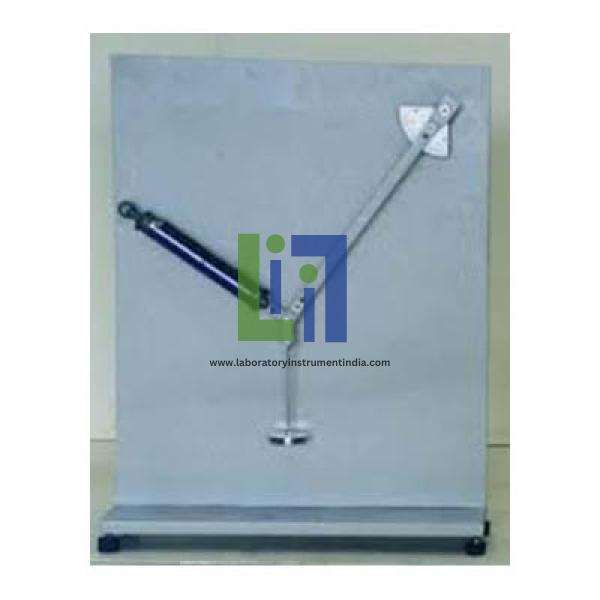

The equipment consists of a pivoted arm carrying a weight at its end and kept in equilibrium by a spring balance at right angles to the arm by holding the free end of the spring balance on the angular position of the arm is indicated by an angular scale the arm pivot.
Work Done By A Variable Force (Tangential Effort) : This apparatus is for demonstration of work done by a force as area under the graph of force and the distance it moves.
Features:
Reinforces concepts of work and energy
Direct reading of tangential effort
Low cost, effective teaching
Self-contained
Bench mounted.

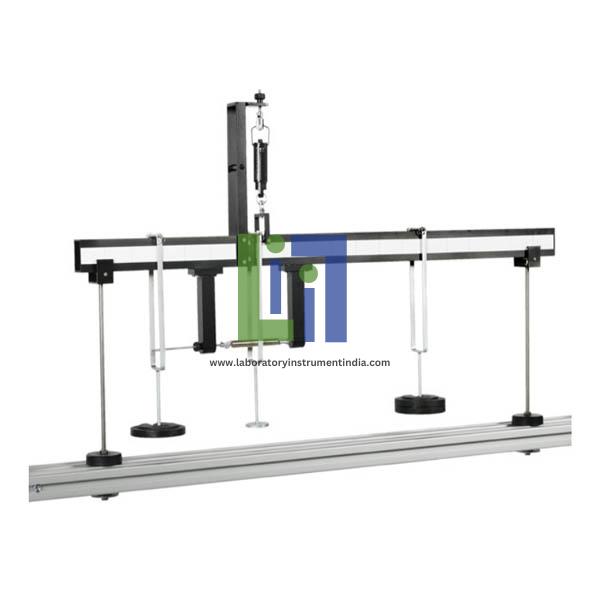

The bench mounted apparatus consists of a 'shear beam', 2 supports and 3 load hangers.
The 'shear beam' of two parts, joined at a low friction joint. Internal forces created, and bending moment resisted by an underslung adjustable tension spring: an overhung spring balance provides the vertical shearing force.
Demonstration of the action of shear in a beam; measurement of shear force at a section of a loaded beam; verify equilibrium of vertical forces.
The load hangers mountable in virtually any position along the beam.
An Instruction manual for student and lecturer provided.
Set of weights.

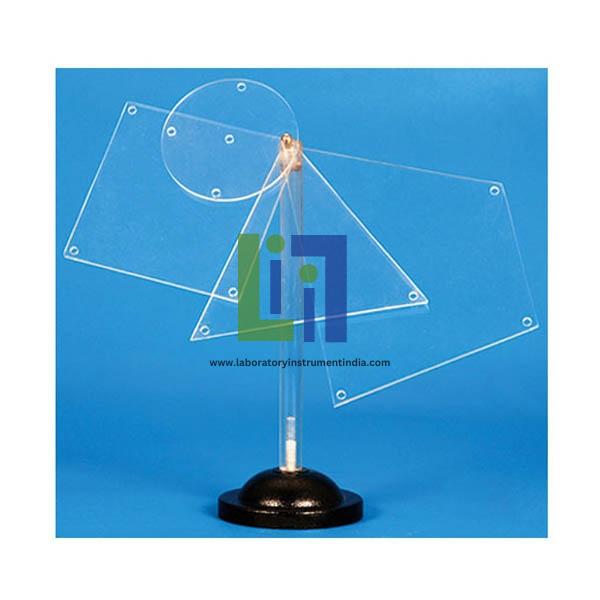

Center of gravity of a freely suspended two-dimensional object always lies along the line drawn vertically downward from its point of suspension. A simple and economical apparatus for demonstration of geometrical center of gravity of two-dimensional objects. Each lamina has suspension holes along their periphery. The point of intersection of lines drawn from point of suspension of 2 or more holes of a lamina gives center of gravity of that 2-dimensional lamina. Comprises a clear perspex rod mounted on a base with a suspension screw at the top and four laminas of clear acrylic 1 each of circular, triangular, square and trapezoidal.
....
Demonstrates Equilibrium Of Forces At A Point, Applied To Various Points Round A
Disc Or Acting On A Rectangular Lamina
Concurrent & Non-concurrent coplanar forces
Effective Teaching
Self-Contained, Bench Mounted
Practical Verification Of Triangle Of Forces, Polygon Of Forces And Link Polygon
Direct Measurement Of Forces
Adjustable Lines Of Action Of Forces.
The lever arm is with scale and grooved at every 5 cm. complete with one sliding weight of 1 kg. A wooden right angled lever with fulcrum at the angle, the horizontal arm is of 75 cm. and vertical arm is of 20 cm., a spring balance with adjustable wing nut is attached to the shorter arm.
....

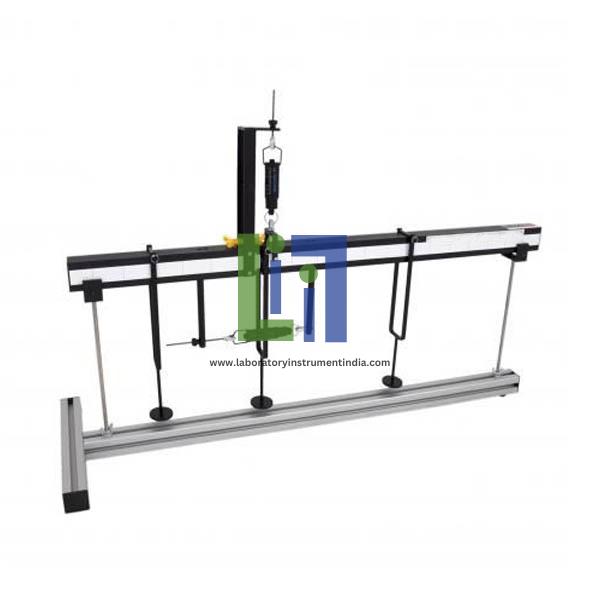

The experimental beam is in two parts, joined by a pair of low friction ball bearings. An underslung spring balance provides a resisting moment and measures the section bending moment.
Demonstration of the action of moment of resistance in a beam; measurement of bending moment at a section of a loaded beam; verify equilibrium of forces and moments.
The load hangers mountable in virtually any position along the beam.
An Instruction manual for student and lecturer provided
To be a bench mounted apparatus consisting of an 'experimental beam', 3 weight hangers, 2 supports and a spring balance
Set of calibrated weights and tools supplied.
