Disturbance variables generated by electromagnetic proportional valve in tank outlet

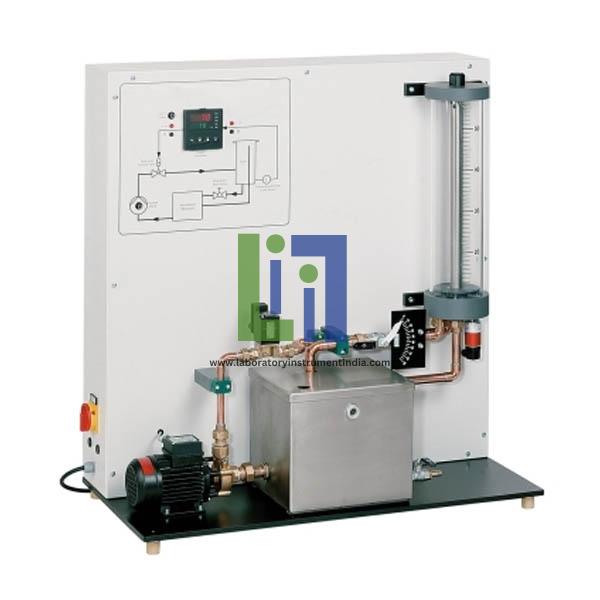

Tank with overflow and graduated scale
Experimental unit for control engineering experiments
Level measurement by pressure sensor
Process schematic on front panel

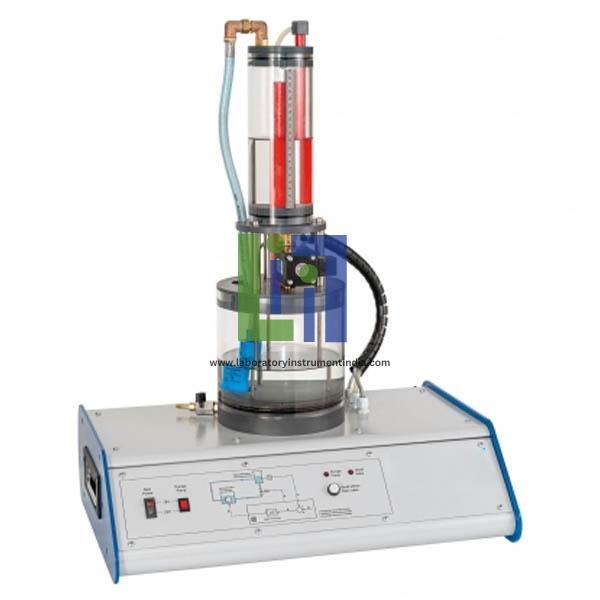

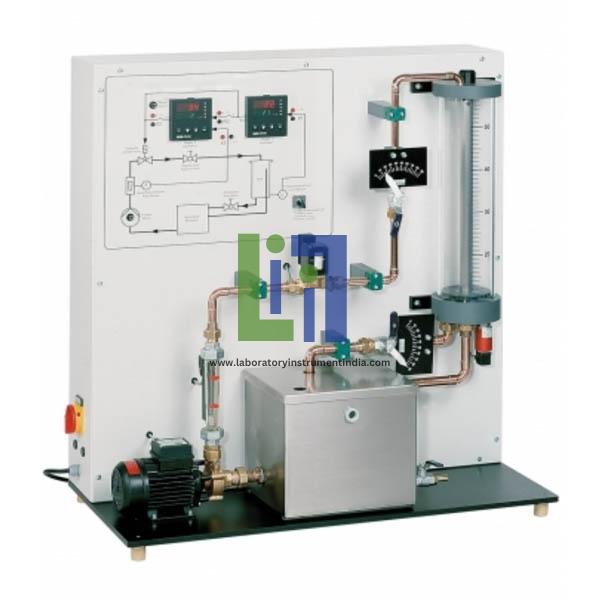

Level control process with transparent tank
Speed-controlled pump.
Electronic pressure sensor
Solenoid valve to generate disturbance variables

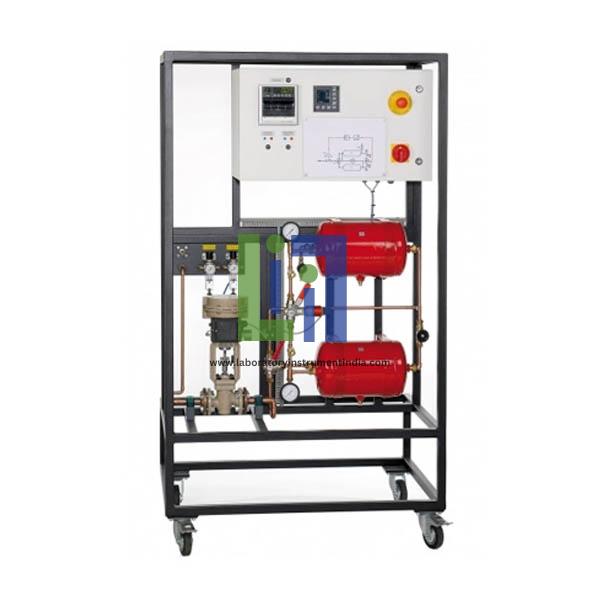

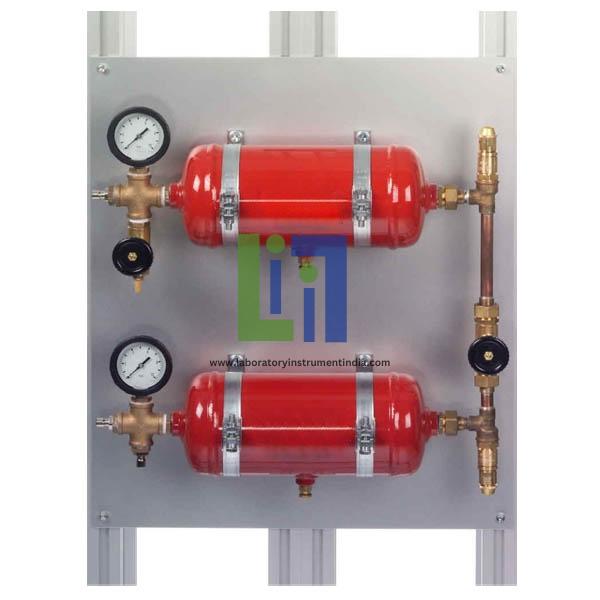

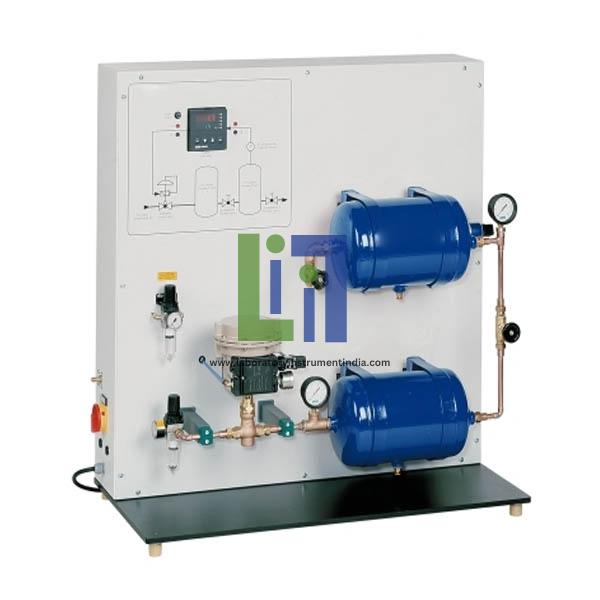

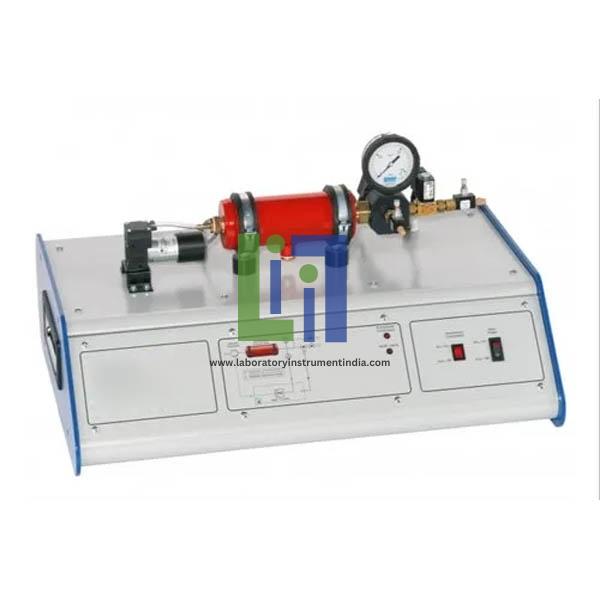

Pressure control in a tank
Software-based controlled system simulation
Experimental unit for control engineering experiments
Process schematic on front panel
Speed controlled diaphragm gas pump.
Features:
Processcontroller with touch screen

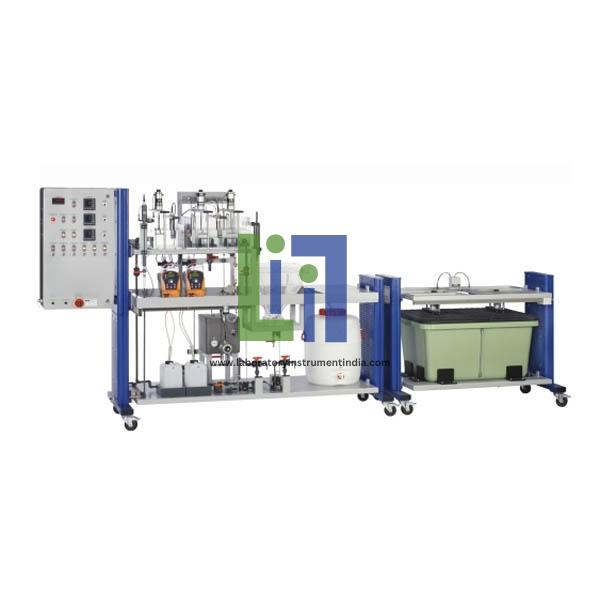

Biologicalwastewater treatment

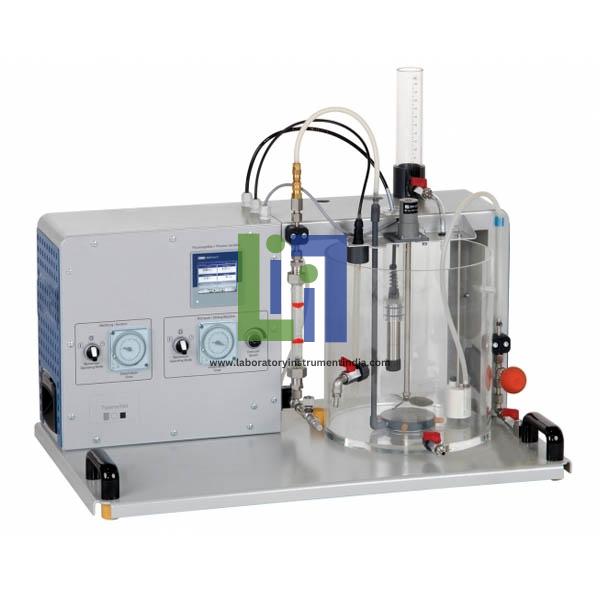

Sequencing Batch Reactor (SBR)
Specification:
Measurementof pH value, temperature and oxygen concentration
Discontinuousactivated sludge process
Floatingdevice for extraction of the treated water
Meteringdevice for external carbon source
SequencingBatch Reactor (SBR)
Flow meterfor aeration
Tanks forwastewater and treated water
Stirringmachine with timer and continuously adjustable speed
Compressorwith timer for aeration
Distillation is a separation process that includes the partial evaporation of a liquid phase and the condensation of the resulting gas phase. The rectification columns are used for the separation of liquid phases. They operate according to the principle of distillation. The substance mix recommended for the operation of the experimental plant is water-ethanol. The separation process of rectification is an energy-efficient distillation process with several stages.
Learning objectives/experiments:
Determination of the proportion of ethanol in the feed and in the products
Determination of the tray efficiency of the sieve trays
With different reflux ratios
With different feed levels
Investigation and comparison of a sieve tray column and a packed column
Evaluation using the McCabe-Thiele Diagram
In continuous operation
With different pressures.
The structure of the course is based on the long-established training concept. This a fully equipped training system with all necessary components and aids to conduct a comprehensive training course in the fundamentals of pneumatic and electro-pneumatic controls.
Features:
2 large-format metal assembly panels for fast, secure component mounting
Sturdy base construction, mobile, with drawer system for storage
Complete training system providing an experimental introduction to the fundamentals of pneumatics and electro-pneumatics with PLC.
It is used both for quantitative measurements and for demonstrating complex stress states. Photoelasticity is a proven method of analysing and recording mechanical stresses and strains in components. The components used are models made of a transparent, photoelastically sensitive plastic, which becomes optically birefringent under mechanical load.
Features:

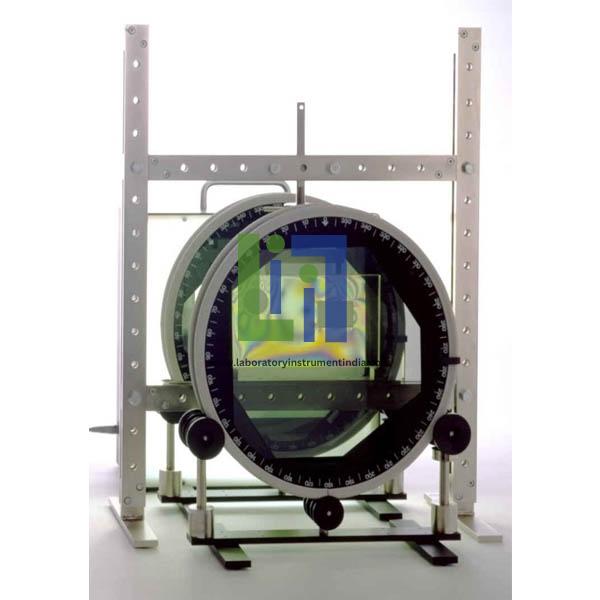

Generate stress patterns with linear or circular polarised light
Monochromatic or white light.
Activated Sludge Process enables this process to be demonstrated. A pump delivers raw water contaminated with dissolved organic substances (organic matter) into the aeration tank. Since aerobic microorganisms need oxygen, the raw water is aerated in the aeration tank. The activated sludge is mixed with the raw water by stirring machines. In the secondary clarifier the activated sludge is then separated from the treated water by sedimentation. The activated sludge process is the most important biological process in water treatment. Aerobic microorganisms (activated sludge) in the aeration tank use the organic matter as a source of nutrition, biodegrading it in the process. A portion of the activated sludge is returned to the aeration tank (return sludge). The treated water is collected in a tank. Oxygen concentration, pH-value and temperature can be controlled. The following flow rates are adjustable: raw water, return sludge, internal recirculation for pre-denitrification and air.
....

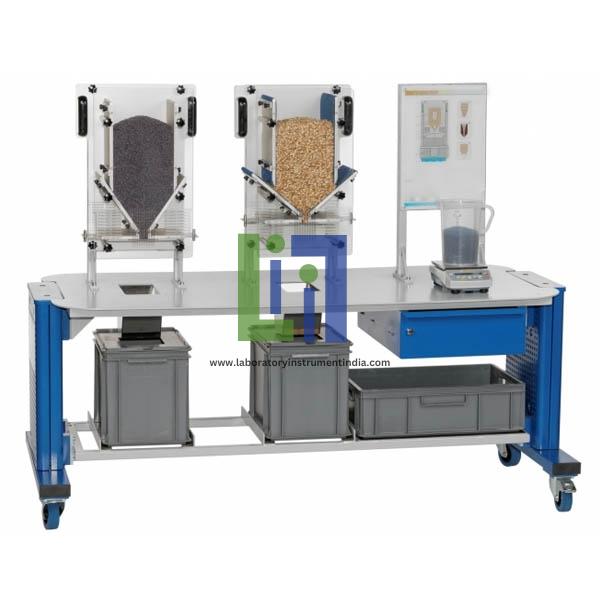

The flow properties of a powder or bulk solid determine how it behaves during handling. A motor moves the shear cell relative to the lid in order to apply shear to the sample. For compaction (pre-shearing) the sample is subjected to a large normal force. In a ring shear tester, a bulk sample is contained in a ring-shaped shear cell. A normal force is exerted on the sample by way of a lid. A hanger from which a variable weight is suspended generates this normal force. For example, material may flow irregularly out of silos, or the flow of bulk solid may come to a stop. In order to avoid these problems in practice, soils can be designed on the basis of measurements using shear testers, such as the Jenike shear tester or a ring shear tester. From the shear force characteristics, properties such as the compressive strength and internal friction of the bulk solid can be determined. An electronically amplified force transducer measures the shear forces which are then recorded by data acquisition software over time. To determine the density of the bulk solid, the volume of the bulk sample is ascertained by recording the lowering of the lid using a vernier caliper gauge. After pre-shearing, shearing to failure is executed with a reduced normal force (strength measurement) and likewise recorded by the software.
....
The mixed vapour contains a higher concentration of the component with the lower boiling point (ethanol). It leaves the top of the column and is condensed using a condenser and a phase separation tank. Distillation is used to separate liquid mixtures made up of individual liquids that are soluble in one another. Rectification refers to distillation in a counterflow. Part of this condensate is collected in a tank as product while the rest is fed back into the column. The mixed vapour produced then moves upwards in the column. Here, on its way downwards, it undergoes further heating and material exchange with the rising mixed vapour. Ethanol/water is recommended as the liquid mixture for the. It is fed into the column. It partially evaporates on its way to the bottom of the column where it is heated to boiling. The liquid phase moves to the bottom and can be collected in two tanks. This exchange causes the vapour phase to become richer in ethanol and the liquid phase to become richer in water.
....
Absorption is used to remove one or more gaseous components from a gas flow using a solvent. The flow rates of the gas components are displayed. A compressor delivers the gas mixture into the lower section of the absorption column. First of all, a CO2 and air gas mixture is produced. Water is used as the solvent. The CO2 is absorbed by the downward flowing water. As the pressure is reduced and the temperature is increased, the solubility of the CO2 falls. A heater heats the water. A water jet pump generates the vacuum in the desorption column and causes the CO2 gas to be emitted from the water. To separate the absorbed CO2, the charged water is then fed from the lower section of the absorption column into a desorption column. It is possible to adjust the mixing ratio using valves. A pump then delivers the regenerated solvent back into the absorption column. The water temperature can be controlled. Flow rate, temperature and pressure are continuously measured. In the column, part of the CO2 is separated in the counterflow with the solvent.
....
Multimedia learning software as an accessory to assembly projects
Simple operation with user interfaces similar to MS Windows
Editable drawings and parts lists
Access to parts lists and drawings.
Password-protected configuration files.

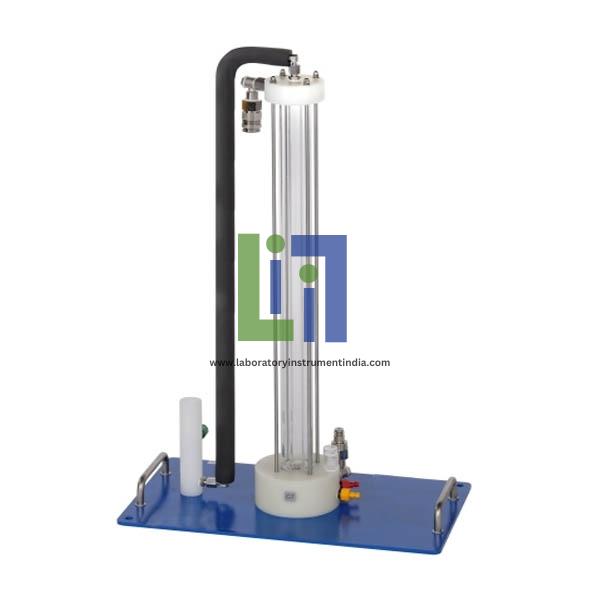

Laminar flow reactor for connection to supply unit
Transparent double jacket from pmma for cooling and heating with
Sensor for measuring the conductivity and temperature via
Air vessel for damping of pulsation
Straight glass tube with laminar flow
Temperature control in the reactor via
T-piece with nozzle for mixing the reactants
Special inlet for reducing the inlet length.
Chambered bottom made of stainless steel as heat exchanger for connection to
Sensor for measuring the conductivity and temperature via
Reactor with stirrer
Temperature control in the reactor via

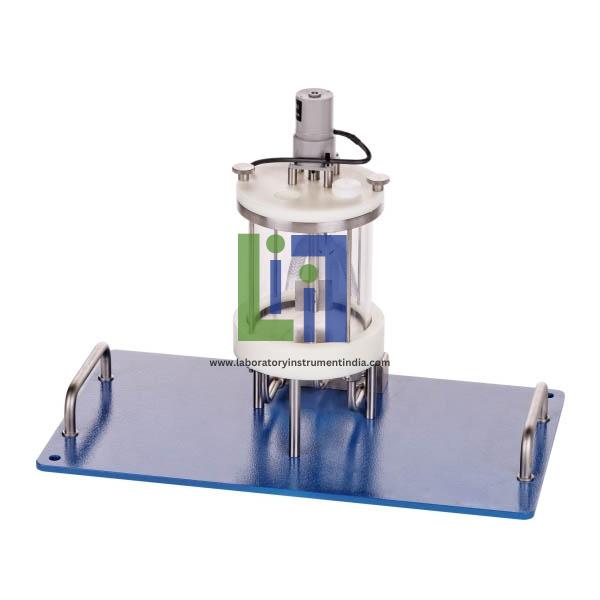

Discontinuous stirred tank reactor for connection to supply unit.
Chambered bottom made of stainless steel as heat exchanger for connection
3 identical stirred tank reactors made of glass connected in series
Sensor for measuring the conductivity and temperature

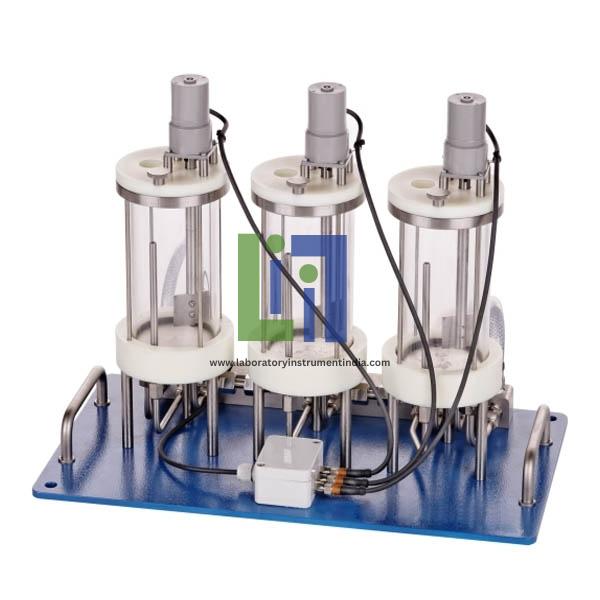

Stirred tanks in series for connection to supply unit
Display of conductivity and temperature via
Delivery between stirred tanks via 2 peristaltic pumps of the supply unit
Temperature control in the reactor via
Small reactor capacity for less consumption of chemicals.
Straight Glass Tube With Fixed Bed From Glass Spheres As Reactor
Transparent Double Jacket From Pmma For Cooling And Heating
Plug-Flow Reactor For Connection To Supply Unit
Sensor For Measuring The Conductivity And Temperature Via
Air Vessel For Damping Of Pulsation
T-Piece With Nozzle For Mixing The Reactants
Temperature control in the reactor via.
Chambered bottom made of stainless steel as heat exchanger for connection to
Sensor for measuring the conductivity and temperature via
Height-adjustable overflow for changing the reactor volume
Temperature control in the reactor via

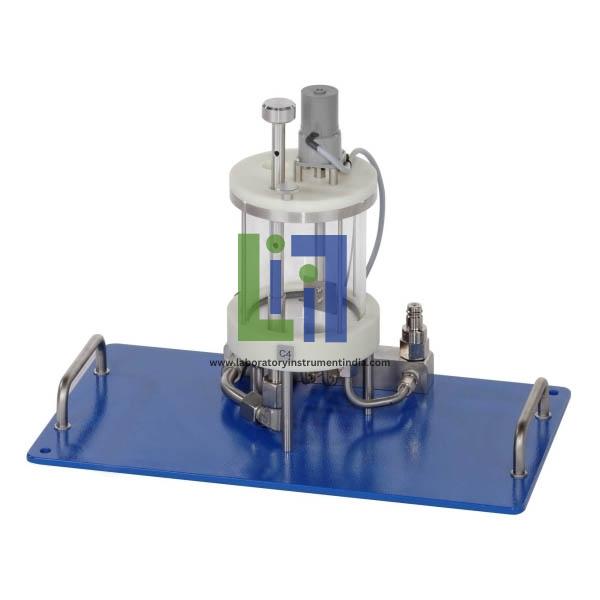

Continuous stirred tank reactor for connection to supply unit
Glass tank
Reactor with stirrer.

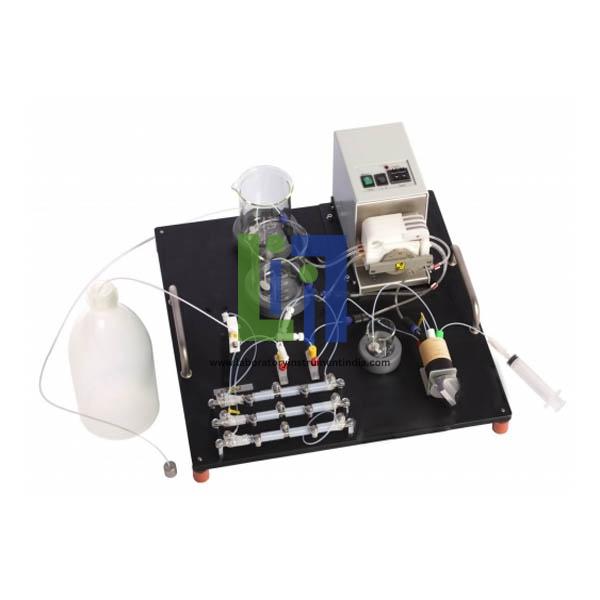

Multi-channel peristaltic pump for conveying the product and the indicator reagents
Injection valve, injection syringe and injection loop for adding the enzyme GOD required for verification
Continuous, photometric determination of the glucose concentration in the product
PTFE flow cell for determining the concentration with the photometer
3 DURAN glass beakers for indicator reagents and GOD
2 PTFE reaction loops
1 tank for waste
2 mixing chambers for mixing the product and indicator reagents.
Regulated heating circuit with water tank, heater and pump to regulate the reactor temperatures
Peristaltic pump with adjustable speed to transport the reactant into the reactors
Investigation of catalytic reactions
1 scaled container for reactant and product respectively
3 reactors (pmma) for comparison of various fixed bed catalyses
Photometer for analysis of the product.
Water circuit with tank, heater, temperature controller, pump and low water cut-off for heating and cooling (with wl 110.20 water chiller)

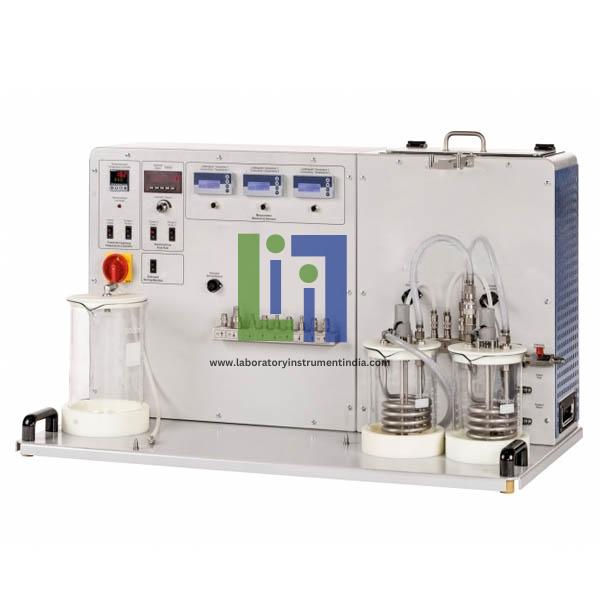

Supply unit for 6 different chemical reactor types
Connection of the reactors via hoses with quick-release couplings
Temperature control of the reactants and reactors
5 peristaltic pumps to deliver the reactants and products
2 combined sensors for measuring the conductivity and temperature
3 glass tanks for reactants and products.

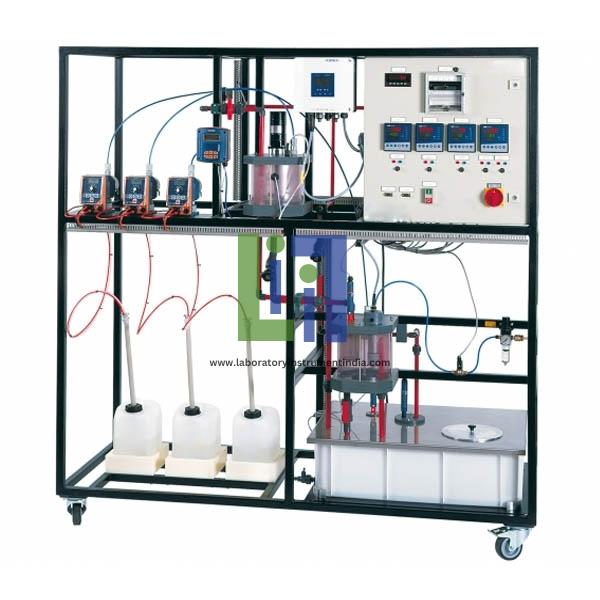

Flocculation tank with 3 chambers and 4 stirring machines
3 metering pumps for chemicals
Precipitation and flocculation of dissolved substances (e.g. Iron)
Measurement of flow rate, temperature and ph value
Control of the ph value in the precipitation tank
Sedimentation of the flocs in the lamella separator
Separate supply unit with tank and pump for raw water
Precipitation tank with stirring machine
Conductivity meter.
Tank With 4 Chambers For Raw Water, Rinsing Water, Acid And Caustic
Diaphragm Pump To Transport Raw Water, Rinsing Water, Acid And Caustic
Softening And Desalination With Ion Exchange
Collecting Tank For Treated Water, Rinsing Water, Acid And Caustic
Continuous measurement of conductivity and flow rate
Cation And Anion Exchangers Usable Separately And In Combination
Regeneration Of Ion Exchangers.
Adsorber, Cation Exchanger, Mixed Bed Ion Exchanger
Separate Supply Unit With Tanks For Raw Water And Treated Water
Raw Water Tank With Possibility Of Aeration
Gravel Filter And Sand Filter With Differential Pressure Measurement
Flow Rate Measurement Of Raw Water
Measurement of conductivity and temperature after each treatment stage
3 Unit Operations In Water Treatment: Depth Filtration, Adsorption, Ion Exchange
Gravel Filter, Sand Filter, Aluminium Oxide Adsorber, Activated Carbon.
Safety adsorber for closed water circuit
Continuous process
2 adsorbers with activated carbon filling
Water temperature control
Digital temperature indication
Adsorber with 8 sampling points
Metering pump for concentrated adsorbate solution
Change of adsorbate concentration and contact time
Pump for recirculating the treated water
Flow rate adjustable.
Flow rate adjustable
Measurement of temperature and flow rate
Digital temperature indication

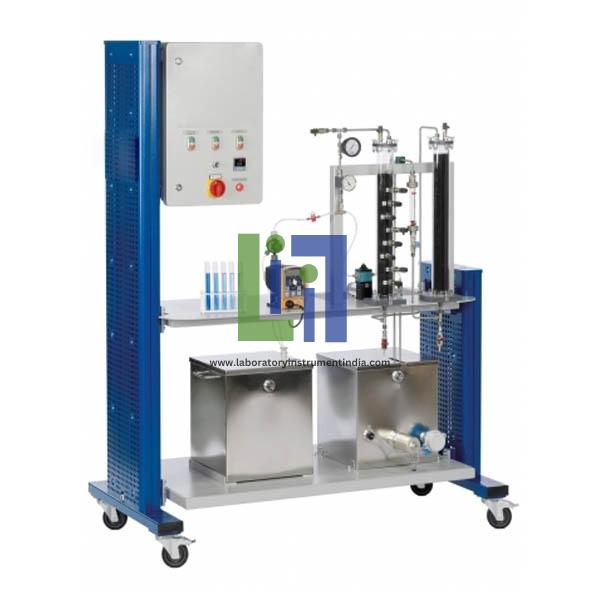

Advanced oxidation process
Falling film reactor with uv lamp
Discontinuous operation
Use of hydrogen peroxide and uv light
Formation of hydroxyl radicals (oh radicals)
Protection device against UV radiation.
Air Heating With Controlled Heater
Digital Balance For Measuring The Change Of Weight During Drying

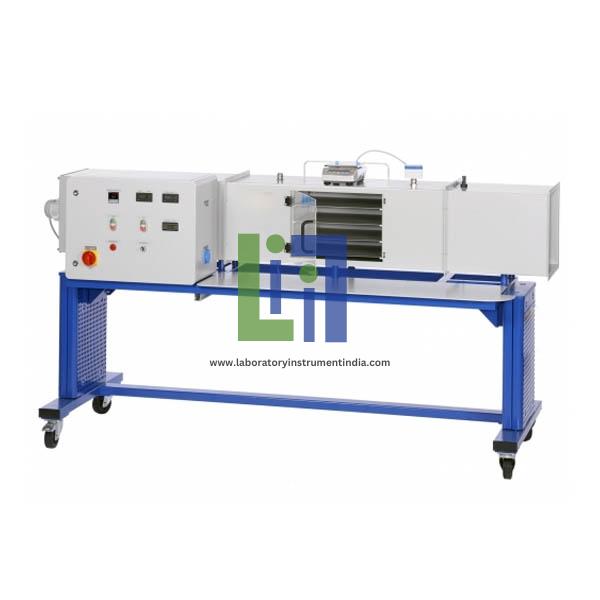

Drier For Investigating Convection Drying Of Solids
Adjustment Of Air Velocity Via Speed Of Fan
1 Combined Sensor For Measurement Of Humidity And Temperature Before And After The Solid Sample
Drying On 4 Corrosion Resistant Plates In A Drying Channel With An Air Flow
Digital stopwatch, battery operated
1 Air Velocity Sensor.
Distillation column and distillation bridge with liebig condenser
Electrical bottom heating via pid controller
Operation as continuous or discontinuous process using 2 three-way valves
Glass extraction column
Water jet pump for reduction of evaporation temperature during distillation

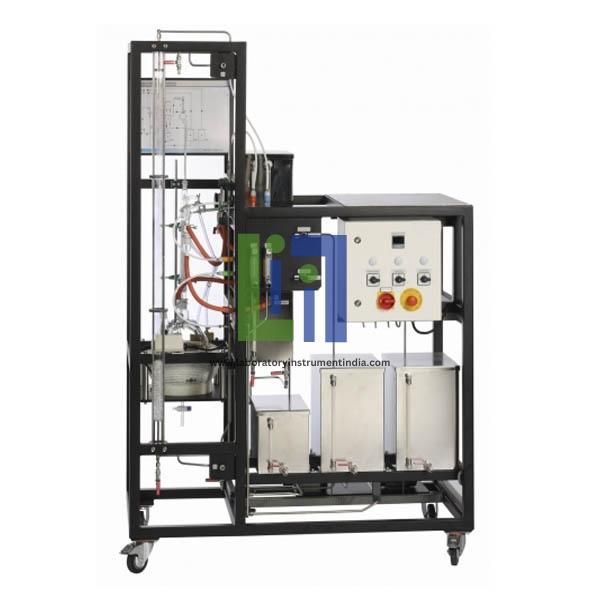

Liquid-liquid extraction in counter flow operation with distillation for enrichment of the extract
2 valves for adjusting the phase boundary
2 pumps to deliver the feed and solvent
Stainless steel tanks for feed, solvent, raffinate, extract and top product (distillation)
Distillation column packed with Raschig rings.
Circuit for undersaturated solution with tank, 2 heat exchangers for heating and pump
Measurement and control of temperatures in stirred tank, tank for undersaturated solution and in crystallisation cell.
Bypass for oversaturated solution with crystallisation cell and 2 heat exchangers for cooling
Crystallisation from solutions in fluidised bed
Heating circuit with pump, tank, heater and thermostat
Stirred tank for preparation of a saturated solution
Removable and fillable crystallisation cell, pmma
Adjustment of flow rate in bypass using valves.
Aeration of the trickling filter by natural convection or with compressor
Recording of concentration profiles is possible

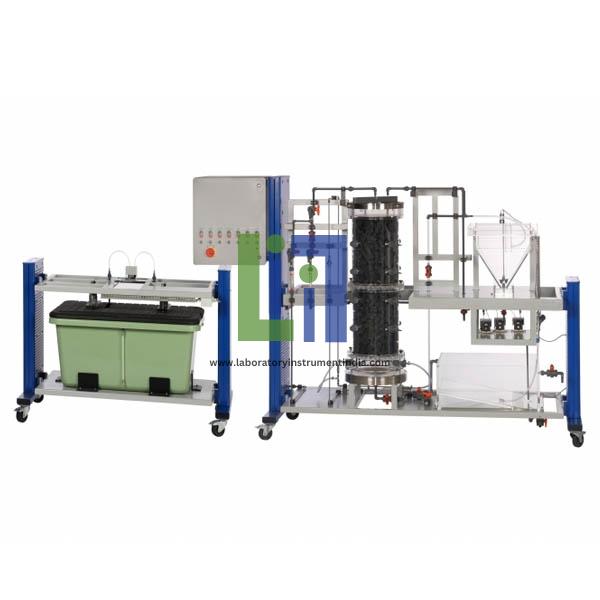

Aerobic biofilm process for the degradation of organic substances and for nitrification
Secondary clarifier with pump for transporting the return sludge
All relevant flow rates finely adjustable
Transparent trickling filter with rotary distributor
Separate supply unit with waste water tank and two stirring machines
Two different carrier materials
Speed of the rotary distributor finely adjustable.
Measurement of oxygen concentration, temperature and flow rate
2 hand-held measuring units for measuring the oxygen concentration upstream and downstream of the absorption column
Falling film column for the absorption of oxygen from the ambient air in a solvent (water)
Counter flow process
Continuous regeneration of the solvent with nitrogen in a desorption column by stripping
Pump for recirculating the solvent to the absorption column
1 compressor for supplying ambient air into the falling film column
Pump for desorption column.

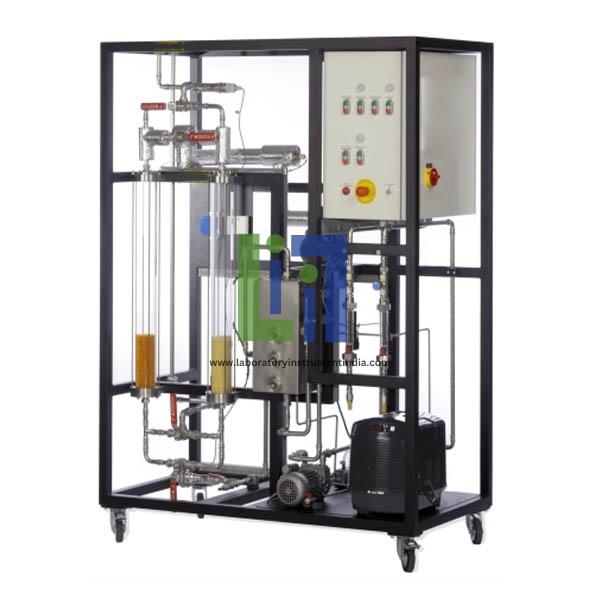

Continuous adsorptive air drying
2 compressors to deliver the feed air and regenerative air out of the ambient atmosphere
Humidification of the feed air by flowing through a water bath
Adjustment of regenerative air and feed air flow rates by valves
2 columns for alternating charging and regeneration of the adsorbent
Adjustment of relative humidity and temperature of feed air by heater
Heater for temperature adjustment of the regenerative air
Observation of mass transfer zone by using transparent columns and adsorbent with indicator
Circular system with pump and refrigeration system to adjust the water bath temperature.
Packed column with raschig rings
Vacuum mode possible with water jet pump
Discontinuous rectification with packed and sieve tray column
All tanks made of duran glass and stainless steel
Adjustment of reflux ratio using valves
Electrically heated evaporator
Tank for top product
Interchangeable columns
Sieve tray column with 8 trays
Condenser and phase separation tank for top product.
Anaerobic degradation of organic substances
Temperatures in the stirred tank and the uasb reactor can be controlled
Control of the pH value in the UASB reactor
Separate supply unit with tanks for raw water and treated water
Single stage or dual stage operation mode
Stirred tank with secondary clarifier
Uasb reactor with separation system.
Stirred tank with secondary clarifier
Anaerobic degradation of organic substances
Temperatures in the stirred tank and the uasb reactor can be controlled
Control of the pH value in the UASB reactor
Uasb reactor with separation system
Single stage or dual stage operation mode
Separate supply unit with tanks for raw water and treated water.
Eccentric Screw Pump, With Pressure Cut-Out Switch, Dry-Running Protection And Adjustable Speed, To Deliver the suspension
Supply Unit To Produce And Deliver Suspensions For Experimental Filtration Units
Stirred Tank With Lid And Stirring Machine To Prepare A Suspension
Electromagnetic flow rate sensor
4 ball valves with electric drive
Measurement of flow rate, differential pressure, system pressure and temperature
20 tube manometers to measure the pressures in the filter bed
Plotting of Micheau diagrams
Depth filtration with sand filter
Filter velocity adjustable
Sand filter backwash possible
Raw water and backwash pump.
Demonstration of arching, mass flow and funnel flow with different bulk solids
Investigation of the outflow of bulk solids from silos with wedge-shaped discharge hoppers
Angle of the hopper wall adjustable while retaining
Constant outlet cross-section
Practical review of the design results
Two silos with different hopper wall materials
Silos can be removed for cleaning
Tamper for compacting the bulk solids
Front walls of the silo made of transparent material
Stopwatch for determining outflow times.
Nutsche Pressure Filter For Discontinuous Cake Filtration
Bottom Flange With Recessed Sieve Base And PP Filter Cloth
Enclosed 3-Part Vessel With 2 Flanges And 2 Bumped Bases
Bottom Section Of Vessel To Collect Filtrate
Maintenance And Pressure Control Unit To Adjust Positive Pressure In Centre And Top Section
Centre Section To Form Filter Cake
Top Section Removable To Remove Filter Cake
2 Sight Glasses To Observe Level In Bottom Section
2 Manometers To Indicate Pressure Upstream And Downstream Of Filter
Production and transport of suspension with suspension production unit.
Transparent Stirred Tank With 4 Removable Flow Impeders
Investigation Of Mixing Processes During Stirring
Speed-Controlled Stirring Machine With Digital Torque Indicator
9 Interchangeable Stirrers:
Portable device for measuring conductivity and temperature
Axial-, Radial-, Tangential-Conveying
Removable Coiled Tube For Cooling Or Heating With External Water Supply.
5 transparent tanks with scale for comparison of the settling velocities of solids in various suspensions
Experiments in the fundamentals of sedimentation
3 measuring cups for preparation of suspensions
Pycnometer to determine the density of the liquids and solids
Tanks removable for filling, mixing and cleaning
Recommended accessories: balance, coagulant
Tanks backlit by fluorescent tubes to aid observation
Stopwatch to record the sedimentation time.
Vacuum inside drum to draw off filtrate and dry filter cake
Continuous removal of filter cake with adjustable scraper or compressed air
Continuous cake filtration of suspensions with a drum cell filter
Drum speed infinitely variable
Suspension tank with stirrer and overflow
Plastic collector tank for filter cake
Plastic vacuum tank to collect filtrate
Rotating perforated drum, partially immersed in suspension, with filter cloth.
Air flow generation by fan; adjustment by valve
Tanks for feed material and coarse material
Solid separation from gases with a cyclone
Metering of feed material into the air flow with a disperser
1 filter at air inlet and 1 filter for fine material at air outlet
Recording of differential pressure, volumetric air flow rate and temperature
Cyclone with tangential inlet.
4 interchangeable injectors to disperse the feed material into the air flow
Vertical tube made of glass
Pneumatic pressure-lifting of solids in a vertical tube
Feed of solid into air flow via vibrating trough with adjustable throw
Measuring points for pressure loss, temperature and flow velocity
Precision pressure regulator to adjust input pressure and flow rate
Collector and feed tanks interconnected by tube with plug valve
Collector and feed tanks made of transparent material (pmma).
Separation of solid compound into coarse and fine material with air flow in 20-stage zigzag duct
Air flow generation by fan; adjustment by valve
Zigzag sifter to separate solid compounds
Dosage of feed material by way of distance of hopper outlet from vibrating trough and frequency of vibrating trough
Recording of volumetric air flow rate and differential pressure through sifter and cyclone
Feed hopper with vibrating trough for feed of solid compound into sifter
Separation of fine material from air flow by gas cyclone with tangential inlet.
3 tanks for feed material and coarse and fine materials.
Hydrocyclone With Tangential Inlet
Manometer to determine the pressure loss at the cyclone
Sampling Points On The Top And Bottom Flow To Determine The Flow Rates And Solid Concentrations
Centrifugal Pump To Deliver The Suspension
Adjustment Of Flow Rate By Valve In Bypass
Stirred Tank For Preparation Of Suspensions
Electromagnetic Flow Meter At Inlet
Solid Separation From Liquids With A Hydrocyclone
Flotation tank with electrically driven scraper
Pressure tank and 2 circulation pumps
Removal of solids from raw water using dissolved air flotation
Electromagnetic flow rate sensor
Measurement of flow rate, pressure and pH value
Flocculation tank with 3 chambers and 4 stirring machines
Relief valve
Separate supply unit with tank and pump for raw water
Conditioning of the raw water by flocculation
3 Metering pumps for chemicals
Control of the pH value.
Glass Test Tank With Sintered Filter Medium On Its Base
2 Manometers With Differing Measuring Ranges To Measure Pressure Loss Through The Test Tank
Test Tank Removable For Filling
Investigation Of The Properties Of Fixed And Fluidised Beds Subjected To Liquid Flow
Steel rule to measure the height of the fixed or fluidised bed
Upward Flow To Investigate Fluidised Bed
Downward Flow To Investigate Fixed Beds
Flow Meter With Valve For Adjustment.
Centrifugal pump to deliver the emulsion to the centrifuge
Adjustment of emulsion flow rate by valve
Continuous separation of emulsions with a disc centrifuge
Speed-controlled stirring machine with digital torque indicator
3 interchangeable stirrers
HDPE tank with stirring machine to produce an emulsion
Collector tank for separated phase
Centrifuge speed adjustable by potentiometer.
Air Pressure Adjustment By Pressure Reducing Valve
Tanks for solid, granulating liquid and agglomerates
Rolling Agglomeration With A Dish Granulator
Positions Of Solid And Liquid Feed Adjustable
Metering Device To Adjust The Mass Flow Of Solid Feed Material
Two-Component Nozzle To Atomise The Granulating Liquid With Compressed Air
Dish Granulator With Adjustable Rotation Speed And Angle Of Inclination
Peristaltic Pump To Adjust The Flow Rate Of Liquid.
Water tank with glass beads to stabilise the flow
Flow rate in the pipe section can be adjusted via a valve
Visualisation of laminar and turbulent flow in the Osborne Reynolds experiment
Vertical glass pipe section
Flow rate determined by base module
Water supply using base module or via laboratory supply
Water as flowing medium and ink as contrast medium.
Examination of heat conduction in solids
Radial heat conduction: brass disc with heating and cooling element, 6 temperature measuring points
Linear heat conduction: 3 measuring objects, heating and cooling element, 9 temperature measuring points
Experimental setup consisting of experimental unit and display and control unit
Electric heating element
Cooling with mains water.
Single-stage compressor, air-cooled, with fan flywheel, intake filter and pipe unions
Assembly exercise for engineering training
Compressor consisting of piston and cylinder, housing, driving gear, cylinder cover with valves
Complete, disassembled piston compressor with small parts set and 6 assembly jigs in a storage case.
Water circuit with pump, filter, valve and a nozzle as atomiser
Three-stage heater with thermostat for water heating
Principle of a wet cooling tower with cooling column and forced ventilation
Radial fan for forced ventilation
Tank for additional water compensates for water loss
Display of temperature, differential pressure, flow rate and humidity
Throttle valve to adjust the air flow
Demister unit at the outlet of the cooling columns minimises water loss
Interchangeable cooling columns with different wet deck surfaces available as accessories.
Electrically heated metal cylinder in the pressure vessel as experimental vessel
Temperature-controlled heating element
Heat transfer between heating element and vessel wall by convection and radiation
Vacuum generation with rotary vane pump
Instrumentation: 1 temperature sensor at the vessel wall, 1 power sensor at the heating element, 1 Pirani pressure sensor, 1 piezo-resistive pressure sensor
Operation with various gases possible
Experiments in vacuum or at a slight positive gauge pressure.
For better process monitoring the evaporator and condenser are of transparent design evaporator and condenser with pipe coil
Temperature sensor, power meter, manometer in the refrigeration circuit, flow meter for hot and cold water and refrigerant
Demonstration of the processes in a refrigeration circuit
Safety valves at the evaporator and condenser
Expansion valve in the shape of a float valve
Pressure switch to protect the compressor.
Electromagnetic flow meter
Digital displays for temperature, pressure differences and flow rate
Hot and cold water benches available for independent operation
Examination and comparison of various heat exchanger types
Water/steam heat exchanger unit and electrical steam generator available for further experiments
Operating mode (parallel flow or counter flow) selectable via valves
Flow rates adjustable via valves
Five different types of heat exchangers included in the scope of delivery
Finned heat exchanger with fan.
Humidification via ultrasonic atomiser
Dehumidification via Peltier cooling element
Different measuring methods for measuring humidity
Climatic chamber with adjustable humidity and transparent door
Fan for air recirculation
2 electronic instruments: capacitive sensor, hygrometer with synthetic fibre and combined temperature sensor
2 mechanical instruments: psychrometer, hair hygrometer.
Oil separator with tank on the delivery side of the rotary vane pump
Vacuum generation with a rotary vane pump
Manometer to display the pressure in the vessel
2 silencers to reduce flow noise
1 inlet line with needle valve, 1 inlet line with needle valve and flow meter on the pressure vessel for Simulation loads and leaks.
Vacuum generation in a steel pressure vessel.
Pipe connections via flanges or cutting ring screw fittings
Standard commercially available flanged fittings: shut-off valve, non-return valve, strainer, condensation Drain, inspection glass, ball valve, gate valve
Assembly exercise for engineering training
Pressure vessel with manometer, connection via flanges
Piping network comprising pipe bends, elbows, T-pieces and transitions in nominal widths
Mobile frame for mounting of pipe network
Ball valve with cutting ring screw fitting
Connection to water supply via hose with coupling.
Pressure vessel with adjustable pressure switch and manometer
Switch box with controls and ammeter to indicate current consumption
Unit for functionality testing of the piston compressor from assembly exercises
Safety devices: pressure switch, safety valve, protective screen for belt drive, emergency-off switch
Driven by electric motor and belt drive
Single-phase electric motor on adjustable carriage.
Flow setting by manual stroke length adjustment (including during operation)
Manual drive with crank instead of a drive motor
Learning concept for maintenance and repair exercises on a single-diaphragm pump
The kit forms part of the GUNT assembly, maintenance and repair practice line
Diaphragm and push rod directly linked
Pump parts and tools housed in a tool box.
Amplifier
Strain gauge connection via 6-pin single ports or 68-pin multiports
Extension of measuring points possible
Multi-channel measuring amplifier for processing of strain gauge signals
Processing of measured values on a PC
Strain gauge connection in half or full bridge configuration
Connection to the PC via USB.
Hydraulic cylinder with hydraulic pump to generate pressure
Hermetically sealed hydraulic system, maintenance-free
Investigation of the stresses and strains in a thick-walled cylinder under internal pressure
Strain gauge application at various radial points in the groove and on the cylinder surface
Two-part cylinder with flat groove.
Unit designed for desktop use
Functionality of moving parts preserved
Cutaway model of a non-return butterfly valve
Mounted on demonstration panel; 500x400mm.
Powered by Universal Drive and Brake Unit
Pressure sensors at the inlet and outlet of the pump
Examination of a standard centrifugal pump
Pressure display on the display unit
Operation with Supply Unit for Water Pumps
Evaporation of a highly volatile solvent with a diffusion tube in a heated water bath for investigating diffusion in gases
Investigation of diffusion in liquids and gases
Transparent tank with magnetic stirrer, conductivity meter and U-tube with capillaries for investigating diffusion in aqueous solutions
Height-adjustable microscope for monitoring and determining the solvent volume in the diffusion tube
Removal of gaseous solvent at the upper end of the diffusion tube with a fan
Separate display and control unit contains temperature controller and fan
Heater with controller and sensor for adjusting the temperature in the water bath.
Pressure vessel after the second stage with safety valve, blow-off valve and silencer as well as an Additional manometer and a pressure switch
Intake vessel with nozzle to measure the intake volumetric flow rate, pressure sensor and additional manometer
Recording the characteristic of a two-stage compressor
Digital displays for temperatures, pressures, differential pressures and electric power output
Piston compressor with 2 cylinders in V-arrangement
Pressure vessel after the first stage as intercooler
Sensors for pressures, temperatures and electric power output.
Common stroke rate adjustable for all 3 heads
Stroke individually adjustable for each head
Examination of a multi-head diaphragm pump
Diaphragm pump with 3 heads
3 scaled tanks to determine the flow rate
1 feed tank
6 manometers to measure the pressure on the intake and delivery side
3 overflow valves to set the counter pressure.
Hydraulic cylinder with hydraulic pump to generate pressure
Hermetically sealed hydraulic system, maintenance-free
Investigation of the stresses and strains in a thin-walled cylinder under internal pressure
Strain gauge application on cylinder surface at various angles
Cylinder usable as open pipe or as closed tank
Transparent boiler to observe the water level
Steam pressure simulated using compressed air
Steam boiler simulation
Safety chain according to (german technical rules for steam boilers) containing: level switches, pressure Switch and pressure controller
Operation of burner simulated
Control of water level and pressure of the boiler and fault circuit
15 faults that trigger the safety chain
Front panel with process schematic, indicator lamps and lab jacks.
Transparent glass tank with overflow, drain valve and manometer
Glass tank can be hermetically sealed
Level control loop setup
Adjustable safety valve
Fitting for attaching pressure sensor or level sensor
Ready-to-install compact panel assembly
Plexiglass protective sleeve
PVC tank base and cover
Cascade control option in conjunction with RT 450.02
Water as the working medium, supply via base module RT 450
Plexiglass protective sleeve
PVC tank base and cover.
Throttling calorimeter for vapour content x>0,95, with water-cooled condenser
Two different ways to determine the vapour content
Separating calorimeter for vapour content 0,5<x<0,95, with water-cooled after cooler
Accessory for steam power plants
Safety valve for safe operation.
2 pressure tanks with pressure relief valve and manometer for direct observation of the tank pressure
Valves permit investigation of a 1st order controlled system (1 tank) or 2nd order controlled system (2 in-line tanks)
Trainer for control engineering experiments
Generation of disturbance variables by drain valve
Pneumatically operated control valve with electro-pneumatic positioned digital controller, Parameterisable as a P, PI or PID controller
Pressure control process, equipped with standard industrial components
Pressure measurement by pressure sensor
Process variables X and Y accessible as analogue signals via lab jacks.
2-channel line recorder.
Practice-oriented terminal blocks for wiring of the instrumentation and control signals
2x maintenance unit and a pressure regulator for compressed air
Frame for electrical modules
Water circuit with centrifugal pump and tank
Base module for a flexible process automation training system
Large frame with aluminium rails
Switch cabinet with 24V power supply
Installation and connecting material including tools for connecting accessory modules.
Heating circuit with heater, pump, expansion vessel and heat exchanger
Heater, pneumatic control valve and 6-stage variable-speed centrifugal pump as actuators
Sensors for measurement of the controlled variables; level, flow rate, pressure and temperature
Control of level, flow rate, pressure, temperature and cascade control
2 flow indicators, 1 manometer and 3 thermometers for direct display
Parameterisable controller with 4 selectable control loops
3-channel line recorder
Circuit with collecting tank, graduated tank, pneumatic control valve and 6-stage variable-speed centrifugal pump.
Refrigeration system and pump to cool the water in the collecting tank
Pneumatic control valve in main circuit as actuator for all controls
Sensors for the measurement of the controlled variables; level, flow rate and temperature
Control of level, flow rate, temperature and cascade control
Main circuit with collecting tank, graduated stirred tank with heater, pneumatic control valve and centrifugal pump
PLC to monitor safety devices
Cooling circuit with pump, heat exchanger and rotameter
6 pushbuttons for fault simulation
2 parameterisable industrial controllers.
Flow control loop setup
Stop valve in the inlet section
Water as the working medium, supply via base module
Ready-to-install compact panel assembly
Optional cascade control in conjunction
Rotameter with scale.
Primary circuit with electrically heated tank, pump control valve, rotameter
Secondary circuit with fresh water connection, temperature transducer, rotameter
Experimental unit for control engineering experiments
Control valve: electromagnetic proportional valve
Digital industrial controller, freely parameterisable
Large process schematic on front panel
Temperature control with plate heat exchanger and 2 water circuits
Process variables X and Y accessible as analogue signals via lab jacks
Ball valve to generate disturbance variables in fresh water circuit
Plate heat exchanger, 30 plates.
Flow measurement by paddle-wheel sensor
Generation of disturbance variables by ball valve with scale in pipe section outlet
Experimental unit for control engineering experiments
Flow control in a pipe section
Process variables X and Y accessible as analogue signals via lab jacks
Digital industrial controller, parameterisable as a P, PI or PID controller
Large process schematic on front panel
Rotameter to visualise the flow
Control valve: electric control valve.
PLC with 2 integrated set point encoders
Module for basic exercises on a programmable logic controller (PLC)
Example program supplied
Integrated patch board for creating circuits with input and output elements
Self-contained PLC module, usable as part of a complex system.
Control of pH value and oxygen concentration in transparent tank
Control of redox potential in collecting tank
Control of water parameters; pH value, redox potential, oxygen concentration and electrical conductivity
3 industrial metering pumps
Change in oxygen concentration by injection of compressed air
4 parameterisable industrial controllers
6-channel line recorder
Control of conductivity in transparent tank with stirrer
Change in conductivity, pH value and redox potential by addition of caustic soda, sulphuric acid and iodine solution
3 plastic tanks for caustic soda, sulphuric acid and iodine solution
Recording of pH value in collecting tank.
Transparent mixing tank with 3 capacitive proximity switches to monitor the level
3 transparent measuring tanks, each with 2 capacitive proximity switches
Clearly laid out trainer as basis for the use of a PLC in a process control application involving mixing processes
Control of the 8 solenoid valves, the pump and the agitator also by PLC via lab jack panel
Capacitive proximity switches with adjustable sensitivity
Metering from the 3 measuring tanks into the mixing tank via solenoid valves
Mixing assisted by stirring machine in mixing tank
Power supply to all components and to PLC by built-in power supply unit
Proximity switch signals processed by PLC via lab jack panel
Closed water circuit with centrifugal pump and stainless steel storage tank.
Circuit with pump for operation of the water jet pump
Level control with pneumatic control valve as actuator
Pressure control with pneumatic control valve in the circuit for operation of the water jet pump
Coupled level and pressure control in one vacuum tank
Level controller and pressure controller configurable and parameterisable with software
Water circuit with vacuum tank, collecting tank, pump and ambient air input device
Water jet pump to generate a negative pressure in the vacuum tank.
Digital controller, parameterisable as a P, PI or PID controller
2 pH value sensors in transparent measuring tanks with overflow
Product tank and 2 chemicals tanks
Trainer for control engineering experiments
pH value control process, equipped with standard industrial components
Water connection with control valve and rotameter
Corrosion-resistant piping system
Hand-held pH-meter for product control
Neutralisation of a caustic solution with an acid
2 metering pumps: adjustable manually or via controller
Process variables X and Y accessible as analogue signals via lab jacks
2-channel line recorder.
Construction of a pressure control loop
2 pressure tanks with safety valves
Direct pressure indication by 2 manometers
Ready-to-install compact panel assembly
Compressed air as working medium, supply via base module
Valve permits series configuration of both pressure tanks
2 valves: 1x drain, 1x vent
Copper piping
Series configuration of pressure tanks: investigation of coupled controlled system response compared Single-tank operation.
Level control with transparent tank
Level-controlled tank with overflow and graduated scale
Level measurement by pressure sensor
Experimental unit for control engineering experiments
Large process schematic on front panel
Process variables X and Y accessible as analogue signals via lab jacks
Generation of disturbance variables by ball valve with scale in outlet
Control valve: electromagnetic proportional valve
Multi-functional digital industrial controller.
Control valve: electro-pneumatic control valve
Digital industrial controller, parameterisable as a P, PI or PID controller
Large process schematic on front panel
Experimental unit for control engineering experiments
Generation of disturbance variables by needle valve
2 Manometers
Process variables X and Y accessible as analogue signals via lab jacks
Pressure control of a 2nd order controlled system with 2 pressure tanks
Pressure measurement by pressure sensor.
Flow measurement by rotameter with electrical output
Generation of disturbance variables by ball valves with scale
Tank with overflow and scale
Experimental unit for control engineering experiments
Level and flow control individually, and cascaded
Large process schematic on front panel
Key process variables accessible as analogue signals at lab jacks
Level measurement by pressure sensor
Control valve: electromagnetic proportional valve
2 digital industrial controllers, parameterisable as P, PI or PID controllers, cascade.
Electric heater with thermostat and dry-running protection
Direct temperature display at heater outlet with bimetallic thermometer
Construction of a temperature control loop
Primary circuit with heater and heat exchanger, connected to water supply of base module
Flow of primary circuit controlled by hand-operated valve
Ready-to-install compact panel assembly
Secondary circuit of heat exchanger connected to laboratory water supply
Heater is either an actuator or a continuous heater
Plate heat exchanger, operating in counter-flow or parallel-current mode.
Trainer for control engineering experiments
Temperature measurement with thermocouples at multiple points
Generation of disturbance variables by ball valve with scale in water circuitv
Screw-in heater with dry-running protection and temperature limiter Air/water heat exchanger with fan
Process variables X and Y accessible as analogue signals via lab jacks
Thyristor power controller as actuator
Digital controller, configurable as switching or continuous controller
2-channel line recorder
Temperature control process, equipped with standard industrial components
Water circuit with pump, heater and 2 different lengths of process delay.
Stirred tank with double jacket and heater; level display for tank and jacket
Temperature control with heater and 3-way motorised valve as actuators
Temperature controller and level controller configurable and parameterisable with software
2-point controller for constant temperature in collecting tank via external cooling water
Coupled level and temperature control in one stirred tank
Circuit with stirred tank, collecting tank and pump
Heat recovery with heat exchanger
Level control with pneumatic control valve as actuator.
Supply unit with compressor, pressure vessel, pump and heater
Control station with four industrial controllers,
3-channel line recorders and fault simulation
Control of level, flow rate, pressure, temperature and cascade control
Temperature control with three delay sections
Pressure control via compressed air
Control of level, flow rate and temperature with water
Trainer with pump, collecting tank and two tanks for level and pressure control
5 pneumatic control valves as actuators
Level control with or without counter pressure, or second order system analysis.
All process variables accessible as analogue signals at lab jacks
Experimental unit for networking of industrial controllers
2 signal generators
Profl bus DP interface card for PC
2 digital controllers, configurable as P, PI or PID controllers, with field bus interface.
Sending and measuring pneumatic and electrical signals
3 pressure regulators with manometers
Adjustable power supply unit as DC voltage source
Investigation of transmission behaviour and calibration of electronic and pneumatic control loop components
3 digital pressure gauges with differing measuring ranges
2 adjustable potentiometers
2 switchable AC voltage sources with differing voltages
3-channel line recorder with freely selectable measuring ranges
Separate high-grade universal calibrator for voltage, current, temperature and resistance
Freely configurable industrial controller
Digital voltmeter
Digital ammeter.
2 DC voltage sources to supply control loop components with auxiliary power
2 precision manometers
2 pressure regulators with manometers
Height-adjustable tank and scale to set low pressures
2 controllers to send and measure current signalsv
Investigation of transmission behaviour and calibration of control loop components and measuring instruments
Sending and measuring pneumatic and electrical signals
Control loop components and meters available as accessories.
Potentiometer to actuate electro-pneumatic valves with a current signal
Pushbuttons to actuate motorised valves
Manometer and pressure regulator to adjust the working pressure for electro-pneumatic valvesv
Investigation and testing of control valves
2 pressure sensors to measure the pressure drop over the control valve
Gate valve to adjust the flow rate
Position feedback via current signal (electro-pneumatic valves) or resistance teletransmitter (motorised valves)
Water circuit with tank, pump and connections for control valves
Electromagnetic flow rate sensor.
Pressure reducing valve
Segmented ball valve with swivel drive
2 compressed air ranges, adjustable by fine pressure regulator
Electric signal transmitter for positioner in the form of an adjustable current source
Maintenance work on industrial valves and fittings
Pneumatic control valve with electro-pneumatic positioner
Butterfly valve with swivel drive
Instrumentation: analogue pressure meter, digital ammeter and voltmeter.
Experimental unit for industrial controllers
All variables accessible as analogue signals at lab jacks
Signal generator with potentiometer
Digital voltmeter
Digital controller, configurable
First order lag controlled system simulator.
2 measuring locations for vertical or horizontal installation of the flow meters under test
Electromagnetic flow rate sensor for reference measurement
Comparison and calibration of different flow meters
DC voltage source to supply the flow meters with auxiliary power
Flow meters available as accessories
Water circuit with tank, pump and valve to adjust flow rate
1 differential pressure sensor and twin tube manometers for measurement of pressure losses.
Digital controller, configurable as a P, PI or PID controller with interface
Interface for PC
Recording and evaluation of time response on PC
Experimental unit for controller tuning
Data acquisition card for PC.
Investigation of a temperature control loop
Power controller as actuator
Parameterisable digital industrial controller
2 metal plates with differing thermal conductivities for disturbance generation
Thermocouple type K as temperature sensor
Soldering iron as controlled system
Transducer for thermocouple with digital temperature display
Bar display for manipulating variable
Control loop components on panels allowing for variation in installation in frame.
Training System Speed Control Apparatus
....
Storage tank
Capacity: approx. 3000mL
Pump
Max. head: 6m
Max. flow rate: 8L/min
Power consumption: 18W
Proportional valve: Kvs: 0,7m³/h
Flow sensor: 0,5...3L/min
Rotameter: 20...250L/h
Software controller configurable as P, PI, PID and switching controller.
Heating and cooling by Peltier element
Temperature sensors at 3 different points along axis of bar to establish thermal lags
Experimental unit for control engineering experiments
Temperature control of a heated metal bar
Process schematic on front panel
Software activated fan to generate disturbance variables
Software-based controlled system simulation.
Experimental unit for control engineering experiments
Rotary encoder as displacement sensor
Transparent protective cover
Linear position control of carriage with linear drive and gear motor
2 microswitches to shut down at end positions
Process schematic on front panel
Software-based controlled system simulation.
