The design is easy to operate and easy to understand.

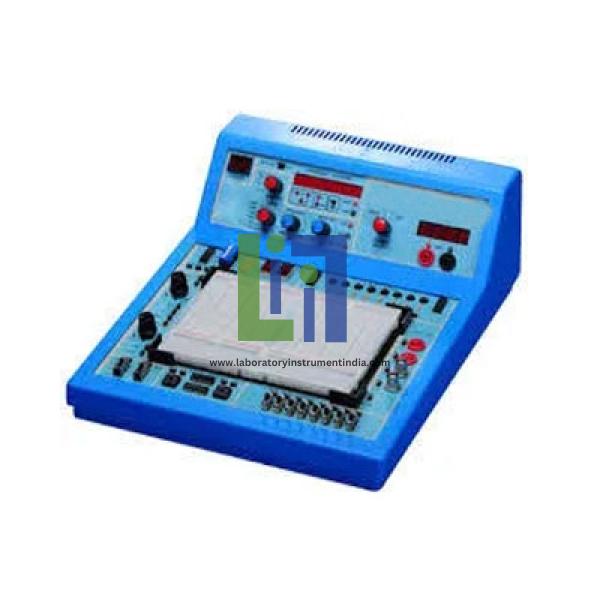

The logic trainer is designed for the beginners to enhance the comprehension of analog theory.

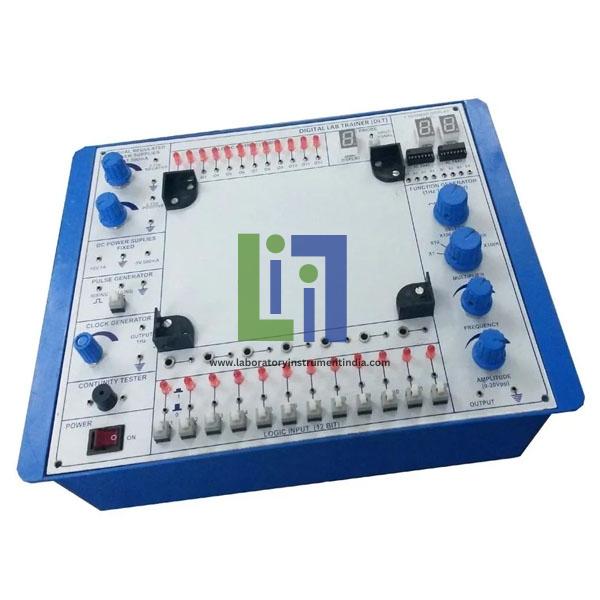

Digital Lab is used for error free transferring of different materials or data into digital formats via advanced network. This type of lab promotes real time communication between a group of people by eliminating possibility of time delay. Designed by efficient personnel, this lab consists of state of the art instruments and equipments for creating better working and learning environment. Special design of this laboratory helps to reduce its operation cost. We are a renowned manufacturer and supplier of excellent grade Digital Lab. Latest software is used to digitize video and audio files. Selected grade raw materials have been used to design this lab.
Features:
Application of latest technical knowledge
Precise diameter
Simple to handle.

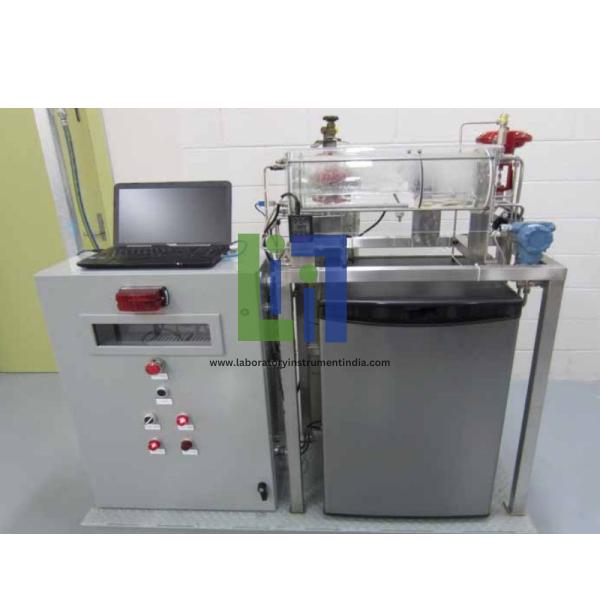

Flash Drum Trainer With PLC trainer provides the student the opportunity to gain real operating experience focusing on both the process of flash separation and control strategy. The Flash Drum Trainer With PLC is a bench-scale plant that demonstrates continuous separation of a binary mixture of water saturated with carbon dioxide. The process has instrumentation to provide for control of operating flow, temperature, level and pressure.
Function of Flash Drum Trainer With PLC
Flash Drum Trainer With PLC trainer separates a water CO2 mixture in a see-through, industrial glass vessel. The trainer is equipped with process measurement and control devices. The separation of volatile gasses dissolved in a liquid and recovery of the components usually involves a flash drum. Flash drum operations are found throughout the petroleum, petrochemical and numerous other industries. The entire trainer is controlled from a programmable logic controller computer interface (PLC). It has one each of temperature, pressure, level and flow controls.
In Gas Absorption Trainer With DCS Control trainer, an air CO2 mixture emulates the raw gas stream and CO2, the acid gas. The amine is regenerated and recycled through the process. The Gas Absorption Trainer With DCS Control is equipped with industry typical process measurement and control devices, providing a realistic training environment in which the students are exposed to many available technologies. The separation of gas mixtures and recovery of the components usually involves a regenerable absorbent. In the natural gas processing industry sulfur compounds and CO2 are removed by absorption by an aqueous amine solution. The trainer is controlled from a distributed control system.
....
This Trainer includes see-through operating vessels and selected piping. One vessel has discrete level control, the other analog. The Tank Level Flow Trainer with PLC is a combination of working vessels and pumps, with interconnecting piping that is controlled by a Programmable Logic Controller (PLC).
Function of Tank Level Flow Trainer with PLC
Tank Level Flow Trainer with PLC process trainer pumps water from a storage tank into the first working tank which is fitted with level switches. The second tank has an inner air tank which can be selected to change the response characteristics of the process. Note that with this trainer are a number of student modules for instrumentation training in addition to operator training modules. Two parallel pumps, controlled by the PLC, transfer fluid from the first tank to the second where level is measured by analog instruments. Return flow from the second tank to the storage tank is by gravity and the discharge valve is controlled by the PLC.

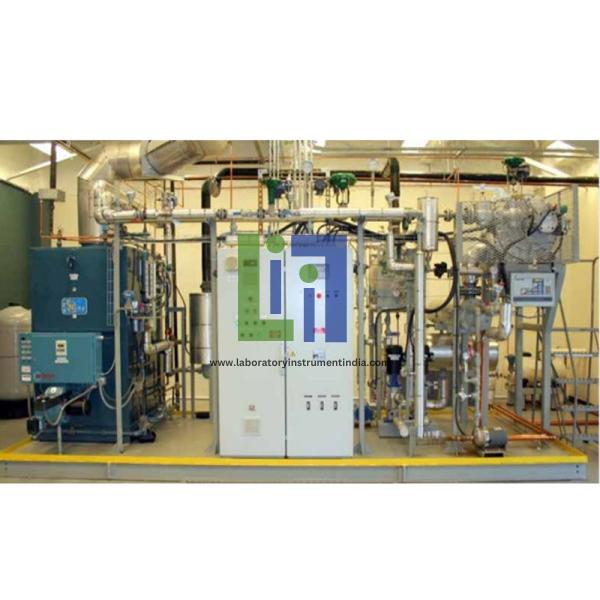

The Steam Electrical Generator Trainer uses a natural gas boiler to generate steam which is then expanded in a steam turbine, converting the heat energy of the steam into electrical energy via the turbo-generator. Steam Electrical Generator Trainer demonstrates the conversion of stored chemical energy to electricity the primary method of generating electricity used today. The Steam Power generation Thermodynamics Trainer is purpose designed and built for hands-on education and training on topics related to steam generation, power generation and control.
Steam Electrical Generator Trainer is a real system that generates electricity from a natural gas fuel on a small scale. Steam Electrical Generator Trainer is mounted complete on a single skid allowing for compact installation. Industrial type process components, process measurement and control devices have been used throughout the trainer to provide the student with a realistic training experience using equipment common to industry. In every other respect the system is designed, operated, controlled, and maintained in the same way as the full-scale industrial electrical generating facilities.

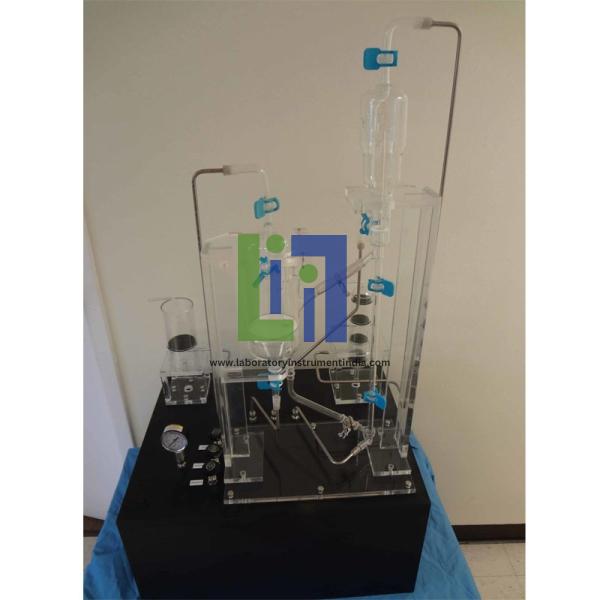

The Fluidized Catalytic Cracker Unit Trainer is a reduced scale plant that mimics bed fluidization, catalyst circulation and regeneration. Working fluids are air, CO2 and water. CO2 is used as a tracer compound to show the separation of flow in the reactor and regeneration sections. Fluidized Catalytic Cracker Units are common unit operations in oil refineries. Visualization of the catalyst material uses small diameter spherical glass beads and a coloured desiccant to mimic the catalyst bed. Catalyst degradation is mimicked by a colour change of the desiccant beads in the reactor and is reverses during regeneration. The entire trainer is controlled from a DCS computer interface with purpose designed software and control configuration. This gives the student the opportunity to gain operating experience focusing on both the process and on control strategy. The process has instrumentation to provide for reactant flow rate control, product gas analysis, catalyst level control, temperature indication and control and differential pressure indication.
....

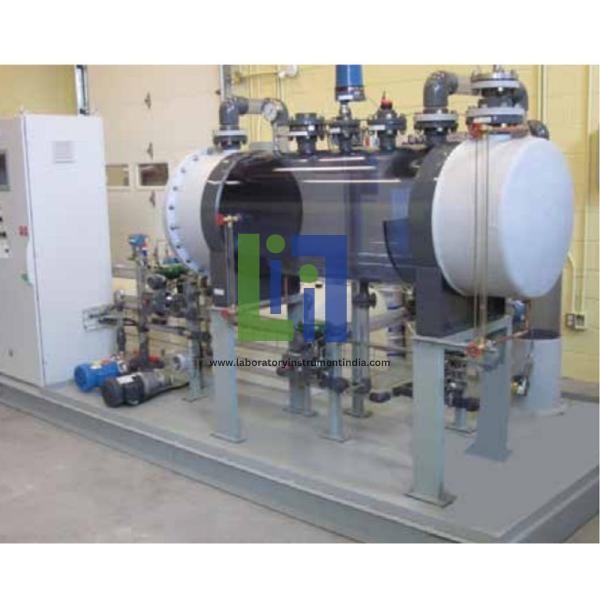

The primary separation operation for crude oil occurs when the crude stream flows through a vessel of sufficient capacity to allow gravitational separation of the gas, liquid hydrocarbon and water phases. This fluid mixture then flows into a horizontal separator vessel fabricated of clear PVC. Gas flow passes through a secondary vertical 2-phase separator. This process trainer blends air, water and refined oil to emulate a crude oil stream. The entire trainer is controlled from an optional distributed control system or dedicated control panel. The separator is equipped with industry-typical process measurement devices.
....

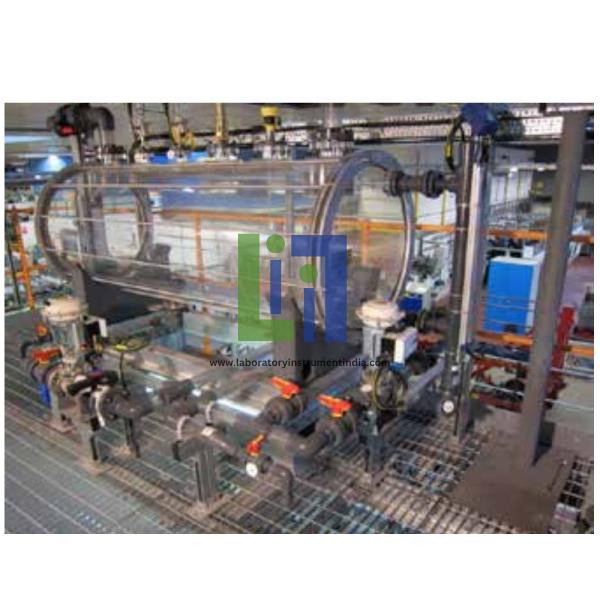

The primary separation operation for crude oil occurs when the crude stream flows through a vessel of sufficient capacity to allow gravitational separation of the gas, liquid hydrocarbon and water phases. Gas flow passes through a secondary vertical 2-phase separator, or knock-out ports to remove any further liquids from the gas stream. Mini Plant Large Scale Three Phase Separator process trainer blends air, water and refined oil to emulate a crude oil stream. This fluid mixture then flows into a horizontal separator vessel fabricated of clear PVC. The entire trainer is controlled from a distributed control system (DCS). The separator is equipped with industry typical process instrumentation.
....
The Heat Exchanger Trainer With PID Loop Control are of equal surface area with each one having unique features. The Heat Exchanger Trainer apparatus consists of six heat exchangers with associated fluid temperature indicators and flow indicating controllers. Trainees are able to learn the impact of: construction material, flow pattern or direction, turbulent or laminar flow, and exchanger design. The transfer of heat energy between fluids is a very common industrial operation.
....
Continuous flow reactors are common unit operations in chemical processing plants. Chemical Reactor Process Trainer with PLC is a reduced scale plant that demonstrates continuous flow, exothermic chemical reaction. They are found throughout the petroleum, petrochemical and numerous other industries.
Reactants are hydrocarbon fuel and atmospheric oxygen; products are combustion flue gasses
The entire trainer is controlled from a DCS or PLC computer interface with custom designed software and control configuration.
The process has instrumentation to provide for reactant flow rate control, product gas analysis, temperature and pressure indication and an interlocking safety system.
This gives the student the opportunity to gain real operating experience focusing on both the process of exothermic chemical reactions and on control strategy.
Objectives:
Impact of varying operating conditions of reactant flow, excess or limiting reactants and residence time
Control experience on a Programmable Logic Controller
Continuous flow reactor operation and measurement
Process control concepts for manual and automatic operation
Material balances
Equipment start-up and operating procedures.
The gas compression apparatus consists of two commercial compressor receiver units each with added temperature indicators, flow indicator, power meter and pressure indicating controller. The compressors are of similar power demand but different design. Pressure, temperature and flow data obtained can be used to calculate compression efficiency. Control valves are provided to provide control of the downstream pressure.
Function of Compressor Trainer Single and Duplex Compressor
The gas compressors use air as the working fluid to demonstrate reciprocal compressor operation. Trainees select compressor type and flow rate then read and record the flows and temperatures for further analysis. The discharge pressure is automatically controlled to a selected process pressure set point.
Distillation and fractionation operations are found throughout the petroleum, petrochemical and numerous other industries. Binary Distillation Trainer with DCS Control trainer separates a methanol water mixture in a see-through, bubble cap tray column. The separation of liquid mixtures and recovery of the components typically involves the distillation process. The entire trainer is controlled from an optional distributed control system or control panel. The Binary Distillation Trainer with DCS Control trainer is equipped with industry-typical process measurement and control devices.
Process of Binary Distillation Trainer with DCS Control
Liquids are recycled to the feed tank for continuous operation
Working fluids methanol and water
Continuous variable flow

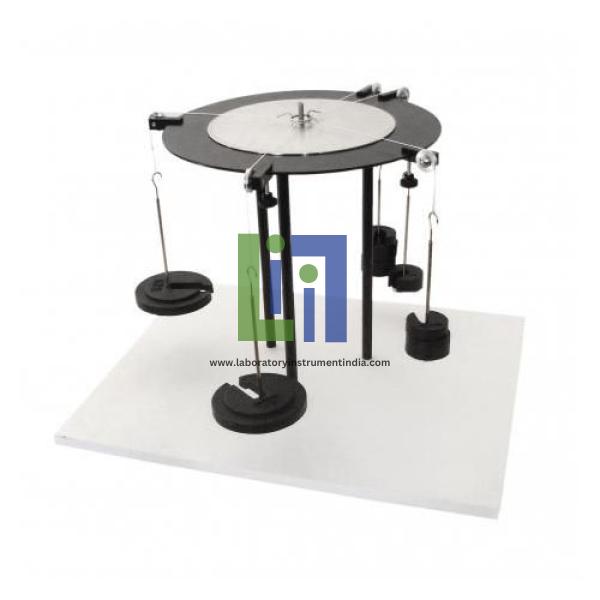

A bench mounted circular table with a central pin and 360º protractor has three pulleys on adjustable clamps round the edge.
The triangle of forces in equilibrium can be constructed and the resultant of two known forces can be found.
Conditions of equilibrium are obtained by centralising a small cord ring over the central pin with cords to load hangers where the loads and lines of action are variable.

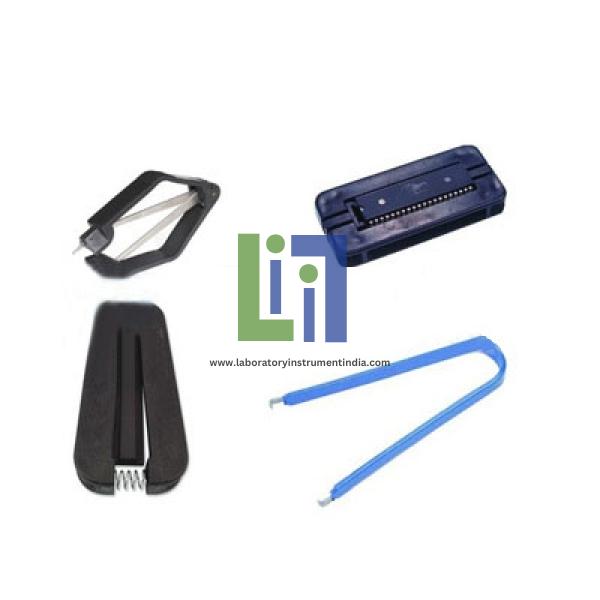

IC Straightener
IC Puller
PLCC Extractor
DIP IC Extractor.

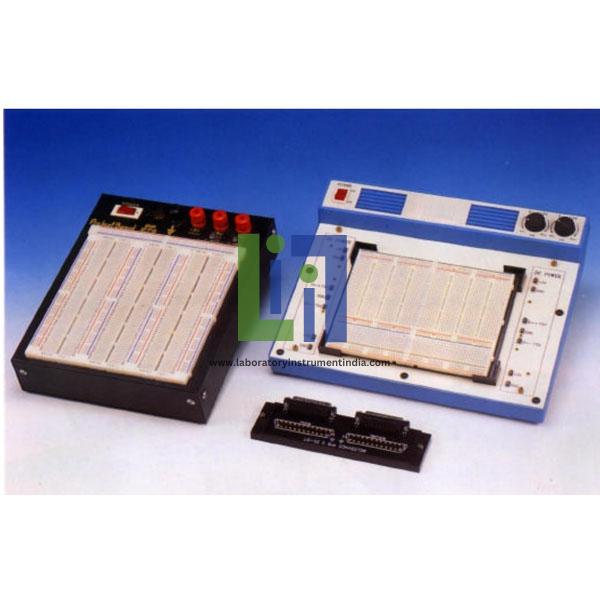

Circuit Lab
The Circuit Lab with prototyping breadboard, power supplies and an universal connector as connections environment, is a low cost but ideal tool for learning.
Power Project Board
The Power Project Board with prototyping breadboard, power supplies.
The design of Advanced Digital Training System is easy to operate and easy to understand.
The Advanced Digital Training System is designed for the beginners to enhance the comprehension of advance digital theory.

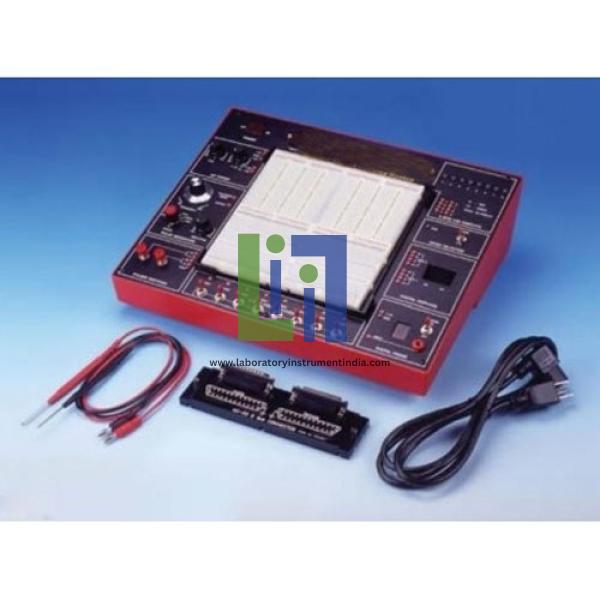

This training system is used as essential part of circuit trouble shooting course, analog circuit experimental work and basic logical circuit training procedure. Design of this Digital-Analog Training System has been developed to meet various research and development laboratories where digital and analog training programs are held. We are a reliable supplier and manufacturer of Digital-Analog Training System. It consists of instruments and sections like potentiometer, BAR display unit, LED display screen and adapter display module to name a few. Besides these, this system comprises of in built function generator, easy to dismantle breadboard and DC power supply system.
Features:
Application of latest technology
Easy to handle
Precise design.
The main objective of this trainer is to teach the student of electronic circuits rather than focusing on the assembly of the components. To assemble and examine experiment is laborious. Electronic theory will be taught straightly out of book accordingly. Series will condition the students to visualize the function of experiment circuit.
....

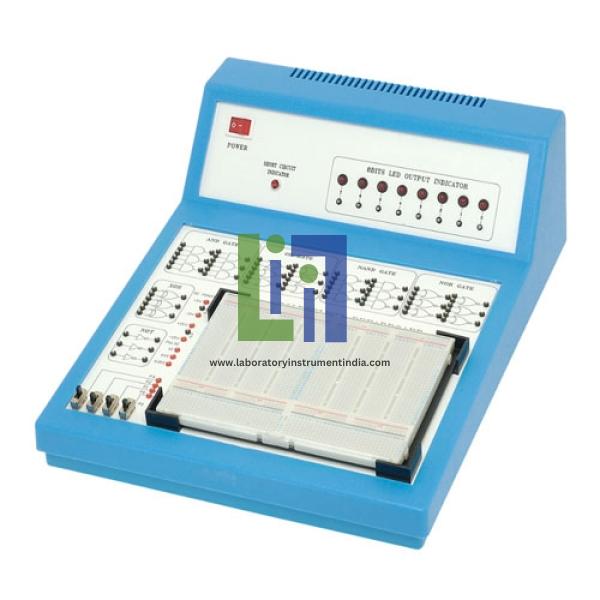

It is equipped with various kinds of basic logic gates, debounced logical switches, LED indicators, DC power supply with short circuit protection, pulse generator and solderless bread board. The design is easy to operate and easy to understand. Logic Trainer: The logic trainer is designed for the logic beginners to enhance the comprehension of basic logical theory.
Features:
Pulse generator
Eight LED indicators
Debounced logic switches
Basic logic gates
DC power supply +5V, -5V and ±15V
Solderless breadboard
Console style case.
