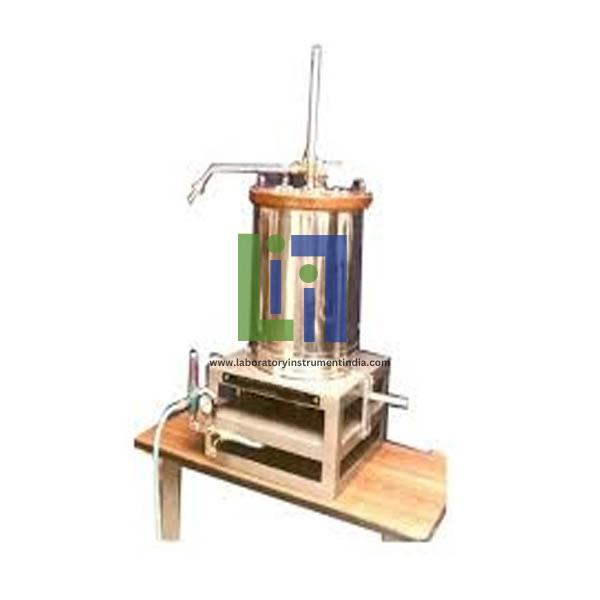

The whole set is manufactured to a very high standard and is supplied with all necessary accessories including thermometers with reading lenses, measuring vessels and a general purpose set of four burners for town and coke oven gas, natural and methane gas, butane, propane, acetylene, ethylene and propylene. The two main items of equipment in the apparatus are the Boys non-recording gas calorimeter fitted with appropriate burners in the base, and a precision, Hyde type gas meter with a capacity of 2.0 litres/rev consisting of a specially designed measuring drum housed in a gas-tight casing and sealed with water.
Experimental Capability:
To determine the Gas Volume Factor of gaseous fuels.
To determine the Calorific Value C.V. of gaseous fuels.
Average Difference in Temperature.
To determine the Gas Temperature
Average Water Inlet Outlet Temperature.

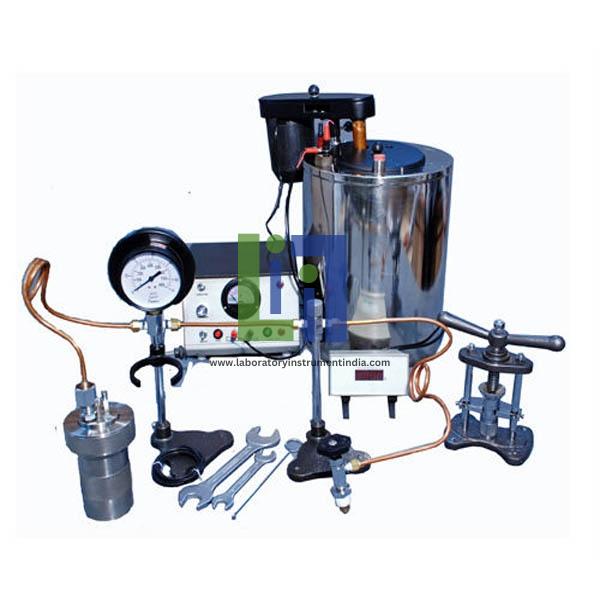

It comprises the calorimeter, a calorimeter vessel, an outer double walled water vessel, electric stirrer gear, combined motor control gear and ignition unit, a Beckman type thermometer, and a charging unit with pressure gauges to facilitate the charging of the calorimeter with oxygen. The equipment is self-contained with the control unit housed in an instrument case that forms the base. A Briquetting Press is available as an optional extra and an additional calorimeter can also be supplied. No spanners are required and in use the rubber joint is protected by water so it may be used over and over again. The particular features of the calorimeter are the method of sealing and the method of ensuring ignition. The body of the calorimeter is screwed into the base and a seal is made with a special rubber joint when the two parts are finger-tight only. In order to make ignition 100% sure, great care has been devoted to the method of anchoring the ignition wire and maintaining electrical contact and to the support of the crucible. All these parts are made to a high degree of precision and the results are very satisfactory.
....

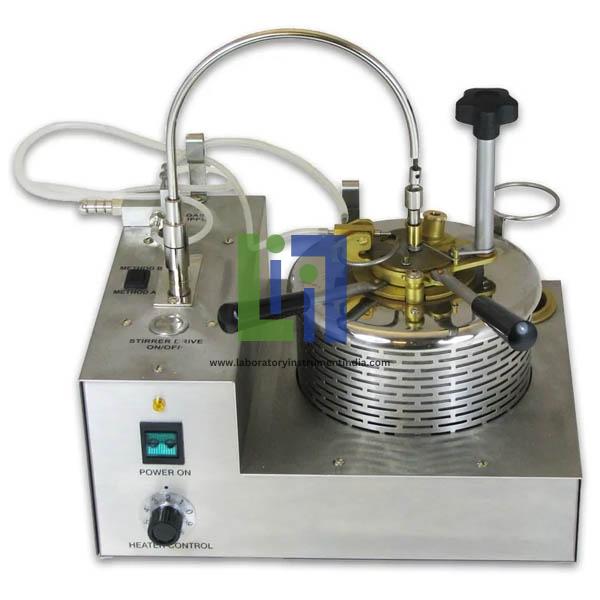

A stirrer motor is incorporated to agitate the liquid under test and is controlled by a pushbutton on the top panel of the control unit. Immediately behind the pushbutton are two motor drive outputs which connect to the test cup via the curved flexible drive - changeover being made simply by lifting the cable drive from one outlet and placing it in the other. The unit is also fitted with an integral, rechargeable LPG gas tank. Electrically heated flash point apparatus is designed to determine the flash point of petroleum products with flash points above 49ºC (120ºF) and in so doing conforms to the following standards: Method The apparatus consists essentially of a cast-iron stove with test cup, lid and shutter assembly mounted on a stainless steel encased control unit with the main power switch and heater controller located on the front panel. The stove is fitted with an easily replaceable base and band heaters, so arranged that all parts of the exterior surface are heated uniformly, while accelerated cooling, after flash point determination, is provided by an air inlet connection, which leads to the interior of the stainless steel baffle surrounding the heaters. Handles are provided for lifting the cup and lid, and a vertically located, cam locking device ensures safe and secure mounting of the lid and shutter assembly.
Features:
Two speed stirrer
Forced air cooling facility
Ambient to 370°C temperature range
Variable ramp rate
Supplied with sample cup, lid and shutter stand and instruction manual.

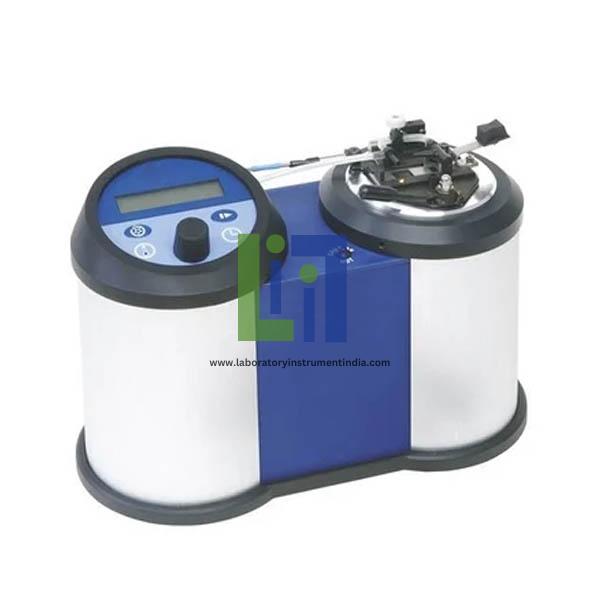

An automatic flash detector reduces the chance of misinterpretation of the test result by the operator, and enhances repeatability. Gas for the test jet/shutter assembly is supplied from an integral gas tank, which is filled using a standard butane (lighter) refill cartridge. The digital display shows test parameters, instrument status, and the test result. An audible prompt is sounded when an action is required from the operator. The Series 3 flash point tester is lightweight and suitable for mobile use when operated from the optional 12 volt power supply adaptor. All functions on the Series 3 flash point tester are accessed via a two button keypad and the Seta Multifunctional And Rotational Test (SMART) control feature.
Features:
Audible and on-screen prompts
Automatic flash detection
Small sample size - 2 or 4ml
Simple calibration
Portable operation.
Ambient to 300°C
Flash point test in less than 2 minutes.
