LaboratoryInstrumentIndia is a renowned name in the realm of fluid mechanics lab equipment manufacturers, suppliers, and exporters, serving clients across India, China, and Kenya. We specialize in providing a comprehensive range of high-quality fluid mechanics laboratory instruments designed to meet the diverse needs of educational institutions, research facilities, and industries.
Our product catalog includes air flow studies apparatus, basic metacentric height apparatus, centrifugal pump characteristics, hydrodynamic channel, and more. These instruments are meticulously crafted to deliver accurate measurements and reliable performance for a wide range of fluid mechanics experiments and studies.
At LaboratoryInstrumentIndia, we are committed to excellence in engineering and customer satisfaction. Our state-of-the-art manufacturing facilities, coupled with stringent quality control processes, ensure that our fluid mechanics lab instruments meet international standards of quality and durability.
Choose LaboratoryInstrumentIndia as your trusted partner for superior fluid mechanics lab equipment that enhances learning, research, and experimentation in the field of fluid dynamics.
Fluid Mechanics Lab Equipments, Fluid Mechanics Lab Equipments Equipments, Fluid Mechanics Lab Equipments Tools, Fluid Mechanics Lab Equipments Tool Kits, Fluid Mechanics Lab Equipments Manufacturers, Fluid Mechanics Lab Equipments Suppliers from India, China, Kenya
Lab Tender Suppliers Africa and Lab Equipment Africa Kenya, Uganda, Sudan, Algeria, Morocco, Angola, Ghana, Mozambique, Madagascar, South Africa, Ivory Coast, Cameroon, Niger, Burkina Faso, Mayotte, Sao Tome, Seychelles, Zambia, Chad, Somalia, Senegal, Zimbabwe, Guinea, Rwanda, Benin, Burundi, Tunisia, South Sudan, Mali, Malawi, Nigeria, Ethiopia, Egypt, DR Congo, Tanzania, Togo, Sierra Leone, Libya, Congo, Central African Republic, Liberia, Mauritania, Eritrea, Gambia, Botswana, Namibia, Gabon, Lesotho, Guinea Bissau, Equatorial Guinea, Mauritius, Eswatini, Djibouti, Reunion, Comoros, Cape Verde, Western Sahara Ministerial Tender Board Lab Equipment India, Ministry of School Education Lab, Vocational Training Lab Tenders Suppliers India
Lab Instruments School Training Lab Equipment Suppliers India

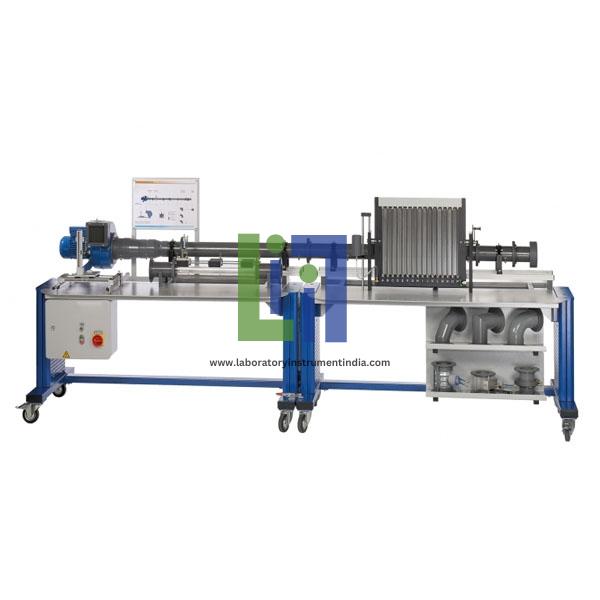

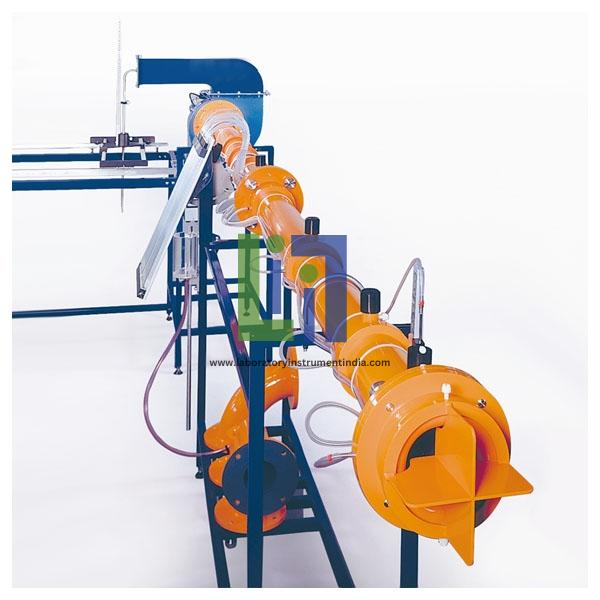

Boundary layer growth is determined by the measurement of the velocity profile at four stations along the pipe using a traversing Pitot tube.
A bend or mitred cascade elbow may be fitted mid way along the smooth wall pipe for comparison of pressure losses.
Air enters the smooth walled pipe through one of the two flow measurement nozzles provided. Pressure tappings along the length of the pipe permit the pressure gradient to be determined.
The equipment includes a long smooth walled pipe joined to the suction side of an electrically operated centrifugal fan. The fan discharge pipe terminates in a flow control damper for closed conduit work or a plate containing a small aperture for jet dispersion measurements.
A conventional flow measuring orifice plate is supplied for installing in the pipe upstream of the fan for additional demonstrations of pressure loss and recovery.
The equipment is mounted on a floor standing steel frame with an adjacent support for the extended suction pipe. Pressure measurements are made on a multi-tube inclinable manometer mounted on the support frame.

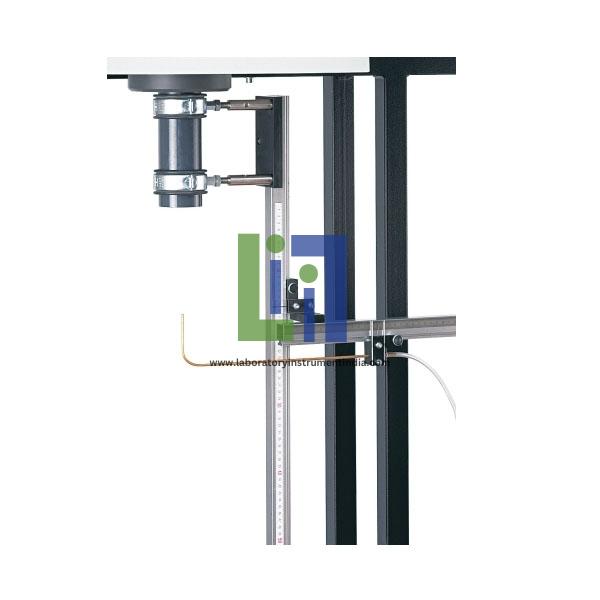

Air jet studies are carried out on the discharge side of the fan. A Pitot tube is traversed vertically and horizontally at different distances from the discharge orifice to investigate the dispersion properties.

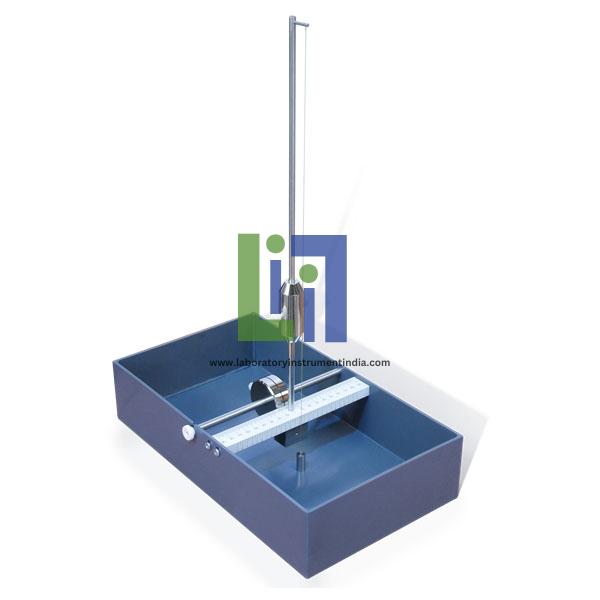

To determine metacentric height of floating body and height variation with tilt angle. Tilt angle indicated by plumb bob on attached scale. Rectangular pontoon; centre of gravity can be moved side way by moving horizontal jockey weight, and vertically via adjustable vertical weight on mast.
....
This auxiliary pump is intended to be used inconjunction with the basic Hydraulics Bench. This accessory comprises a variable speed pumpassembly and independent discharge manifold interconnected by flexible tubingwith quick release connectors. The pump speed is varied by an inverter drive. An independent discharge manifold incorporates apressure gauge and flow control valve prior to a discharge pipe with diffuser. A compound pressure gauge is mounted on the pump inlet and a pressuregauge is mounted on the pump outlet. Themotor speed, output voltage and motor current can be monitored on the inverterdisplay. The auxiliary pump is mounted on a support plinthdesigned to be positioned on the floor besides the hydraulics bench, adjustable feet allowing levelling.
....
Included accessories:
Pitot tube and level meter.
Thin edged wall weir without contraction.
Four-column pressure gauge.
Radial gate.
Vertical gate.

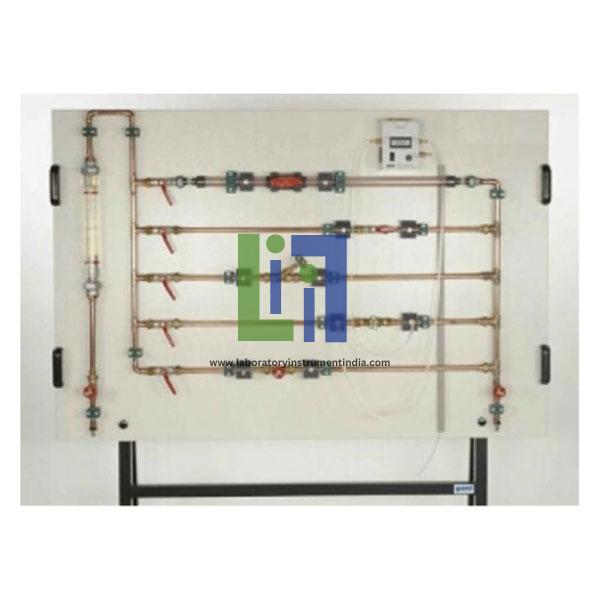

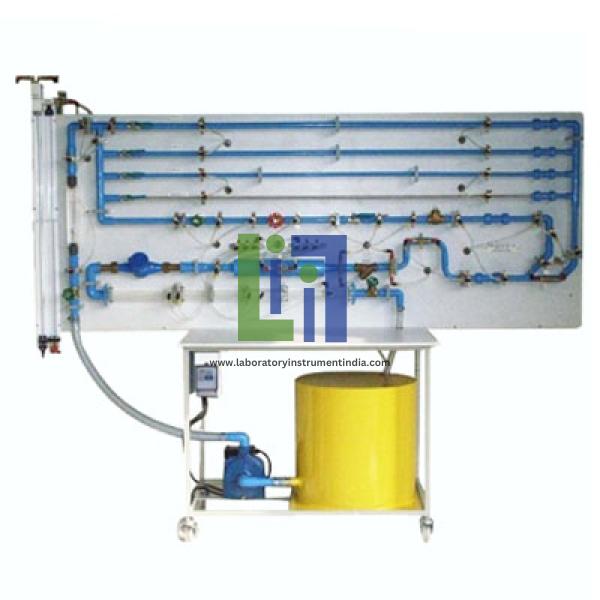

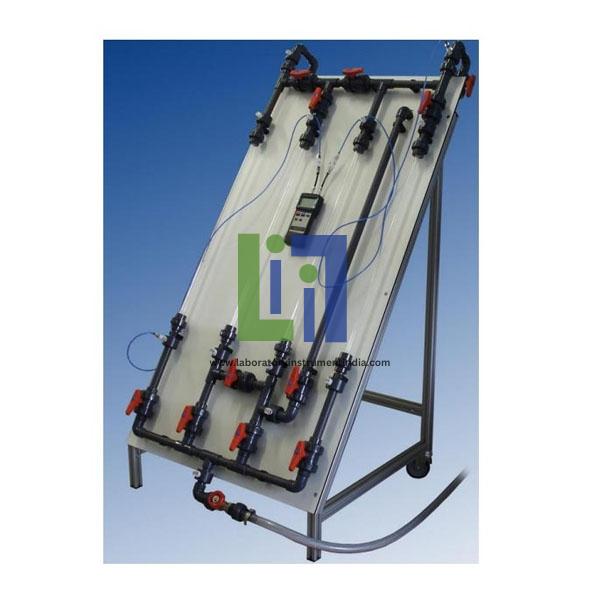

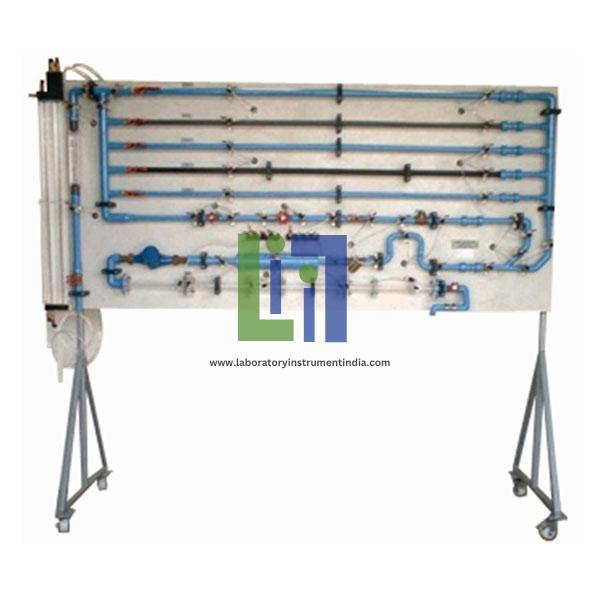

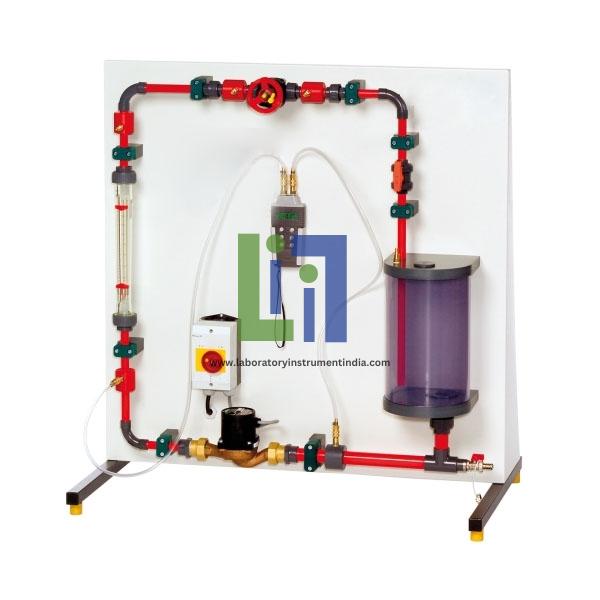

This apparatus has asingle circuit with bends, pressure tappings and an expansion-contraction. Aball valve at the pipe exit controls water flow. The valve is downstream, so itdoes not cause any upstream turbulence. This compact bench-top apparatus uses smooth, industry standardplastic pipe, commonly used in domestic and other small-bore water systems. Itworks with Digital Hydraulic Bench. The bench supports the apparatus andcirculates and measures the water flowing through it. A useful diagram on the apparatus shows themain dimensions of the pipework and fittings. It also shows the positions ofthe tappings and the tubes that they connect to. Each pressure tapping point in the pipeconnects to a piezo meter tube in the vertical panel of the apparatus. The product includes ahand-pump to adjust the datum of the piezometer tubes. During experiments, these tubes measure and compare pressure differences across thebends, expansion and contraction.
....

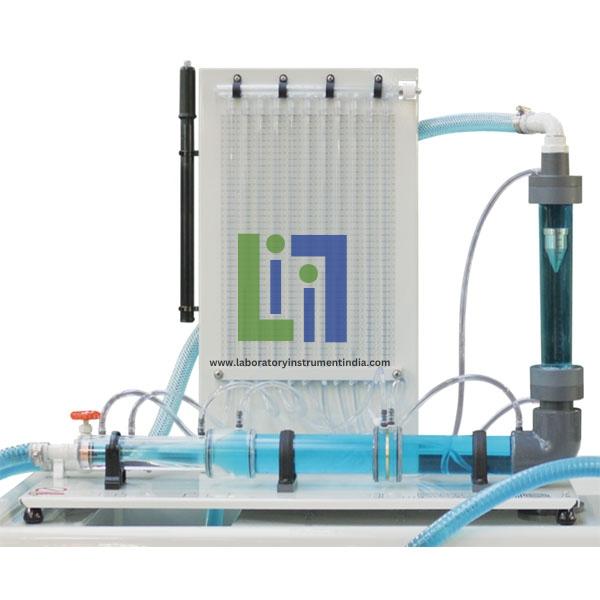

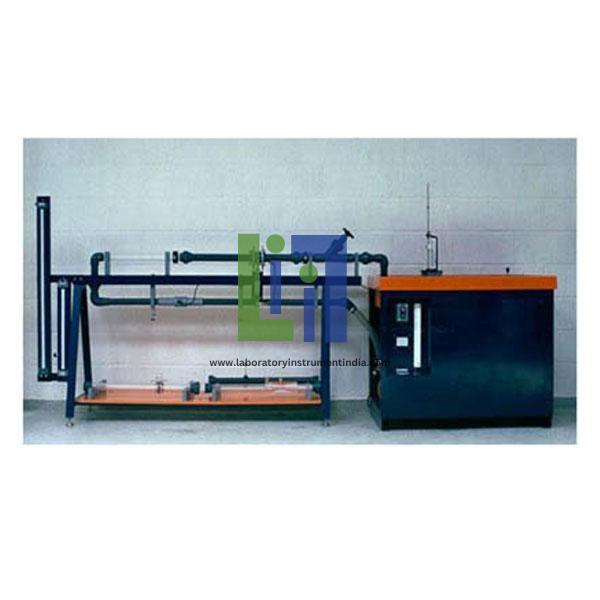

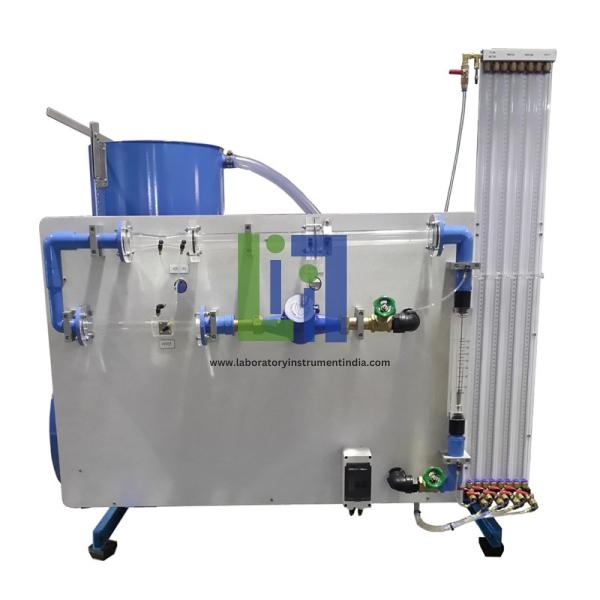

The nozzle flow meter or any of the optional flow meters quickly andeasily fit into place between the adaptors in the base unit of the apparatus. For use by all kinds of engineering students, the Flow Meter Calibration apparatus compares and shows the accuracy and use of fundamental flowmeters. The manometers have a common manifoldfitted with an air valve. Students use the hand-pump to increase the air pressurein the manifold. The straight pipe gives a comparison of the true pressurelosses caused by the flow meters. Four water filled manometers show the pressure differences at the flow meterand across the overall flow meter assembly. This helps to explain the boundary layerand surface friction in pipes and flow channels. The optional Pitot Tube Flow Meter will alsoshow the velocity profile in a pipe.
....
The equipment consists ofa vertical panel that holds a clear plastic quadrant, to which students addwater. The quadrant has engraved lines to help students keep the plane in avertical or angled position. The cylindrical sides of the quadrant have theircentral axis coincidental with the moment measurement axis. This product allows students to measure the moment due tothe fluid (hydrostatic) thrust on a fully or partially submerged plane. The plane works in either a vertical or inclined (angled) position. Students thencompare their measurements with theoretical analysis. The total fluid pressures on these curved surfaces therefore exert no moment about this pivot.Therefore, the moment is only due to the fluid pressure on the plane testsurface. Students measure this moment using weights suspended from a level arm. A scale on the panel of the apparatus shows the head of water. They then initially balance the quadrant tank using one of the weighthangers and the smaller trimming tank. They take results by balancingincremental weights on the hanger with known quantities of water. To performexperiments, students level the apparatus using its levelling feet and spirit(bubble) level. They decide whether to test either a vertical or inclinedplane. Students note the relationship between the moment and the water height(h). They then usethe results to calculate the equivalent moment of force (M) or hydrostaticthrust.
....
The product consists of a transparent vessel on a support frame, which mounts on a DigitalHydraulic Bench. A low-voltage, variable-speed motor rotates the vessel aboutits vertical axis. The Vortex Apparatus enables students to produce both freeand forced vortices, and measure the vortex water surface profile. To produce a forced vortex, studentsadd water to the rotating vessel until it is about half full. A forced vortexforms. After a few minutes the vortex becomes constant, and students canmeasure the surface profile using the traverse probe. A speed-control unit (included), sited away from the mainapparatus, controls the speed of rotation. Students can also measure distribution of total head by replacing the traverseprobe with a Pitot tube. The traverse probe canmove both horizontally and vertically, and both axes have linear scales.
....

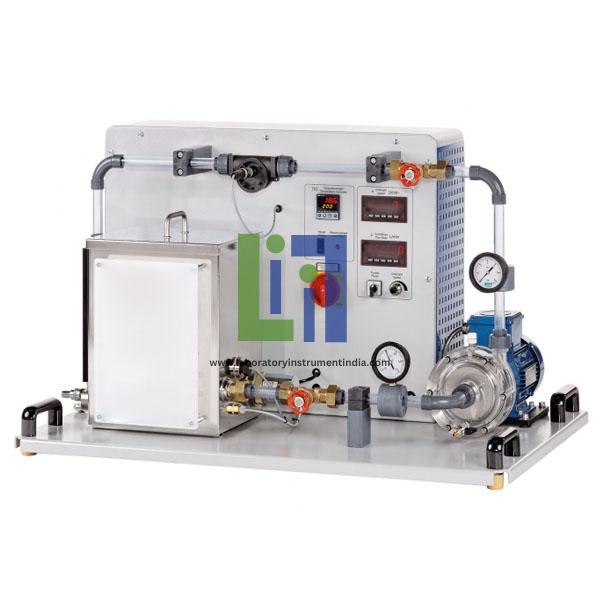

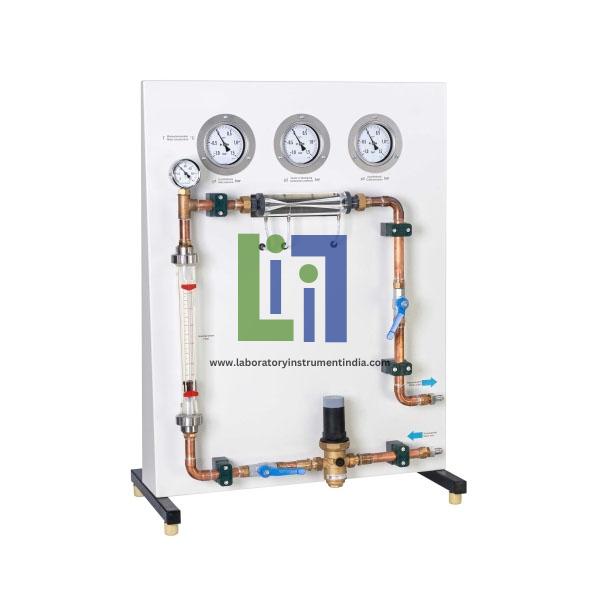

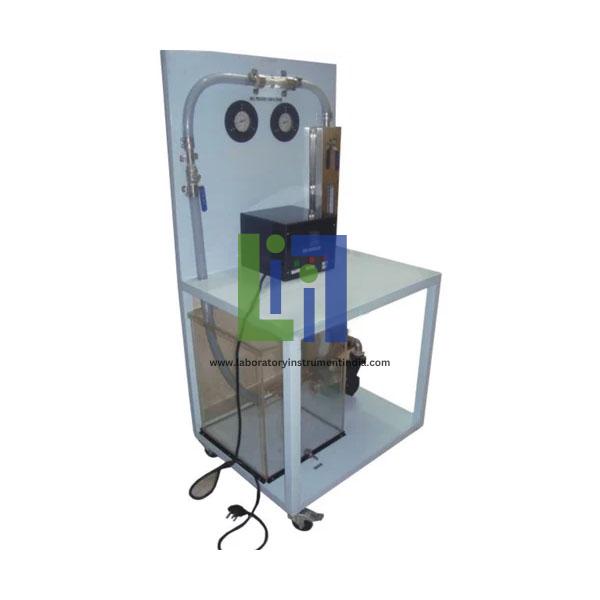

The Cavitation Demonstration Unit offers a clear andeasy-to-understand display of cavitation. Students create clearly visiblecavitation in a Venturi and take measurements of flow and pressure. The causes and effects of cavitation are one of the mostimportant subjects in any course on fluid mechanics. In severe cases, cavitationwill damage machines and hydraulic systems. It alsoallows students to understand the Venturi by studying upstream and throatpressures. Studentsuse theory and practical experiments to learn how to predict the onset ofcavitation. They gain practical experience of using the continuity equation and Bernoulli's equation. They use these to calculate flow and pressure, differentmethods of creating cavitation and causes of error. The apparatus is aself-contained, mobile unit. Designers and engineers must beaware of cavitation when they create a new design or installation. Cavitation Demonstration Unit is a purpose-designed teaching unit which enables efficientand effective investigations into the causes and effects of cavitation. The frame includes a handy worktop for student paperwork. It consists of a robust frame which holds a watertank (or reservoir), an electric pump, a flow-control valve, a flow meter and aVenturi.
....

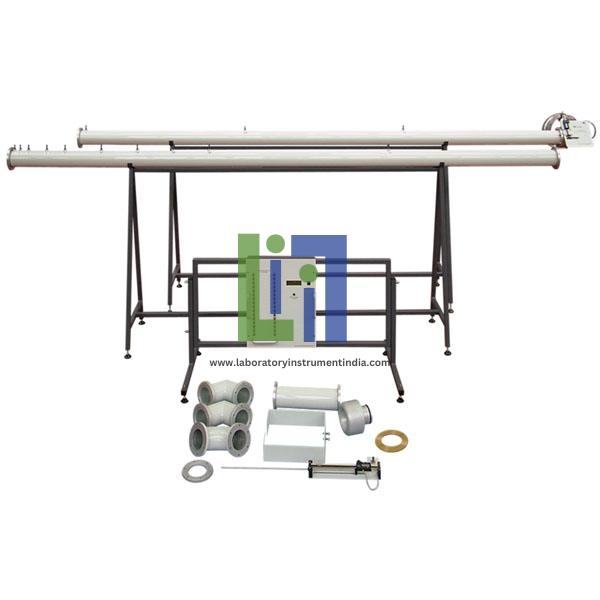

An optional Pipe Flow and Nozzle Kit for the Centrifugal FanModule. The pipe tappings connect to amultiway pressure display. The multiple pressure tappings along the long pipesallow you to measure the pressure drop and therefore losses along them. A Pitot traverse fits at the endof one long pipe to allow you to measure the velocity profile across a pipe andcalculate the theoretical flow. The kitincludes three different fittings two elbows and a bend, that each fit betweenthe long pipes to test the pressure drop and therefore loss caused by the fitting. This kit includes two long lengths of smooth-walled pipe with multiplepressure tappings and a Pitot traverse. The pipes connect to the inlet of the soit becomes a suction fan for tests on the pipes. This allows a comparison with the flow foundfrom the standard nozzle and the orifice plate included with the kit. A probe mounts in an assembly so that it moves axially through an additional nozzle to measure its axial pressure profile.
....

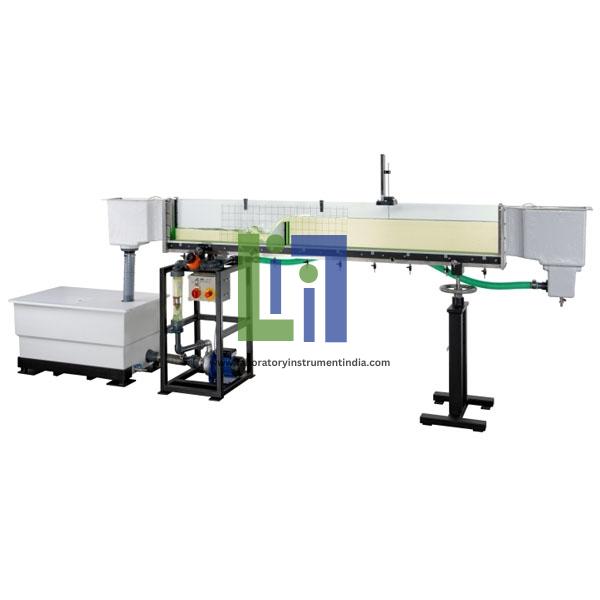

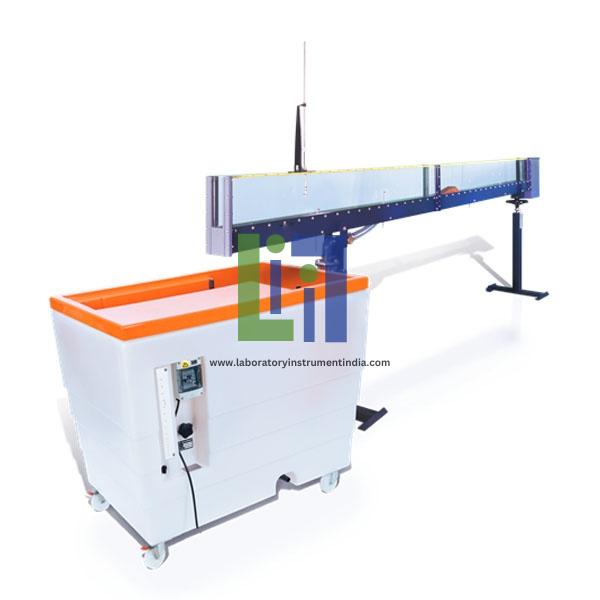

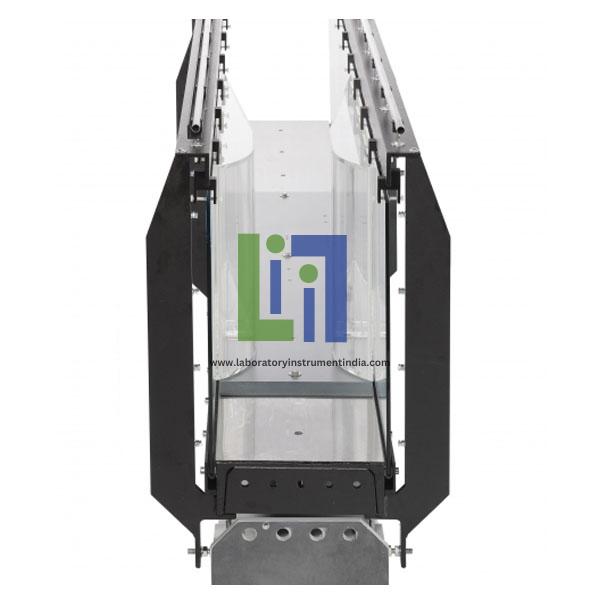

Flumes have various models available, giving students a widechoice of experimentation in open channel flow. The flumes have a built-inre-circulating water supply connected to a digital flow metre for accuratemeasurements during experimentation. The 32-waypressure display connects for real-time data acquisition. Each is supplied withtwo level gauges and a Pitot tube, all of which mount onto and run along theinstrument rails at the top of the flume. Measurements from these instrumentscombined with the digital flow meter provide the potential for extensive analysisof open channel flow for research or advanced study. The Series channels are 300 mm in width, 450 mm in height,and are available in 2.5 metre, 5 metre, 7.5 metre, 10 metre, 12.5 metre and 15metre lengths. The flumes have pressure measurement tappingsat 0.25 metre intervals along the working section. These tappings can connecteither to a multi-tube manometer or to a 32-way pressure display. Bed-load transport can beinvestigated using the optional Sediment Loop. This ancillary provides a closedsediment circuit consisting of a sediment trap and feed mechanism which allowssand to be pumped from the trap to a feeder located above the working sectionbetween experiments. Screw jacks raise and lower thesupports inclining the channel as required. Thisgives smooth, uniform flow, free from entry effects. The digital inclinometer gives anaccurate display of the channel angle. A pump with a speed controller, forceswater up to the flow settling chamber at the upstream end of the channel.
....
The flume is made of transparent glass, precision-built toensure parallel walls and a consistently accurate cross section along itslength. The Viscosity and Particle Drag apparatus is a simplefalling-sphere viscometer. The self-standing unit holds two glass tubes filled with the test fluids, for comparisons and to minismise draining and refillingof the fluids after experimentation. A sturdy steel square-section firmly supports the channel throughoutits length. It has a floor-standing frame that supports the working section ata convenient eye-level position for students. The back plate has a low-voltage backlightso students can easily see the test spheres through the fluid. Students fillthe two tubes with their chosen test fluid, then select a sphere of the correctdensity and size for the fluid. They drop the sphere into the test fluid at thetop of the glass tube. The valve systemminimises the fluid loss from the tube and helps when draining the tube afterthe tests are complete. Students may also make their own use shapes to test inthe unit. The shapes must fi t through the valve at the base (maximum 8 mm inany single dimension). They then use a stopwatch (included) to measure the timetaken for the sphere to fall a set distance down the tube. When the test spherereaches the bottom of the tube, it enters a valve that the students turns,dropping the sphere into a collection vial for recovery. The apparatus can be used with any fluid that can besafely handled and is chemically compatible with the wetted parts of theequipment - glass and PTFE. Suitable test fluids include water, thin machine oil,castor oil and motor oil.
....

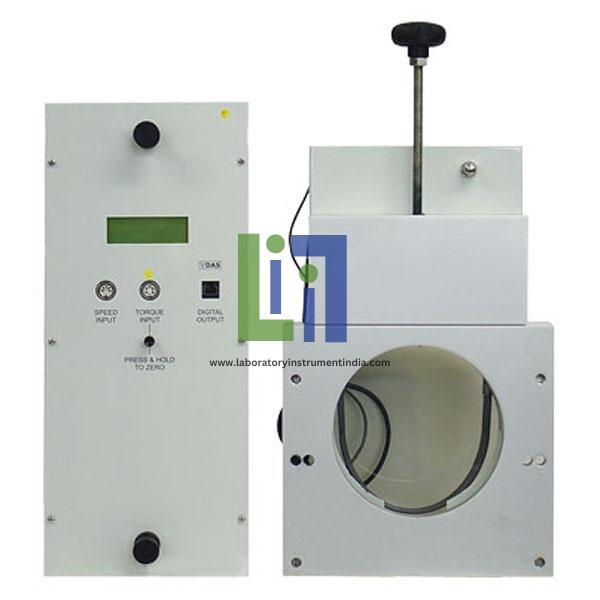

The Turbine Dynamometer and itsinstrumentation then measures and displays the speed, torque and shaft poweravailable at the dynamometer. The Turbine Dynamometer instrumentation fitsabove the dynamometer, in the iInstrument frame of the Centrifugal Pump Module. You need the Turbine Dynamometer for tests on the optionalturbines. You connect the outlet of the centrifugal pump to your turbine. As the pumpforces water through the turbine, you use a control on the Turbine Dynamometerto adjust a band brake. It fits on the Centrifugal Pump Module, near the outlet end of thecentrifugal pump. You fit any of the three optional turbines to the Turbine Dynamometer. Each turbine has a brake drum that fits inside the dynamometer. This loads the turbine.
....
The experimental unit contains a typical wind powerdrive train at laboratory scale, which is driven by an electric motor. Themotor enables low speeds with high torque. This simulates a typical slowly rotating wind rotor. The speed can be adjusted. Modern windturbines should be optimally adapted to the wind available at their locationand allow efficient operating conditions. In addition to the wind rotor itself,components of the drive train such as the transmission and the electricgenerator are crucial. The drive train consists of theslow-rotating drive side, the fast-rotating generator side and a three-stagespur gear between the drive and the generator. The electrical load of thegenerator can be varied. This makes it possible toapproximate operating points of a typical torque characteristic. The generator speed and the torques of the drive side and generatorare captured by sensors and displayed digitally on the measuring amplifier. The calculatedcharacteristic results from the mechanical power of a wind rotor for a givenwind speed. The experiments with simulate typical operatingconditions of a drive train. To do this, the electrical load of the generatorand the speed of the drive motor are varied.
Features:
Generatorwith adjustable electrical load
Electricmotor simulates wind rotor at low speed
Torquemeasurements on drive and generator.
The Solid Liquid Extraction allows a soluble component of a solid mixture to be extractedwith a revolving extractor. In continuous 3-stage mode, pure solvent isdelivered from a tank to the sprinkler of the first extraction stage where itis distributed over the solid mixture. The extraction material and thesolvent move in counter flow. The extraction residue drops into a tank afterone revolution of the extractor. Valves can be used to switch to 1- or 2-stagecontinuous mode. After passing through the last stage, the extract collected in theextract tank. The extraction material is continuously fed into the cells of therotating extractor by a spiral conveyor. The solvent seeps through the extractionmaterial, absorbs its soluble components and passes into the collectingsegments. From there, the enriched solvent is delivered to the sprinkler of thenext stage. Discontinuous mode is possible with the extractor stopped.
Features:
Regenerable extraction material
Discontinuousand continuous solid-liquid extraction
1-, 2- or3-stage modes possible.

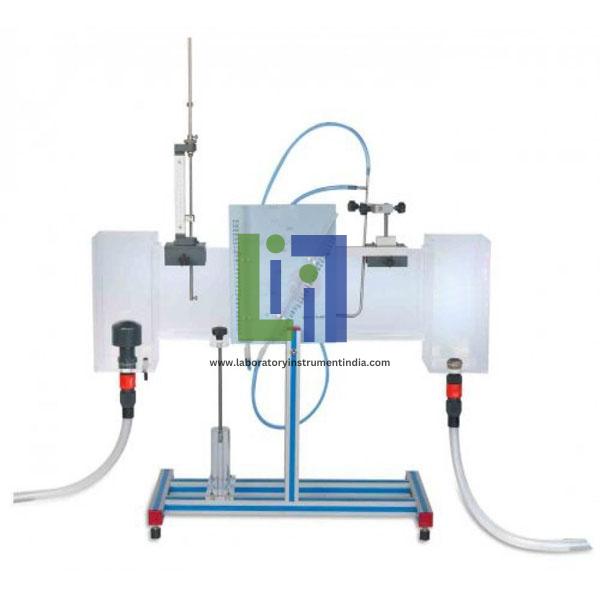

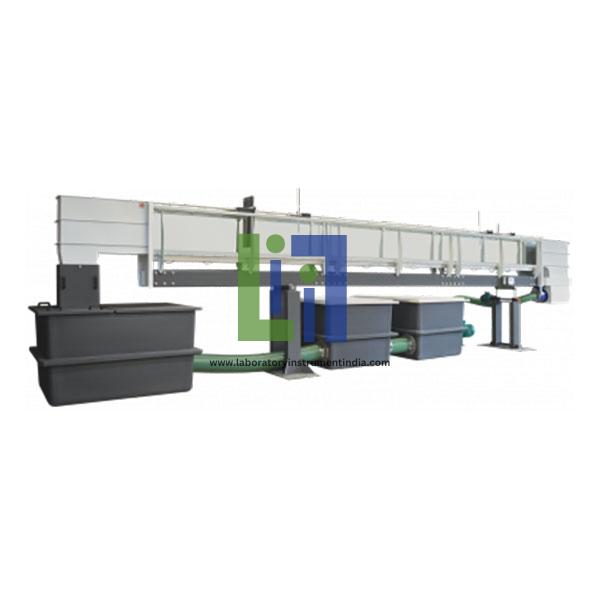

The side walls of the experimental section are made of tempered glass, which allows excellent observation of the experiments. All components that come into contact with water are made of corrosion-resistant materials. The experimental flume with a closed water circuit has a cross-section of 309x450mm. The inlet element is designed so that the flow enters the experimental section with very little turbulence. The length of the experimental section is between 5m and with further extension elements a maximum of 12,5m.
Learning objectives/experiments:
Flow Transition (Hydraulic Jump)
Energy dissipation (hydraulic jump, stilling basin)
Flow over control structures
Together with optionally available models
Uniform and non-uniform discharge
Flow formulae
Flow-measuring flumes
Local losses due to obstacles
Weirs (sharp-crested, broad-crested, ogee-crested)
Discharge under gates

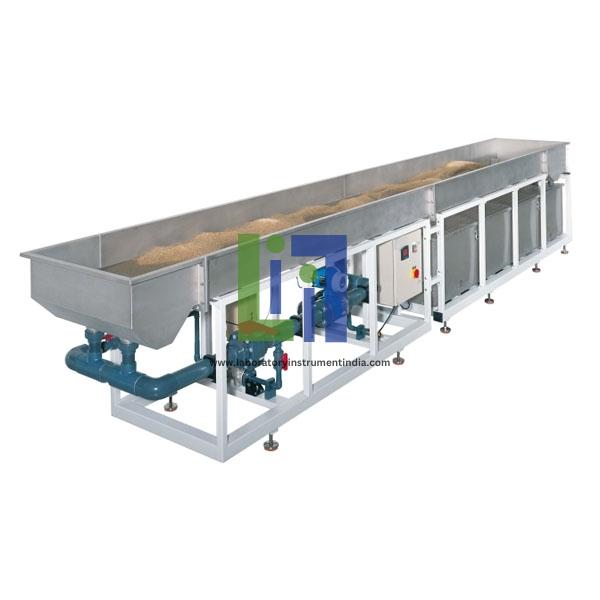

Sediment transport
Transient flow: waves
Vibrating piles.

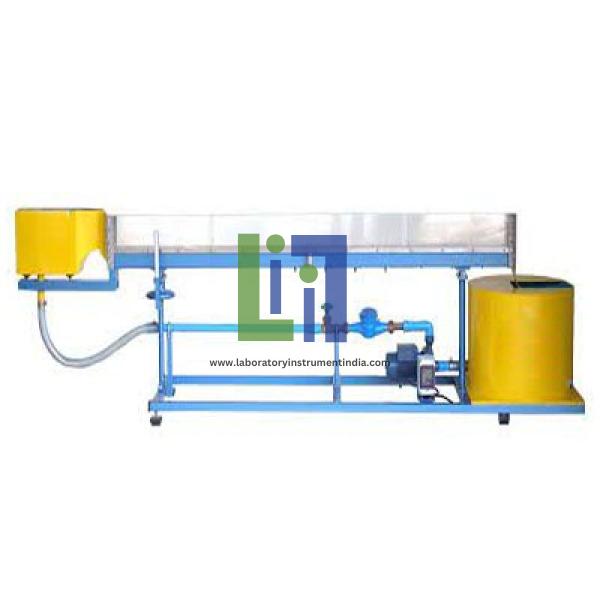

The inlet element is designed so that the flow enters the experimental section with very little turbulence. The closed water circuit consists of a series of water tanks and a powerful pump. The experimental section is 16m long and has a cross-section of 600x800mm. The tanks are included in the system in such a way that they also serve as a gallery which you can stand on. The user can thus comfortably reach any part of the experimental section. The side walls of the experimental section are made of tempered glass, which allows excellent observation of the experiments. The experimental flume has a motorised inclination adjustment to allow simulation of slope and to create a uniform flow at a constant discharge depth. All components that come into contact with water are made of corrosion-resistant materials.
Learning objectives/experiments:
Flow Transition (Hydraulic Jump)
Energy dissipation (hydraulic jump, stilling basin)
Flow over control structures
Together with optionally available models
Uniform and non-uniform discharge
Flow formulae
Local losses due to obstacles
Transient flow: waves
Vibrating piles
Weirs (sharp-crested, broad-crested, ogee-crested)
Discharge under gates
Flow-measuring flumes
Sediment transport

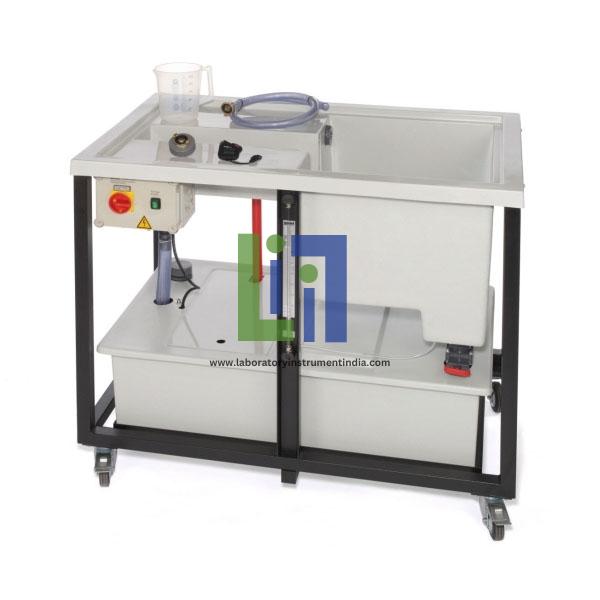

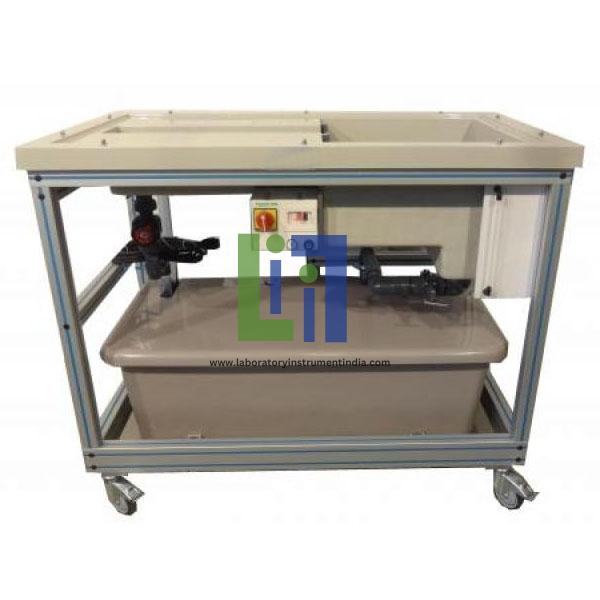

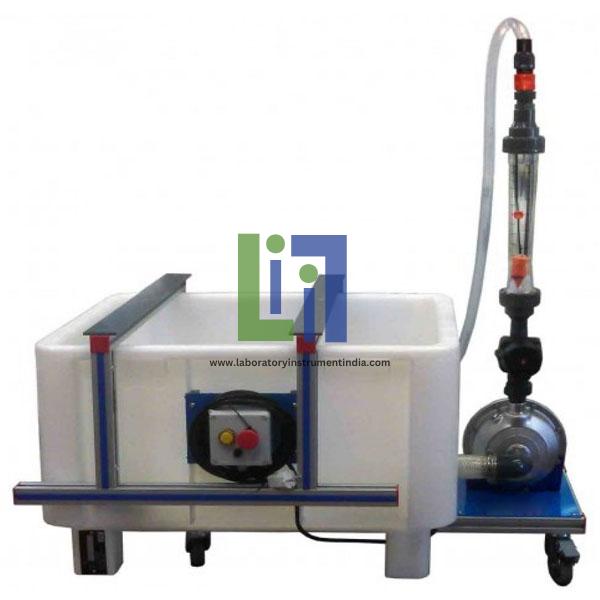

The base module provides the basic equipment for individual experiments: the supply of water in the closed circuit; the determination of volumetric flow rate and the positioning of the experimental unit on the working surface of the base module and the collection of dripping water. The series of devices permits a varied experimental cross-section in the fundamentals of fluid mechanics.
Features:
Comprehensive range of accessories allows a complete course in the fundamentals of fluid mechanics
Water supply for experimental units for fluid mechanics
Volumetric flow rate measurement for large and small flow rates.

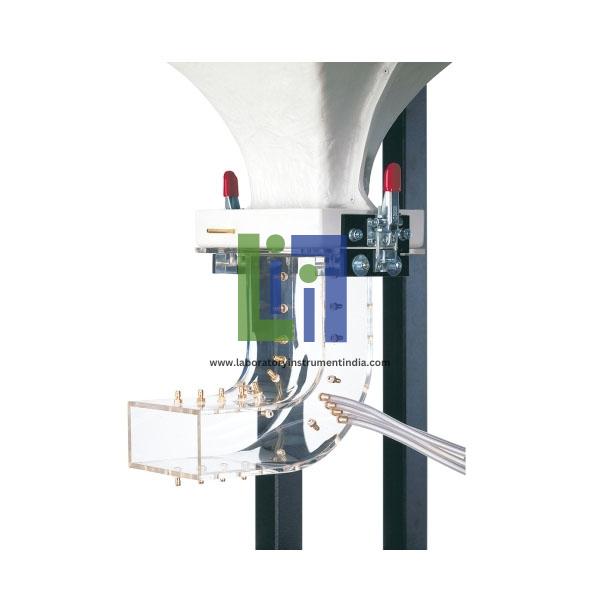

Pressure measuring points are located in the region of the curvature on both sides: four on the left side and five on the right side. The pressure measuring points are connected to the tube manometers in via the hoses supplied. The experimental unit when used in the aerodynamics trainer, allows the measurement of the static pressure at 29 pressure measuring points along the pipe bend. The transparent pipe bend has a constant rectangular cross-section with 10 pressure measuring points each on the top and bottom. The static pressures can be read on the tube manometers. The pressure curve during a change in the flow direction is investigated using the example of a 90 pipe bend. When laying pipes it is essential that they are adapted to the circumstances of their environment, which means the pipes will necessarily include deflections in the form of bends. Changing the direction of flow in a pipe changes the pressure conditions.
Learning Objectives And Experiments:
Determination of the static pressure at 29 pressure measuring points
Representation of the pressure distribution
Investigation of the pressure curve at a 90 pipe bend.

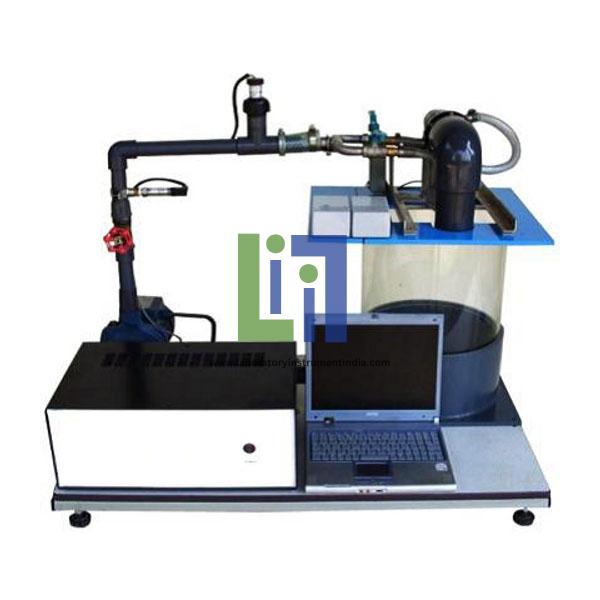

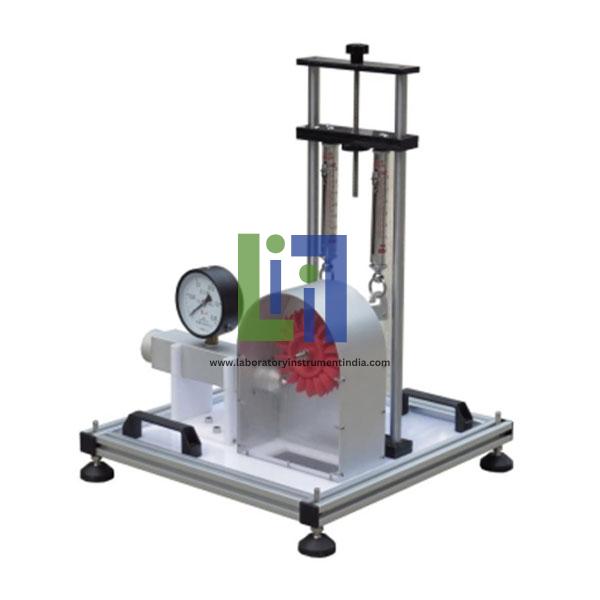

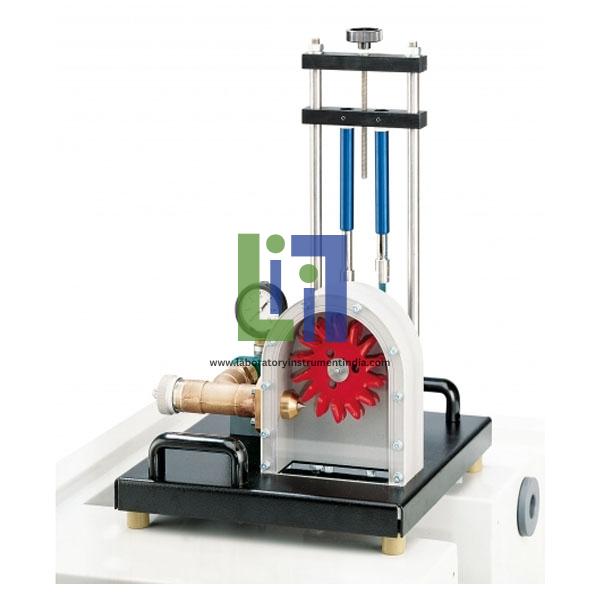

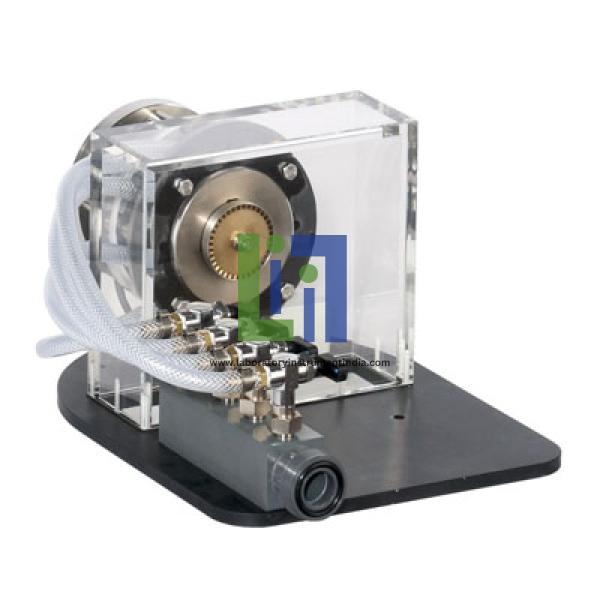

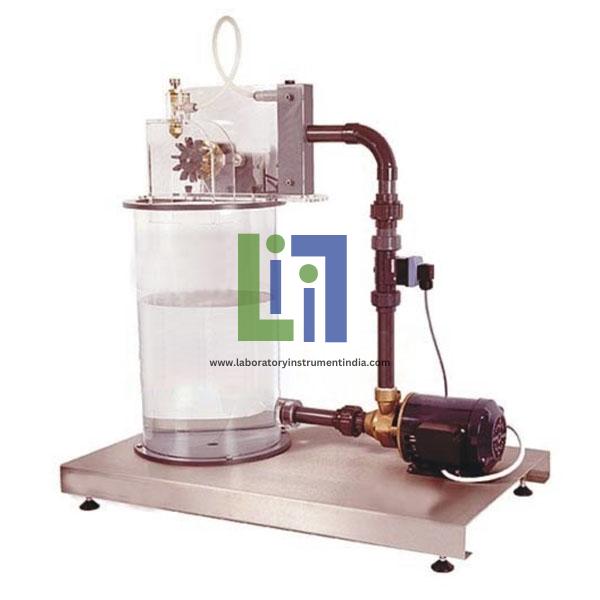

Water turbines are turbomachines utilising water power. The water jet is redirected by approximately 180 in the blades. The impulse of the water jet is transmitted to the Pelton wheel. The Pelton turbine is a type of impulse turbine; such turbines convert the pressure energy of water into kinetic energy entirely in the distributor. During the conversion, the water jet is accelerated in a nozzle and directed onto the blades of the Pelton wheel tangentially.
Learning Objectives And Experiments:
Graphical representation of characteristic curves for torque, power and efficiency
Design and function of a Pelton turbine
Determination of torque, power and efficiency.
The engine used here is an air-cooled single-cylinder four-stroke petrol engine with external carburation. A modified cylinder head permits experiments with various combustion chamber inserts. To adjust the mixture composition, the carburettor was modified. In conjunction with the test stand and the load unit, the engine is highly suitable for investigation of different compression ratios, ignition timing adjustment and an adjustable jet nozzle. The engine includes a sensor to measure the exhaust gas temperature. The sensor, ignition cut-off and fuel supply are connected to the test stand. It is fitted with a special device to adjust the ignition timing from advanced to retarded.
Learning Objectives/Experiments:
Influence of compression ratio, mixture composition, ignition timing on engine characteristics and exhaust gas temperature
In conjunction with test stand load unit, in addition to the standard basic experiments
The engine can be operated as an external ignition petrol engine or an auto-ignition diesel engine. The mode of operation can be changed by a few simple conversion steps. This allows the compression ratio to be adjusted over a wide range. The key feature is that the cylinder has been modified so that its height can be adjusted along with that of the cylinder head. Major technical modifications have been made to a standard water-cooled single cylinder engine to allow demanding issues in engine technology to be investigated by experiment.
Learning Objectives/Experiments:
Influence of ignition point on fuel consumption, power output, efficiency and exhaust gas composition
Comparison of diesel and petrol cycles
Plotting of torque and power curves
Determination of volumetric efficiency and lambda (fuel-air ratio)
Energy balances
Determination of friction loss (in passive mode)
Determination of specific fuel consumption
Determination of efficiency
Influence of compression on fuel consumption,
Power output, efficiency and exhaust gas composition.
Structural Specifications:
Diagram in the front panel with similar distribution to the elements in the real unit.
Quick connections for adaptation to feed hydraulics source.
Stainless structure.
Screws, nuts, plates and all the metallic elements in stainless steel.
Structural Specifications:
Quick connections for adaptation to feed hydraulics source.
Stainless structure.
Diagram in the front panel with similar distribution to the elements in the real unit.
Screws, nuts, plates and all the metallic elements in stainless steel.
Structural Specifications:
Diagram in the front panel with similar distribution to the elements in the real unit.
Quick connections for adaptation to feed hydraulics source.
Stainless structure.
Screws, nuts, plates and all the metallic elements in stainless steel.
Diagram in the front panel with similar distribution to the elements in the real unit.
Quick connections for adaptation to feed hydraulics source.
Stainless structure.
Screws, nuts, plates and all the metallic elements in stainless steel.
Structural Specifications:
Diagram in the front panel with similar distribution to the elements in the real unit.
Quick connections for adaptation to feed hydraulics source.
Stainless structure.
Screws, nuts, plates and all the metallic elements in stainless steel.
Structural Specifications:
Quick connections for adaptation to feed hydraulics source.
Diagram in the front panel with similar distribution to the elements in the real unit.
Stainless structure.
Screws, nuts, plates and all the metallic elements in stainless steel.
Structural Specifications:
Diagram in the front panel with similar distribution to the elements in the real unit.
Quick connections for adaptation to feed hydraulics source.
Stainless structure.
Screws, nuts, plates and all the metallic elements in stainless steel.
Structural Specifications:
Screws, nuts, plates and all the metallic elements in stainless steel.
Diagram in the front panel with similar distribution to the elements in the real unit.
Stainless structure.
Quick connections for adaptation to feed hydraulics source.
Structural Specifications:
Diagram in the front panel with similar distribution to the elements in the real unit.
Screws, nuts, plates and all the metallic elements in stainless steel.
Quick connections for adaptation to feed hydraulics source.
Stainless structure.
Structural Specifications:
Diagram in the front panel with similar distribution to the elements in the real unit.
Quick connections for adaptation to feed hydraulics source.
Stainless structure.
Screws, nuts, plates and all the metallic elements in stainless steel.

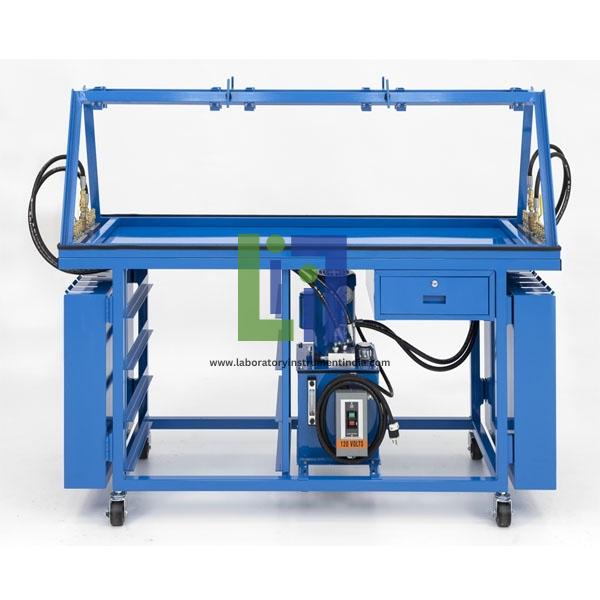

Controls Technology Double Sided A Frame Bench Upgrade system includes a hose rack, an A-frame assembly, a bench manifold assembly, a bench manifold assembly with valves, a bench manifold hose assembly, and an installation guide.
Controls Technology Double Sided A Frame Bench Upgrade
Controls Technology Double Sided A Frame Bench Upgrade allows for an additional Basic Hydraulics Learning System to be used for simultaneous hydraulic work on both sides of the bench. This system upgrades the Controls Technology Learning System Basic Hydraulics to the Double Sided A Frame Bench with Two Hydraulic Manifolds. The bench can also accommodate up to two additional hydraulic options or pneumatic panels.

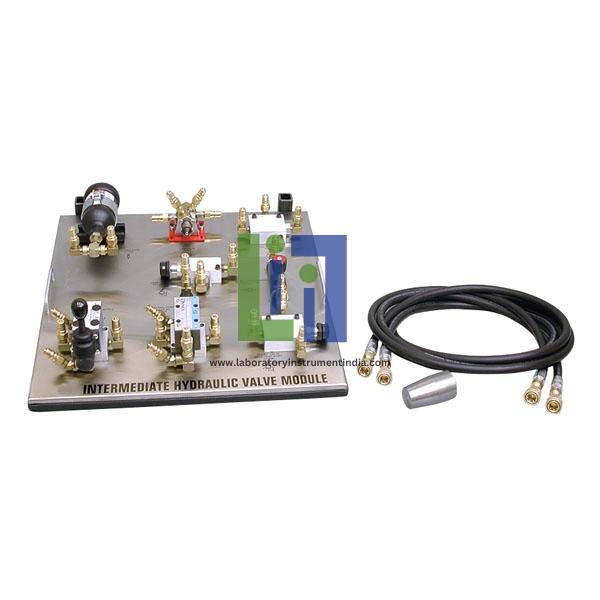

The Intermediate Hydraulics Learning System includes directional control valves, relief valves, a flow control valve, a check valve, and an accumulator. Learning systems use industrial-grade components displayed on hand-welded, painted and silk-screened panels, and workbenches made from top-flight materials. This approach to curriculum is signature: reinforce both theory and practice to produce a well-rounded understanding of the topic. Intermediate Hydraulics Learning System introduces advanced hydraulic components explains how each works, and then shows how they relate to real-world applications in elevators, punch presses, backhoes, and many more. The skills and principles offered in build on the fundamentals taught by the Basic Hydraulics learning system, but also lead to additional, more advanced learning systems such as Advanced Hydraulics and Electro-Hydraulics. This precise attention to quality and detail ensures a tough, visually appealing, user-friendly design that will last for years and help learners gain experience with components theyll actually see on the job. Learners will be able to understand concepts like pressure intensification and cylinder regeneration while also being able to operate, install, design, and troubleshoot hydraulic components.
Features:
Pre-Mounted Components for quick setup
Plug-in Quick Disconnect Component Connections
Industrial Standard Components
Portable
Multimedia Curriculum Available
Student Reference Guide.

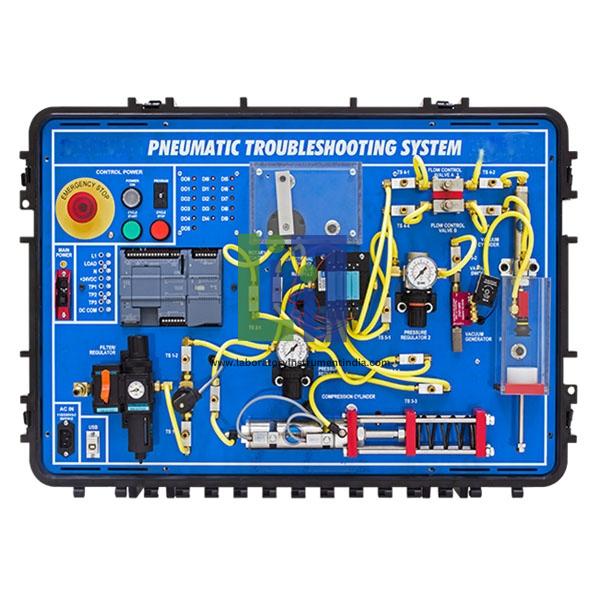

The Pneumatic Troubleshooting Learning System is set up with realistic loads, pressures, and heavy-duty pneumatic components, just like learners will see in the workplace. The features also make the Pneumatic Troubleshooting Learning System an excellent system for teaching advanced pneumatics, as well as pneumatic system tuning, installation, and maintenance. Pneumatic Troubleshooting Learning System models a real-world electropneumatic troubleshooting machine, driven by MicroLogix 1200 programmable logic controller, and features over 30 electronically-inserted pneumatic, mechanical and electrical faults using state-of-the-art fault insertion software. Understanding how to troubleshoot problems that arise in pneumatic systems is a vital industrial skill that is irreplaceable for maintenance technicians and others in industries like packaging, pharmaceutical, automotive, and more. These components will be used to cover major topics like vacuum pick-and-place, rotary actuator operation and troubleshooting, air-over-oil system operation and troubleshooting, and quick exhaust valves. Learners will immediately practice applicable hands-on pneumatics skills after studying each topic to increase understanding of how theoretical concepts are directly related to the real-world pneumatic troubleshooting applications. The Pneumatic Troubleshooting Learning System includes real-world components such as pressure gauges, pneumatic cylinders, pneumatic motor, directional control valves, flow control valves, limit switches, and more.
Features:
Computerized fault insertion system avoids damage to equipment
Computer-based fault insertion
Pre-mounted components, industrial fittings, and standard connections
Student troubleshooting reports
Realistic troubleshooting experiences
35 component test stations
Real world conditions
Different types of loads
Models a real-world electro-pneumatic machine.

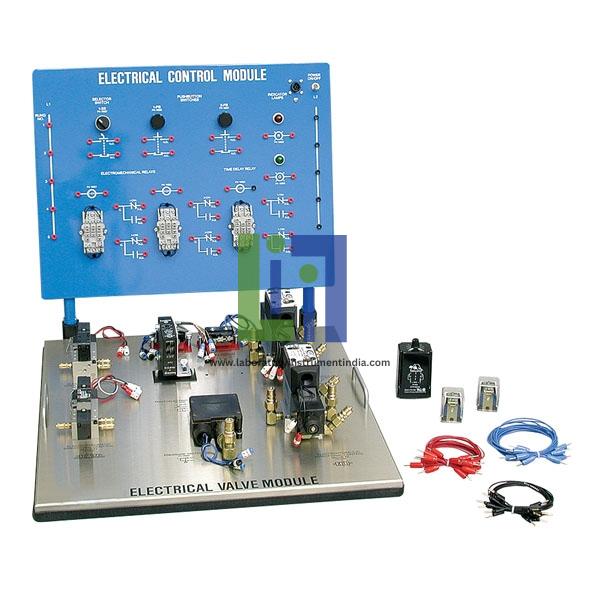

The Electro Fluid Power Learning System provides learners with the components to set up a variety of industrial relay control circuits using ladder diagrams and Boolean logic. Electro Fluid Power Learning System can be used with eight different basic pneumatic or hydraulic learning systems to teach electrical relay control of hydraulic and pneumatic systems and their industry applications. Some of these components include selector, pushbutton, limit, and pressure switches; control and timer relays and hydraulic and pneumatic directional control valves. Learners will practice industry-relevant skills related to these new topics including developing a sequence of operations given an application, connecting and operating an indicator lamp given a ladder diagram, and many more. In addition to strong curriculum and industry-standard parts, the Electro Fluid Power Learning System includes an instructors guide, install guide, student reference guide, and the option to purchase an interactive multimedia format of the curriculum. The learning systems that can be used with the Electro Fluid Power Learning System include Basic Hydraulics, Basic Pneumatics, Double-Sided Hydraulics, Double-Sided Pneumatics, Basic Fluid Power, or Double-Sided Basic Fluid Power.
Features:
Pre-Mounted Components for quick setup and inventorying
Plug-in Quick Disconnect Component Connections
Industrial Standard Components
Table-top or Bench Mount
Quick Setup
Portable
24 VDC Electrical Control Power.
The Intermediate Pneumatics Learning System includes directional control valves, check valve, pneumatic cylinder, Venturi block, assorted filter elements, and much more. Commitment to using top-flight, industry-standard materials ensures that learners work with components theyll actually see on the job. Intermediate Pneumatics Learning System builds on basic pneumatic skills by introducing more advanced concepts such as air logic, ways to decelerate a pneumatic cylinder, and how to prevent condensation in a pneumatic circuit. Learners will have the opportunity to study these concepts while working with a hands-on training module, which enables practicing skills such as connecting and operating a two-way valve and changing an air filter element; this approach of simultaneously teaching theory and practice reinforces each element and results in a thorough understanding of the topic. The Intermediate Pneumatics Learning System covers topics such as motor loads, pneumatic cylinder loads, and quick exhaust valves, while the is the first product to offer a realistic troubleshooting experience for learners because the faults are inserted throughout the system. This attention to quality and detail culminates in a durable, attractive, user-friendly learning system that will last for years. After completing the curriculum, learners can continue to build on these skills by moving on to Advances Pneumatics Learning System and the Pneumatics Troubleshooting Learning System.
Features:
Pneumatic Maintenance
Expanded Teaching Add-Ons
Real-World Application
Student Reference Guide
Multimedia Curriculum Available.

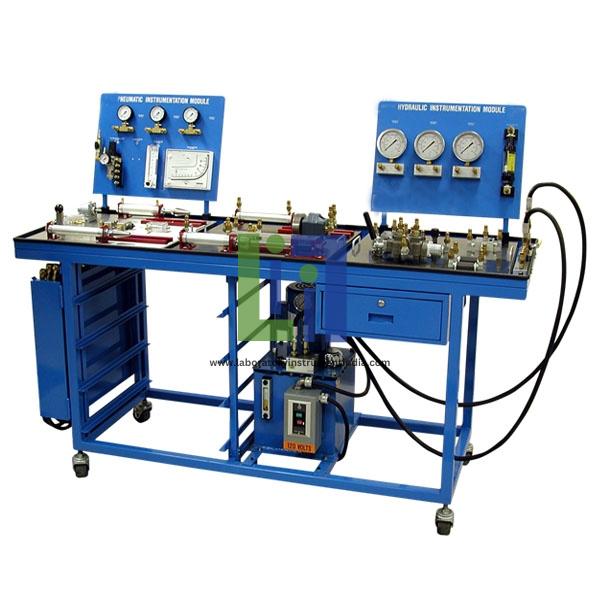

Basic Fluid Power Learning System Single Surface Bench covers the fundamentals of two bedrocks of industry, hydraulic and pneumatic power, and their basic circuits. This system features industrial quality components for durability and to help learners better prepare for what they will encounter on the job. The Basic Fluid Power Learning System Single Surface Bench includes a controls technology bench with a hydraulic power supply and Basic Pneumatics and Hydraulics Learning Systems. Hydraulics and pneumatics are used in innumerable applications across industry in fields such as automotive, pharmaceutical, packaging, mining, and many more. The Basic Fluid Power Learning System Single Surface Bench fits three panels at the same time on its work surface and stores an additional four panels under the work surface to accommodate a wide array of options for expanded hydraulic and pneumatic skill-building. Major topics covered by the Basic Fluid Power Learning System Single Surface Bench include hydraulic and pneumatic power systems, basic hydraulic and pneumatic circuits, principles of pneumatic and hydraulic pressure and flow, and hydraulic and pneumatic speed control.
Features:
Pre-Mounted Components for quick setup and inventorying
Plug-in Quick Disconnect Component Connections
Industrial Standard Components
Dynamic Load Devices
Heavy Duty Welded Steel Workstation
Mobile.
The Hydraulic Power Unit supplies hydraulic fluid to hydraulic learning systems including Basic Hydraulic System, Hydraulic Mechanic System, Electro-hydraulic Servo System, and the Combination Hydraulic Electric Servo System. This unit provides a minimum of 2.5 gpm flow at a maximum pressure to 500 PSI/ 3450 kPa.
Features:
Suction filter, strainer type
Pressure Gauge, 2 in. size, 0-1000 PSI, liquid filled, with safety relief
Electric motor starter, with start and stop push buttons
Oil level gauge with temperature gauge
Relief valve, pilot-operated, cartridge type
Filler-Breather cap
Power cord, grounded
Return Hose
Supply Hose
Pump, fixed gear type
Reservoir, 5 gal/19 Liters, welded square.
The Basic Fluid Power Learning System demonstrates fundamental fluid power principles like pressure and flow by introducing industry-relevant hydraulic and pneumatic skills. Basic Fluid Power Learning System Double Sided A-Frame Bench with One Hydraulic Manifold maximizes training space for teaching industrial pneumatic and hydraulic skills. With this system, you can expand the base hydraulics system to include the intermediate, advanced, or electro-fluid power system. Optionally, you could expand the basic pneumatics system to include the intermediate or advanced pneumatics system or add an additional basic pneumatic system to create a three station training system. The Basic Fluid Power Learning System allows customers to combine up to three additional single panel learning systems with the included set of Basic Hydraulic Learning System panels and Basic Pneumatics Learning System panels. Basic Fluid Power Learning System features standard industrial-grade components and provides learners with real-world experience they would normally only attain on the job. In addition to includes a controls technology workbench, a 2.5 GPM/500 psi hydraulic power unit, student curriculum, a student reference guide, and much more.
Features:
Introduces industry-relevant hydraulic and pneumatic skills while showing how they apply to fundamental fluid power principles.
Offers the opportunity to double your training capacity by adding another set of panels to the opposite side of the A-frame.
Huge array of options for different combinations.

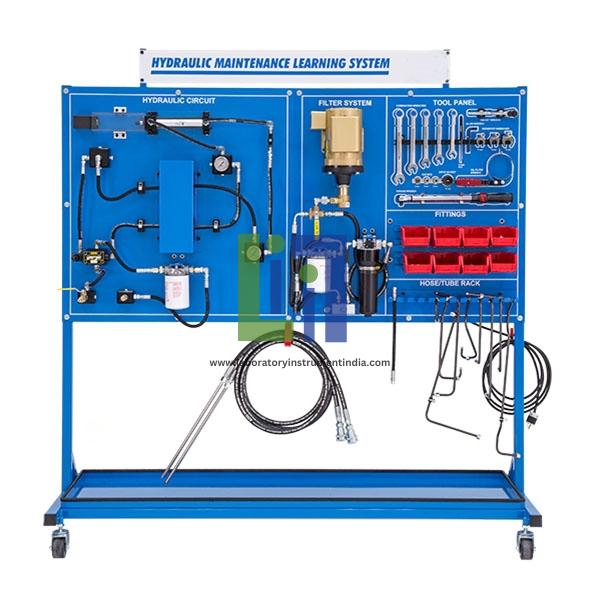

This hydraulic maintenance training system provides a valuable learning experience for industrial maintenance technicians, system installers, and many others by covering hydraulic filter and fluid maintenance, fittings, seals, hydraulic hose and clamping devices, hydraulic tubing, and hydraulic component installation. Hydraulic Maintenance Learning System teaches basic industrial skills related to servicing and maintaining hydraulic systems and components. Hydraulic systems are used in innumerable industrial areas like automotive, packaging, pharmaceutical, and food processing. Hydraulic Maintenance Learning System includes a mobile workstation, hose set and tubing rack, flush cart module, fittings module, component panel, and fluid servicing kit. This improves both confidence and competency when performing industrial tasks like replacing a spin-on filter or strainer, adding fluid to a hydraulic system, installing an O-ring seal, bleeding a hydraulic cylinder, or mounting and aligning a hydraulic cylinder. Uses industry-standard components on its systems to ensure that learners gain hands-on practice with mechanisms theyll use on-the-job.
Features:
Valuable skills include: installing hydraulic tubing using thread sealant and ferrule fitting; installing hydraulic hoses with a push-lock hose fitting; and installing adjustable and non-adjustable straight thread O-ring fittings.
Teaches skills related to servicing and maintaining hydraulic systems and components.
Includes a mobile workstation, hose set and tubing rack, flush cart module, fittings module, component panel, and fluid servicing kit.
The Portable Pneumatics Troubleshooting Learning System features directional control valves, flow control valves, limit switches, a programmable logic controller, and software, electronic fault insertion software. Portable Pneumatics Troubleshooting Learning System provides a skill-rich, portable troubleshooting system for basic pneumatic and electro-pneumatic circuits. These industrial components will be used to study troubleshooting topics for air preparation, pneumatic actuators, vacuum systems, pneumatic systems, and more all within an innovative, portable solution that doesnt sacrifice the comprehensive knowledge and skill building for which is known. TSecondly, this system features industry-standard valves, switches, and gauges all within a portable basic pneumatic circuits learning system that can be placed on a conference room table, shop floor desk, or practically anywhere when training space is limited. his systems value is twofold: first it provides vital training experience for learners and professionals that will perform industrial maintenance, installation, and troubleshooting on pneumatic systems used in real-world automation machinery, packaging equipment, pharmaceutical applications, chemical handling tasks, and more.
Features:
Features industry-standard valves, switches, and gauges.
Uses Fault Pro, an electronic fault insertion system that is only available from to insert 30+ faults into the system for troubleshooting.
Provides a skill-rich, portable troubleshooting system for basic pneumatic and electro-pneumatic circuits.
The Hydraulic Troubleshooting Learning System is the first product to offer a realistic electrical component troubleshooting experience for students because the faults are inserted throughout the system, including the hydraulic, mechanical and electrical components. The Hydraulic Troubleshooting Learning System teaches hydraulic troubleshooting like no other product by providing a hands-on learning station that models a real world hydraulically-powered machine and includes over 40 faults that can be inserted into the system. The Hydraulic Troubleshooting Learning System is set up like a real machine with realistic loads, pressures, and heavy-duty hydraulic components, just like students will see on the job! This feature also makes the Hydraulic Troubleshooting Learning System an excellent system for teaching advanced hydraulics, system tuning, installation, and maintenance. Hydraulic application panels include: power unit controls, rotary load, compression load, and overrunning load. The mobile hydraulic troubleshooting workstation consists of a sturdy welded-steel frame with interchangeable drive panels and motors, enabling students to quickly set up different drive applications. Safety is emphasized throughout the curriculum using lockout/tagout, emergency stop pushbutton, safety disconnect switch, and actuator guards. The Hydraulic Troubleshooting Learning System consists of a mobile workstation, with hydraulic power unit, (4) machine application panels, PLC control, fault insertion system, hydraulic troubleshooting and servicing package, student learning materials for both theory and lab, and teachers guide.
Features:
Fault Insertion in fluid, mechanical and electrical devices
Industrial Operating Pressure-1000 psig
Industrial Loads-inertial and friction
Industrial Standard Machine Application
Heavy Duty Industrial Style Components
Industrial Safety Devices.

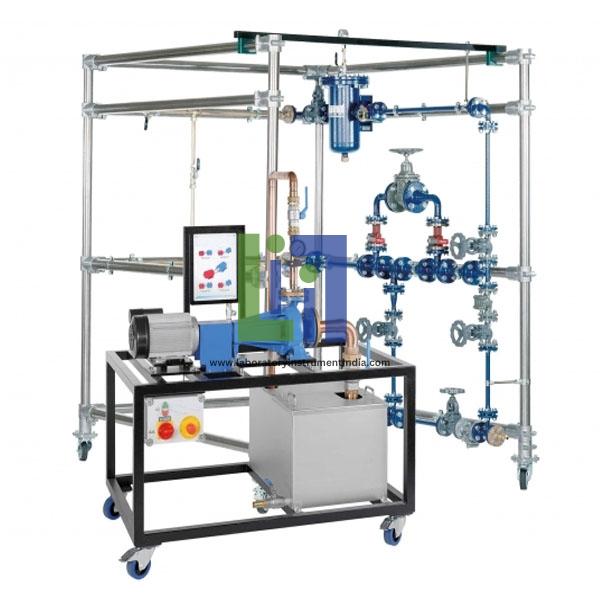

The Piping Learning System teaches how to layout and assemble fluid piping systems used in industrial, construction, agricultural, and transportation applications. The Piping Learning System Piping Technology learning system includes a mobile workstation, pump testing network, valve package, fitting package, fitting identification kits, Sloan valve maintenance kit, pipe insulation and hanger components, fitting storage, student learning materials for both theory and lab, and teachers guide. The workstation has slotted, movable members to enable a variety of hydraulic hose fluid piping application scenarios to be set up. Students will learn how to select, size, identify, and install a variety of types of industrial fluid piping, fittings and valves including: iron pipe, steel tubing, hydraulic hose, plastic pipe, copper tubing, globe valves, gate valves, check valves, and Sloan valves.
Features:
Built-in Pump Leak Test System
Built-in Storage
Mobile Workstation
Moveable Members.

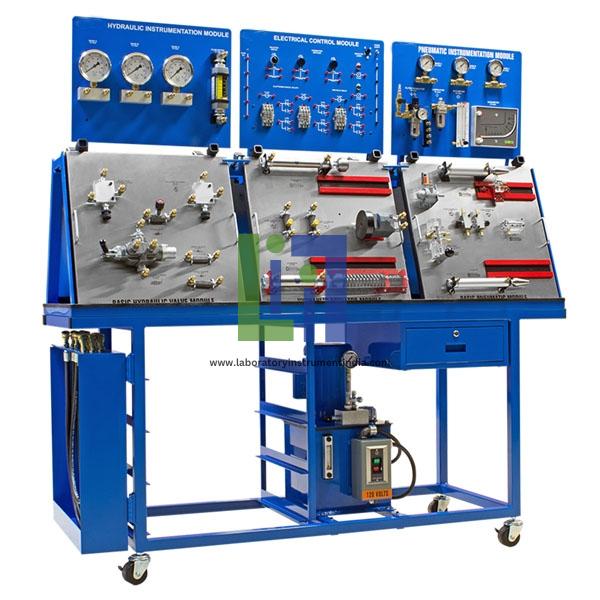

Panels and has the capacity to add another set to the opposite side to double your basic hydraulics training capacity. Basic Hydraulics Learning System introduces industry-relevant hydraulic skills while showing how they apply to fundamental hydraulic principles, such as pressure and flow. After completing this learning system, learners will not only understand concepts like flow rate versus cylinder speed and pressure versus cylinder force, but also be able to operate, install, design, and troubleshoot basic hydraulics for various applications. Storage slots are located under the work surface where learners can conveniently store component panels until they are needed. The Basic Hydraulics Learning System mobile workstation is constructed of durable welded steel to provide a sturdy, long-lasting learning station.
Features:
Features standard industrial-grade components in order to provide learners with real-world experience.
Panels can be easy removed and repositioned as necessary to facilitate the completion of the tasks.
Maximize your basic hydraulics training area by providing double the learning capacity of most systems.
Introduces industry-relevant hydraulic skills while showing how they apply to fundamental hydraulic principles.
The Basic Pneumatics Learning System includes a controls technology workbench, one set of basic pneumatics panels with industrial components, student curriculum, a student reference guide, and much more. Pneumatics are used in innumerable industrial applications, including factory automation, medical and food processing, and material handling. Basic Pneumatics Learning System Double Sided is equipped with the Basic Pneumatic Learning System control technology panels and has the capacity to add another set to the opposite side to double your pneumatic principles training capacity. This combination of introducing industry-relevant pneumatic skills while showing how they apply to fundamental fluid power principles will help learners to build more advanced pneumatics knowledge and apply it to real-world applications. Learners will use the Basic Pneumatics Learning System to not only understand concepts like pneumatic leverage and air flow control and measurement, but also be able to operate, install, design, and troubleshoot basic pneumatics for various applications.
The Basic Pneumatics Learning System mobile workstation is constructed of durable welded steel to provide a sturdy, long-lasting learning station. Storage slots are located under the work surface where learners can conveniently store component panels until they are needed. The Basic Pneumatics Learning System features standard industrial-grade components in order to provide learners with real-world experience they would normally only attain on the job.
Features:
Panels can be easy removed and repositioned as necessary to facilitate the completion of the tasks
Workstation is constructed of durable welded steel to provide a sturdy, long-lasting learning station
Includes one set of Basic Pneumatic Learning System panels and the capacity to add another set to the opposite side to double your pneumatic system control technology training capacity.
The Basic Hydraulic Troubleshooting Learning System will include a mobile workstation for hydraulic troubleshooting, control cabinet with hydraulic power distribution, four hydraulic actuator branches, a hydraulic power unit, flow meter, pressure gauge, and multimeter. The basic hydraulic troubleshooting knowledge gained from the Basic Hydraulic Troubleshooting Learning System hardware and curriculum is extremely valuable for maintenance technicians within industries like manufacturing, automotive, agriculture, construction, and many more! Basic Hydraulic Troubleshooting Learning System teaches how to troubleshoot hydraulic systems and components such as hydraulic motors, directional control valves, and cylinders. This troubleshooting and training system will also serve as a solid foundation towards attaining certifications. In fact, this learning system features over 35 faults for learners to practice troubleshooting for hydraulic motors and cylinders, and for directional control valves. The Basic Hydraulic Troubleshooting Learning System is a vital training opportunity for learning how to diagnose and correct common problems with hydraulic circuits and components. This troubleshooting system includes industry-grade components for both greater learner comprehension and durability to stand up to frequent use. Learners will use these components in real-world applications while studying major topics like hydraulic pump troubleshooting, hydraulic actuator and directional control valve troubleshooting, hydraulic valve troubleshooting, and hydraulic systems troubleshooting.
Features:
Include a mobile workstation, control cabinet with hydraulic power distribution, four hydraulic actuator branches, a hydraulic power unit, flow meter, pressure gauge, and multimeter
Features over 35 faults for learners to practice troubleshooting
Serves as a solid foundation towards attaining certifications
Teaches how to troubleshoot hydraulic systems and components such as hydraulic motors, directional control valves, and cylinders.
The unit consists of four different types of pump namely-centrifugal, turbine, reciprocating and axial flow pumps and a common storage tank, measuring instruments. Compact Multi Pump Test Set Inverter Speed Control is a compact self contained set for studying the characteristics for various types of pumps. By manipulating flow control valves and a selector switch, each pump can be operated individually. The unit is floor standing with removeable supports. Speed control is by an advanced inverter.
....
The unit consists of four different types of pumps namely-centrifugal, turbine, reciprocating and axial flow pump, a common storage tank, and measuring instruments. Each pump is driven by a motor dynamometer for measuring TRUE pump input power. Multi Pump Test Set, Motor Dynamometer is a self contained set for studying the characteristics for various types of pumps. Speed control is by an inverter. The unit is floor standing with removeable supports. By manipulating flow control valves and a selector switch, each pump can be operated individually.
....
The unit consists of a storage tank and a centrifugal pump with a motor dynamometer on a steel base for measurement of TRUE pump input power, and measuring instruments. Mini Centrifugal Pump Test Set Motor Dynamometer is a self contained bench top unit for studying the centrifugal pump characteristics. Speed control is by an inverter.
Experiments:
Pump input, output and true efficiency at various speeds.
Flow rate vs head at various speeds.
The unit consists of a pump, a storage tank and a water proof panel on which all friction loss components and the flow measuring devices are arranged. Friction loss is measured by a pressure drop and coefficient of discharge is determined from a pressure drop and a flow rate. Piping Loss Test Set, Large is a self contained water circulating unit for studying the friction losses in pipes, pipe fittings, and valves and to determine coefficients of discharge for primary flow measuring devices at various flow rates. Flow rate is obtained from a water meter and a stop watch. All pressure taps are connected by flexible hoses to a set of specially arranged manifolds such that differential pressure across any component can be measured simply by opening valves without removing the hoses. The unit is on stainless steel frame on wheels. The pressure drop is measured by differential pressure using manometers. Pressure tapping is by small ball valves with quick connection.
....
The Liquid Sedimentation Apparatus is designed to study the settling characteristics and particle sizes of suspended solid. The rear panel is translucent with back lighting. Scales are provided on the tubes. Sedimentation rate is observed using a stopwatch. The tubes can be removed for washing, filling or mixing of solid particles. Five transparent glass sediment tubes are mounted vertically on a rigid frame.
Experiments:
Settling rate curve.
Effect of suspension height on sedimentation rates.
Effect of concentration on sedimentation rate.
Effect of particle size distribution.
Effect of flocculent.
The unit consists of a pump, a storage tank and a water proof panel on which all friction loss components are arranged. The loss is measured by differential pressure using manometers. Pressure tapping is by valves with quick connection. Piping Loss Test Set Small is a self contained unit for studying the friction loss in pipes, pipe fittings and valves at various flow rates. The unit is on a steel frame on wheels. All pressure taps are connected by flexible hoses to a set of specially arranged manifolds such that differential pressure across any component can be measured simply by opening valves without removing the hoses.
Experiments:
Friction losses in pipe fittings, valves, sudden expansion and contraction at various flow rates.
Friction losses in straight pipes at various flow rates.
Tilting Flow Channel is done by dropping a particle into a vertical liquid column and timing its fall between two points. Various sizes and density of particles are supplied including stream lined shaped objects. The Tilting Flow Channel apparatus is designed to study the drag of a particle in a liquid under various Reynold numbers. A guide at the top of the tube is provided to minimize disturbance to the liquid. A fluorescent tube light at the back of the liquid tube allows clear observation of the particle fall. Valves at the bottom of the tubes provide a mean for particle removal with minimum loss of the liquid.
Experiments:
Effect of boundary layer separation on motion of sphere.
Effect of particle shape on rate of fall and drag coefficient.
Measurement of drag coefficients of sphere under various Reynold numbers.
Exploration of dynamic similarity.
The channel is of a rectangular cross-section supported by steel frame. The channel sides are made of clear acrylic with tilting controlled by a manual screw jack. Sediment Flow Channel is a self contained bench top open channel for studying bed forms with change in flow and slope as well as flow phenomena without sediment. A stainless steel head tank with a stilling baffle provides a smooth flow. A fine strainer is provided in the storage tank to trap the sand sediment. The water is discharged from the channel via a built in rectangular weir to the storage tank.
Experiments:
Flow over fixed gravel bed.
Fixed smooth bed flow.
Local scour.
Mechanics of sediment transport.
Bed form hysteresis.
Flow over mobile sand bed.
Flow structures.
Depositionary features and fancies.
Computational work.
The unit consists of a storage tank and a gear pump with a motor on a steel base, and measuring instruments. It is to be used with oil or glycol. Compact Gear Pump Test Set is a self contained bench top unit for studying the gear pump flow rate vs head at a fixed speed.
Experiments:
Flow rate vs head.
The Turbine Pump Demonstration Unit consists of an industrial turbine pump with a motor, a PVC storage tank on a steel base, software and sensor. Turbine Pump Demonstration Unit is a bench top unit for studying the turbine pump characteristics with data display and analysis by computer.
Experiments:
Pump input, output and overall efficiency at various speeds.
Flow rate vs head at various speeds.
The Reciprocating Pump Demonstration Unit consists of an industrial reciprocating pump driven by a reduction gear and motor, a PVC storage tank, sensors, and software. Reciprocating Pump Demonstration Unit is a self contained unit for studying the reciprocating pump characteristics with data display and analysis by computer. It is to be used with Pump Instrument Box is required but separately supplied. The unit is on a steel base.
....
The Piping Loss Apparatus Large is intended to be used with a Hydraulic Bench or an outside water supply. Friction loss is measured by a pressure drop and coefficient of discharge is determined from a pressure drop and a flow rate. Piping Loss Apparatus Large is a comprehensive unit for studying the friction losses in pipes, pipe fittings, and valves and to determine coefficients of discharge for primary flow measuring devices at various flow rates. All friction loss components and the flow measuring devices are arranged on a water proof panel which is attached to a floor standing steel frame. Flow rate is obtained from a water meter and a stop watch. All pressure taps are connected by flexible hoses to a set of specially arranged manifolds such that differential pressure across any component can be measured simply by opening valves without removing the hoses. The pressure drop is measured by differential pressure using manometers. Pressure tapping in by valves with quick connection.
....
The flow measuring instruments are connected in series and all except the measuring tank are arranged on a water proof panel. The pressure drop is measured by deferential pressure using manometers. Pressure tapping is by valves with quick connection. Flow Measurement Test Set is a bench top self contained water circulating unit for studying the various flow measuring instruments including primary flow measuring devices. Flow rate is obtained from a water meter reading and a stop watch. Water tanks are behind the panel. Flow rate is varied by a flow control valve. Measurement of flow by a primary flow measuring devices is by coefficient of discharge which is determined from a pressure drop across the device and a flow rate.
Experiments:
Determination of coefficients of discharge for Venturi meter, orifice meter and Pitot tube and compare the flow rates with those from water meter, variable area flow meter and measuring tank.
Comparison of differential pressure at various flow rates for Venturi meter, orifice meter, Pitot tube, and variable area flow meter.
The unit consists of a storage tank and a centrifugal pump with multi speed motor on a steel base, and measuring instruments. Compact Centrifugal Pump Test Set Multi SpeedCompact Centrifugal Pump Test Set Multi Speed is a self contained bench top unit for studying the centrifugal pump flow rate vs head at three different speeds.
Experiments:
Flow rate vs head at three different speeds.
The unit consists of two centrifugal pumps with multi speed motors and a storage tank on a steel base, and measuring instruments. By manipulating flow control valves, each pump can be operated individually or both pumps connected in series or parallel. Compact Series And Parallel Pump Test Set Multi Speed is a self contained bench top unit for studying the series and parallel pump characteristics at three different speeds.
Experiments:
Flow rate vs head at a fixed speed for two pumps connected in series or parallel.
Flow rate vs head at various speeds for individual pump.
The loss is measured by differential pressure using manometers. Pressure tapping is by valves with quick connection. The unit is on a steel frame on wheels. All pressure taps are connected by flexible hoses to a set of specially arranged manifolds such that differential pressure across any component can be measured simply by opening valves without removing the hoses.
Piping Loss Test Set Small is a self contained unit for studying the friction loss in pipes, pipe fittings and valves at various flow rates.
The unit consists of a pump, a storage tank and a water proof panel on which all friction loss components are arranged.
Compact Series And Parallel Pump Test Set Multi Speed is a self contained bench top unit for studying the series and parallel pump characteristics at three different speeds. By manipulating flow control valves, each pump can be operated individually or both pumps connected in series or parallel. The unit consists of two centrifugal pumps with multi speed motors and a storage tank on a steel base, and measuring instruments.
Experiments:
Flow rate vs head at a fixed speed for two pumps connected in series or parallel.
Flow rate vs head at various speeds for individual pump.
The Piping Loss Apparatus Large is intended to be used with a Hydraulic Bench or an outside water supply. Friction loss is measured by a pressure drop and coefficient of discharge is determined from a pressure drop and a flow rate. Piping Loss Apparatus Large is a comprehensive unit for studying the friction losses in pipes, pipe fittings, and valves and to determine coefficients of discharge for primary flow measuring devices at various flow rates. The pressure drop is measured by differential pressure using manometers. Pressure tapping in by valves with quick connection. All pressure taps are connected by flexible hoses to a set of specially arranged manifolds such that differential pressure across any component can be measured simply by opening valves without removing the hoses. All friction loss components and the flow measuring devices are arranged on a water proof panel which is attached to a floor standing steel frame. Flow rate is obtained from a water meter and a stop watch.
....
Pumps in a pipe system are used to convert mechanical energy into hydraulic energy this additional energy allows a fluid to move when it is not possible by gravity and for example, to raise a fluid at a certain height above the pump or make it recycle in a closed system. The working principle of a centrifugal pump is based on the fluid inlet in the middle of the impeller, which blades conduct the fluid and thanks to the centrifugal force it is driven outward. In general, the main purpose of a pump in a system is to increase the total energy H. At this point, the fluid is collected and contained by the pump casing which, thanks to its shape, drives the fluid to the outlet pipes or to another impelling stage.
Module For Centrifugal Pump Characteristics is made through a frequency inverter which adjusts the working speed according to each case of study. Module For Centrifugal Pump Characteristics equipment allows the study of the characteristics of a pump working individually at different rotational speeds. These curves can be compared with those supplied by the manufacturer, as well as those obtained by mathematical calculation. The flow measurements are made using volumetric hydraulic of the hydraulic bank (required), that is used also to study the relation between pressure loss and the fluid speed. In addition, the flow control valve manages the pump operating mode in order to obtain experimental operating curves.
Pascals Law Demonstration system is designed for the study and demonstration of the Pascals principle enunciated by the physicist and mathematician Blaise Pascal it states that the pressure, exerted anywhere in a confined incompressible fluid, is transmitted equally in all directions throughout the fluid so that the pressure variations remain the same. There are many applications based on the Pascals principle and one of the best known is the hydraulic press. With Pascals Law Demonstration equipment, it is possible to study the "hydrostatic paradox" that is a consequence of the Pascals principle: the pressure within the liquid at rest depends only on the depth of water, regardless of the quantity.
....
The aim of Hydraulic Group is to grant autonomy to other equipment included in Fluid Mechanics lab in order to have also the possibility to perform simultaneously different experiments without depending on the main hydraulic bench. Hydraulic Group designed to perform as an autonomous and portable unit for the supply of hydraulic power.
Main Features:
Storage tank with cap to prevent the inlet of impurities into the water.
Easy operation.
Pressure outlets for pump performance tests.
Overflow chamber to avoid air inlet into the circuit.
The Hydrostatic Pressure On Submerged Surfaces system is designed to study and calculate of the pressure force acting on a submerged surface Hydrostatic Pressure On Submerged Surfaces is a simple and completely autonomous equipment that can be easily located in a laboratory without any installation.
It is possible to use liquids of different densities to determine the different exerted forces between them.
With this equipment it is possible to perform the following experiments:
Obtaining and verifying the momentum created by pressure force acting on a submerged curved surface.
Measure and verify the momentum created by the pressing force acting on a submerged flat vertical surface. For that it is necessary to determine both the magnitude of the force and its pressure center. It is possible to distinguish two different cases:
Partially submerged surface.
Complete submerged surface.
The channel is totally transparent so it allows an optimum visualization of the hydraulic flow. The purpose is to study the flow behavior in open channels and closed pipes, by realizing some experiments in both conditions. These points are connected to the 6 tubes manometer. By floodgates, it is possible to increase water volume in the inlet or outlet tanks. In order to carry out experiments in a closed chamber, the module includes a cover for hermetically seal. Pitot tubes are arranged along the whole length of channel, so it allows measuring the working pressure in 6 points. The equipment can be used stand alone or in conjunction
Open channel:
1. Study of water flows through open channels identifying variables like:
Speed at different points of the cross-sectional area.
Water height
2. Study of constant water flow, gradually varied flow and behavior of surface profiles.
3. Study and utilization of thin edged weir for flow measurements.
Rectangular weir without lateral contraction.
4. Study and utilization of broad crested weir for flow measurements.
Rectangular weir.
5. Analysis and study of discharge under a gate.
Vertical weir
6. Study of jump spillway
Flexible system that can be used for the study of fluid properties and particles resistance coefficients.
Autonomous equipment requiring only power supply.
Determination Of Viscosities And Resistance Coefficients equipment is designed to determine the viscosity of different liquids and to study resistance coefficients of various geometric shapes.
Use of Venturi tube applied to cavitation phenomenon, concept used to change the pressure conditions inside a tank.
Theoretical and practical aspects of Venturi effect.
Bernoullis theorem, including the observing and the application of related aspects in practical fields as industry, agriculture and leisure.
Performable Experiments:
With Ventury Effect Bernoulli And Cavitation system, it is possible to perform the following experiments:
Reduction of the pressure inside the tank in order to obtain cavitation phenomenon and observe new conditions.
Flow determination through the use of the static volumetric system.
Diaphragm calibration and utilization to determine the flow value.
Bernoullis theorem demonstration along a Venturi tube.
Pressure loss calculation in a Venturi tube.
Study of cavitation identifying the pressure, relevant temperature and flow levels.
Flow Networks system reproduces the problem that usually appears in pressure and flow calculation in pipes that generally have different diameters, lengths and are interconnected; these systems of pipes (in series, parallel or meshed) can complicate the pressure and flow calculation. The flow measurements can be done using the volumetric reservoir of the hydraulic bench (required and not included in this item) and it allows also the study of the relationship between pressure drop and fluid velocity. The module is made of some transparent tubes with different diameters, and it includes a number of valves placed in specific points of the network. The quick couplings used in this system enable fast and easy exchange of pipes creating therefore several network configurations. These pipes interconnections are known as flow networks. For example, a water-supply network of a town or the fire-protection system in a building can be considered as flow networks. With this module, students can perform experiments that can simulate the behavior of the flow network in different conditions.
....
For the full operating of this system, it is necessary to connect the item to the hydraulic bench or a suitable hydraulic energy source. The Cavitation Phenomenon system for the demonstration of the cavitation phenomenon is a simple and practical equipment including a Venturi tube where the cavitation phenomenon occurs when we have the depression created by the flow acceleration (Venturi effect). In order to grant easy observation of the phenomenon, Venturi tube is made of methacrylate. The equipment also includes a pressure gauge and a vacuum gauge to measure the generated overpressure and low pressure; a membrane valve is included for precise flow control adjustments.
Performable Experiments:
Observation of the cavitation phenomenon in the Venturi tube.
Calculation of the minimum required water flow necessary to observe the phenomenon.
Calculation and testing of the pressure and temperature conditions in which the phenomenon occurs.
Secondary Loss Of Load equipment is suitable for the study of losses and it includes straight sections of piping for the study of primary loss that could occur in the system. All pressure connections have double sealed quick couplings; the system includes also a differential water manometer and a digital differential pressure gauge for measuring the resulting pressure. The equipment includes also other elements such as elbows of different diameters 90 and 45, tees, widening, narrowing, various types of valves (as ball, gate, membrane, backstop) with pressure taps upstream and downstream arranged in order to determine loss load produced with different flow rates.
....
The Fluid Statics And Pressure Measurement equipment is designed for the study of static fluid and the measurement of pressures with different types of piezometric tubes and level measurement elements as graduated scales and level meter. One of these water columns has atilting system, so that students can clearly see the effect of the different possible inclinations. The tank and the in water columns have graduated scale for immediate and clear display of the water level that can be measured also by the water level supplied with this system. The equipment includes a transparent tank from where it is possible to pour water through valves and pipes and deliver it in the columns installed in the syst
....
Simple equipment suitable to study accurately the Bernoulli's Theorem Demostration the system includes a manometer board with multiple tubes granting the possibility to read simultaneously different pressures along the pipe. The manometer has non leaking quick fittings in order to avoid the outlet of water when the system is disconnected from the hydraulic bench. The connection of this unit to the hydraulic bench (not included in this item) is made through threaded screws and no tools are required.
....
Piping Circuits equipment is a complete solution for all kinds of configurations that can be found in piping systems, from simple to complex set up with easy use and reduced maintenance. Piping Circuits system is designed to study and analyze of flow through piping circuits, it grants to students the possibility to compose different configuration performing therefore a wide range of practical exercises. The configurations setup is quick and simple as closing and opening valves and there is no need of installing and removing any piece of pipe or accessories, the system includes several double sealing nipple couple in order to avoid any possible water leakage during connecting and disconnecting operations.
....
The Set of Plate Weirs experimental set-up includes 4 different weir plates that can each be placed on a weir carrier and then fitted to the base of the channel. Tubular seals made of plastic inserted in slots on the side of the weir plates complete the experimental set-up. They are used for measuring the flow rate, whilst sharp edged aerated overflow can be investigated on the plate weir. The weir plates and weir carrier are made of PVC. The weir plates represent an aerated plate weir, a Thomson weir, a rectangular thin plate weir, and a Cipoletti weir. Apart from the aerated plate weir, all of the weirs mentioned are measuring weirs.
....
The Basic Module Water Pumps is part of an equipment series that facilitates the investigation of a wide range of engines and machines. The pumps are installed in the experimental set-up using flexible hoses with rapid action couplings. The flow rate is set on a ball-cock and acquired with a magneto-inductive flowmeter. The sensors for intake and delivery pressure are fitted to the pumps to be investigated. Different water pumps can be operated on the basic module and investigated in respect of their characteristic behaviour. The drive motor for the pump drive is fitted to the Universal Drive and Brake Unit. All sensors are connected to the measuring unit that is part of the basic module. The measured values recorded are displayed on digital displays on this block.
....
The flow bed is made of stainless steel to which pyramid-shaped epoxy resin bodies are bonded. Using the Roughened Bed accessory, the user can simulate a very rough flume bed in the Modular Flow Channel. Removable carrying handles are used to transport the unit to the place of use; the bed is bolted to the base of the channel. These bodies absorb flow energy from the water. Inlet and outlet panels are fitted at the ends.
....
This demonstration unit is part of an equipment series that facilitated investigations on pneumatically driven turbines. The flow rate in the system is measured with a variable-area flowmeter. For the operation of the unit, a mains connection and a compressed air supply are required. Inlet and outlet pressure at the turbine are indicated on easy to read dial instruments. For exact measurements the table unit is equipped with electronic sensors for recording temperature, speed and torque, the values recorded are indicated on digital displays.
....
The unit itself includes the electric drive motor with speed control, 2 pressure vessels for the compressor experiments, a measuring tank and a supply tank for the pump experiments and a protection cover. The intake and delivery pressure, temperature, motor speed and power are measured and displayed digitally. The modular system allows the investigation of different machines (reciprocating machines and turbo machines). The corresponding flow is measured indirectly and transferred to the PC data acquisition software. Each machine is mounted on a base plate, which can easily be fitted into the unit. It is powered by a belt drive. Hoses with quick-action couplings provide the supply lines.
....
The stainless steel experimental arrangement forms a smooth, impermeable beach. The inclination of the beach body can be continuously adjusted. The experimental layout consists of a beach body, a mounting plate and an inclination adjustment bar with a locking bolt. The accessory is intended to enable the user to investigate the behaviour of waves on a rising beach; the unit is used in combination with the Wave Generator. In this way different steeply rising beaches are very easy to simulate.
....
Radial compressors are used to compress gases. The experimental unit provides the basic experiments to get to know the operating behaviour and the important characteristic variables of radial compressors. A protective plate placed in front of the inlet of the intake pipe prevents larger objects from being sucked in or the clogging of the intake opening. The medium is sucked in axially to the drive shaft by the rotation of the impeller and flows through the impeller rotating at high speed. By means of centrifugal force, the medium is accelerated towards the outer edge and is compressed in this manner. The air flow is adjusted by a throttle valve at the end of the delivery pipe. The microprocessor-based measuring technique is well protected in the housing. The experimental unit is fitted with sensors for pressure, temperature and speed. The flow rate is determinated via differential pressure measurement on the intake nozzle.
....
The axially discharged water from the turbine impeller can be observed. The number of active nozzles can be adjusted by valves. The eddy current brake generates a defined load. The experimental unit is placed upon the base unit. The two units together provide the basic experiments to get to know the operating behaviour and the most important characteristic variables of action turbines. Action turbines operate according to the principle of equal pressure. The water jets are deflected in the turbine impeller and put it in motion. The eddy current brake is specially developed by.The torque delivered by the turbine is determined via an electronic force sensor. The speed is measured with an optical speed sensor. The static pressures at the inlet and at the outlet of the impeller are equal. The water jets are discharged with high velocity from four nozzles of the distributor.
....
These studies focus on topics such as seepage and flow of water in the soil and the use of groundwater resources. Can be used to study seepage and groundwater flows after precipitation. In civil engineering, studies in hydrology are conducted in connection with the design, construction and operation of hydraulic engineering systems and water management functions. The core element of the trainer is a sand-filled, stainless steel experiment tank with inclination adjustment. To illustrate groundwater flow, the water is supplied via two side-mounted chambers. In particular, permeability and storage capacity of soils can be clearly observed. At the bottom of the experiment tank there are measuring connections to detect groundwater levels. A mirrored arrangement of the measuring connections allows for a finer resolution of the measurement. Variable precipitation density and areas and different groundwater feed and discharge possibilities allow a wide variety of experiments.
....
The Kaplan turbine is a reaction turbine with an axial through flow. It has a high specific speed and is suitable for large water flows and small to medium heads. Water turbines are turbo machines which convert water energy into mechanical energy. Mostly, they are used for driving generators for power generation purposes. Therefore, the Kaplan turbine is used as a "classic" water turbine in run-of-the-river power stations. The helps to investigate the characteristic behaviour of a simple-regulated Kaplan turbine during operation. The turbine is loaded with a wear-free eddy current brake. The speed is captured by means of an inductive, non-contact position sensor at the turbine shaft. For determining the turbine power, the eddy current brake is equipped with a force sensor for torque measurement. The trainer is provided with a closed water circuit with tank, submersible pump and throttle valve for adjusting the flow rate. The angle of incidence and thus the power output of the impeller are changed by adjusting the guide vanes.
....
Using the Set of Piers 3 Profiles accessory, it is possible to perform experiments on pillars in rivers in the Modular Flow Channel. The experimental set-up is made of PVC and is attached to the base of the channel using bolts. Pointed, rounded and flat flow splitters are provided; these can be combined as required. The unit contains 3 different, separable pillar types, 2 of each type of pillar fitted to the base plate represent the complete experimental set-up ready for installation in the flow channel.
....
The force of the water jet is adjusted via the flow rate. Experiments study the influence of flow velocity and amount of flow rate as well as of different deflection angles. The forces are calculated using the momentum equation and compared with the measurements. The jet forces generated by the water jet are measured on the weight-loaded scale. During deceleration, acceleration and deflection of a flowing fluid, there is a change of velocity that leads to a change in momentum. In jet forces are generated and studied with the aid of a water jet that acts on an interchangeable deflector. The experimental unit includes a transparent tank, a nozzle, four interchangeable deflectors with different deflection angles and a weight-loaded scale. According to the momentum equation these changes result in forces. In practice, the motive forces are used to convert kinetic energy into work done, for example in a Pelton turbine. A water jet exits a nozzle vertically upwards, hits the deflector and is deflected.
....
The flow rate is measured using a magneto-inductive flow sensor. In this way the system provides a whole host of measured data that permit students to perform experiments on the basic principles of a hydraulic circuit. The Trainer Centrifugal Pump Apparatus is a mobile system with a closed water circuit that is intended both for training in vocational colleges and also for laboratory experiments in higher education. Manometers indicate the pressure on the intake and delivery side of the pump. The system is equipped with a centrifugal pump and various transducers, e.g. the torque on the shaft of the speed-controlled pump motor is measured and indicated on the switch box, as is also the rotational speed, current and voltage.
....
Water flows through a Venturi tube, an orifice, a bend, or a kink. During this process the pressure loss is measured and compared with the flow through a straight pipe. On flumes experiments can be performed on the open channel and on a channel with weir structures. The Principles of Hydraulics is part of a series of units that enable experiments to be performed on flow processes with the aid of a computer. Here several areas of incompressible flows can be investigated. The Data Logging Unit is necessary for the operation of the Computer Linked Hydraulics Bench. If power data is to be displayed, the Digital Power Meter is required. After the recording of a pump characteristic curve, experiments on the topics of pipe flow and flow in open flumes can be performed. Two different weir structures are supplied.
....
The Electronic Pitot Sensor was designed as an accessory for the Computer Linked Air Flow Bench. Measuring connections on the sensor are connected to the pressure sensors on the Bench, the measurements made in this way enable the pressures across the diameter of the tube (= travel) to be displayed. The position of the measuring opening in the tube is output by a potentiometer as a voltage signal and can be displayed in a software package as travel in mm. With the vertically moving sensor, pressure measurements in the intake tube for the fan on the can be performed.
....
The Oil Pump Supply Module is part of an equipment series that facilitates the investigation of a wide range of engines and machines. The flow is adjusted on a pressure valve and recorded using an oval wheel meter. Other sensors measure the temperature, intake and delivery pressure. Different oil pumps can be operated on the supply module and investigated in terms of their characteristic behaviour. The corresponding sensor connections and digital displays are located on the measuring equipment block. The pumps are connected into the experimental set-up using hydraulic hoses with quick action couplings.
....
The air flow rate can be measured with various measuring inserts such as a nozzle/orifice, Pitot tube or iris diaphragm. The measuring inserts are connected to a multiple tube manometer using hoses; the pressure differences can then be read on the manometer. The system offers comprehensive investigations on air flow. A fan draws air through a section of pipe. The tube manometer can be tilted to increase precision and can be fixed in various positions. Open jet experiments can be performed at the fan outlet. Measuring glands are also fitted to the pipe section at evenly spaced intervals; these can be used for determining pipe friction, pressure losses or velocity profiles.
....
The individual accessory modules are driven using a DC drive motor. The motor is connected to the controller. The rotational speed can be continuously and finely adjusted using a 10-turn potentiometer. The speed is regulated electronically and displayed digitally. Friction forces are measured using strain gauge transducers. The trainer enables different sliding and rolling friction cases to be investigated. The parameters of a tribological system can be assessed during this process. The drive module is the basis for experiments with a range of accessories. Snap-action fasteners for fixing the accessory modules to the frame simplify the rapid assembly and disassembly of the experiments. The unit consists of a sturdy frame made of anodised aluminium section. Rubber feet ensure that the table unit does not slip. The controller processes this data and displays it digitally.
....
The models supplied are made of plastic and are equipped with connections for pressure measurement; these are connected to the Computer Linked Air Flow Bench. It is possible to investigate the pipe friction losses in a flow of air for different fittings such as a straight pipe section, an elbow, a bend, and different pipe inlets.
....
A transparent pipe bend with a constant square cross-section is attached to the test stand using quick action fasteners. The measuring gland are connected to the Multi Tube Manometer. The pipe bend is equipped with measuring glands at regular intervals for measuring the pressure loss.
....
The experimental arrangement is clearly laid out on a demo panel. The panel is fitted to a laboratory trolley and is thus flexible in use. For the investigations on the pipes, 10 different pipe sections are provided in which measuring connections with annular chambers are incorporated. The flow rate is indicated on a variable-area flow meter. An instruction manual with detailed description of the theoretical background is supplied. Only a supply of cold water and a drain are required for operation.
....
A ball sinks to the bottom under the action of gravity. The sink time and distance are measured. Included with the unit are a stopwatch and 10 spheres of different materials and volumes. At the bottom of the measuring tube is a chamber through which the balls can be removed without major loss of fluid. Two Plexiglass cylinders are provided for performing the experiment, these are filled with fluids of varying viscosity.
....
Piston pumps are used when high pressures are to be generated. The flow rate of piston pumps is independent of the head and is determined only by speed. Its good suction performance is outstanding. Piston pumps belong to the group of positive displacement pumps. They transport the medium by a reciprocating motion of a piston in the pump working space, called stroke. The stroke creates a suction respectively vacuum effect used to deliver the water. The pulsating pressure curve of the pump can be damped with the aid of the air vessel. Flow rate and head are adjusted via needle valve and overflow valve. The experimental unit is fitted with sensors for pressure and flow rate. The cycle that takes place (intake and discharge of water) can be shown clearly in the p-V diagram. The position of the piston rod is measured by an angle sensor. This allows the determination of the cylinder volume. One pressure sensor measures the pressure at the outlet of the pump, another one measures the pressure in the inside of the cylinder.
....
The unit incorporates a pressure sensor to measure the inlet condition of the water. The consists of a return tube incorporating a gate valve, which can be attached to the pump outlet on the service unit.
....
Operating Conditions:
Operating relative humidity range: 80% at temperatures < 31C decreasing linearly to 50% at 40C
Operating environment: Laboratory
Operating temperature range: +5C to +40C
Storage temperature range: 25C to +55C (when packed for transport).
Experiments:
Centrifugal pump performance and characteristics, typically head versus flow and efficiency versus flow
Comprehensive demonstrations and investigations into a centrifugal pump including:
Flow measurement using a Venturi tube
Non-dimensional performance characteristics
Demonstration of cavitation
Operation of centrifugal pumps in parallel
Operation of centrifugal pumps in series.
Operating Conditions:
Operating environment: Laboratory
Operating relative humidity range: 80% at temperatures < 31C decreasing linearly to 50% at 40C
Operating temperature range: +5C to +40C
Storage temperature range: 25C to +55C (when packed for transport).
Experiments:
Determination of the specific speed of the fan
Performance of a centrifugal fan
Variation of fan performance with type of impeller
Variation of fan performance with speed
Non-dimensional performance curves.
Operating Conditions:
Operating environment:Laboratory
Operating relative humidity range: 80% at temperatures < 31C decreasing linearly to 50% at 40C
Operating temperature range:+5C to +40C
Storage temperature range:25C to +55C (when packed for transport).
Operating Conditions:
Operating environment:Laboratory
Operating relative humidity range: 80% at temperatures 31C decreasing linearly to 50% at 40C
Operating temperature range: +5C to +40C
Storage temperature range: 25C to +55C (when packed for transport).
A precision-machined base plate holds the motor and its sensors. The Universal Dynamometer directly drives the Fluid Power machines. This means that the user has no need to fit or adjust the tension of belts and pulleys. The coupling between the Universal Dynamometer and all Fluid Power machines is a jaw-type coupling with a rubber element. The base plate has location points to give accurate and repeatable alignment onto each Fluid Power module.
The front of the motor drive and display unit has motor stop, start and speed controls. Outlets on the back of the unit give power for instruments supplied with the Fluid Power modules. The motor drive and display unit contains a variable-speed a.c. inverter drive and includes signal conditioning. It digitally displays speed, torque and shaft power. This reduces the need for multiple mains connections and gives a neater and safer equipment arrangement. The unit fits on the instrument frame fitted to all the Fluid Power modules.
Experiments:
Flow under a sheet pile and determination of critical seepage force at which piping occurs
Flow through an earth dam with and without a toe drain
Draw down in horizontal flow (simulation of ground water flow into a river or well)
Determination of seepage beneath a structure
Construction of flow nets and determination of coefficient of permeability
General studies of seepage and drainage
Seepage flow under an impermeable dam
Flow through a porous medium
Determination of uplift pressures on structures such as building foundations.
Experiments:
Investigation of the effect of varying viscosity and demonstration that the Reynolds number at transition is independent of viscosity.
Determination of transition Reynolds numbers and comparison with accepted values.
Demonstration of transition between laminar and turbulent flow.
Experiments:
Non-dimensional performance characteristics
Flow measurement using a Ventur
Centrifugal pump performance and characteristics, typically head against flow and efficiency against flow
Variation of pump performance with speed
Variation of pump performance with inlet pressure.
Experiments:
Various flow visualisation experiments in two dimensions, including sink and source points and flow around models, for example: Sources and sinks in a uniform stream
Flow through an orifice and a diffuser
Flow through a heat exchanger
Doublet in a uniform stream
Flow around a cylinder (disc) and an aerofoil
Laminar flow relationship for flow between two parallel plates
Mean velocity equations (including seepage in soils)
Potential flow relationships
The momentum equation.Operating Conditions
Operating environment: Laboratory
Operating temperature range: +5°C to +40°C
Storage temperature range:25°C to +55°C (when packed for transport).
Experiments:
Parallel operating characteristics of two pumps operating at different speeds
Series operating characteristics of two pumps operating at different speeds
Performance of single centrifugal pump
Series operating characteristics of two similar pumps
Parallel operating characteristics of two similar pumps.
Essential Base Unit:
Volumetric Hydraulic Bench or
Gravi metric Hydraulic Bench.
Closed water circuit contains multi-stage centrifugal pump, tank, inductive flow meter and flow control valve
Digital display for flow rate, pressure and temperature
Braking torque and speed measured
Supply unit for turbines
Connection to the turbines via flexible hose with quick-release coupling
Constant torques and speeds can be adjusted via.
Determination of the flow rate with the electromagnetic flow rate sensor
Water tank with sight glass
Digital display of flow rate, pressure and temperature
Investigation of an axial-flow pump
Powered by Universal Drive and Brake Unit
Closed water circuit.
Water flow measurement at the inlet and outlet
Combined temperature/humidity measurement
Wet cooling tower with fan and pump for operation
Use of corrosion-resistant materials.
Investigation of a compressed air driven axial impulse turbine
Applying a load to the turbine by using the band brake
Setting the primary pressure with the pressure reducing valve
Manometer for displaying pressures on the inlet and outlet side
Digital display of speed, torque and temperature
Valve and flow meter for setting the flow rate
Solenoid valve as a safety device to prevent over speed
Transparent front panel for observing the operating area
Distributor with 4 nozzles
Selectable number of nozzles
Determination of the torque on the turbine shaft using a force sensor
Measurement of the turbine speed with an optical speed sensor.
Asynchronous motor with pendulum suspension, torque measurement via lever arm and force sensor
Optical sensor for recording the speed
Drive and brake unit used for studying different driving or driven machines
Data exchange between base module and accessories through data cable
Measured values for speed and torque are digitally displayed on the device
Asynchronous motor with frequency converter allows 4-quadrant operation: generator or motor mode.
Measurement of amperage and voltage to determine the power at the evaporator
Investigation of a vapour jet compressor
Vapour circuit with pump and vapour generator for operating the vapour jet compressor
Vapour generator with electrically heated water jacket
Transparent tank with water-cooled pipe coil as condenser
Flooded evaporator with float valve as expansion element
Transparent tank with adjustable heater as evaporator
Refrigeration circuit with condenser, evaporator and vapour jet compressor for refrigerant.
Function of a Kaplan turbine
Loading the turbine by use of air-cooled eddy current brake
Non-contact speed measurement at the turbine shaft and force sensor at the brake for measuring the torque
Digital display for pressures, temperature, flow rate, speed and torque
Rotor with fixed blades
Adjustable guide vanes for setting different angles of attack
Closed water circuit with submersible pump, throttle valve and tank
Adjustment of flow rate with throttle valve.
Water jet pump to evacuate the tank
Sensors for temperature, pressure and flow rate with digital display
Visualisation of the condensation process of water in a transparent tank
Pressure switch and safety valve for safe operation
Controlled heater to adjust the boiling temperature
Two water-cooled tubes as condensers with different surfaces to realise film condensation and dropwise condensation.
Safety bearing and transparent protective cover for safe operation
Two pre-selectable speed ranges, speed electronically regulated and infinitely adjustable
Digital speed indicator
Investigation of bending vibrations and resonance of a rotating system
Two masses that can be fixed at any point
Two self-aligning ball bearings moveable to any point as the rotor shaft mount.
Linear heat conduction: 3 measuring objects, heating and cooling element, 9 temperature measuring points
Radial heat conduction: brass disc with heating and cooling element, 6 temperature measuring points
Examination of heat conduction in solids
Experimental setup consisting of experimental unit and display and control unit
Electric heating element
Cooling with mains water.
Measuring a vapour pressure curve for saturated vapour
Bourdon tube pressure gauge to indicate pressure
Digital temperature display
Boiler with insulating jacket
Temperature limiter and safety valve protect against overpressure in the system.
Supply unit for heat exchangers
Digital displays for 6 temperature and 2 flow rate sensors
Flow adjustable using valves
Water connections with quick-release couplings
Hot water circuit with tank, heater, temperature controller, pump and protection against lack of water
Temperature controller controls the temperature of hot water
Stirring machine connection with speed adjustment
Cold water circuit from laboratory mains or water chiller.
Measuring tube with scale and pressure sensor for manual and electronic fuel consumption measurement
Measured value displays for engine exhaust gas temperature
Measurement and display of air consumption, ambient temperature and fuel temperature
Test stand for mounting of prepared single-cylinder engines (two-stroke and four-stroke) with a maximum power output of 2,2kW
Engine started
Force transmission from engine to load unit via
V-belt drive
Vibration-dampened switch cabinet for display and control
Continuous adjustment of speed and torque using
3 supply tanks for different fuels
Stabilisation tank for intake air.
Engine completely equipped with fuel line, throttle cable and exhaust gas temperature sensor
Air-cooled single-cylinder two-stroke petrol engine for installation in test stand
Fuel hose with self-sealing quick-release coupling
Force transmission to brake via pulley, gear transmission 2:1
Engine mounted on a base plate with vibration dampers.
Heating circuit with heater, pump and expansion vessel
Visualisation of evaporation in a tube evaporator
Cooling circuit with water jet pump to generate negative pressure (vacuum)
Heating and cooling medium: water
Safety valve protects against overpressure in the system
Tube evaporator made of double-wall glass.
Digital display for air flow rate, temperatures, pressures, differential pressures and compressor speed
Intake vessel with measuring nozzle for determination of the suction volume flow
Intake vessel and pressure vessel, both with pressure sensor and additional manometer
Single-stage piston compressor with one cylinder
Drive and speed adjustment via
Blow-off valve with silencer for setting a steady flow operating mode
Safety valve and pressure switch with solenoid valve for limiting the pressure.
Demonstration of a steam power plant with single-cylinder piston steam engine
Gas-fired boiler for steam generation
Investigation of a driven machine for compressed air generation
Pressure and temperature sensors in front of and behind the compressor
Water-cooled condenser
Safety valve and temperature monitoring for safe operation
Sensor and display for temperature, pressure, flow rate, voltage and current
DC generator
Light bulbs as consumers.
Gas turbine with radial compressor and axial turbine as jet engine
Experiments relating to the function and behaviour during operation of a jet engine
Turbine mounted on moving base with force sensor for thrust measurement
Electric starter for fully automatic start-up
Single-shaft engine
Additional remote control for display and control of the jet engine
Protective grating for the jet engine.
Electronically commutated and speed-controlled drive motor with digital speed display
Continuous adjustment of the angle between cranks
Vibration isolation using rubber elements and suitable tuning
Experimental unit to investigate oscillating and rotating mass forces and moments of a reciprocating Engine with up to 4 cylinders
Force sensors to measure forces and moments
Simulation of single, 2- or 4-cylinder engines.
Sensors measure temperatures (upstream and downstream of the heating element and inside the Heating element), flow velocity of the air and heating power
Heat transfer in the air duct by free and forced convection
3 heating elements with different surfaces: flat plate, tube bundle or fins
Air duct with axial fan.
Steam engine loaded via brake unit
Determination of amount of steam via condensate
Sensor and display for temperature, pressure, flow rate, and speed
Two-cylinder piston steam engine
Condensate tank as cascade tank with condensate pump
Steam supplied by steam generator
Atmospheric capacitor
Tank with pump to prepare and deliver a suspension comprising water and precipitated calcium carbonate
Determination of solid concentrations at sedimentation tank inlet and outlet by Imhoff cones
Separation of suspensions by sedimentation in transparent sedimentation tank
Bypass to tumble and homogenise the suspension
Precise piston burette for metering of ink to visualise flow conditions in the sedimentation tank
Influencing of flow conditions in the sedimentation tank with baffle plate that can be positioned
Mixing of the suspension with fresh water in sedimentation tank inlet zone
Adjustment of fresh water and suspension flow rate by valves.
Investigation of open-channel flow with and without bed-load transport
Flow-optimized inlet element for low-turbulence entry to the experimental section; inlet element with Sediment trap to prevent sediment flowing back
Closed water circuit with water tank with sediment trap for coarse sand, pump and manual flow rate adjustment
Side walls of the experimental section are made of tempered glass for excellent observation of the experiments
All surfaces in contact with water are made of corrosion-resistant materials
Experimental flume, consisting of experimental section, inlet element, water outlet and closed water circuit
Discharge measurement via measuring weir in the water drain
Level gauge for measuring the discharge depth and the height of the sediment surface
Smoothly adjustable inclination of the experimental section
Sluice gate and bridge pier for experiments with and without sediment transport
Visualisation of the flow using a contrast medium.
Mobile sled carriage distributes draining water to 17 chambers in the measuring tank
Water drain either via removable drain chamber with fine-mesh screen or via drainage pipe
Investigation of the effect of precipitation on soils
Drip pans as rainwater retention basins
Rotameter (inlet), indicator of precipitation time, lag time and measurement time
Distribution to 17 chambers by timer
Stainless steel experimental tank with transparent splash guard
Precipitation device with two nozzles, adjustable precipitation area and quantity
Precipitation time can be adjusted via solenoid valve with timer
Separate flushing connection for pipelines.
Ogee-crested weir for the experimental flume
Weir body made of PVC
Weir body with sealing lips
2 different weir outlets: chute and chute with ski jump.
Venturi flume consisting of 1 base plate, 2 side elements, 1 clamping device
Side elements with sealing lips
Venturi flume for the experimental flume.
Investigation of groundwater flows
19 measuring connections with filters to detect the groundwater levels, arranged orthogonal to the tank bottom
Stainless steel tank as experimental section to be filled with coarse sand
2 different models for excavation pits
Water drain via 2 wells with open-seam tubes in the experimental section
Water supply via 2 open-seam tubes
Water feeds and discharges can be adjusted separately via valves
Groundwater levels displayed on the 19 tube manometers
1 model for structure with waterproof bottom.
Experimental section with grooves for plate weirs to realize different flow conditions
Measurement of profiles along the bottom with moveable instrument carrier and point gauge
Inlet element with plate weir to protect against sediment flowing back
Open-channel bed-load transport
Experimental flume with experimental section, inlet element, outlet element, closed water circuit, 1 set of models
Sediment trap with filter element for sand
Models supplied 3 bridge piers, 2 islands, set of deflection plates (for your own model ideas)
Experimental section, inlet and outlet element made of stainless steel
Closed water circuit with water tank with sediment trap, pump, and electromagnetic flow meter.
Generation of surface waves via paddle swinging back and forth
Motor with variable speed via frequency converter
Wave generator for the experimental flume
Drive of the paddle via crank mechanism and motor with gear
Weir at outlet element of used as paddle
Adjustable crank mechanism stroke.
Features:
Stilled inlet tank provides developed river flow conditions, allowing the full length of the tank to be used for river simulations.
Adjustable spray nozzle height
Use of fine grade sand allows detailed feature development
Single grade of sand for all defined demonstrations, no need to change the sand
Flexible configuration allows a wide range of simulations
Flexible configuration allows a wide range of simulations
Novel outlet tank design for water flow and sediment flow measurement.
Stainless steel sand tank
Dual jacks provide adjustable tilt
Control and measurement of inlet flows
Computer data logging option for sediment and water outlet flow measurement.
Pressure loss measurement with twin tube manometers
Height-adjustable filler hopper made of glass
Flow meter with needle valve for adjustment
Fundamentals of cake and depth filtration
Filter element with sintered filter medium on its bottom to capture the particles
Variable-speed paddle to generate the flow velocity
Experimental section with transparent deepening for holding the sediment
Three different bridge piers for observing fluvial obstacle marks on piers
Experimental unit for bed-load transport in open channels
Transparent, circular, oval flow channel as open channel
Low-turbulence flow at the inlet to the experimental section thanks to a flow straightener
Paddle driven via electric motor and belt drive.
Visualisation of two-dimensional seepage flows and investigation of water pressure at various models closed water circuit
Experimental section with tempered glass viewing window
Fine-mesh screen to separate the experimental section from the feed and discharge chamber
Height-adjustable overflows in the feed and discharge to adjust the water levels
Fluoresceine as a contrast medium
Retaining wall" and "foundation" models for demonstration of the water pressure
Instruments: tube manometers, tubes on the "foundation" and "retaining wall" models
14 measuring connections with filters to detect the groundwater levels in the experimental section
Sheet pile" model for visualisation of streamlines.
6 tube manometers to indicate the pressure curve in the downcomer
Measurement of flow rate via rotameter
Experimental plant for demonstration of wastewater technology
Transparent glass pipes and tanks
Contains downpipe, collection pipe, ventilation pipe and bypasses
Ten cisterns with remotely-operated solenoid valves
Two toilets with cistern or pressure flush.
Material: grey cast iron/steel.
....
Air ducts from galvanised folded spiral-seam pipe with pipe bends, joints and components
Pressure measuring connections with variable locations
Experimental setup for training in ventilation engineering
Inclined tube manometer and digital manometer for 2 different measuring ranges
Measuring of the air velocity by anemometer
Radial fan, on mobile frame, to connect air ducts
6 assembly stands to attach the air ducts
Switch cabinet with display of power consumption.
Unit designed for desktop use
Functionality of moving parts preserved
Cutaway model of a water meter
Mounted on demonstration panel; 500x400mm
Process configuration permits easy exchange of wearing parts
Pump hydraulic design according
Centrifugal pump as accessory for installation
Pump technical requirements according
Drive and water supply provided.
Permanent-magnetic synchronous drive inside pump
Single-stage centrifugal pump with magnetic clutch as accessory for installation
Drive and water supply provided
Pump technical requirements.
Functionality of moving parts preserved
Unit designed for desktop use
Cutaway model of a gear pump
Mounted on base plate; 350x300mm
Functionality of moving parts preserved
Unit designed for desktop use
Cutaway model of a standard gas meter
Mounted on demonstration panel; 500x400mm.
Unit designed for desktop use
Functionality of moving parts preserved
Cutaway model of an underground hydrant
Mounted on base plate; 400x400mm.
Functionality of moving parts preserved
Cutaway model of a safety valve
Unit designed for desktop use
Mounted on demonstration panel; 400x300mm.
Functionality of moving parts preserved
Unit designed for desktop use
Cutaway model of a backflow preventer
Mounted on demonstration panel; 500x400mm.
Functionality of moving parts preserved
Cutaway model of a changeover valve
Unit designed for desktop use
Mounted on demonstration panel; 500x400mm.
Functionality of moving parts preserved
Cutaway model of a corner valve
Unit designed for desktop use
Mounted on demonstration panel; 400x300mm
Shut-off valve consisting of housing, hand wheel, clamp cover, packing gland frame, taper and spindle
Shut-off valve parts set, with associated set of small parts, in a sturdy case
Spindle sealing based on the gland principle
Assembly exercise for engineering training
The kit forms part of the assembly, maintenance and repair practice line.
Valve parts and tools housed in a sheet-steel tool box
Learning concept for assembly exercises on valves and fittings
Typical non-return valve, as set of parts
Butterfly valve with manual adjuster, as set of parts
Complete assembly tool kit.
Cutaway model of a standard venturi meter
Unit designed for desktop use
Mounted on demonstration panel; 500x400mm.
Cutaway model of a nozzle
Unit designed for desktop use
Mounted on demonstration panel; 400x300mm.
Unit designed for desktop use
Cutaway model of a strainer
Mounted on demonstration panel; 400x300mm.
Cutaway Models Various Screwed Pipe Connections are used as suitable fitting accessories for installation of pipelines. These consist of necessary accessories like flange parts and display panel. Different colors have been used for easy identification of every part. Designed by skilled personnel, these are appreciated for their application specific structure, ease of handling, less installation time and low maintenance cost. Developed from standard grade brass, polyvinyl chloride and gun metal, these pipe connecting components are offered in standard external dimension and wall thickness based options. We are an eminent manufacturer and exporter of excellent grade Cutaway Models Various Screwed Pipe Connections.
....
Standard commercially available flanged fittings: shut-off valve, non-return valve, strainer, condensation Drain, inspection glass, ball valve, gate valve
Ball valve with cutting ring screw fitting
Assembly exercise for engineering training
Mobile frame for mounting of pipe network
Connection to water supply via hose with coupling
Piping network comprising pipe bends, elbows, T-pieces and transitions in nominal
Pipe connections via flanges or cutting ring screw fittings
Pressure vessel with manometer, connection via.
Flow setting by manual stroke length adjustment (including during operation)
Manual drive with crank instead of a drive motor
Learning concept for maintenance and repair exercises on a single-diaphragm pump
Pump parts and tools housed in a tool box
Diaphragm and push rod directly linked.
Unit designed for desktop use
Functionality of moving parts preserved
Cutaway model of a sliding gate valve
Mounted on demonstration panel; 400x300mm.
Unit designed for desktop use
Functionality of moving parts preserved
Cutaway model of a pressure reducing valve
Mounted on demonstration panel; 500x400mm.
Unit designed for desktop use
Functionality of moving parts preserved
Cutaway model of a straight-way plug valve
Mounted on demonstration panel; 400x300mm.
Unit designed for desktop use
Functionality of moving parts preserved
Cutaway model of a flanged non-return valve
Mounted on demonstration panel; 500x400mm.
Pump shaft sealing with floating ring seal
Pump drive by 3-phase AC motor
Learning concept for maintenance and repair exercises on an in-line centrifugal pump
Pump parts and tools housed in a tool box
Enclosed pump impeller with 5 blades, designed for pure liquids.
Hand-operated piston pump to generate the test pressure, a return valve to relieve the system pressure, and a manometer for pressure measurement
2 different sizes of mounting flange with blank flange and flange seal
Test stand on which to mount industrial valves and fittings
Pressure testing of valves and fittings
Mobile frame with collector tray and ball valve to drain
Connection of pump and test flange via pressure hose
Test medium: water
Water storage tank.
Mobile system for alignment of a standard pump and its drive motor
Electric motor with positioning frame and fit plates for alignment
Pump and motor connected via coupling
Asynchronous electric motor with constant speed
Pump with ball valves at inlet and outlet
Closed water circuit
Checking of alignment using straight-edge or dial gauges
Manometer at pump outlet.
Cutaway model of a straight-way valve
Unit designed for desktop use
Functionality of moving parts preserved
Mounted on demonstration panel; 400x300mm.
Cutaway model of an orifice plate
Unit designed for desktop use
Mounted on demonstration panel; 400x300mm.
Determination of volumetric flow rate using differential pressure measurement across a measuring orifice
Microprocessor-based measuring technique
Functioning and operating behaviour of an axial turbine
Closed water circuit contains axial turbine, pump and water tank
Valve for adjusting the volumetric flow rate
Force sensor to determine the torque on turbine shaft
Transparent housing for observing the stator and the rotor
Turbine load using the wear-free and adjustable eddy current brake
Pressure measurement on inlet side
Measurement of turbine speed with optical speed sensor.
Trainer with 2 centrifugal pumps which are operated in series or parallel configuration
Electromagnetic flow meter
Digital displays for power consumption, torque, speed, pressure and flow rate
Closed water circuit
Drive motors with adjustable speed
Inductive speed sensor on the motor
Motor with pendulum bearing, torque measurement via lever arm and force sensor.
Pressure sensor behind the water chamber for measuring The pressure wave
Pipe section with solenoid valve and two pressure sensors For measuring water hammer
Functioning of a surge chamber
Pipe section with ball valve and surge chamber
Volumetric flow measurement via supply unit
Surge chamber designed as transparent PMMA tank.
Asynchronous motor with 4-quadrant operation via frequency converter
Recovery of the brake energy
Motor with pendulum bearing, torque measurement via lever arm and force sensor
Investigation of an axial flow turbomachine.
Measuring probe and differential pressure sensor for recording the pressure curve in the turbomachine
Closed water circuit with expansion tank and centrifugal pump
Inductive speed sensor on the motor
Manometers for measuring the inlet and outlet pressures
Turbomachine may be operated as a turbine and as a pump
Electromagnetic flow meter
Display of power consumption, torque, speed, pressure, differential pressure and flow rate
Two sets of impellers and guide vane systems for pump mode and two sets of rotors and stators for turbine mode with different inlet and outlet angles.
Functioning and operating behaviour of a gear pump
Sensors for temperature and pressure at inlet and outlet of the pump
Oval wheel meter as flow sensor
Closed oil circuit contains a gear pump with variable speed via frequency converter and a transparent tank
Microprocessor-based measuring technique
Transparent housing for observing the pump gears
Overflow valve for adjusting the head
Needle valve for adjusting the flow rate.
Turbine load using the wear-free and adjustable eddy current brake
Force sensor to determine the torque on turbine shaft
Turbine to place upon the base unit
Functioning and operating behaviour of a Pelton turbine
Constant pressure of the turbine represents in practice the head and is adjusted via
Transparent housing for observing the Pelton wheel and needle nozzle
Different nozzle cross-sections via adjustable nozzle needle
Optical speed sensor for measuring the turbine speed.
Flow determined by level (water) or Venturi tube (air)
Digital displays for pressure, differential pressure, temperature, speed and drive power
Comparison of driven machines for liquid and gaseous media
Closed water circuit
Drive motor with variable speed
Two compressors: piston compressor and rotary vane compressor
Four pumps: piston pump, impeller pump, two centrifugal pumps.
Measuring objects: pump, flow meter, diaphragm valve
Pressure conditions at various measuring objects
Flow measurement using rotameter
Flow can be adjusted via valves
Centrifugal pump with 3 different speeds
Closed water circuit
Differential pressure measurement using electronic pressure meter
Annular chambers allow easy measurement of pressure.
Turbine load using the wear-free and adjustable eddy current brake
Optical speed sensor for measuring the turbine speed
Turbine to place upon the base unit
Force sensor to determine the torque on turbine shaft
Functioning and operating behaviour of a reaction turbine
Water supply, flow rate measurement and unit-specific software data acquisition and operation via
Transparent housing for observing the discharged water jet
Constant pressure of the turbine represents in practice the head and is adjusted via.
Comparison of various pump types: centrifugal pump, piston pump, side-channel pump
Experiments relating to key issues in pump engineering
Three-phase AC motors for centrifugal pumps and additional motor with Variable speed by frequency converter
Free position for additional pump
Operation of centrifugal pumps in parallel or series configuration.
Recording the curves of a Pelton turbine and investigating the influence of the nozzle cross-section
Force sensor at the turbine inlet
Transparent front panel for observing the operating area
Non-contact speed measurement at the turbine shaft and force sensor at the brake for measuring the torque
Loading the turbine by use of a band brake
Adjustable nozzle needle for setting different nozzle cross-sections.
Axial fan with continuously variable speed (wind velocity)
Flow straightener for consistent wind conditions
Measurement of rotational speed of the rotor
Measurement of wind velocity in front of and behind the rotor
Measurement of current and voltage
Converting kinetic wind energy into electrical energy
Laboratory-scale wind power plant, stand-alone operation
Digital displays for the measured values
Accumulator for storing the electrical energy
Two bulbs as electrical load (consumers)
Generator for converting the kinetic energy into electrical energy.
Basic experiments on centrifugal pumps
Includes pump and transparent water tank
Together with the turbines: investigation of operating behaviour and Recording of turbine characteristics
Microprocessor-based measuring technique
Sensors for flow rate and pressure
Low air entry into circulating water ensured by damping plate inside the tank
Variable pump speed via frequency converter.
Experiments on turbines: closed water circuit for supplying turbines
Pipes and fittings made of PVC
Digital displays for pressures, flow rate, speed and torque
3-phase AC motor for pump with variable speed via frequency converter
Determining characteristic variables of a centrifugal pump
Non-contact speed measurement at the turbine shaft and force sensor at the brake for measuring the torque
Experiments on a pump in a closed water circuit with storage tank and flow control valve to adjust the back pressure.
Investigation and operating behaviour of pumps in various operating modes
Adjustment of flow resistance by a valve at outlet of the pump
Sensors for pressure at inlet and outlet of the pumps and flow rate
Single pump, series or parallel pump operation, configurable via valves
One pump with variable speed and one pump with fixed speed
Microprocessor-based measuring technique
Closed water circuit contains centrifugal pumps with drive motor and a transparent water tank.
Pressure sensors at both basins and the surge chamber capture the water Level fluctuations
Transient drainage processes in storage reservoirs
Functioning of a surge chamber
Gate in the drainage line for generating water hammer
Storage lakes" experiment: basin A and basin B are used as long-term Storage reservoirs, rectangular weir as overfall weir
Surge chamber" experiment: transparent pipe as surge chamber in Drainage line of basin B
Rainwater retention basin" experiment: basin A and basin B as short-term Storage reservoirs, rectangular weir as gate.
Formation and effect of water hammer
Waste valve with adjustable lift, closes cyclically due to flow force of the water
Tank with check valve and air volume is used as an air vessel
Pumping using water hammer
Elevated tank with variable pump head
Air volume in the air vessel is varied by vent valve
Fixed overflow tank is used as a water source, e.g. river, pool.
Measurement of drag via two-component force sensor
Removable spacer plate allows two wake rake positions for measurement
Investigation of the wake of a cylinder immersed in a flow
Accessory for the wind tunnel
Display of the pressures on the 16 tube manometers
Cylinder as drag body
Wake rake with 15 Pitot tubes detects total pressures.
Trainer for studying the flow in packing layers
Closed water circuit with a pump and storage tank
Compressor for air supply
Water-air operation in parallel flow or counter flow
Water direction of flow can be reversed
Measurement of flow rate and pressure loss
Transparent DURAN glass packed column with interchangeable packed bed
Operation with water and/or air.
Investigation of water hammer and pressure waves in pipes
Pressure vessel with air cushion reflects the wave
Safety valve protects against overpressure in the system
Pipe section as coiled tube to save space
Instruments: pressure sensor, rotameter, manometer
Generation of water hammer via solenoid valve with adjustable closing time
Generation of water hammer via solenoid valve with constant closing time.
Visualisation of flow fields by using electrolytically generated hydrogen bubbles
Platinum wire as cathode and stainless steel plate as anode for electrolysis
Different flow velocities via variable-speed circulating pump
Flow straightener and glass spheres ensure consistent and low-turbulence flow
Shallow water channel fitted with indirect LED illumination along the experimental section
Setting power (with display), pulse and pause duration of the power and the flow velocity in the water channel
Various models are included: aerofoil, rectangle, straight plate, curved plate, cylinder (various sizes), Various models for changes in cross-section.
Flow around supplied models: cylinder, square, rectangle, guide vane profile, various models for changes in cross-section
Flow velocity, water inlet and water outlet in sources/sinks as well as dosage of the contrast medium can be adjusted by using valves
Demonstration of potential flow in a Hele-Shaw cell for visualising streamlines
Modelling the flow around contours without models by overlaying parallel flow with sources or sinks
Upper glass plate, hinged for swapping models
Bottom glass plate with cross-shaped water connections for generating sources/sinks, can be combined as required
Hele-Shaw cell made of two glass plates arranged in parallel with narrow gap
Water as flowing medium and ink as contrast medium
Grid in the bottom glass panel for optimal observation of the streamlines.
Open-channel flow demonstrated on 2 weirs
Flow around solid bodies demonstrated on four drag bodies
Flow through demonstrated with 3 differently shaped models
Experimental unit for visualisation of various flow processes
Optional operation via laboratory supply or as closed water circuit
Illuminated flow section with transparent front panel
Contrast medium: ink.
Investigation of fluidised bed formation of solids in air and water
Diaphragm compressor with compressed air accumulator for compressed air supply
Adjustment of flow rate for both media by valves and flow meter
2 transparent test tanks to observe fluidised bed formation in air/water
1 steel rule per tank to measure the change in height of the fluidised beds
1 manometer per tank to measure the pressure loss through each test tank
Storage tank with diaphragm pump for water supply
Both test tanks removable for filling.
Experiments from the field of aerodynamics and fluid mechanics with an "Eiffel" type wind tunnel
Electronic two-component force sensor for measuring the flow forces
Inclined tube manometer for displaying the air velocity
Wide range of accessories available
Transparent, closed measuring section
Digital display of drag and lift
Flow straightener reduces turbulence
Inlet contour, nozzle and diffuser made of GRP
Variable-speed fan motor for energy-efficient operation.
Demonstration of the Coanda effect in pneumatic logic elements
Y-channel with pivoting and sliding elements and vertical sliding wedge for adjusting different contours
Transparent plate with vertical, horizontal and radial scales
Adjustable contours for varying the air flow
Accessories for Aerodynamics Trainer.
Visualisation of streamlines flowing around and through different models
Low-turbulence flow through stabilisation chamber with flow straightener
Scale for displaying the angle of attack
Distributor with nozzles for injecting the fog
Four different models, angle of attack at aerofoil and guide vane profile adjustable
Open wind tunnel with radial fan and a fog generator
Operation with non-toxic and water-soluble fog fluid
Illuminated experimental section with sight window and black background.
Profile: Symmetrical
Aerofoil for examination of self-starting vibration
Visualisation Of streamlines by using fog
Vertical measuring section with transparent front plate and black background
Aerofoil with adjustable angle of attack
Scale for displaying the angle of attack
Fog generator, operation with non-toxic and water-soluble fog fluid
Three models for insertion into the wind tunnel
Accessories for Aerodynamics Trainer.
Determining drag forces on models immersed in a flow
Models: plate, cylinder and aerofoil model as drag body
Cylinder with additional pressure measuring point
Pitot tube with horizontal adjustment for measuring the total pressures
Accessories for the aerodynamics trainer
Recording the pressure distribution on models immersed in a flow
Recording the velocity profile for measuring the wake depression behind the cylinder immersed in a flow.
Open impeller to observe the blades during operation
Continuously adjustable pump speed via frequency converter
Visualisation of cavitation in centrifugal pumps
Transparent pump housing and pipe at the inlet side
Display of the pressures at inlet and outlet side of the pump via manometers
Closed water circuit with tank and temperature display
Digital display of speed, water temperature in the return and flow rate
Temperature control via heater and external cooling via water supply
Flow measurement using rotameter.
Investigate flow of compressible fluids
Transparent measuring objects with connectors for pressure measurement provide insight into the Internal structure
Pressure losses in subsonic flow in pipe elbows and various pipe sections
Measuring nozzle for determining the mass flow
Subsonic and transonic air flow
Variable speed on the radial fan for adjusting the mass flow
Record fan characteristic curve using a throttle valve
Digital displays for pressures, velocity and speed
Minimised turbulence by drawing in air and optimum arrangement of the measuring objects
Orifice for determining volumetric flow rate by differential pressure measurement
Pressure curve at subsonic and transonic nozzle flow.
Measuring reaction or action force of the nozzle by deformation of the bending beam
5 nozzles with different contours (4 convergent-divergent, 1 convergent) and 1 baffle plate
Detect impact force or thrust at nozzle to determine the flow velocity and nozzle efficiency
Air intake adaptable according to the experiment layout
Distance between baffle plate and nozzle can be adjusted
Experiment layout A: measuring reaction force (thrust) of the fluid at the nozzle
Experiment layout B: measuring action force of the fluid at the baffle plate
Needle valve on the flow meter for adjusting the back pressure
Compressed air regulator for adjusting the pressure downstream of the nozzle.
Aerodynamics experiments in the fields of flow around, incident flow and flow through models, as well As further experiments in the field of steady incompressible flow.
Thermometer for measuring air temperature
Vertical measuring section with flow straightener and nozzle
16 tube manometers for displaying pressures
Radial fan infinitely variable via frequency converter.
Accessories for the field of flow around bodies:
Boundary Layers
Visualisation of Streamlines
Drag Forces
Coanda Effect
Accessories for the field of steady incompressible flow
Flow in a pipe elbow
Bernoulli's principle
Free Jets
Investigation of different pipe networks
Construction of pipe networks from pipe sections and various piping elements
Calibration of pipe sections
Parallel and series connection of pipe sections
Differential pressure measurement with twin tube manometers and differential pressure manometer
Five pre-instaled pipe sections with different diameters
Panel for piping elements
Construction of a closed circular pipeline
Flow rate measurement with measuring tank (can be shut off), stopwatch and level indicator.
Investigation of cavitation processes in a Venturi nozzle
Flow measurement using rotameter
Venturi nozzle with 3 pressure measuring points
Pressure reducing valve, adjustable
Thermometer for measuring the temperature
Manometer for displaying the pressure curve in the Venturi nozzle
Adjustment of the flow rate via ball valves.
Interchangeable measuring objects, partly transparent: angle seat valve, diaphragm valve, ball valve, Non-return valve, strainer, Pitot tube, Venturi nozzle, orifice plate flow meter and measuring nozzle
Trainer for fluid mechanics experiments
Tube manometer for measuring the differential pressure
Flow measurement using rotameter
Digital displays for pressure and differential pressure
Annular chambers allow precise measurement of pressure
Different pipe sections.
Trainer for testing various valves and fittings
Pressure measuring points upstream and downstream of test device for differential pressure Manometer with pressure switch
Installation of the test fitting in a pipe section of variable length
Centrifugal pump with variable speed via frequency converter
Digital displays for flow rate, power output, speed, position of control valve
Fine pressure regulator adjusts compressed air pressure
Manometers at inlet and outlet of centrifugal pump
Tank cover as collecting tray under test device.
Orifice Plate Flow Meter with electronic differential pressure transducer for flow rate measurement as accessory
Vertical and horizontal installation possible
Connections to facilitate pressure loss measurement
Connections to supply auxiliary power via
Operation based on the differential pressure method
Display indicating differential pressure.
Measurement of the total pressure and the static pressure in a steady flow
Investigation of the continuity equation and Bernoulli's principle
16 tube manometers for displaying the pressures
Accessory for the aerodynamics trainer.
Experiments from the field of steady incompressible flow
Radial fan infinitely variable via frequency converter
Pitot tube in the free jet, 3-dimensional adjustable
Different measuring objects: orifice plate, nozzle, iris diaphragm, pipe fittings
16 tube manometers for displaying the pressures
Horizontal measuring section
Pitot tube within the pipe section, vertically adjustable at 3 positions.
Interchangeable walls in the measuring section produce velocities up to Mach 1,8
Drag bodies: rocket, projectile, double wedge and wedge
Investigation of pressure curves in supersonic flow
Visualisation of Mach lines and shock waves using Schlieren optics
Positive displacement fan with variable speed
Manometer for displaying the pressure in the measurement point
Continuously operating, open supersonic wind tunnel, low pressure principle.
Copper cylinder with integrated temperature sensor
Convective heat transfer of a cylinder in an air-flow tube
Oven keeps the temperature constant
Cylinder is heated in the oven to approximately120C
Display and analysis of the measured values using the software.
Vertical adjustment of the Pitot tube
Electronic detection of the position
Electronic total pressure sensor for measurement of static and dynamic pressure
Display and analysis of the measured values using the software
In conjunction with measurement of the total pressure in the wake of a cylinder.
Measurement of pressure losses in valves, changes in pipe direction, straight pipes, Contraction/enlargement or parallel lines
Differential pressure measurement with differential pressure meter or twin tube manometers or 6 tube manometers
Investigation of the pressure losses in pipe elements
Ten different pipe sections
Flow measurement with rotameter
Pressure sensor in annular chambers
Selection of pipe sections via hose connections with quick-release coupling
Operation via mains water network or in a closed circuit.
Easy pressure measurement via annular chambers
Investigation of pressure losses
Three long pipe sections made of copper and steel with different diameters
Pipe section with pipe bends
Pipe section with interchangeable fittings with different opening characteristics: needle valve, shut-off valve, ball valve
Pipe section with sudden contraction and enlargement
Flow measurement via rotameter and volumetric measuring tank
Closed water circuit with tank and submersible pump
Stainless steel tank
Pressure and differential pressure measurement with 8 tube manometers, Bourdon tube pressure gauge and electronic differential pressure sensor.
Pressure distribution around a cylinder subject to transverse incident flow
Cylinder with radial hole for pressure measurement
Determination of the pressure curve along the measuring section with up to 8 pressure measuring points
In conjunction with total pressure sensor measurement of the total pressure in the wake of a cylinder
Display and analysis of the measured values using the software
Rotatable cylinder for pressure measurement at any angle adjustment
Electronic detection of the angle
Scale for angle adjustment.
Vertically sliding Pitot tube can be set to 3 positions along the plate in the measuring section
Display of static and total pressure on the tube manometer
Additional measuring point for measuring the static pressure
Investigation of the boundary layer on a flat plate
Accessory for experimental plant
Plate leading edge with chamfer
Pitot tube for measuring the total pressure.
Determination of the pressure loss in the flow outlet into stationary surroundings
16 tube manometers for displaying the pressures is recommended
Pitot tube, can be moved horizontally and vertically
Accessory for aerodynamics trainer.
Pipe elements are commercially standard components in heating and sanitary engineering
Pipe sections can be selected via ball valves
Water connections made using quick-release couplings in the inflow and return
Flow can be adjusted via valves
Investigation of friction-induced pressure losses in flow through pipes
Clear panel mounted on a sturdy, movable frame
Differential pressure measurement via differential pressure meter with display
Four measuring sections with different pipe cross-sections and materials
Flow measurement using rotameter.
Non-contact recording of rotation speed by ring magnet and Hall sensor
Display indicating flow rate
Paddle wheel flow meter as accessory for trainer
Vertical and horizontal installation possible
Connections to supply auxiliary power via
Connections to facilitate pressure loss measurement.
Compressed air regulator for adjusting the pressure downstream of the nozzle
Needle valve on the flow meter for adjusting the back pressure
Nozzle pressure distribution in actual flow of compressible fluids
Instruments: manometer and digital temperature display upstream and downstream of the nozzle as Well as rotameter
Three nozzles with pressure measurement points: 1 convergent nozzle, 1 short and 1 long de Laval nozzle.
Investigation of the principles of air flow
Transparent intake pipe with mounting options for additional accessories
Inlet contour minimises turbulence on the intake side
Throttle valve on the delivery pipe to adjust the air flow
Electronic measurement of temperature and pressure
Determine velocity by means of the dynamic pressure
Determine flow rate via differential pressure.
Measuring points on straight pipe sections for pressure measurement
Display and analysis of the measured values using
Investigate friction losses in various pipe elements
Measuring points at pipe inlets for velocity measurement
Two interchangeable pipe inlets: sudden enlargement or uninterrupted air inlet
Combine different pipes from pipe elements.
Pipe elements are commercially standard components in heating and sanitary engineering
Pipe sections can be individually selected via ball valves
Investigation of the pressure losses at various shut-off valves and fittings
Flow measurement using rotameter
Flow can be adjusted via valves
Differential pressure measurement via differential pressure meter with display
Clear panel mounted on a sturdy, movable frame
Water connections with quick-release couplings.
Simply selection of the measuring sections via hose connection with quick-release couplings
Investigation of the pressure loss at pipe elements with different changes in pipe direction and materials
Clear panel mounted on a sturdy, movable frame
Flow measurement using rotameter
Flow can be adjusted via valves
Differential pressure measurement via differential pressure meter with display
Pipe elements are commercially standard components in heating and sanitary engineering.
Different methods of flow rate measurement
Measurement of the total pressure with Pitot tube
6 tube manometers to determine the pressure distribution in Venturi nozzle, orifice plate flow meter and measuring nozzle
Measuring instruments: orifice plate flow meter/measuring nozzle, Venturi nozzle and rotameter.
Investigation of series and parallel configuration of pumps
Two identical centrifugal pumps
Transparent tank as intake tank
Overflow in the tank ensures constant suction head
Ball valves used to switch between series and parallel operation
Manometers at inlet and outlet of each pump.
Investigation of the fundamentals of different areas of incompressible flow
Horizontally travelling level gauge with vertically travelling probe tip to measure the water levels
Pressure measuring points for differential pressure measurement before and after the respective pipe resistances
Experiments on pressure losses at pipe bends and pipe angles, Venturi nozzle, orifice plate
Closed water circuit with pump
Transparent pipe section and open channel
One broad-crested weir and one sharp-crested weir.
Investigation of pressure losses in piping elements and shut-off devices
Measuring objects made of transparent material: Venturi nozzle, orifice plate flow meter and measuring nozzle
Shut-off devices: angle seat valve, gate valve
Different measuring objects for determining flow rate according to the differential pressure method
One pipe section to hold interchangeable shut-off/measuring objects
2 twin tube manometers for measuring the pressure difference
Annular chambers allow measurement of pressure without interaction
Six pipe sections capable of being individually shut off, with different piping elements: sudden Contraction, sudden enlargement, Y-pieces, T-pieces, corners and bends.
Measuring weirs for installation in the experimental flume
Discharge measurement in open channels using 2 measuring weirs
level gauge can be positioned anywhere along the experimental flume
level gauge with scale for determining the head
Rehbock weir with rectangular profile.
Thomson weir with V-profile.
Measuring device for determining the jet diameter
Determining the contraction coefficient for different contours and diameters
Pitot tube for determining the total pressure
Pressure display on twin tube manometers
Tank with adjustable overflow
5 interchangeable inserts with different contours
Study of pressure losses in vertical flows from tanks.
Measuring device for determining the jet diameter
Determining the contraction coefficient for different contours and diameters
Pitot tube for determining the total pressure
Pressure display on twin tube manometers
Tank with adjustable overflow
5 interchangeable inserts with different contours
Study of pressure losses in vertical flows from tanks.
Flow velocity, water supply and water drain in sources/sinks as well as dosage of the contrast medium Can be adjusted by using valves
Visualisation of streamlines
Water as flowing medium and ink as contrast medium
Bottom plate with water connections for generating sources/sinks
Sources/sinks can be combined as required
Rubber plate for creating your own models included
Upper glass plate, hinged for interchanging models
Different drag bodies and changes in cross-section included.
Transparent tank with overflow ensures constant water inlet pressure in the pipe section for experiments with laminar flow
Investigation of the pipe friction in laminar or turbulent flow
Flow rate adjustment via valves
Twin tube manometers for measurements in laminar flow
Dial-gauge manometer for measurements in turbulent flow
Water supply via or via laboratory supply for experiments with turbulent flow.
Investigation of flow processes in the open and closed channel
Fully flowed through experimental section and change in cross-section over sill for experiments in the Closed channel
Closed water circuit with supply tank and pump
Experimental flume with upper limit, made of transparent material
Simple conversion from open to closed channel
Control structures for experiments in the open channel: broad-crested weir, narrow-crested weir, ogee-Crested weir with ski jump spillway, sill, gate
Transparent measuring tubes for measuring static pressure and total pressure
Height-adjustable sill in the bottom of the experimental flume
Water level adjustable via plate weir at the water outlet.
Experimental unit to determine the settling velocity of different spheres
Sluice to remove the spheres from the cylinder
2 transparent cylinders
10 spheres of various densities and diameters
Marking of the measuring section
Cover with guide tube to insert the sphere
Stopwatch to measure the sedimentation time
2 areometers to determine the density of the fluids.
Transparent tank allows visualisation of vortex formation
Two nozzles for tangential water supply (forced vortex)
Generation and investigation of vortices
Impeller for generating a forced vortex
Point gauges detect the surface profile
Two nozzles for radial water supply (free vortex)
Different inserts for the water drain to generate free vortex.
Measurement of volumetric flow rates by using a stopwatch
Base module for supplying experimental units in fluid mechanics
Measuring beaker with scale for very small volumetric flow rates
Measuring tank divided in two for volumetric flow rate measurements
Closed water circuit with storage tank, submersible pump and measuring tank
Work surface with integrated flume for experiments with weirs.
Visualisation of streamlines during incident flow and flow around various weirs and drag bodies
Flow straightener for even, non-vortical water inlet
Demonstration of flow around four different drag bodies
Contrast medium: ink
Distributor for contrast medium with seven nozzles
Water level in the experimental flume adjustable via sluice gate at the water inlet and weir at the water outlet
Transparent experimental flume
Incident flow demonstrated on two weirs.
Determination of the metacentre of 2 floating bodies with different frame shapes
1 shape of frame: hard chine, 1 shape of frame: round bilge
Familiarisation with Bernoulli's principle
Axially movable Pitot tube for determining the total pressure at various points within the Venturi nozzle
Venturi nozzle with transparent front panel and measuring points for measuring the static pressures
Water supply using base module or via laboratory supply
6 tube manometers for displaying the static pressures
Flow rate determined by base module
Single tube manometer for displaying the total pressure.
Visualisation of the Coriolis force effect
Deflection of a water jet in radial direction dependent on the speed and direction of rotation
Rotating reference frame consisting of transparent water tank with submersible pump on a rotating arm
Speed sensor with digital display
Scale to read the deflection of the water jet
Closed water circuit.
Features:
Rotating reference system
Water jet as moving mass
Visualisation of the Coriolis force effect.
Experiments in the fundamentals of temperature measurement with 7 typical measuring devices
Various heat sources or storage units: laboratory heater, immersion heater, vacuum flask
Psychrometer for humidity measurement
Tool box for sensors, cables, measuring strips and immersion heater
Mercury, bimetallic and gas pressure thermometers
Calibration units: precision resistors and digital multimeter
Various temperature measuring strips
Temperature sensors: PT100, thermocouple type K, thermistor.
Bourdon tube pressure gauge for pressure measurement
Hydraulic oil for transfer of the force
Hydraulic pump with storage tank and bleed mechanism
Transparent dial face with a view of the spring mechanism
Accurately fitting piston and cylinder of the piston manometer without seals.
Investigating the stability of a floating body and determining the metacentre
One vertically movable clamped weight for adjusting the centre of gravity
One horizontally movable clamped weight for adjusting the heel
Clinometer with scale for displaying the heel
Transparent floating body with rectangular frame cross-section.
Comprehensive experimental introduction to hydrostatics
1 experimental unit each: measuring the buoyancy force, investigation of the hydrostatic pressure in Liquids, measuring the surface tension, communicating vessels, capillarity
Wide range of accessories included: compressor for generating negative pressures, bottom pressure apparatus, two areometers
Transparent tank for observing the processes.
Experimental investigation of gas laws
Hydraulic oil filling for changing volume of test gas
Built-in compressor generates necessary pressure differences to move the oil volume
Transparent measuring tank 1 for investigation of isothermic change of state
Transparent measuring tank 2 for investigation of isochoric change of state
Electrical heater with temperature control in tank 2
Sensors and digital displays for temperatures, pressures and volumes
Compressor can also be used as vacuum pump
5/2-way valve for switching between compression and expansion.
Basic principles of open-channel flow
Experimental section with 10 evenly spaced threaded holes on the bottom for installing models or for Water level measurement using pressure
Side walls of the experimental section are made of tempered glass for excellent observation of the experiments
Experimental flume with experimental section, inlet and outlet element and closed water circuit
All surfaces in contact with water are made of corrosion-resistant materials
Flow-optimised inlet element for low-turbulence entry into the experimental section
Length of the experimental section 2,5m or 5m
Smoothly adjustable inclination of the experimental section
Models from all fields of hydraulic engineering available as accessories
Closed water circuit with water tank, pump, flow rate sensor and manual flow adjustment.
Measuring a vapour pressure curve for saturated vapour
Bourdon tube pressure gauge to indicate pressure
Digital temperature display
Boiler with insulating jacket
Temperature limiter and safety valve protect against overpressure in the system.
Tiltable water tank with fill level scale
Lever arm with different weights
Investigation of the hydrostatic pressure in fluids at rest.
One Bourdon tube pressure gauge each for positive and negative pressure
Basic experiments for measuring pressure with three different measuring instruments
Plastic syringe generates test pressures in the millibar range
U-tube and inclined tube manometer.
Self contained, small-scale hydropower unit designed to demonstrate the operating principles of a propeller turbine.
Circulating pump, which produces 14m head at 4.4 litres/second.
Supplied with full education software package including comprehensive results processing and help facilities.
75 litre water reservoir.
Electronic sensors monitor process variables.
Loaded by a magnetic brake unit, which is controlled direct from the PC
Links to a PC via a USB interface.
The consists of an inlet manifold that supplies water to four jets, which are equally spaced around the turbine runner. The unit incorporates a pressure sensor to measure the inlet condition of the water. This pressure can be accurately controlled using the software supplied with the service unit. The runner itself is mounted on a horizontal shaft with a clear acrylic splash guard to enable maximum visibility of the workings. Each of the jets can be individually controlled using ball valves.
....
The consists of an inlet manifold, which supplies water to a central hub. The turbine is mounted on a horizontal shaft with a clear acrylic splash guard to enable maximum visibility of the workings. This pressure can be accurately controlled using the software supplied with the service unit. The unit incorporates a pressure sensor to measure the inlet condition of the water. Water exits the hub radially through two square orifices. The hub is connected to the manifold using a graphite face seal.
....
A small-scale plunger pump demonstration unit, comprising of a water reservoir, pump, control valve, relief valve and interconnecting pipe work, all mounted on a stainless steel base.
Pulsation damping facility.
Transparent pump head for visibility.
Includes both a sprung loading valve and a needle valve for loading the pump.
Equipped with electronic measurement sensors for cylinder pressure, plunger position, pump outlet pressure and cumulative flow.
Full theoretical back-up included together with a student questions and answers session.
Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises. Facilities provided for logging, processing and displaying data graphically.
Capable of being linked to a PC (not supplied) via an interface console (an essential accessory).
A small-scale centrifugal pump demonstration unit, comprising of a water reservoir, the pump, control valves and interconnecting pipe work all mounted on a stainless steel base.
Transparent pump volute for visibility
Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises. Facilities are provided for logging, processing and displaying data graphically. Full theoretical back-up is included together with a student questions and answers session.
Equipped with electronic measurement sensors for pump head pressure, suction, flow-rate and water temperature.
Capable of being linked to a PC (not supplied) via the interface console (available as an essential accessory).
An axial fan, mounted on a stainless steel plinth. Transparent air inlet and air outlet ducts allow the fan construction to be clearly observed. Electronic sensors measure the pressure head developed across the fan, the pressure across the orifice plate (and hence the flow rate), the rotational speed of the fan and the air temperature. A manually operated adjustable aperture allows the air flow rate to be varied. The fan speed is controlled by modulated dc supply, complete with current sensing to allow the power drawn by the fan to be measured. A calibrated orifice plate is used on the discharge to measure the air flow rate.
A small-scale axial fan demonstration unit, comprising of an inlet duct, the fan, an outlet duct and an adjustable aperture, all mounted on a stainless steel base.
Transparent ducts give visibility of the fan in operation.
Equipped with electronic measurement sensors for fan head pressure, flow-rate (via orifice plate), fan speed and air temperature.
Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises. Facilities for logging, processing and displaying data graphically.
Full theoretical back-up together with a student questions and answers session.
Capable of being linked to a PC (not supplied) via a dedicated interface console (an essential accessory).
Experimental unit for series, parallel and individual operation of centrifugal pumps
Measuring of pressure and flow rate
One pump with adjustable speed and one pump with fixed speed
Processing of measured data on a PC software for data acquisition via USB under Windows XP, Windows Vista or Windows 7.
Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises. Facilities for logging, processing and displaying data graphically.
Capable of being linked to a PC (not supplied) via a USB interface console (an essential accessory), which does not require internal access to the computer. Also allows interfacing to other software packages.
Offers a complete teaching package of coursework and laboratory investigation, complete with a student questions and answers session.
Capabilities of Centrifugal Fan Demonstration Unit
Measurement of fan efficiency and estimation of impeller power efficiency
Measurement of constant-speed machine performance in terms of static total Measurement of performance at constant speeds
pressures, rotor speed and motor shaft power, as a function of inlet flow
Comparison of student calculations with computer results
Introduction to similarity laws for scale-up.
A small-scale multi-stage centrifugal compressor demonstration unit, comprising of an inlet duct, the compressor, an outlet duct and an adjustable aperture, all mounted on a stainless steel base.
Equipped with electronic measurement sensors for head pressure, flow rate (via orifice plate) and air temperature.
Seven stages in the compressor.
Full theoretical back-up together with a student questions and answers session.
Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises. Facilities for logging, processing and displaying data graphically.
Capable of being linked to a PC (not supplied) via a dedicated interface console (an essential accessory).
A small-scale gear pump demonstration unit, comprising of a water reservoir, pump, control valve, relief valve and inter- connecting pipework, all mounted on a stainless steel base.
Capable of being linked to a PC (not supplied).
Transparent pump head for visibility
Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises.
Facilities are provided for logging, processing and displaying data graphically. Full theoretical back-up is included together with a student questions and answers session.
Equipped with electronic measurement sensors for pump head pressure, flow-rate and water temperature.
A bench top service unit, which provides a suitable water supply for testing a range of different turbines.
Clear acrylic reservoir which holds up to 28 litres.
Magnetic type dynamometer controlled from software.
Peripheral type pump providing up to 20 litres per minute or up to 30m head (not simultaneously).
Paddle wheel type flow meter.
Links to a suitable computer via a USB interface device, which does not require internal access to the computer. Also allows interfacing to other software packages.
Software control of both pump and brake allows remote operation of the equipment over an internet.
Supplied with full education software package including comprehensive results processing and help facilities.
This auxiliary pump is intended to be used in conjunction with the basic Hydraulics Bench. The auxiliary pump is mounted on a support plinth which stands adjacent to the Hydraulics Bench primary pump. This accessory comprises a fixed speed pump assembly and independent discharge manifold interconnected by flexible tubing with quick release connectors.
....
Distance between balance pan and knife edge: 285mm.
Quadrant, 75mm internal radius, 150mm outer radius, 60mm width.
Balance arm.
Balance pan.
Beam level indicator.
Water tank, Perspex, capacity: 10 liters with level adjustment support screws at the base.
Set of standard weights.
Spirit level.
Adjustable counter-balance.
Computer based learning software.
Overall dimensions: Height: 0.45m, Width: 0.3m, Length: 0.55m.
Services required: Water supply and drainage.
Flow Meter Demonstration Unit is a self-contained apparatus to demonstrate the attributes of flow meters utilized in measurement of water flow via pipes or open channels. Metering devices available in different combinations to suit coursework. Reference turbine flowmeter permanently fitted. Service module with reservoir, volumetric measuring tank & pump.
....
The channel is equipped with a PVC inlet tank, and is developed for free discharge into the Hydraulics Bench. The is a compact open channel flume that is available in 2.5 m or 5.0 m lengths, with clean acrylic sides to the working part for complete visibility of the flow. The inlet tank includes a stilling arrangement to spread the water flow out before to entry into the channel for ensuring smooth uniform flow. Bed pressure tappings & fixing points for models are provided. A longitudinal scale set at the top of the channel allows depth gauges & Pitot-static tubes to be precisely located along the channel length. The level in the working part of the flume is controlled utilizing an overshot weir at the discharge end. The offered flume is mounted on a hard framework, and can be tilted by utilize of a calibrated screw jack that allows exact slope adjustment of the channel.
....
Spindle pump for pressure generation and fine adjustment.
Piston allows calibration over a wide range of pressures.
This unit allows pressure gauges to be accurately calibrated up to 300 bar, with an accuracy of +0.015%.
Priming pump.
A spirit level (or bubble level) and rotating foot studs are provided to enable the student to level the unit.
Laboratory calibration certificate.
Mineral oil is used as the hydraulic fluid.
Carrying cases for the unit and weights.
A set of weights, a set of adapters for the pressure gauges, spare seals and a bottle of oil are supplied.
These sources provide low or high flow rates that may be controlled by a valve at the discharge end of the test pipe. Head loss between two tapping points in the test pipe is measured using two manometers, a water over mercury* manometer for large pressure differentials and a pressurized water manometer for small pressure differentials.
The Energy Losses in Pipes accessory made up of a test pipe, orientated vertically on the side of the equipment, which may be fed directly from the Hydraulics Bench supply or, alternatively, from the internal constant head tank.
Water discharging from the head tank is returned to the sump tank of the Hydraulics Bench.
Features:
Feed either direct from hydraulics bench or from constant head tank.
Fast release fitting for easy connection to hydraulics bench.
Vertical test pipe with pressure tappings at entry and exit.
Water and mercury manometers supplied as standard.
The orifice is set at the base of the tank through a special wall fitting that provides a flush inside surface. In the Orifice and Free Jet Flow accessory a constant head tank is fed with water from the Hydraulics Bench. A jet trajectory tracing device allows the path followed by the jet to be ascertained. The head is maintained at a constant value by an adjustable overflow and is indicated by a level scale.
....
To determine metacentric height of floating body and height variation with tilt angle. Tilt angle indicated by plumb bob on attached scale. Rectangular pontoon; centre of gravity can be moved side way by moving horizontal jockey weight, and vertically via adjustable vertical weight on mast.
....
A floor standing unit developed to simulate perfect flow, demonstrate Hele-Shaw principles & accept student made models.
Includes dye injection system and adjust-able knife edge weir for rapid, accurate adjustments of table flow.
A system of pipes, valves and manifolds enables any configuration of sinks and sources to be used.
Working section support and end tanks moulded from glass reinforced plastic (GRP).
Working section made from laminated glass (dimensions of top glass 606mm x 892mm).
Lower glass plate incorporates 8 pre-con-nected sinks/sources in cruciform pattern and viewing graticule.
Includes 3gm blue dye powder to make one litre dye solution and comprehensive in-struction manual with illustration.
An easily cleaned dye injection system is incorporated.
Fluid enters a vertically mounted test section through a carefully profiled bell mouth from a constant head tank.
Fluid flow is controlled by a needle point globe valve.
Supply comprises stilling bed, hoses & dye
Floor standing apparatus to produce classic Osborne Reynolds' experiments.
A mobile self-contained Multi-Pump Test Rig, containing all the services & instrumentation for determining the characteristic curves of eight different pumps at different speeds.
For Rotodynamic Pumps:
Pressure head vs flow
Power absorbed vs flow
Pump efficiency vs flow
For positive displacement pumps:
Flow vs pressure head
Power absorbed vs pressure head
Volumetric efficiency vs pressure head
Centrifugal pump and gear pump supplied as standard
Axial pump, flexible impeller pump, turbine pump, diaphragm pump, plunger pump and a second centrifugal pump are all available as accessories
Contains five different pump positions (four active at the same time). Digital readout enables mounting of selected pump
Control valve incorporated upstream of each pump (except axial pump) to demonstrate the effect of suction loss on performance
Electronic measurement of flow, pressure head, suction head and motor torque
Optional volumetric flow measurement system for reciprocating pumps
Series/parallel pump demonstrations can be performed with the second centrifugal pump option
A PC (not supplied) is used to set the required speed of the pump(s) on test. A separate mimic diagram for the selected pump(s) on test displays the important measured and calculated variables
Data logging and educational software included.
The equipment is mounted on a free-standing framework which supports the test pipe work and instrumentation. These tappings are connected to a bank of twelve water manometer tubes, mounted on the framework. The following typical pipe fittings are incorporated for study: mitre bend, 90o elbow, sweep bends contraction and sudden enlargement. Pressurization of the manometers is facilitated by a hand pump. All are instrumented with upstream and downstream pressure tapping. A gate valve is used to control the flow rate. A separate gate valve is instrumented with upstream and downstream pressure tappings which are connected to a differential gauge on the edge of the framework.
....
A unit for the detailed study of fluid friction head losses which occur when an incompressible fluid flows through pipes, fittings and flow metering devices.
A substantial floor standing tubular steel frame supports test circuits comprising:
4 smooth-bore pipes of different diameters ranging from 4.5mm I.D. to 17.2mm I.D.
artificially roughened pipe
90o bends (large & small radii)
90o elbow
90o mitre
45o elbow, 45 Y, 90 T
Sudden Contraction
Sudden Enlargement
Globe Valve
Perspex Orifice Meter
Perspex Venturi
Gate Valve
Ball Valve
Inline Strainer
38 Tapping Points
Perspex Pipe Section With A Pitot Tube & Static Tapping.
The Impact of a Jet apparatus consists of a cylindrical clear acrylic fabrication with provision for levelling. The dead weight of the moving parts is counter-balanced by a compression spring. The vertical force exerted on the target plate is measured by adding the weights supplied to the weight pan until the mark on the weight pan corresponds with the level gauge. A weight carrier is mounted on the upper end of the stem. A total of four targets are provided: a flat plate, a 120 cone and a hemispherical cup. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem which extends through the cover.
....
The apparatus includes a clear acrylic cylinder on a plinth developed to produce & measure free and forced vortices.
The forced vortex is induced by a paddle in the base of the cylinder which is rotated by jets of water. The profile of the forced vortex is determined using a series of depth gauges.
The free vortex is generated by water discharging through an interchangeable orifice in the base of the cylinder and the resulting profile is measured using a combined caliper and depth scale.
Dye crystals (not supplied) may be used to demonstrate secondary flow at the base of the free vortex
Velocity at any point in the free or forced vortices may be measured using the appropriate pitot tube supplied.
Cavitation Demonstration is a small scale apparatus designed to demonstrate Cavitation utilizing an Hydraulics Bench
Flow control valves upstream and downstream of the test section allow flow conditions to be optimised for the demonstration of Cavitation
The apparatus consists of a circular Venturi shaped section manufactured from clear acrylic
Three Bourdon gauges indicate the static pressure upstream of the contraction, inside the throat and downstream of the expansion
Educational software available as an option
Quick release fitting for easy connection to hydraulics bench.
The permanent arrangement of PVC pipes and fittings is mounted on a freestanding support frame that is designed to stand alongside Hydraulics Bench in use.
Self-sealing quick release fittings at strategic points in the network allow rapid connection of the digital hand-held pressure meter, allowing appropriate differential pressures to be measured. Flow leaving any of the outlets in the network is measured using the volumetric facility incorporated on the Hydraulics Bench.
All clear acrylic test pipes are installed using threaded unions with 'O' ring seals that allow the pipes with different diameters to be repositioned without the use of tools.
Isolating valves allow a wide range of different series, parallel and mixed pipe configurations to be created without draining the system. Flow into the network and flow out from the network at each outlet can be individually varied to change the characteristics of the system.
The Osborne Reynolds' Demonstration operates in a vertical mode. Flow through this pipe is regulated using a control valve at the discharge end. A header tank containing stilling media provides a constant head of water through a bellmouth entry to the flow visualisation pipe. Velocity of the water can therefore be determined to allow calculation of Reynolds' number. The flow rate of water through the pipe can be measured utilizing the volumetric tank (or measuring cylinder) of the Hydraulics Bench.
The equipment uses a similar dye injection technique to that of Reynolds' original apparatus to enable observation of flow conditions.
A free standing unit developed to demonstrate the phenomena of pipe surge & water hammer when connected to a Hydraulics Bench.
Electronic sensors used to measure pressure transients at two locations in the water hammer test pipe, one adjacent to fast acting valve and one half way along the test pipe.
Includes two separate stainless steel test pipes, both 3m long, constant head tank, slow acting valve, fast acting valve etc
Straight metal pipes used, rather than a coiled arrangement, to minimize distortion to the pressure profile
A transparent surge shaft (40 mm diameter and 800mm high) with scale allows transient water levels to be observed and timed
Pressure transients monitored using a PC (not supplied) using a USB connection from the pressure transducers (requires no external electrical supply).
The Flowmeter Measurement Apparatus consists of a Venturi meter, variable area meter and orifice plate, installed in a series configuration to permit direct comparison. Pressure tappings are incorporated so that the head loss characteristics of each flow meter may be measured. Pressurisation of the manometers is facilitated by a hand pump. These tappings are connected to an eight tube manometer bank incorporating a manifold with air bleed valve. A flow control valve permits variation of the flow rate through the circuit.
The bench is used as the source of water supply and for calibrating volumetrically each flow meter. The circuit and manometer are attached to a support framework which stands on the working top of the Hydraulics Bench.
Features:
The 2 tubes facilitate comparison of the viscosity of two liquids, effect of boundary layer separation on motion of sphere. Set of balls with various diameters and materials.
2 tubes, 1.5m long, with guide marks, and valves at bottom for the removal of balls with minimum loss of liquid.
Fluorescent lamp for illumination.
The apparatus comprises an experimental model hull, a rigid supporting frame, a vibrator (complete with signal generator and power amplifier) and an optional Flotation Tank.
Apparatus designed to enable students to investigate a simple model hull form for resonance phenomena.
Can be used to investigate resonance phenomena in both air and water.
Used to demonstrate the principle phenomena associated with ship resonant vibration.
The experimental model is flat bottomed, wall-sided and open topped. It has an elliptical plan form.
Length to Depth ratio 12:1
Length to Beam ratio 8:1.
This spectrum of equipment has now been reinforced & extended with an integrated array of hydrostatics teaching accessories together with some latest hydraulics products. As a result, the complete curriculum can be covered with this outstanding collection of products.
As a key manufacturer, supplier and exporter, we are enthusiastically involved in offering comprehensive assortment of equipments like Complete Fluid Mechanics Laboratory that covers all facets of the teaching of hydraulics in a visual, safe & convenient to understand way, backed up by supreme quality teaching materials.
This spectrum of equipment has now been reinforced & extended with an integrated array of hydrostatics teaching accessories together with some latest hydraulics products. As a result, the complete curriculum can be covered with this outstanding collection of products.
As a key manufacturer, supplier and exporter, we are enthusiastically involved in offering comprehensive assortment of equipments like Complete Fluid Mechanics Laboratory that covers all facets of the teaching of hydraulics in a visual, safe & convenient to understand way, backed up by supreme quality teaching materials.
Demonstrates the basic principles of hydrostatics and manometry
Single piezometer manometer tube, Scale length 460 mm
Inclined manometer with inclinations of 5o, 30o, 60o and 90o (vertical)
Includes vertical tube with variable cross section, Scale length 460 mm
Includes demonstrations of the following types of manometer:
Enlarged limb-manometer
'U' tube manometer (liquid over liquid), Scale length 460 mm
'U' tube manometer (air over liquid), Scale length 460 mm
Level measurement using Vernier hook and point gauge, Range 0 to 150 mm with 0.1 mm resolution
Allows the effect of friction to be demonstrated when fluid is in motion.
Inverted pressurized U tube manometer, Scale length 460 mm.
Boundary layer growth is determined by the measurement of the velocity profile at four stations along the pipe using a traversing Pitot tube.
A bend or mitred cascade elbow may be fitted mid way along the smooth wall pipe for comparison of pressure losses.
Air enters the smooth walled pipe through one of the two flow measurement nozzles provided. Pressure tappings along the length of the pipe permit the pressure gradient to be determined.
The equipment includes a long smooth walled pipe joined to the suction side of an electrically operated centrifugal fan. The fan discharge pipe terminates in a flow control damper for closed conduit work or a plate containing a small aperture for jet dispersion measurements.
A conventional flow measuring orifice plate is supplied for installing in the pipe upstream of the fan for additional demonstrations of pressure loss and recovery.
The equipment is mounted on a floor standing steel frame with an adjacent support for the extended suction pipe. Pressure measurements are made on a multi-tube inclinable manometer mounted on the support frame.
Air jet studies are carried out on the discharge side of the fan. A Pitot tube is traversed vertically and horizontally at different distances from the discharge orifice to investigate the dispersion properties.
The test section consists of a classical Venturi machined in clear acrylic. A series of wall tappings enable measurement of the static pressure distribution along the converging duct, while a total head tube is provided to traverse along the centre line of the test section.
The Venturi can be demonstrated as a means of flow measurement and the discharge coefficient can be determined.
The test section is arranged so that the characteristics of flow through both a converging and diverging section can be studied. Water is fed through a hose connector and is controlled by a flow regulator valve at the outlet of the test section.
A clear understanding about the physical properties of fluids is essential before studying the behaviour of fluids in static or dynamic applications.
This apparatus introduces students to the following properties of fluids:
Capillarity - capillary elevation between flat plates and in circular tubes
Density and relative density (specific gravity)
Viscosity
Atmospheric pressure
Buoyancy (Archimedes principle).
Apparatus designed to enable students to study ship hydrostatics and stability.
Supply includes a water tank, a floating ship model, a dynamometer and a clinometer.
The model is constructed of glass reinforced plastic (GRP).
Models of other ships are available as optional accessories.
The compartments are fitted with individual flooding valves.
The model supplied is a 1/70 scale model of a 28000 tonne general cargo vessel.
It includes a number of transverse watertight bulkheads in representitive positions.
It is floor standing, with castors and is supplied complete with counterweights.
Battery powered clinometer measures the inclination of the model, over the range of 0 to 45 degrees.
The dynamometer measures the righting moment of the model.
It holds the model at any angle of heel within the range, with the model either free to trim or with heeling axis kept horizontal.
It exerts no vertical force on the model.
A bench top unit meant to demonstrate & teach the fundamentals of compressible flow to engineering students
Four electronic pressure sensors
Test Sections made from clear acrylic
Complete with convergent-divergent duct capable of achieving Mach-1 velocity at the throat
Advanced torque-vector speed control with electronic torque measurement
Data Logging accessory, complete with educational software and electronic temperature sensor.
Additional test sections available (6 off) complete with bench-top stand
Compressor test accessory available.
A floor standing flow channel for use with an Hydraulics Bench
Can be configured to demonstrate flow in open channels and closed conduits
Section of bed can be elevated continuously and locked at the required height
Working section 77mm wide, 150mm high and 1100mm long
Discharge tank incorporates flow control valve for convenience in setting up
Clear acrylic sides for good visibility of flow patterns created
Stilling arrangement at inlet to promote smooth flow into the working section
Total and static heads indicated on multi-tube manometer connected to Pitot tubes and static tappings at three locations in working section
Models of hydraulic structures supplied include Undershot Weir (Sluice gate) at the inlet, Overshot Weir at the outlet, Sharp Crested Weir, Broad Crested Weir (also used to create a Culvert) and Ogee Weir
Pitot tubes mounted through bed of channel for ease of priming and height adjustment (can be traversed from floor to roof to measure velocity profile)
Optional direct reading flowmeter to aid setting up of demonstrations
Comprehensive instruction manual supplied
Transparent scales allow measurement of all important heights and levels
Suitable for project work with alternative hydraulic structures (user created).
The Flow Channel made up of a clear acrylic working section of large depth to width ratio incorporating undershot and overshot weirs at the inlet and discharge ends respectively.
Models supplied with the channel include broad and sharp crested weirs, large & small diameter cylinders and symmetrical & asymmetrical aerofoils which, in conjunction with the inlet and discharge weirs, permit a varied range of open channel and flow visualisation demonstrations.
A dye injection system incorporated at the inlet to the channel permits flow visualisation in conjunction with a graticule on the rear face of the channel.
Water is fed to the streamlined channel entry via a stilling tank to reduce turbulence. Water discharging from the channel is collected in the volumetric tank of the Hydraulics Bench and returned to the sump for recirculation.
The Orifice Discharge accessory consists of a cylindrical glass tank which has an orifice fitted in the base. A traverse assembly is provided which enables a pitot tube to be positioned anywhere in the jet. These are supplied in an attractive storage case. A label inside the lid gives dimensional details of each orifice. The pitot head and the total head across the orifice are shown on manometer tubes adjacent to the tank. In addition to the standard orifice, supply includes four additional orifices. Attached to this pitot tube is a sharp blade which can be traversed across the jet to accurately measure the jet diameter and the vena contracta diameter and so determine the contraction coefficient.
....
Features:
Fast release connectors on manometer tubes & quick release fastenings for convenient model changing
Computer controlled air flow
Broad array of models for aerodynamics as well as air flow studies
Selection of electronic or water manometer banks
Transparent working part for visibility
150mm (6" nominal) square working section.
This Pascals Apparatus, developed to demonstrate principle of Pascal, consists of a machined body incorporating a horizontal flexible diaphragm to which one of three alternative glass vessels can be fitted. The diaphragm, located at the base of the vessel, conveys the force from the water inside the vessel to a lever arm with a sliding counterweight. The force on the diaphragm depends on the depth of water above the diaphragm and the area of the diaphragm that is constant for all three vessels. A spirit level indicates when the lever arm is horizontal and therefore balancing the force / pressure at the base of the vessel. The diameter at the base of each vessel is common but the shape of each vessel varies; one parallel sided, one conical and one tapering inwards.
....
The following experimental apparatus is included: instruments
Universal Hydrometer And Hydrometer Jars
Hook And Point Gauge
Mercury Barometer (Mercury Not Supplied)
Falling Sphere Viscometers
U-Tube Manometers
Bourdon Gauge
Free Surface Tubes
Deadweight Pressure Gauge Calibrator And Weights
Parallel Plate Capillary Apparatus
Pascal's Apparatus
Measuring Cylinder
Capillary Tube Apparatus
Hydrostatic Pressure Apparatus
Thermometer
Lever Balance With Displacement Vessel, Bucket And Cylinder
Metacentric Height Apparatus
Stop Clock
Air Pump
600ml Beaker.
This dead weight pressure gauge calibrator made of a precision machined piston & cylinder assembly mounted on levelling screws.
The gauge is thus subject to known pressures, which may be compared with the gauge readings and an error curve drawn.
A Bourdon gauge is supplied for calibration. The weights supplied are added to the upper end of the piston rod, which is rotated to minimise friction effects.
The Flow Over Weirs is a kit containing two types of sharp crested weirs and a level gauge. The weirs have opening or sections at the top that allow flow; the Thomson weir with V-profile opening, the weir with rectangular profile opening. A sharp crested weir constricts an open channel flow, and helps in measuring flow rate using level gauge contained within the set.
The Flow over Weirs consists of five basic elements used in conjunction with the flow channel in the moulded bench top of the hydraulics bench.
A Vernier hook and point gauge is mounted on an instrument carrier, which is located on the side channels of the moulded top. The carrier may be moved along the channels to the required measurement position.
A quick release connector in the base of the channel is unscrewed and a delivery nozzle screwed in its place.
A stilling baffle locates into slots in the walls of the channel. The inlet nozzle and stilling baffle in combination promote smooth flow conditions in the channel.
The rectangular notch weir or Vee notch weir to be tested is clamped to the weir carrier in the channel by thumb nuts. The weir plates incorporate captive studs to aid assembly.
