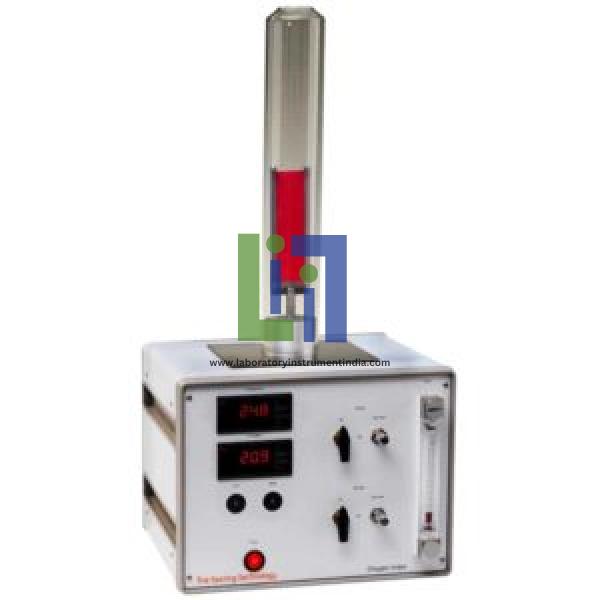

Features:
Quick loading of test specimen into test chimney measuring 450 × 75mm
Digital display of oxygen percentage in atmosphere during test (no calculations needed)
Compact design
Digital readout for oxygen concentration ± 0.1%
Oxygen cell for assessing accurate oxygen levels (<0.1%)
Digital display of temperature of gas mixture entering the test chimney
Sample holders for both rigid and flexible samples supplied
Compact unit for efficient use inside a laboratory hood, with ventilation
Automatic flow control gives oxygen level adjustment by turning one single valve
Shortened gas path for rapid response

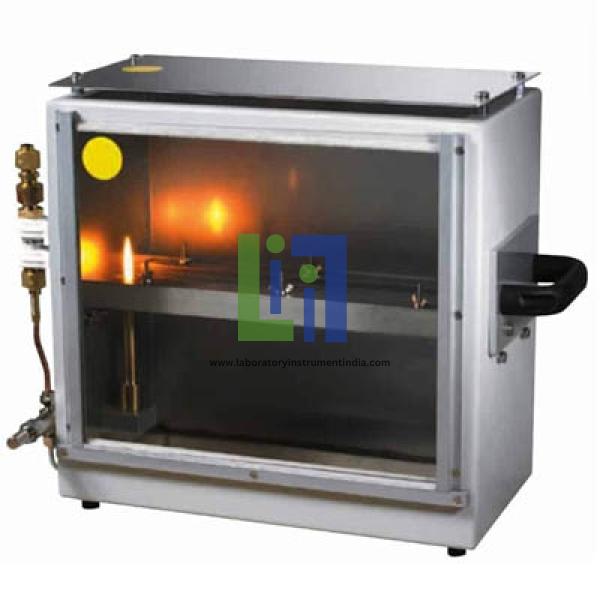

Features:
Ignition source with fine-adjustment valve
Stainless steel combustion chamber
Timer
Specimen holder
Gas controls and safety flashback device.

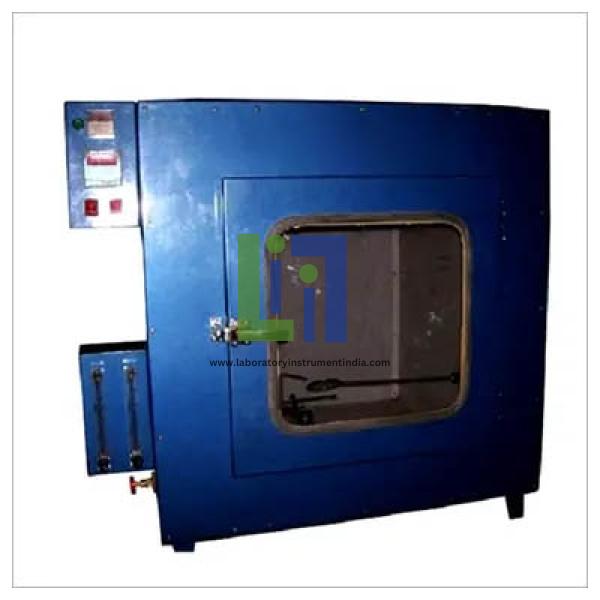

Features:
An internally mounted stirring fan for rapid mixing of combustion products
12 sampling ports on the side of the chamber
The gas burner has a spark ignition system which automatically reignites should the flame extinguish
A forced-air extraction system for evacuating the chamber after a test
A separate control unit houses the flowmeters, timer, methane and air controls
The combustion chamber has welded seams and a volume of 0.7m3.
Benefits
Built-in safety measures
Complete and ready-to-use system
User-friendly operations and control software

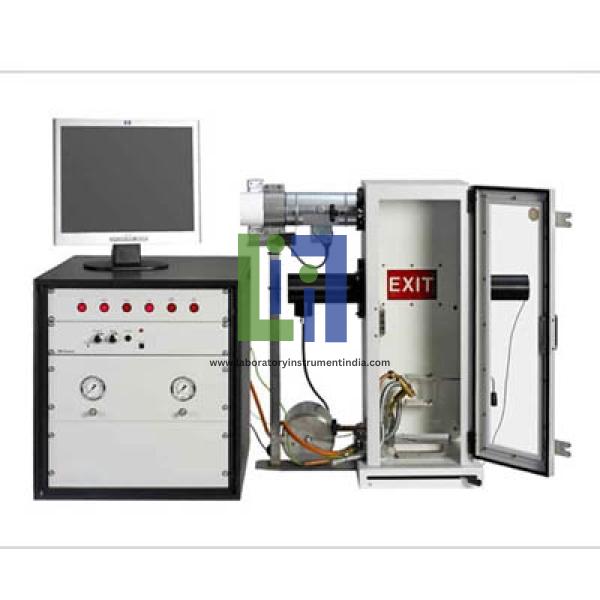

Features:
PLC integrated safety and control system, 24V DC powered
Independent burner control
Combustion chamber
Specimen holder
Light-source control 5V DC switch mode power supply
Convection cooling
Ignition system
Photometric system
Thermocouple type K interlock for main and auxiliary burners
Fan and exhaust damper control
Various built-in safety measures including over-voltage and over-current protection
Control unit, including smoke meter
Exit Sign software.

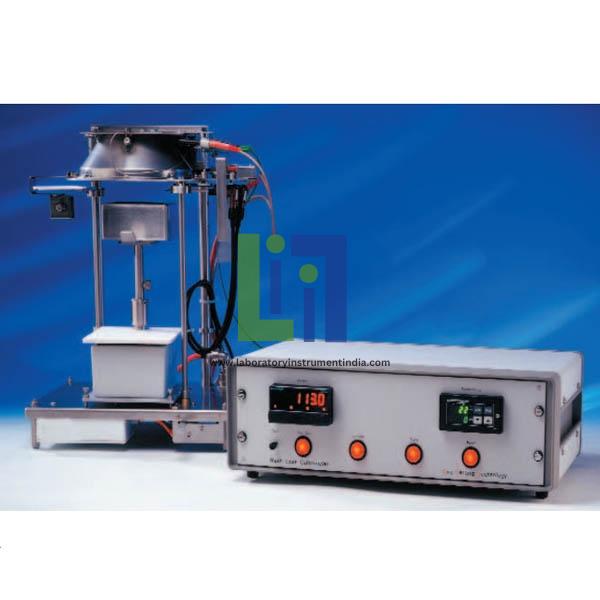

The Heat Release apparatus measures time to ignition, mass loss and heat-release rate (option) of specimens exposed in the horizontal orientation to controlled levels of irradiance with an external igniter.
On the front panel, the following are mounted:
Load cell controller
Tare button
Temperature Controller
Control switches comprising four red on/off push-button switches, which operate by firm pressure and light up when activated:
Ignition switches on the spark-generator circuit housed in the test chamber base
Load cell switches on the Newport controller
Power switches on mains electricity to the unit
Cone switches on the Eurotherm controller. This, in turn, energises a solid state relay, which switches the power to the cone heater (5kW)
Features:
Special split shutter mechanism is designed to prevent heating of the sample before the test is started
Fire model manufactured from stainless steel for long life
Three control thermocouples for the cone heater to maintain accurate heat flux
Sample weight measurement is by a strain gauge load cell with quick electronic tare facility
Control unit contains switches for power, ignition, load cell and cone heater
Spark assembly is used in conjunction with the shutter mechanism. Microswitches are fitted to the spark arm and the shutter mechanism for safe operation
Load cell controller with a weight-ranging facility to improve performance to suit weight of sample 0-500g
Temperature controller for ramp and control of cone heater.

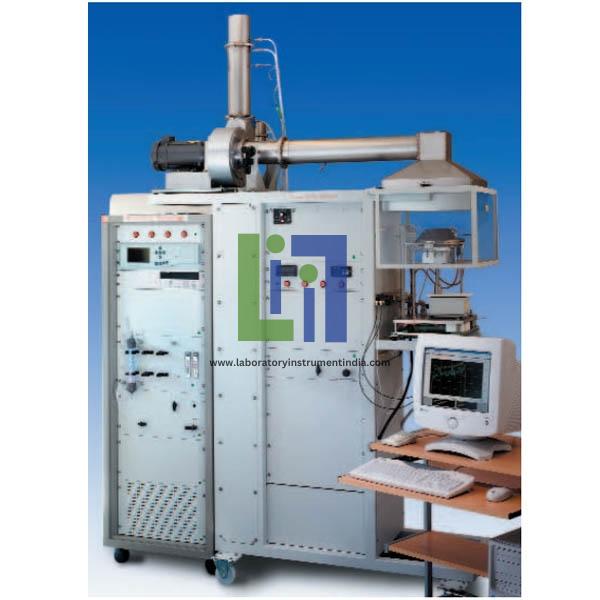

The Cone Calorimeter has been produced to be the most compact and easily maintained unit in the marketplace. It fits into the smallest of labs and is easy to operate using the user-friendly, menu-driven software, which guides users through the calibration, testing and reporting protocols. The name of the cone calorimeter was derived from the shape of the truncated conical heater the designer, Babrauskas, used to irradiate the test specimen (100 × 100mm) at fluxes up to 100 kW/m2 in the bench-scale oxygen-depletion calorimeter that he and his co-workers developed.
....
