Features:

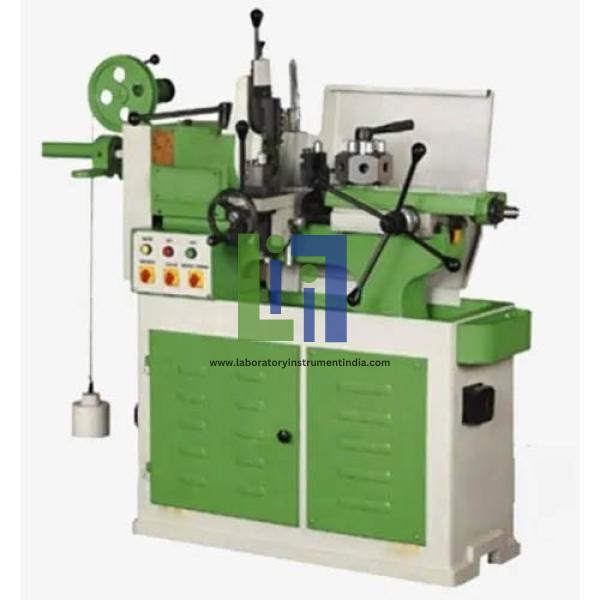

Enable repetitive production of same job requiring less involvement, effort and attention of the operator for Presetting of work speed and feed rate and length of travel of the cutting tools
Suitable for batch production or small lot production
Semi Automatic
More productive for quick engagement and overlapped functioning of the tools in addition to faster mounting and feeding of the job and rapid speed change
Possesses an axially movable index able turret in place of tail stock.

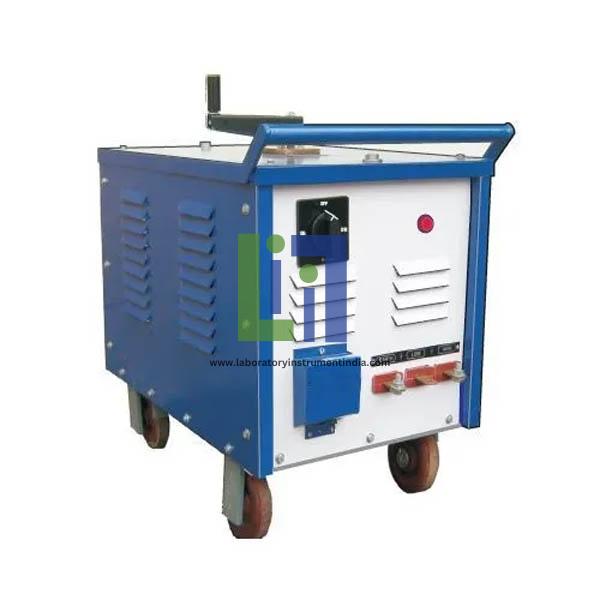

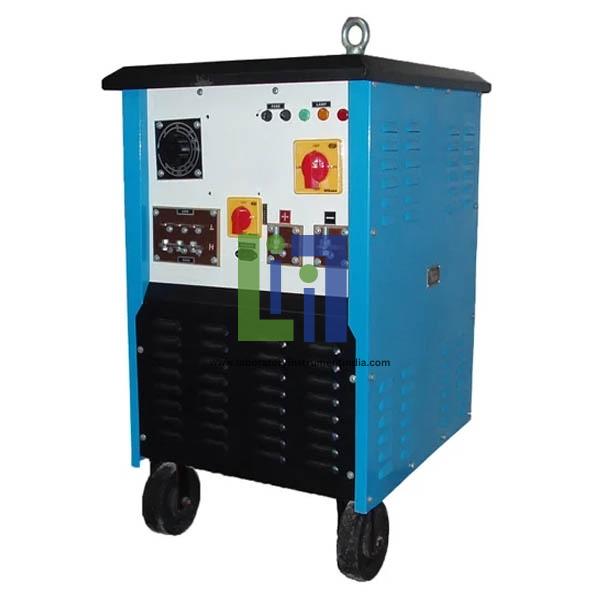

Welding Current Range: 35-300A 60-400A 80-500A
Welding Voltage Range: 24-32 V 25-38 V 25-40 V
Continous Hand Welding
Current at 55prct. duty cycle.: 240A 300A 400A
Max Intermittent Current
At 35 prct.duty cycle: 300A 400A 500A
Continuous Voiding Current
at 100 prct. duty codes: 170A 21 OA 260A
Open Circuit Voltage: 65V 75V 75V
The unique smooth ARC with the feedback and filter transducter choke to minimise the ripples and give quality welds and clear X-Rays. Stepless transducting controlled ARC Welding Rectifier. Especially for critical weldingusing low hydrogen and stainless steel electrodes. Perfect open circuit voltage gives goodstrike properties. Large reserve voltage permitting longer welding cables. Varitrans is provided for setting the current through out the entire range, settings can also be changed during welding. No Fuss striking due to start surge current.
....
Precision Welding:
The movable jaws run on precision ball typeguides which reduce friction to almost nothing and ensure utmost welding accuracy. Minute precision control is ensured by theuse of latest control devices.
Operation:
All the parts have been duly dimensioned; clearlyarranged simple levers ensure easy operation even for unskilled workers. Sturdy in construction, Butt Welder is sodesigned as to facilitate reliable and easy operation even by unskilledpersonnel. Clamping arrangements are by quick action clamps and the alignment is automaticand perfect which is so essential in modern production methods. It is most suitable for industrial conditions and will give a longlasting dependable service.
Surfacing capacity: 455/18 610/24 254/10
Max.planing width: 455/18 610/24 254/10
Thicknessing capacity: 200/8 200/8 177/7
Length of surface table: 1550/61 1550/61 1140/45
Rebating capacity: 12.5/1/2 12.5/1/2 12.5/1/2
Length of thickness table: 760/30 915/36 610/24
Min.length of workpiece for thicknessing: 254/10 254/10 254/10
Feeding speed (feed per minute): 24 24 24
Cutter block diameter: 120/4.72 120/4.72 95/3.75
Cutter block speed (rpm): 4000 4000 4000
Up/down movement of cir.saw table: 75/3 75/3 75/3
Max.circular saw diameter: 300/12 300/12 300/12
Power required - hp/rpm: 5/1440 5/1440 2/1440
mm/inch mm/inch mm/inch

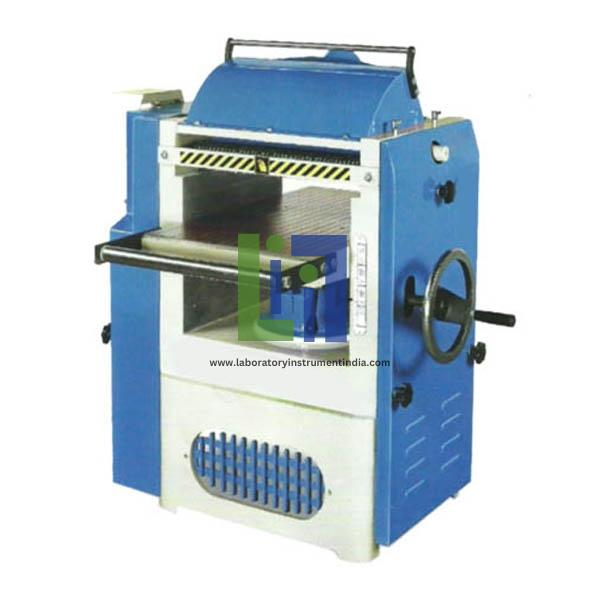

Max. Planing width: 330/13 381/15 455/18
Thicknessing capacity: 177/7 177/7 177/7
Length of thickness table: 640/25 1/4 710/28 735/29
Min. Length of workpiece for thicknessing: 254/10 254/10 254/10
Feeding speed (feet per minute): 24 24 24
Cutter block diameter: 95/3.75 95/3.75 95/3.75
Cutter block speed (rpm): 4000 4000 4000
Size of dust collector port-dia: 100/4 100/4 100/4
Power required hp/rpm: 3/1440 3/1440 5/1440
mm/Inch mm/Inch mm/Inch
Table size: 560 x 255/ 22 x 10 550 x290/21.1/2x111/2 560x255/22x10
Up/down movement of table: 90/31// 75 / 3 75/3
Cross movement of table: 100/4 100/4 100/4
Longitudinal movement of table: 305/ 12 305/ 12 305/ 12
Max. depth of cut: 140/51/2 140/51/2M 140/5 54
Power required hp/rpm: 3/1440 2/1440 2/1440
Heavy Duty Light Duty
6ft 8ft 6ft 8ft
mm / inch mm / inch mm / inch mm / inch
1825/72" 2435/96 1825/72 2435/96
130/5" 130/5 130/5 130/5
203/8" 203/8 165/6 165/6
1220/48" 1830/72 1220/48 1830/72
700/1400/2800 700/1400/2800 700/1400/2800 700/1400/2800
190/714" 190/7 190/7 190/7
1/1440 1/1440 1/1440 1/1440

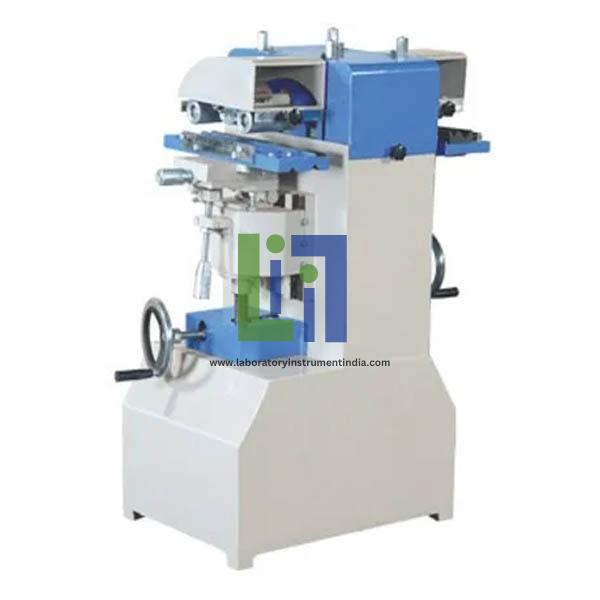

Double Auto Mould Auto Mould
mm/inch mm/inch mm/inch
Work table size: 455x150 /18x6 455x150/18x 6 455x150/18x6
Up/down movement of table: 100/4 63/2 1/2 100/4
Longitudinal movement of table: 50/2 25/1 50/2
Table tilt-degree 15 - 15
Feeding speed (feet per minute): 24 24 24
Moulding block speed (rpm): 4000 4000 4000
Max.moulding block width: 114/4 1/2 75/3 114/4 1/2
Moulding block diameter: 95/3 3/4 95/3 3/4 95/3 3/4
Power required hp/rpm: 3/1440 - 3/1440

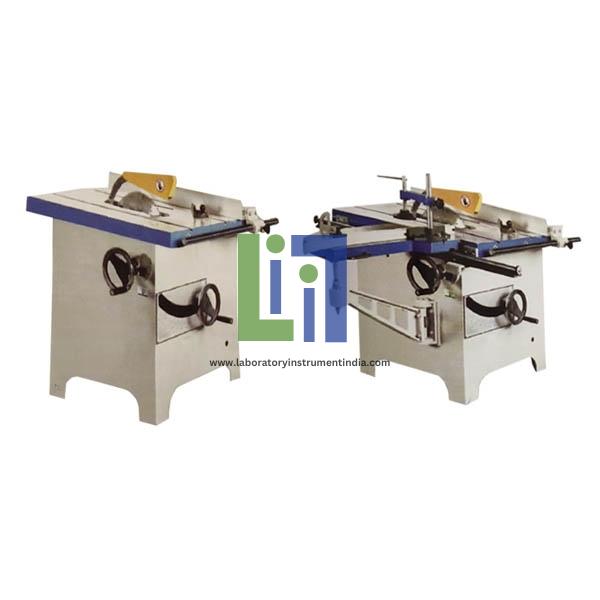

mm/inch mm/inch
Max circular saw diameter: 355/14 355/14
Max.depth of cut: 114/41/2 114/4 1/2
Arbour tilt-degree: 45 45
Work table size: 915x785/36x31 915x785/36"x31
Sliding table size: 710x400/28/15 3/4 -
Sliding table movement: 1000/39 -
Size of dust collection port-dia: 100/4 100/4
Circular saw speed (rpm): 4000 4000
Power required hp/rpm: 3/1440 3/1440

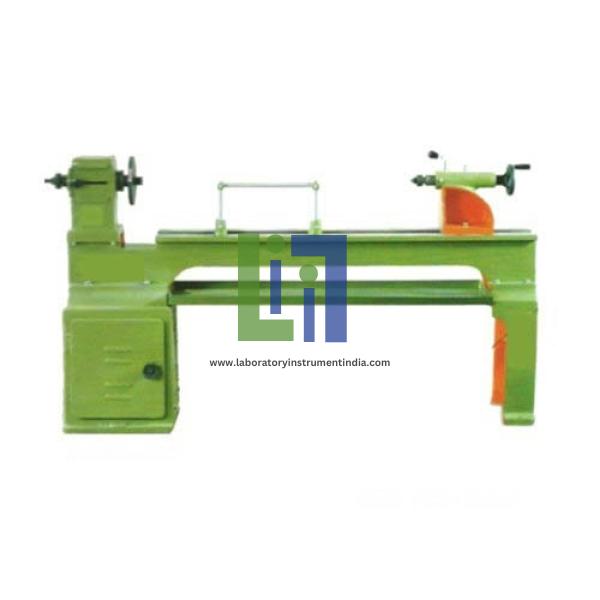

4.5 ft 6 ft 8 ft
mm / inch mm / inch mm / inch
Length of bed: 1370/54 1825/72 2435/96
Width of bed: 215/81/2m 215/8 54 215/81/2
Height of centres: 165/61/2m 203/8 203/8
Admit between centres: 760 / 30 1220 / 48 1830 / 72
Approx.Spindle speed (RPM): 700/1400/2800 700/1400/2800 700/1400/2800
Faceplate diameter: 190 / 7 1/2 m 190 / 7 1/2 190 / 7 1/2
Power required HP/RPM: 1 / 1440 1 / 1440 1 / 1440

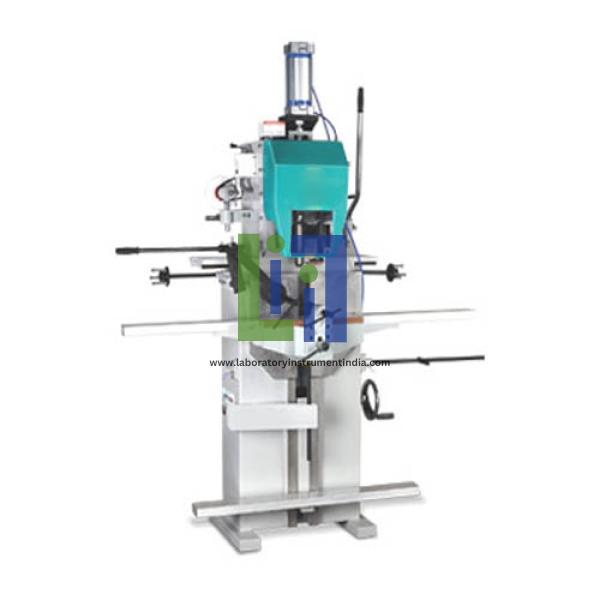

mm/inch
Table size: 455x 150/18x6
Max.height of workpiece on table: 254/10
Max.height of door or frame: 1000/39

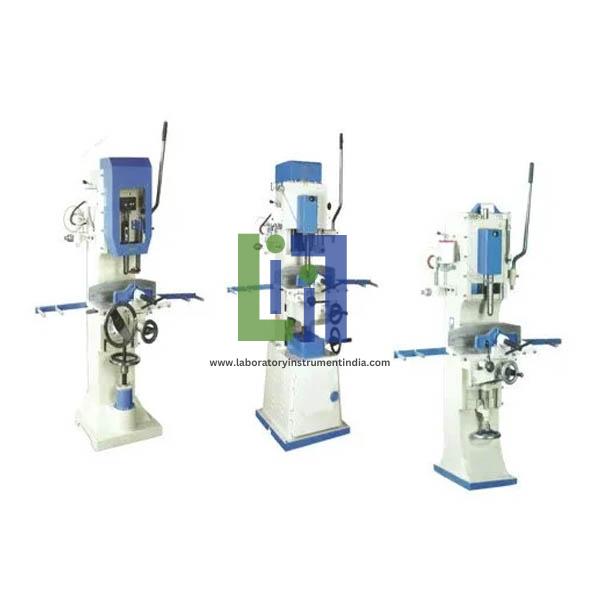

Max.depth of cut-chain mortiser: 140/51/2
Max.depth of cut-chisel mortiser: 90/31/2
Longitudinal movement of head/table: 305/12
Table tilt-degree: 45
Size of dust collection port-dia: 100/4
Air pressure required (kg/cm2): 5 to 7
Electric motor (hp/rpm): 2/1440

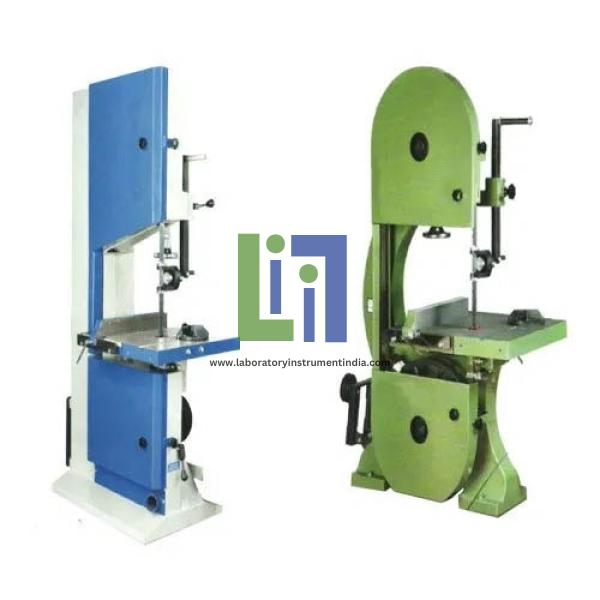

mm/inch mm/inch mm/inch mm/inch
Diameter of saw wheels: 305/12 455/18 305/12 455/18
Throat depth: 280/11 430/17 280/11 430/17
Max.cutting capacity: 150/6 254/10 150/6 254/10
Work table size: 380x380/15x15 535x585/21x23 355x380/14x15 508x560/20x22
Table tilt degree: 45 45 45 45
Width of saw wheels: 38/1 1/2 50/2 38/1 1/2 50/2
Speed of saw wheels (rpm): 500/750 500/750 500/750 500/750
Power required hp/rpm: 1.5/1440 2/1440 1.5/1440 211440
mm/inch
Throat clearance: 380/15
Spindle vertical movement: 25/1
Work table size: 355x355/14x14
Up/down movement of table: 125/5
Routing work table size: 610x420/24x161/2
Table tilt degree: 15
Spindle speed (rpm): 11000
Power required hp/rpm: 1.5/2800
mm/inch mm/inch mm/inch mm/inch mm/inch

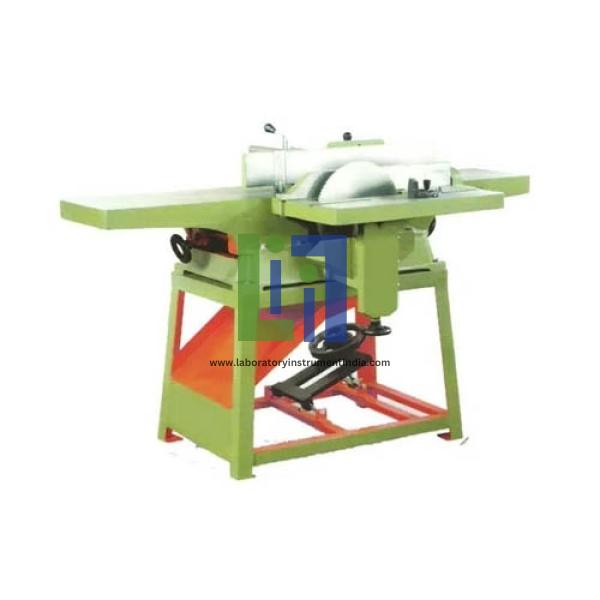

Surfacing capacity: 254/10 330/13 330/13 228/9 305/12
Length of surface table: 1220/48 1295/51 1550/61 1220/48 1220/48
Rebating capacity: 12.5/1/2 12.5/1/2 12.5/1/2 12.5/1/2 12.5/1/2
Cutter block diameter: 95/3.75 95/3.75 95/3.75 95/3.75 95/3.75
Cutter block speed (rpm): 4000 4000 4000 4000 4000
Up/down movement of cir.saw table: 75/3 75/3 75/3 75/3 75/3
Max.circular saw diameter: 300/12 300/12 300/12 300/12 300/12
Power required -hp/rpm: 2/1440 2/1440 3/1440 2/1440 2/1440

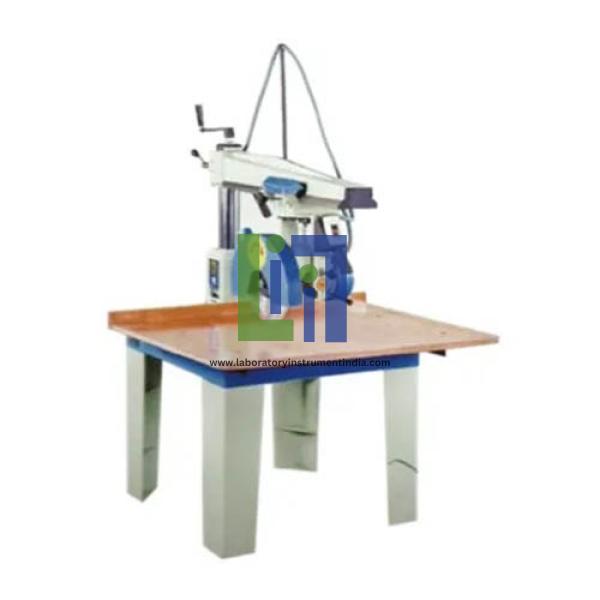

mm/inch
Max.circular saw diameter: 350/14
Max.depth of cut:v 90/3 1/2
Max.crosscut capacity: 550/21 1/2
Work table size: 890x 1145/35"x45
Power required hp/rpm: 3/2800

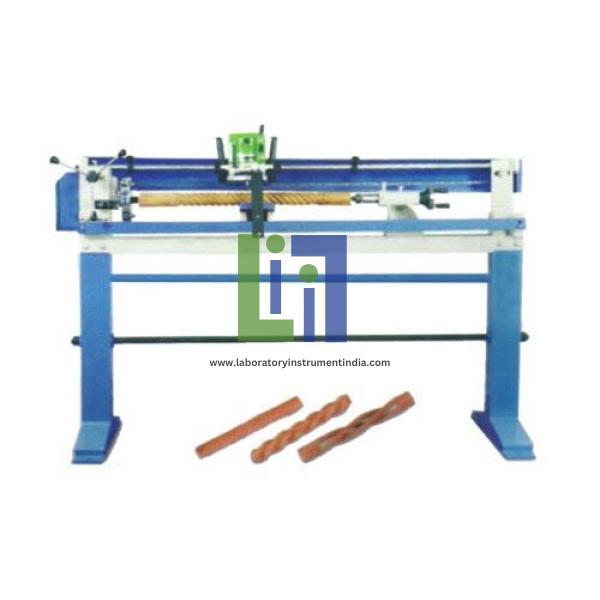

mm/inch mm/inch
Length of bed: -6.5ft 1805/71 1980/78
Height of centres: 220/8 5/s 165/61/2M
Admit between centres: 1000/39 3/8 1220/48
Max.work diameter: 200/8 150/6
Min.work diameter: 50/2 -
Max.working length: 970/38 1/8 -
Standard pitches: - 100/4,125/5,150/6,
175/7,250/10
Divisions: - UP TO 6
Face plate diameter: 265/10.5
Spindle speed (rpm): 570/1000 /1850/2500 -
Power required -hp/rpm: 1.5/1440 SINGLE PHASE
Features:

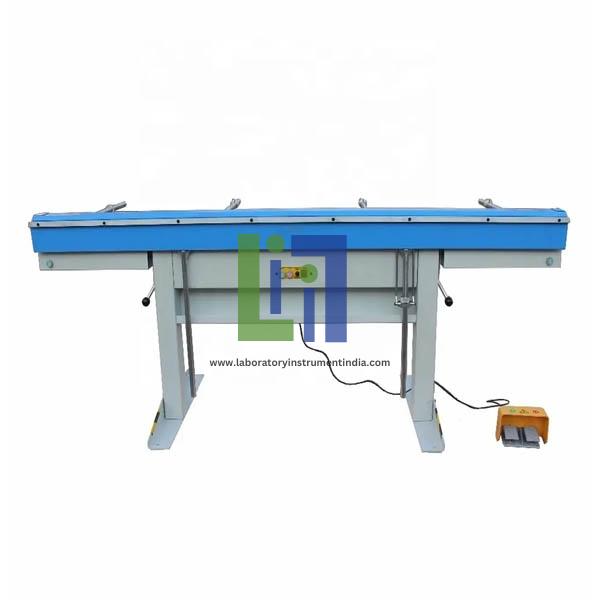

The sheet metal is clamped between the two by anelectromagnet capable of clamping with a force range of between 3-10 tons. The fundamental Principle of the Magnetic Bending Machine is that it uses electromagnetic, rather than mechanical, clamping system. Rotating the bending beam then forms the bend. The sheet is bent around thefront edge of the clamping bar. The machine consists of a long electromagnet with a steel clamp bar located above it. They have application in many ways with fourvarious sets clamping bars.

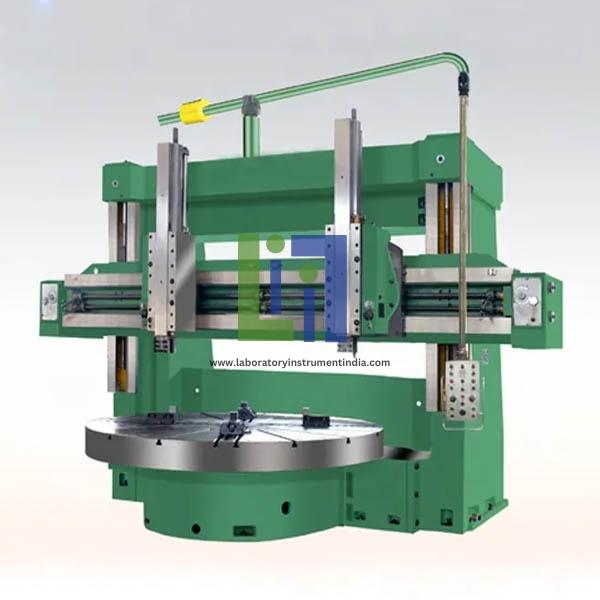

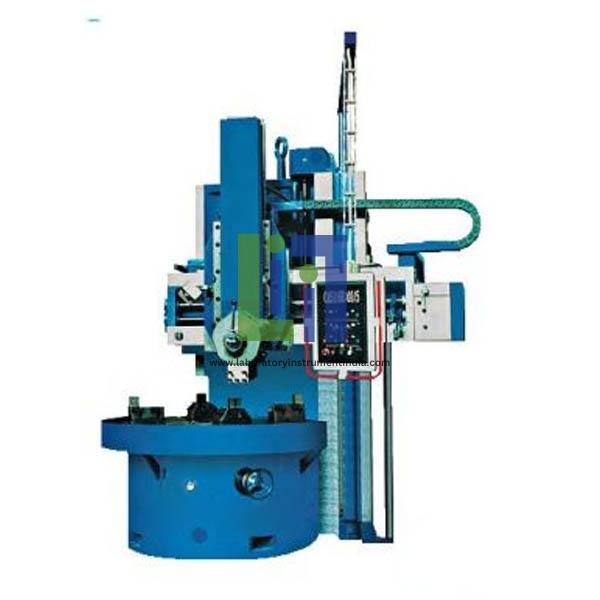

Max. Cutting Dia. For Vertical Tool Post: 1000mm 1250mm 1600mm 2000 mm
Max. Cutting Dia. For sideway tool past: 1000mm 1100 mm 1400mm 1800mm
Table dia.: 900mm 1000mm 1400mm 1800mm
Max. Work height: 800mm 1000mm 1000mm 1250mm
Max. work load: 2000 Kg. 3200Kg. 5000Kg. 8000Kg.
Table speed range: 16/8-250rpm 16/6.3-200rpm 16/5-160rpm 16/4-125rpm
Feed range for both tool past: 0.9-103 0.8-86 0.8-86 0.8-86
Horizontal travel for vertical tool past: 670mm 700mm 900mm 1110mm
Vertical travel for vertical tool past: 650mm 650mm 800mm 800mm
Horizontal travel for sideway tool past: 500mm 500mm 650mm 630mm
Vertical travel for vertical tool past: 810mm 900mm 900mm 1110mm
Ram travel: 580mm 650mm 650mm 650mm
Main motor power: 22kW 22kW 22kW 30kW
Machine Weight: 7100Kg. 8500Kg. 13000 Kg. 17500Kg.
Features:
For Press Fitting and Pulling Bearing
4-Position Plate
High Quality Steel Body Design.

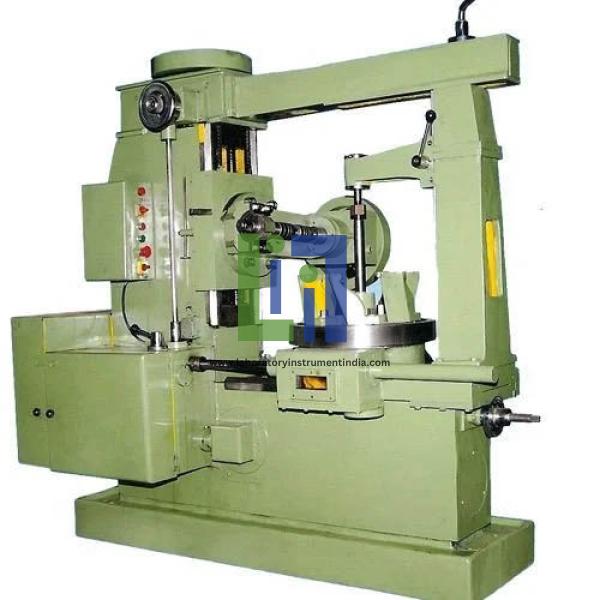

Maximum Dia. of Spur Gear: 18 30
Minimum Dia. of Spur Gear: 1/2 1
Maximum Module: 5 Module 8 Module
Maximum Travels of Hob Slide: 10 12
Maximum Helical Gear Cutting: - LH/RH 45 LH/RH 45
Diameter of Work Table: 16 22
Work Table Bore:v 2 3
Maximum Distance b/w Hob & Work Table: 11 18
Maximum Dia. of Hob: 4 5
Mounting Taper of Hob Spindle: Mt 3 Mt 4
Hob Spindle Speed: 6 8
ELECTRICALS
Main Motor Power: 3 H.P. 3 H.P.
Rapid Motor Power: 1.5 H.P. 2 H.P.
Features:
Fixed Top Roller, Adjustable Lower and Rear Roller
Asymmetrical Roll Bending Machine
High Strength Steel Roll
Top Roll Swing out across Cam Lock
Standard Series Wire Core Groove
Conical Bending Feature.
Features:
High Strength Steel Roll
Quick release top roller
Asymmetrical Roll Bending Machine
Fixed Top Roller, Adjustable Lower and Rear Roller
Standard Series Wire Core Groove.

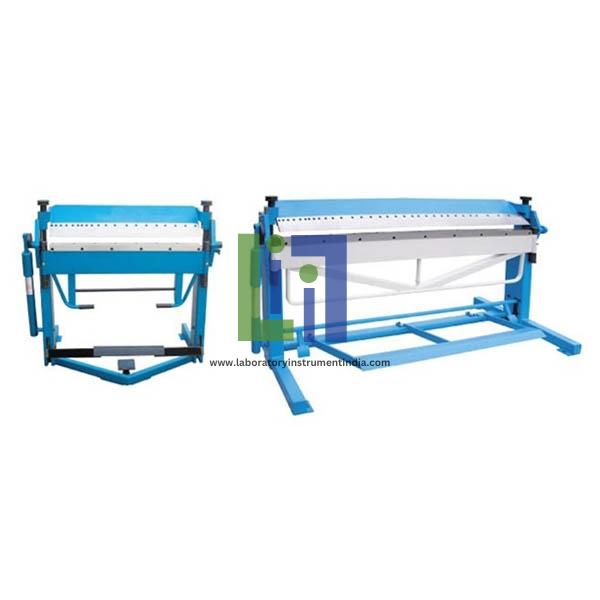

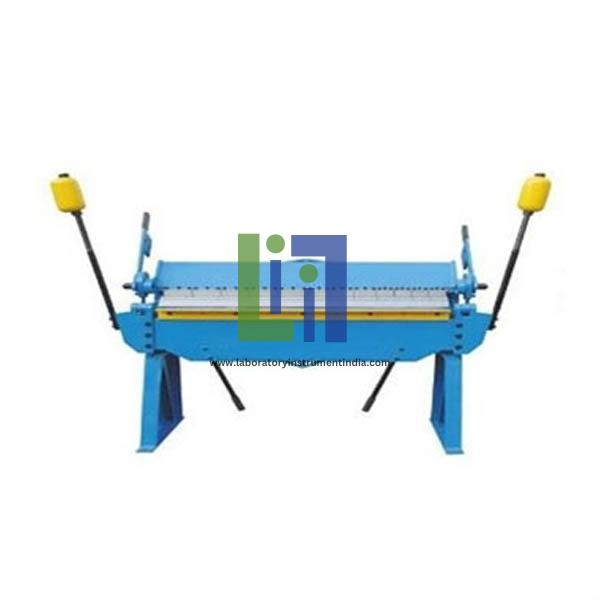

Features:
With Balanced Hammer, It Can Easy To Operate And Easy For Folding
With Segment Bending Blade For The Bending Of Box Section
Various Widths Segments Shiftable Setup.
Features:
Special steel adjustable.
4-sets standard rollers.
Heavy and solid cast iron construction.
Max. Cutting Dia. For Vertical Tool Post: 2500mm 3150mm 4000mm 5000mm
Working table diameter: 2250mm 2830mm 3200mm 4000/4500mm
Max. height of work-piece: 1600/2000mm 1600/2000mm 2000/2500mm 2500/3150mm
Max. weight of work-piece: 10 to 20Ton 10 to 20Ton 20Ton 32/50Ton
Working table range of rotation speed: 2 to 63rpm 2 to 63rpm 2 to 63rpm 0.6-25.4rpm
Working table step of rotation speed: 16 steps 16 steps 16 steps stepless
Horizontal travel of tool post: 1400mm 1650mm 2150mm 2550mm
Crossbeam travel: 1250/1650mm 1250/1650mm 1650/2150mm 2150mm
Power of main motor: 55kw 55kw 55kw 75kw
Weight of machine(approx.): 41/43 Ton 43/45 Ton 45/46 Ton 57/80 Ton

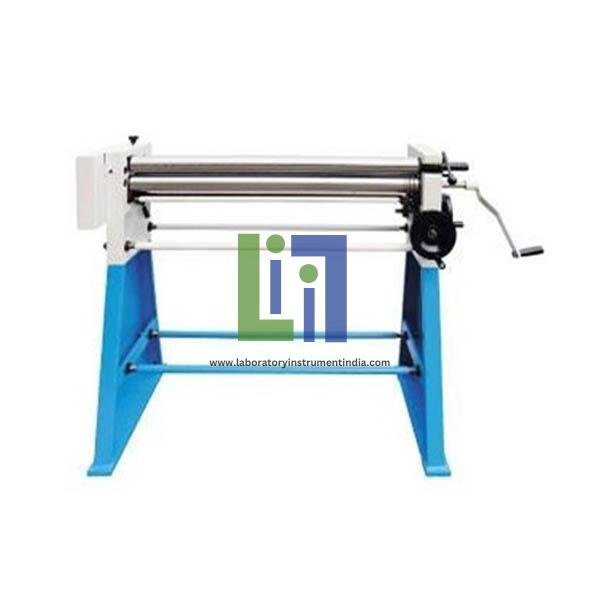

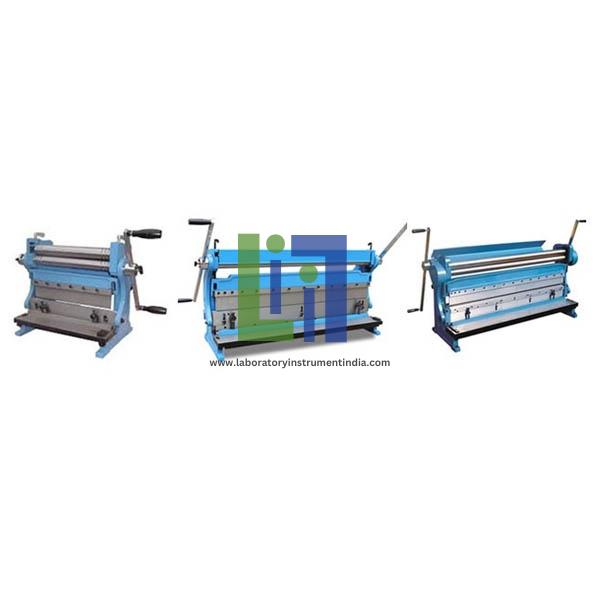

Features:
Folding with a Max. Angle of 90 degree
Adjustable Rear Stop
Ideal Combination of Shearing, Brake & Rolling
Roll Bending Starting with Diameter 39mm.

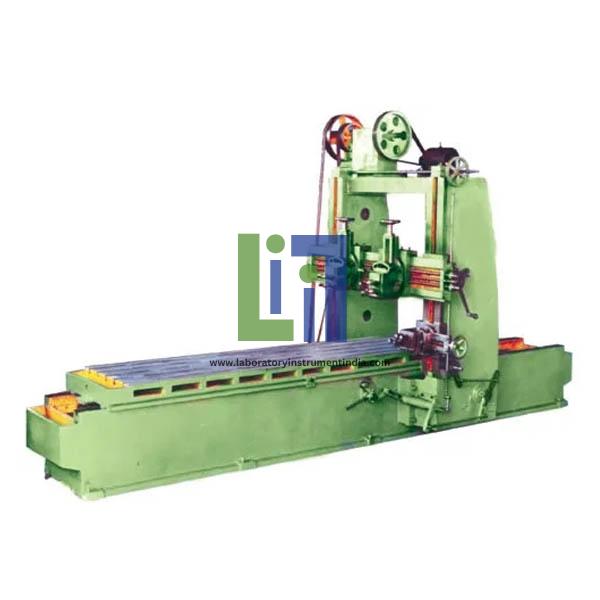

The materials used in the manufacturing of the HeavyDuty Planner Machines ensure high durability, tensile strength and resistivityto adverse conditions. Planner Machines due to the unmatched quality andunsurpassable performance. Moreover, easy operation, less input requirements, highoutput and low maintenance cost are some of the factors that distinguish ourPlanner Machines from others available in the market.
Features:
The Table: It is of box section type and is streamlinedwith hand scraped V way to bear heavy load. It is heavily ribbed and the Rackprovided in it is accurately machines and milling cut.
The Bed: The bed of planner machine is of deep boxsection type and is tied together atfrequent intervals by double walled bridgepieces extending to the bottom of the bed.
The Cross Rail: This is of Box section type with largesurface. It is suitable for both hand and mechanical drive.
The Drive: The planner machine is arranged for directindividual as well as two belt drive.
Tool Posts : These are manufactured out of close grainalloy castings and steel to stand heavy cut. These can be driven both manuallyand mechanically.
The Uprights: The uprights of planner machine are ofrigid box section type. Keyed firmly, bolted on to bed and are capable ofabsorbing the heaviest shocks without vibration. Extra pins are provided tore-fit the machine accurately after once it is dismantled.
The Bearings: The main bearings for the Gearings arecast solid with the Bed. The Gears Teeth are hobbing machine cut except toogears are helical. Gun metal bearings have been provided for all the shaft andloose pulleys. Taper roller bearings can also be provided instead of Gun metalbushes.
Accessories: Automatic liftingarrangements of cross rail.
Features:
For shearing & bending, both can achieve single strokeand continuous stroke.
The back gauge adopt data control system, the adjustment isquickly and exactly.

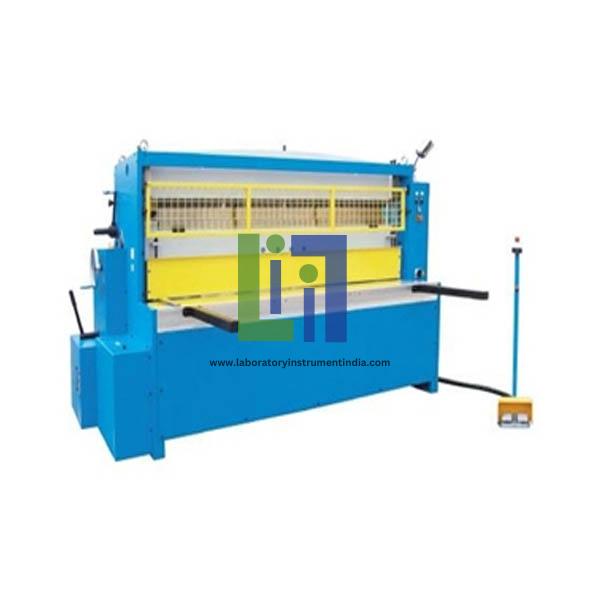

Ideal Combination of Shearing, Brake & Rolling with Strong Structure.
For the Rolling, the processing for the taper rolling is very easy.
Thickness Max.: 1.2mm 2.5mm 4.0mm
Cylinder Length: 140mm 120mm 165mm
Throat Depth: 200mm 280mm 300mm
Cylinder Speed: 32rpm 20rpm 15rpm
Motor Power: 1 HP 2 HP 3 HP
Net Weight: 120kg 235kg 341kg
Packing Size: 1100x480x1480mm 1470x580x1350mm 1650x580x1400mm

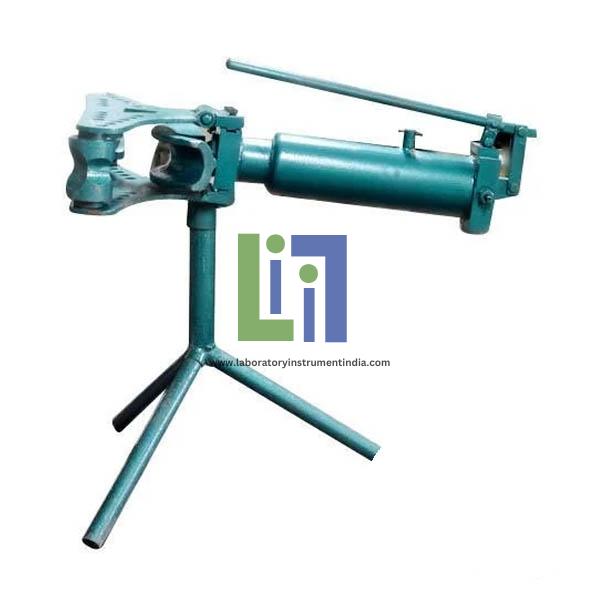

Capacity: 3/8, 1 1/2 to 2 1/2 to 3
Pressure: 10 Ton 15 Ton 15 Ton
Former Size: 3/8, 1/2, 1/2, 3/4, 1/2, 3/4
3/4, & 1 1, 1.1/4, T,1.1/4,
1.1/2, & 2 11.1/2, & 2
2.1/2, & 3

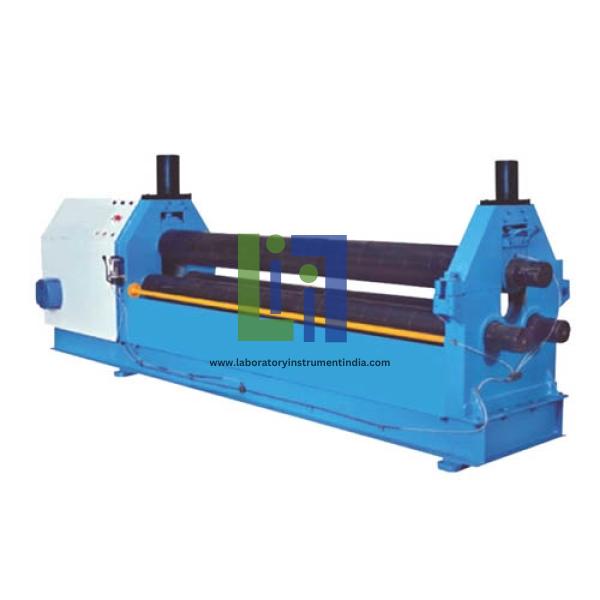

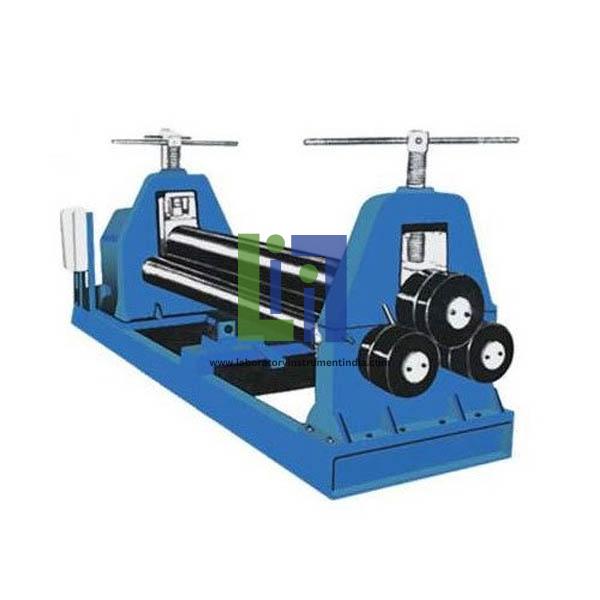

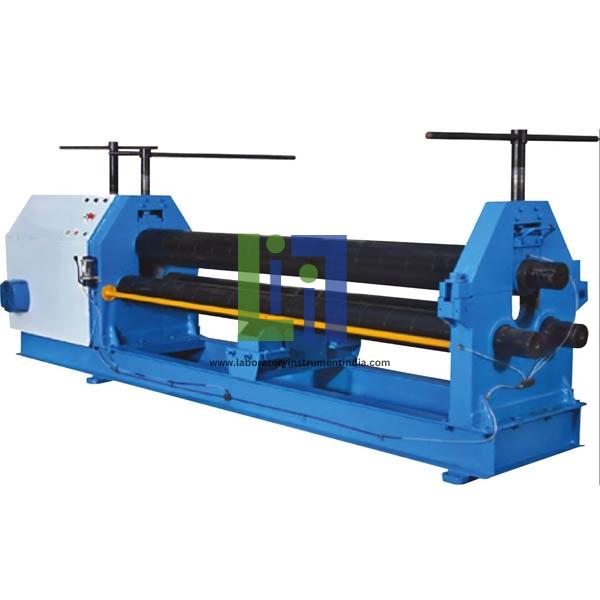

The PBM DP arrangement 3 Roll Pyramid Type Hydro-MechanicalPlate Bending are planned with twofold side pre-squeezing course of action. The top roller is settled and pre-pinching by bothbase rolls are through pressure driven barrels. The job is bolstered from oneend to complete pre-squeezing and whole shell is moved to wanted curve span. This component makes the machine more gainful and reasonable for taking care of overwhelming employments. Flip side pre-squeezing is done by second base move to finish the shell. Theone of a kind outline allows the pre-squeezing of employment by both baserolls; subsequently the occupation is finished in single operation. Thecomplete shell is set up in single operation.
Features:
3 Roll PYRAMID Type outline with twofold pre-squeezing gameplan
Twisting rolls are made of combination steel.
Dropper end assurance by pressure driven barrels.
Over-burden prevention
Two base rolls are force driven via planetary apparatus boxwith electric or water powered engine.
Low part, smooth operation and less power utilizationbecause of water powered framework works at lower weight in littler thickness.
Top roll is repaired and base moves and down.
Base moves up-down through water powered chambers.
Silent Features:
Unique compact design by using ultrasonically tested steelplates.
International brands hydraulic & electrical componentsensure trouble free operation.

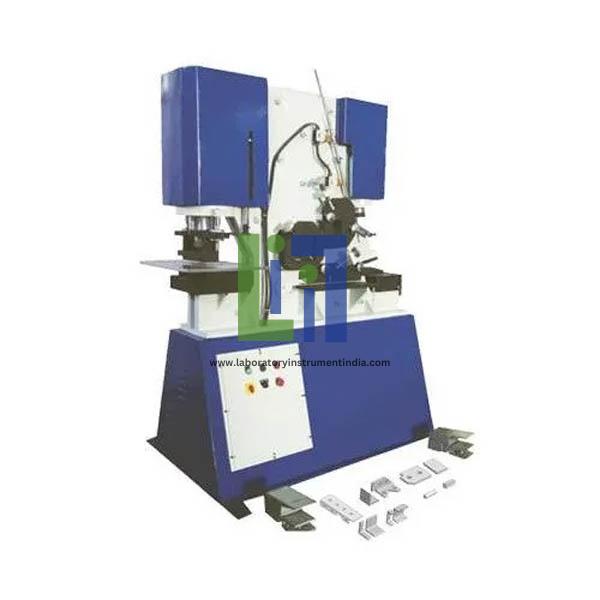

Hydraulic Iron Worker is designed to give an effective solution to all the cutting and punching problems of flat and Section with satisfactory work quality from robust and compact machine.
Direct shearing avoids any waste of materials.
Five work station catering 7′ different operation. Parallel operation of punching station with other work station gives higher productivity.
Technical Features:
Housing are made from M.S. Plate of suitable strength andmounted on heavy base frame. Rolls are made from forged steel and perfectlymachined for accurate result.
For longer life and smooth working of machine, Gun MetalBushes are provide and given sufficient lubrication system A
Bottom roll are fixed and driven by Gears and warm Reduction Gear Box. Top Roll rotates in fixed positions andean be adjusted up & downmanually by adjustable screws.
Machine Application & Usage:
Cone Making & Other Aluminum & Steel Fabrication,Marine & Ship Building, Pressure Vassals, Wind Mills.
Boiler Tank, Air Conditioning Channels, Sheet Metal Cover
Pyramid Type Bending Roller:
Bottom roll are fixed and driven by Gears and warm ReductionGear Box. Top Roll rotates in fixed positions andean be adjusted up & downmanually by adjustable screws.
Bending Process:
Down the top roll and give pressure on the plate. Then start Main motor in clock wise direction till one end of the plate comes over firstbottom roll reverse the motors and get second end on second bottom
Continue above process until you et desired as shown inpicture.
Place the Plate between bottom and top rolls by adjustingtop roll manually.
Features:
Compact High Quality Engineering.
Ensure Minimum Maintenance, Together With Simple and SafeOperation.
A Fully Welded Structure.
With Foot Control.
It Is Easy For Operation And Relax Hands.
Features:
PBM SERIES (Mechanical)
The top roll adjustment is by Screw Jack
3 roll PYRAMID type design machine
Bending rolls are made of alloy steel
Bottom rolls are power driven
PBM SERIES (Hydro-Mechanical)
Bottom rolls are power driven
Bending rolls are made of alloy steel
3 roll PYRAMID type design machine
The top roll adjustment is by Hydraulic Cylinder
3 Roll Pyramid Type Mechanical Plate Bending Machine:
The upper roll is having manual up & down adjustment to achievedesired bending radius. In this machine, the bottom rolls are driven by electric motor & gear box. This is a very simple & robust design machinesuitable for light to medium jobs. The PBM series 3 Roll Pyramid Type Mechanical Plate bendingare designed to cater the basic requirements of bending & forming of metal plates.
Accessories:
Standard Accessories:
Operator control Panel Board (Off, Inch,Single & Continues Stock)
Foot Switch Operation
Two Hand Push Button Controlled
Manual Lubrication System.
Optional Accessories:
Pneumatic Counter Balance Cylinder
Hydraulic Overload Safety Device
Motorised Lubrication System
Die Cushion
Stock Counter.

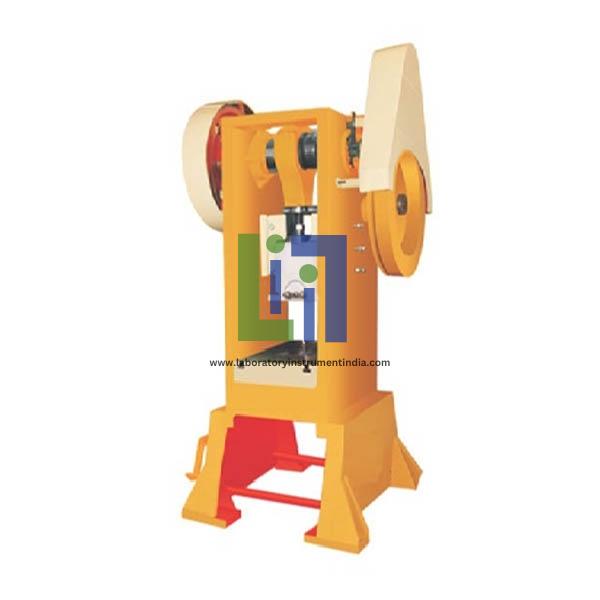

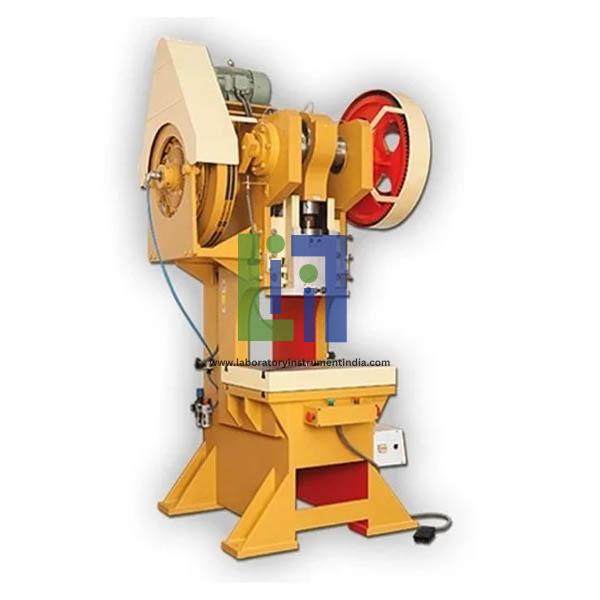

Features:
Frame:
The structure is designed for perfectly balanceddistribution of stress over the cross section eliminating deflection &vibration, in result increased tool & machine life. The frame is of all steel construction, fabricated fromrolled steel plates with suitable cross ribbings. Proper alignment of the frameis ensured by machining.
Flywheel:
Properly sized flywheel is made of high grade cast iron, forstoring and releasing adequate energy for the pressing operation, and properlybalanced for smooth running.
Gears:
Gears are of steel cast or fabricated. Gear teeth aregenerated by precision hobbing machine.
Crank Shaft:
The Crank shaft is made of special alloy steel withprecisely machined to grind finish having closed accuracy and fitted in bronzebushes for smooth working, longer life with consistent performance.
Clutch:
The clutches of pin/rolling key-type and well supported withhigh rigidity. The Clutch is made of special alloy steel, the pin / rolling keyis manufactured from material & with proper heat treatment to ensuretrouble free long life & give continues stroke for mass production.
RAM & BED:
Bed is made of high grade heavy duty cast iron & properlyseasoned & properly aligned with ram to obtain high accuracy and precisionpress operation. Ram Slides is made of high grade heavy duty cast iron & properly seasoned, aligned & fitted with Sheet on back side forfriction free travel through slides, ensuring longer life of die and easyoperation.
Adjustable Stroke:
The unique feature of adjustable stroke enables the press toperform all kinds of operations by employing short stroke for blanking andforming operation.
Features:
Structure:
The Presses have good rigid structure for accurate works.
Power Pack Unit:
Our Presses are powered by specially designed Power PackUnit having Oil Breather, Oil Level Indicator, Electric Motor, Hand Lever operated Direction ControlValve, SuctionStraine, Gear pump, Flexible Couplin, Pressure Gauge, Oil Tank (without oil), Return Line Filter, Internal & External Pipe Line etc.
Hydraulic Cylinder:
All chevronseals & bronze strip used for leak proof performance. Ram will be made from material & surface ground hardened for long life of seals &corrosion resistance. Our Presses are powered by specially designed Double ActingHydraulic Cylinders. Cylinders manufactured out of quality steel. Cylinderbores will be honed to mirror finish or long life of piston seals.

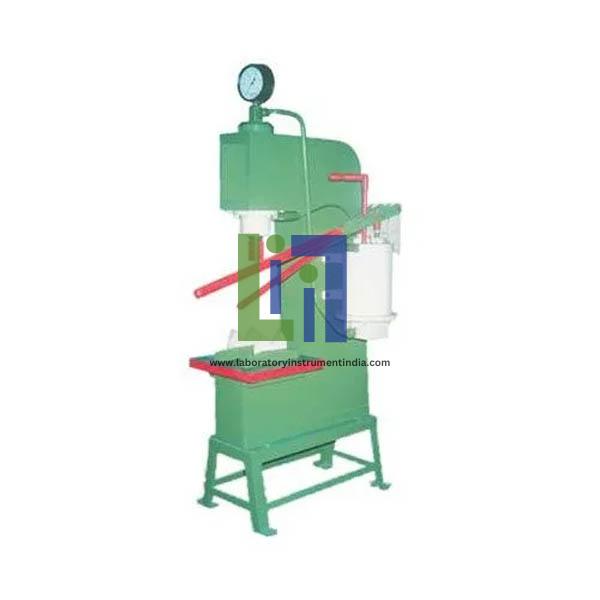

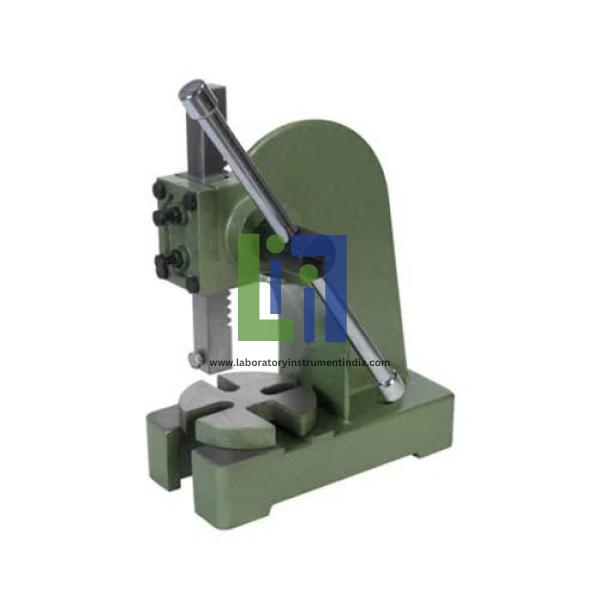

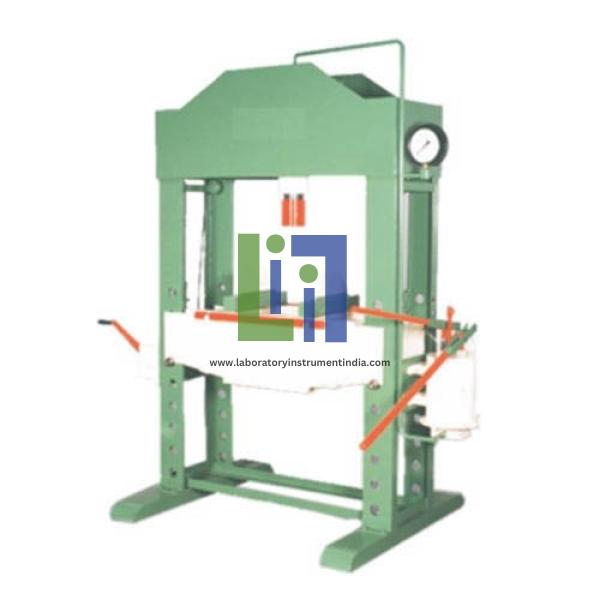

Hand Operated:
Capacity in Tones Throat Day-Light Stroke
5 115 210 75
15 150 225 100
25 200 300 125
40 250 350 140
60 300 400 150
75 325 450 150
100 350 500 150
150 375 550 150
Fast and safe adjustment of the press table height using a braked winch. Hand operated workshop press. Hard chrome piston and very long stroke of 300mm. Available from 40 to100 tons. Foot operated air approach feature.

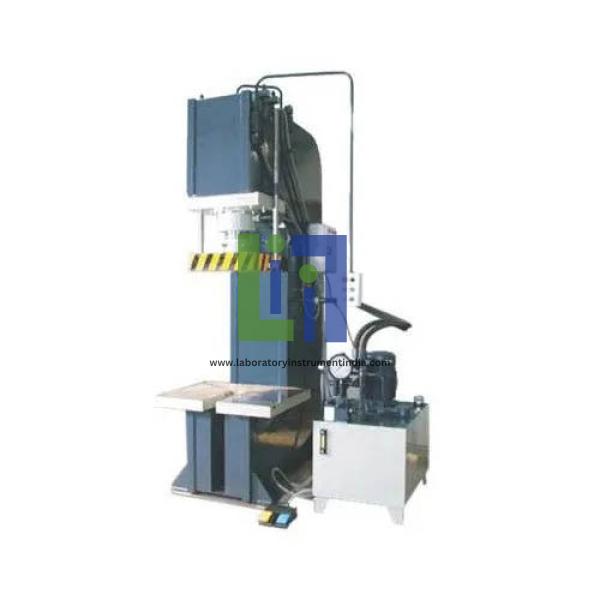

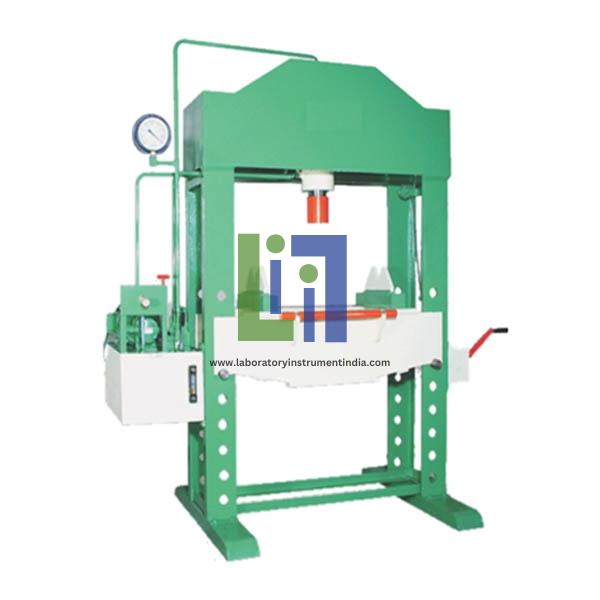

Machine Features:
Fast and safe adjustment of the press table height using a braked winch
Movable cylinder
Foot operated air approach feature
Fast air return
Wide insertion width
Hard chrome piston and very long stroke of 300mm
Structure:
The Presses have good rigid structure for accurate works.
Hydraulic Cylinder:
All chevronseals & bronze strip used for leak proof performance. Ram will be made frommaterial & surface ground hardened for long life of seals & corrosionresistance. Our Presses are powered by specially designed Double ActingHydraulic Cylinders. Cylinders manufactured out of quality steel. CylinderBores will be honed to mirror finish or long life of piston seals.
Power Pack Unit:
Our Presses are powered by specially designed Power PackUnit having Oil Breather, Gear Pump,Flexible Coupling, Electric Moto, Hand Lever operated Direction Control Valve, Oil Level Indicator, Suction Straine, Pressure Gauge, Oil Tank, Return Line Filter, Internal & External Pipe Lineetc.
This feature makes the machine more productive and suitable for handling heavy jobs. Dropper end movement is done by hydraulic cylinder. The 3 Roll Pyramid Type Hydro Mechanical Plate Bending Machines are designed with top roll UP & DOWN movement by hydraulic cylinder. This saves time & labor to adjust top roll.
....
Grinding wheel can swing up and down, which can grind the chamfer angle without replacing the wheel.
All the adjusting rods of are arranged reasonable.
It is fast and accurate to grind the blade sharply.
It is easy to adjust saw teeths cutting angle, back clearance angle and teeth space.

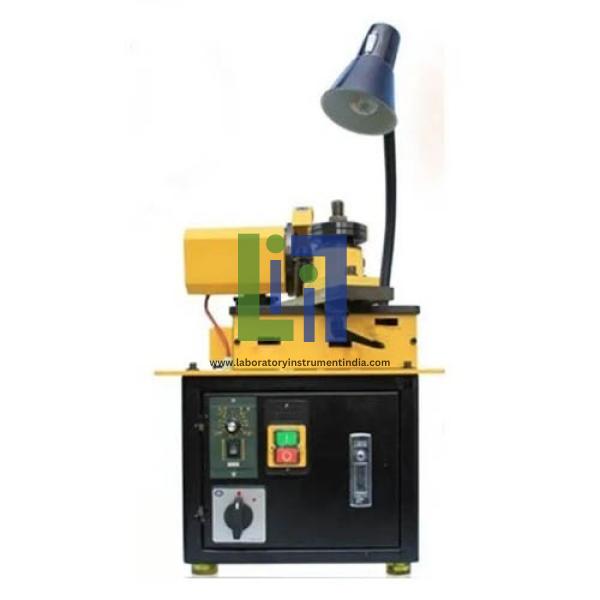

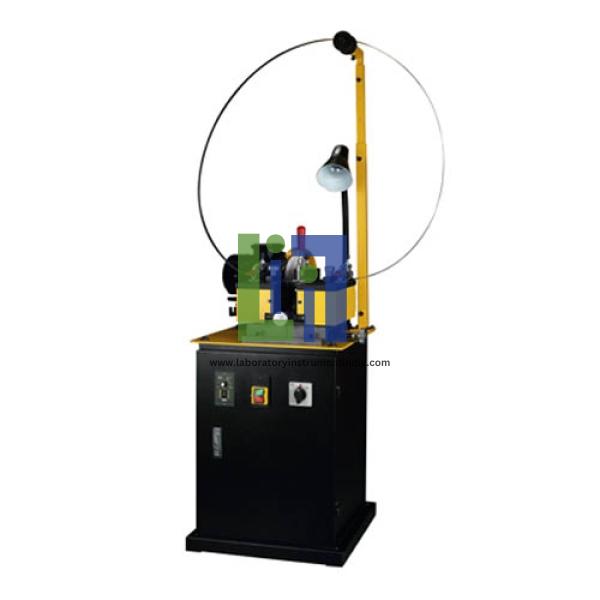

It is suitable for grinding the bandsaw that the teeth are same. Automatically dial tooth, easy to oper high precision. Make the old band saw reuse and save cost. It can grind various thin wood saw blade, double metal sawblade, carbide steel saw blade and so on. It is a new multifunctionand patent machine that cai grind changeable teeth (tip) of band saw blade,such as 2/3,1 4/6 etc.
....
It can grind the teeth. And it alsocan keep balance and efficiently. Without model plate, can grind the teeth automatically. Adjustable speed, it is fast and accurate.
....
Applying tonon-heat treatment workpiece for such as various mould, part of machines chamfer.
Standard square alloy bit , easy to replace. Or you can use old bits that used inmilling machine
The dump railadopt good heat-treatment steel plate, which will abide rough use

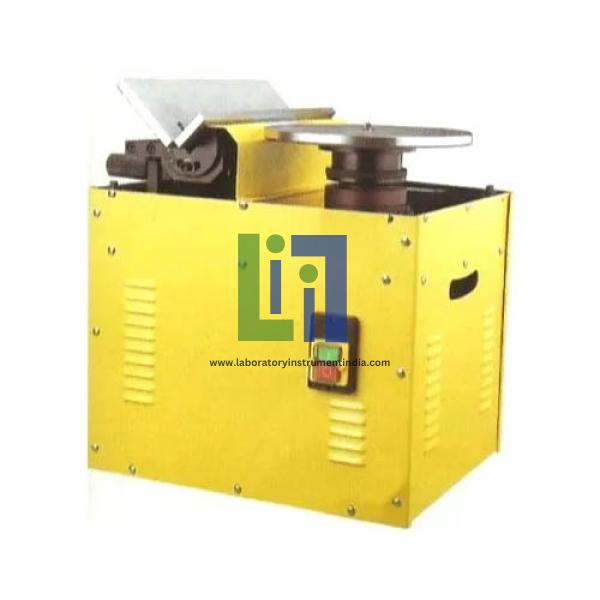

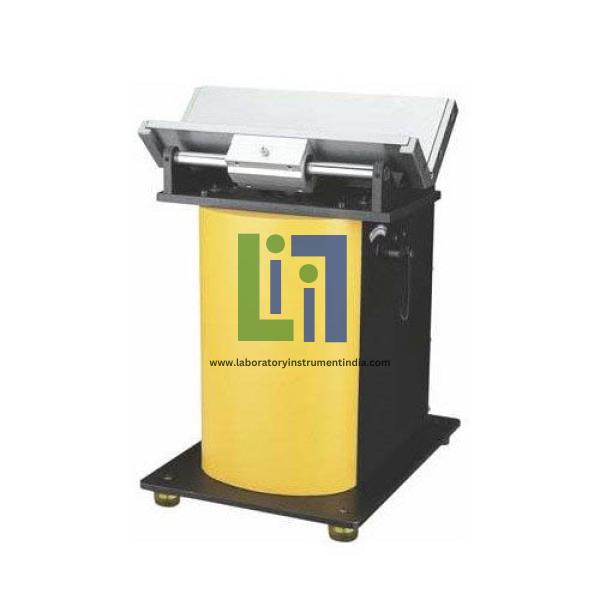

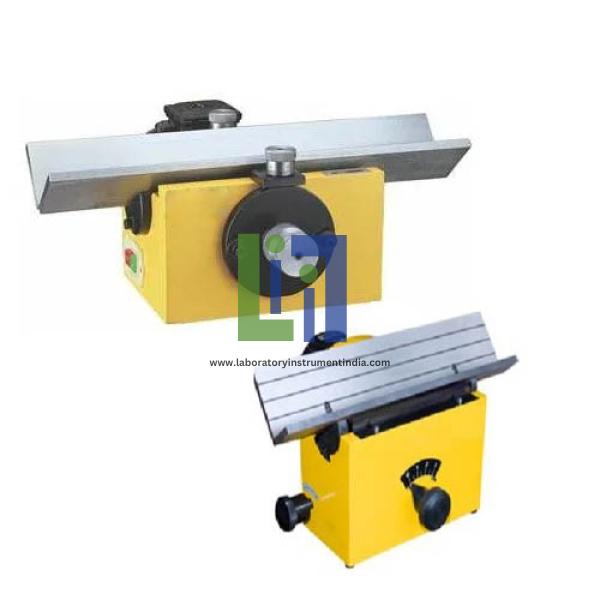

This is originative to chamfer the R angle of workpiece.
The machine adopt Swedish bearing and imported digital cuttings.
Easy to adjust, use linear motion guide, can protect the surface of the products.
Also can fix the table, reduce the cutting resistance and secondary burrs.
The angle of straight line part can be adjust from 15 degreeto 45 degree.
It can instead the CNC maching center and general-purposemachine tools, which can not chamfer. It is convient, fast and accurate and thebest choice for chamfering.
It is suitable for reqular and irreqular parts of mechanismor mould. The angle of straight line part can be adjust from 15 degree to 45degree.
It is easy ,quick to change the cutter, no need to clamp, easyoperate perfect chamfering, easy adjust, and economic, suitable for irreqularparts of mechanisms and mould.
The dump rail adopt good heat-treatment steel plate, whichwill abide rough use.
Suitable for any length of non-heat treatment work piece andany other parts which are hard to move. It is easy to operate, take less time.
Standard square alloy bit , easy to replace. Or you can useold bits that used in milling machine.
Grinding Wheel: CBN Wheel For HSS Drill Bit/SD Wheel for Carbide Drill Bit.
Standard equipment: Twelve collets, Nineteen collets.

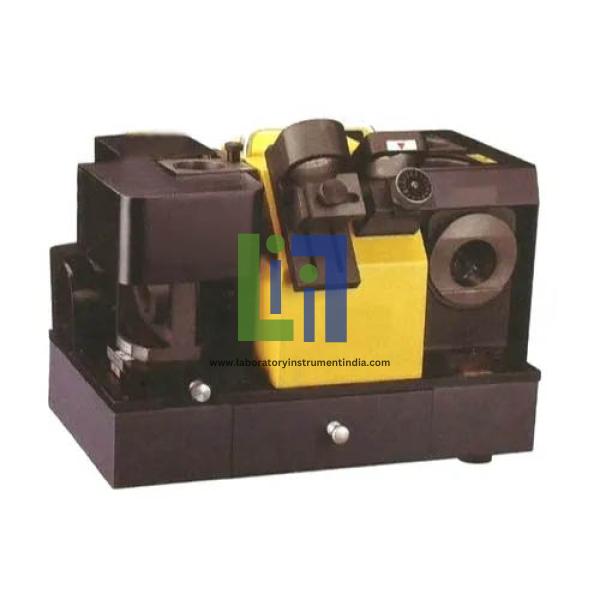

Complex re-sharpener of end mill & drill, one machine with two function, easy to use, economical and practical, with no skill requirement to grind.
Drill's part has patent, can grind the drill's front cutting lip, point angle, lip relief angle, you also can control the centre spot at random instead of centre drill, escape of chips easily, drilling with a light heart.

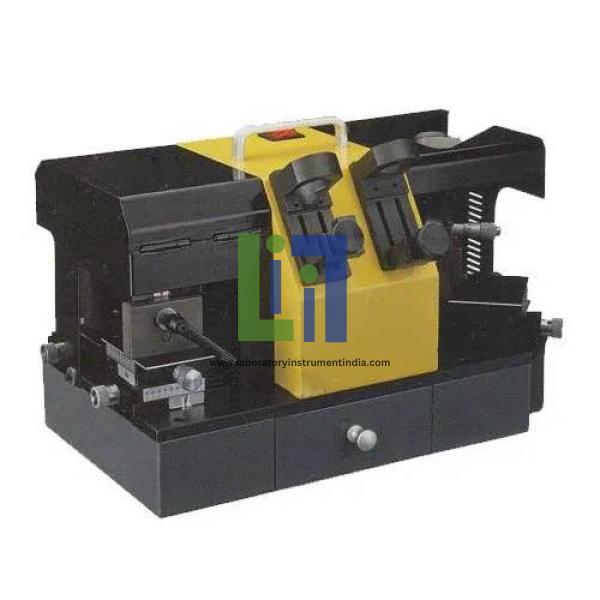

Tap's part has patent that can grind tap's front cutting lip of 2-flute, 3-flute, 4-flute tap. Choosing can grind 5-flute.
Grinding Wheel: CBN Wheel For HSS Drill Bit / SD Wheel for Carbide Drill Bit.

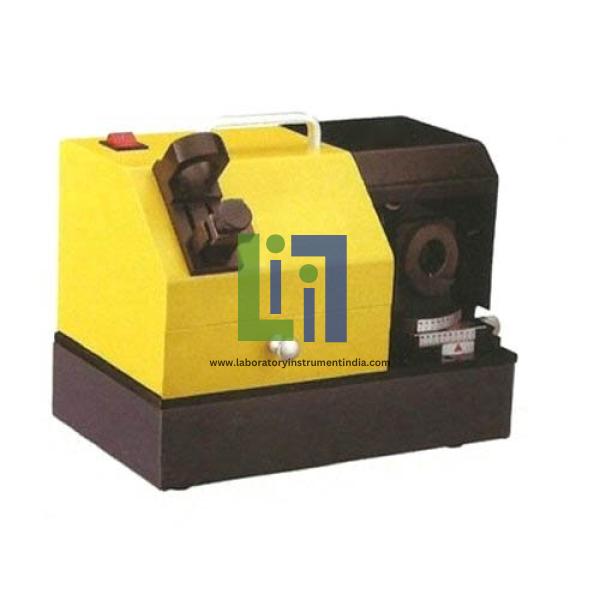

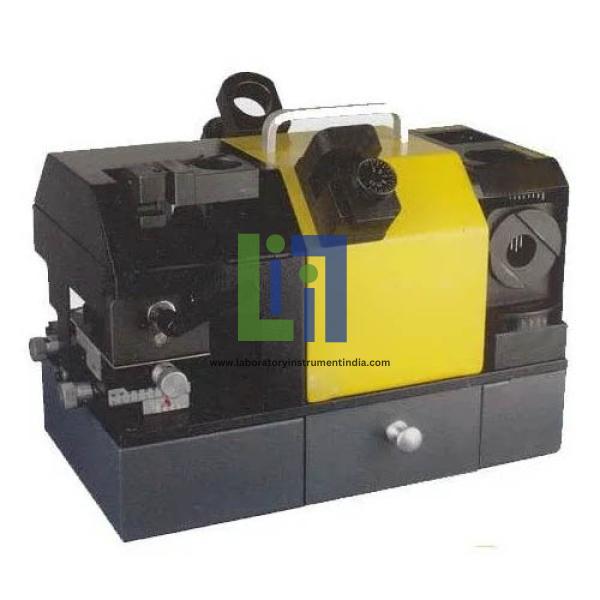

Complex re-sharpener of screw tap & drill, one machine with two function, easy to use, economical price, with no skill requirement to grind.
With Taiwan diamond grinding wheel, long service life.

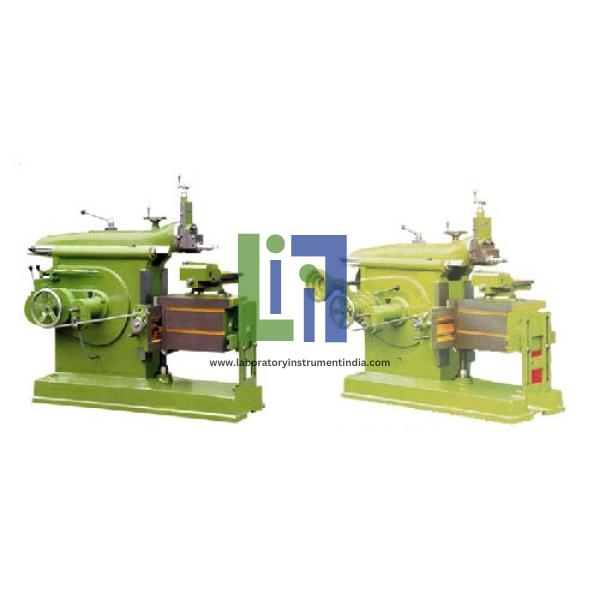

Features:

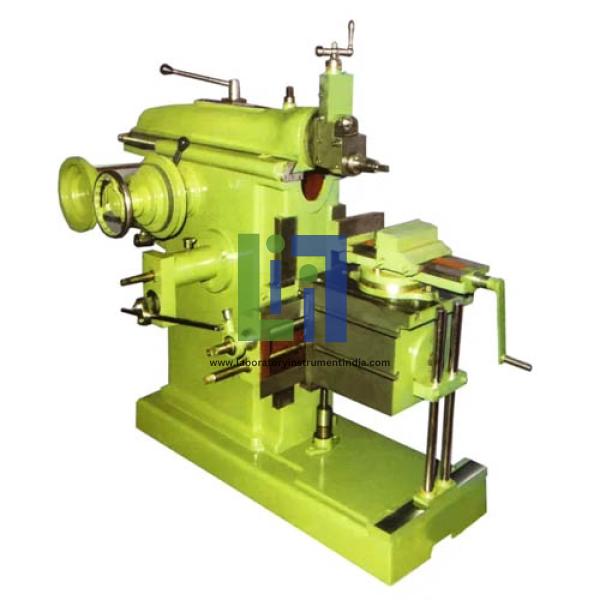

Specially designed shaper machine for increased-production, precision Performance and Deep cut.
Selected special alloy steel used for screws and other steel parts.
Naturally Seasoned Casting.
Quick Return Motion.
Heavily cross ribbed, Robust and sturdy construction ensure free working.
Fully Hand Scrapped.
With Taiwan diamond grinding wheel, only one piece can complete all procedure.
It can be equipped directly with an accurate angle and long service life.

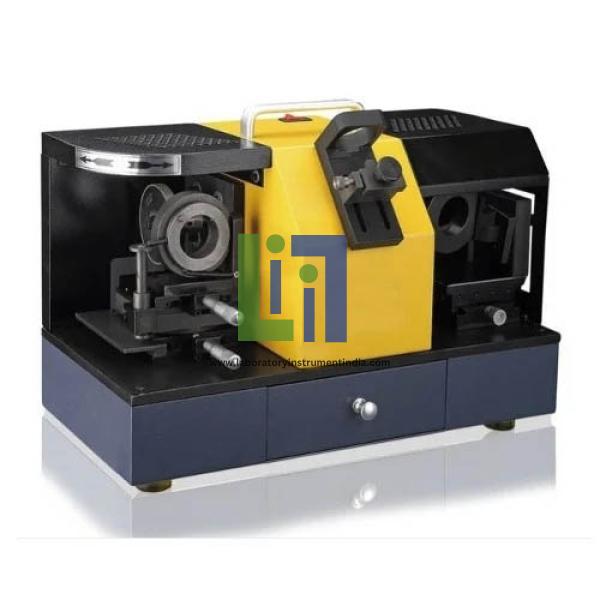

It is the special grinder for ball end mill.
Grinding is accurate and rapid, easy operation, with no skill requirement to grind.
Range: M5-M20
Point Angle: 5 -30DEG.
Power: 220V 180W
Motor: 4800rpm
Grinding wheel: CBN(HSS)orSD
Dimension: 48 x 30 x 33cm
Weight: 22kg
Grinding Wheel: CBN Wheel For HSS Drill Bit / SD Wheel for Carbide Drill Bit
Portable drill grinder. With Taiwan Grinding wheel, it can be equipped directly with an accurate angle and long service life.
It is not so easy to align the drill less then 3mm.

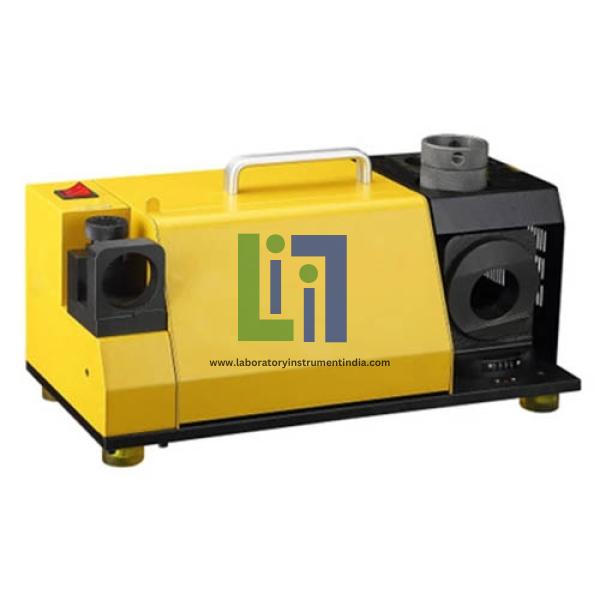

Drill Bir Resharpener can sharpen the drill bit front cutting lip, lip relief angle, you also can control the center spot at random instead of center drill, escape of chips easily, drill with a light heart.

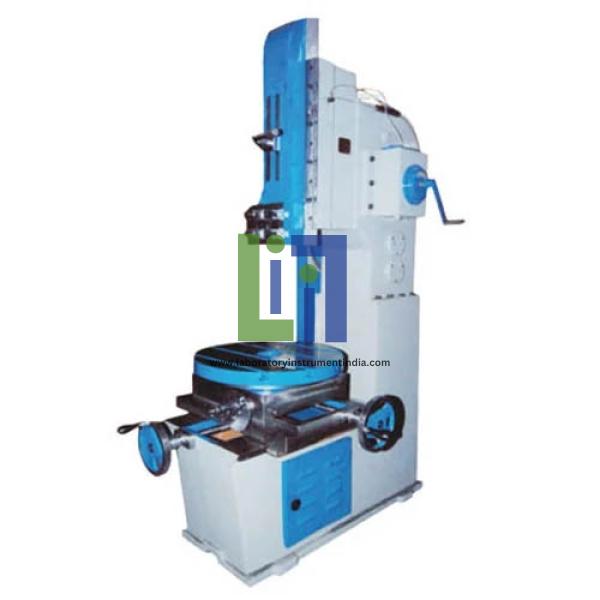

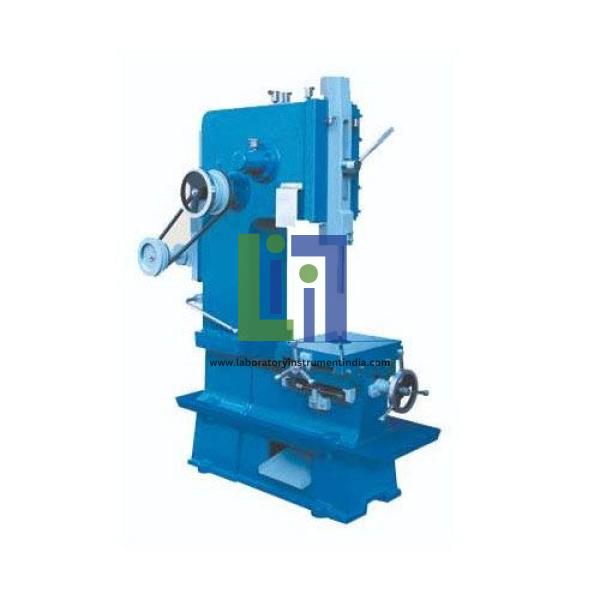

Extra Heavy Duty Slotting Machine
....
Grinding with travel block control ensures the bit high accuracy, symmetry, and not only the penetrating power, but also longer bit life. Drill Bit Re-Sharpener drill bit grinder, with the camera to set the drill grinding and do the measure after grinding. It can grind drill bit with flat relief angle and various point thinning.
....
Slotting Machine can produce slotting strokes from 10 to 150mm. This equipment is made of rigid construction and it creates no vibration while machining. It is made of fine grained and seasoned casting that makes the instrument work for long term application. The Ram adjustment is 150mm and the column to Ram distance is 210mm similarly table to Ram distance is 310 mm. The longitudinal and cross movement for ranges about 200mm and 110 mm respectively.
....
Grinding Wheel: CBN Wheel For HSS Drill Bit / SD Wheel for Carbide Drill Bit.

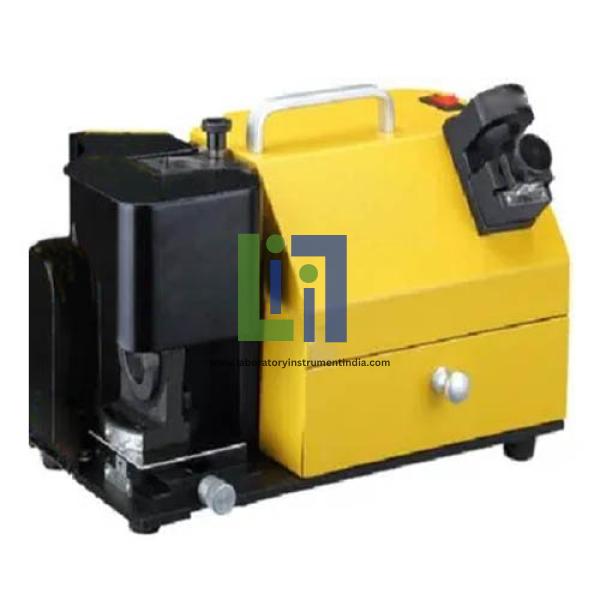

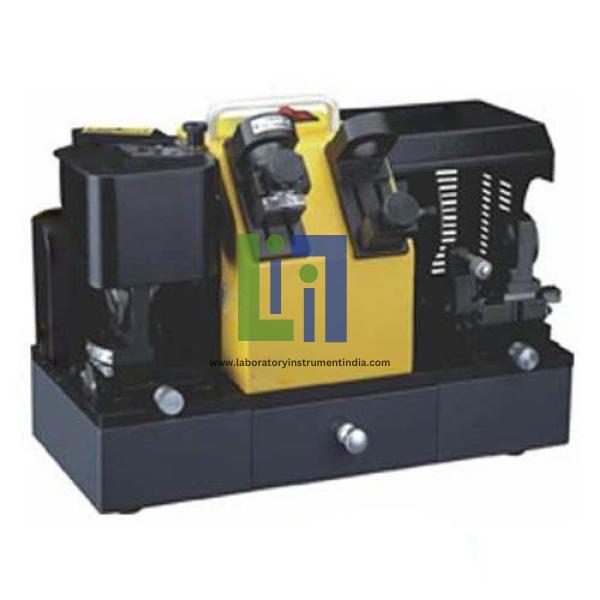

End Mill Resharpener portable end mill grinder, can grind 2-flute, 3-flute, 4-flute.
Choosing can grind 5-flute.
Standard equipment: six collets ten collets.
Range: 4-14 12-30
Motor: 220V/180W 220V/250W
Speed: 4800rpm 4800rpm
Wheel: CBN(HSS)or SD
Dimension: 41 x24.5x30cm 56x32x38cm
Weight: 22kg 40kg
Range: M5-M20 M16-M42
Point Angle: 5 -30 deg. 5 -30 deg.
Power: 220V 180W 220V 250W
Motor: 4800rpm 4800rpm
Grinding wheel: CBN(HSS)orSD
Dimension: 36x27x30.5cm 40x30x31cm
Weight: 16kg 27kg
The turret head is flexible for making sliding movement over the ram. It stays suitable equipment for industries which require identical kind of tooling frequently. The Capsten lathe belongs to the light duty kind of lathes and it is featured with turret head on the ram. This equipment can also be applied to obtain different cuts by rotating the turret head on the black wherein it becomes quite flexible and fast to work with. The ram is them fixed on the saddle which will not move at the time of tooling. It suits perfect for performing machining over short work materials. Above all, when it is comes to user friendly features in cutting, Capsten apparatus from Machine Tools is one of the best options.
....
Features:
Specially designed for increased-production, precision Performance and Deep Cut.
Fully Hand Scrapped
Naturally Seasoned Casting.
Selected special alloy steel used for screws and other steel parts.
Heavily cross ribbed, Robust and sturdy construction ensures free working.
Quick Return Motion.
An adjustable stopper limits the longitudinal table reciprocation movement.
The provision of tilling head simplifies the cutting face angle quickly and accurately
Work head holding fixture is fully adjustable with swivel base.
Almost all cylindrical side & face, involute gear, Concave as well as convex cutters,
Drill pints, tap lead & Radius grinding jobs can also be done without problem with extra accessories.
Bevel lead angle reamers & Cutting face of tap flute can be resharpened with standard accessories.
The tool runs at mono speed of 3600 RPM and the drive form the motor to spindle is by means of v-belt.

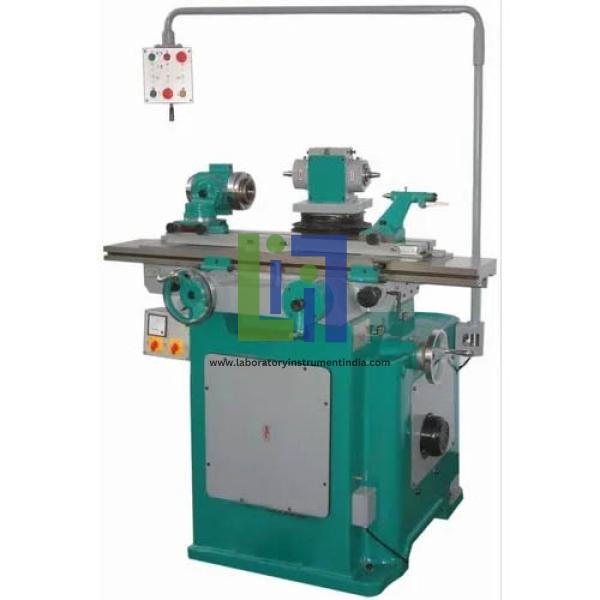

Functional Versatility:
The instrument basically designed for sharpening and recondition wide range of high speed and carbide tipped tolls as side & face milling cutters, convex & concave cutters, gear hobs, end mills, cylindrical cutters, angle cutters, shell mills reamers, drills, taps etc.
Features:
Pressure relief valve
Flow Control Valves
Solenoid operated direction control valves
Speed Control Valves
Hydraulic vane pump
Hydraulic Power pack unit complete with electric motor 2 H.P
Accessories
Analogue pressure gauges and all safety factors.
The key features of all these instrument include higher safety, low maintenance and optimum productivity and comply with standard quality control regulations. We have long experience in providing all geared vertical milling machines in original and customized specifications and so we have been able to maintain a long list of satisfied customers. All Geared Vertical Milling Machine is specially designed to meet the application requirements of engineering, process and construction industries.
....
It is suitable for accurate and diverse jobs. They are tough, stable and dependable. Their user friendly features and higher cutting capacity leads to higher efficiency. These devices are made using high quality components to meet extreme load conditions. They are simple to maintain and have longer working life. All Geared Universal Milling Machine is used to precisely shape metal and other solid materials. We offer manually operated, mechanically automated and digitally automated CNC milling tools. This device comes in 4 different specifications or formats as shown in the below table. There are milling tools with smaller as well as larger work surfaces and therefore can be selected depending on the most specific requirements. Our heavy duty, versatile tools are built for hassle-free operations. It has been designed for faster work and comes with a rotating spindle which can rotate at the speed of 40 to 1200 RPM ensuring really quick and efficient work in the industries. Our tools are applicable in machine shops and tool rooms of many industries. Our universal tool supports longitudinal, vertical as well as cross feeds. The instrument is designed for optimum performance and is just the right device for robust and bulk industrial applications. Fabricated from high quality raw materials, this is a long lasting instrument which ensures to give a comparatively greater and hassle-free functional life than other ordinary machineries available in the market.

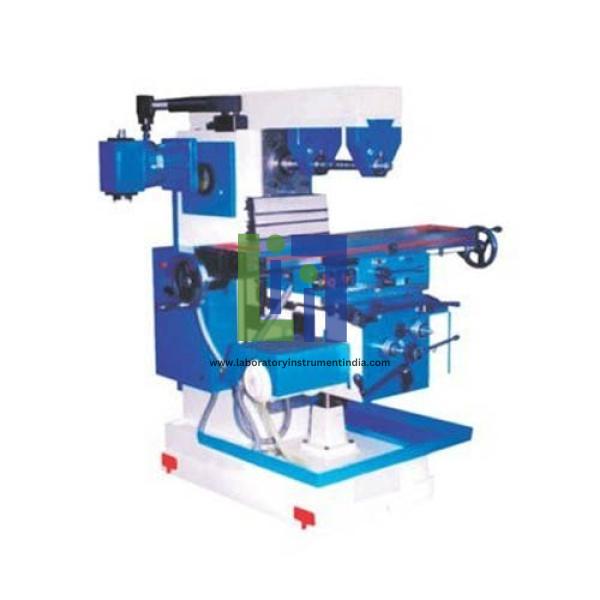

Features:
Steel Sliding gears carried on Splined shafts, Spindle and Arbor made of alloy steel hardened and ground.
High Quality Close grained Cast Iron All Slides Grinded on Slide way Grinder and closely scraped.
Capacity Square : 125
Blade Size (mm) : 350
Cutting Round: 150
No of stroke per min: 80
Motor (1440 RPM): 1 HP
Approx Weight Kg: 150.
Silent Features:
Automatic Height Adjustment for Saw Frame
Variable Pressure Control for Cutting Feed
Stress Relieved Fabricated Steel Structure
Heavy Duty Worm Gear Box
Moveable Blade Support Guide
Manual Blade Tensioning Arrangement
Hard Chrome Plated Ground Column
Auto Cutting Stop
Sawing mode changes, flexible, manual & automatic Combined
PLC controller complete automatic sawing procress
Push Button Type Operating Panel Board
Material Feeding Manually.
Features:
Vertical Cutting Position
Strong Structure for Big Cutting
Vertical Force control through Hydraulic
Multi Degree Vice
Electricals
Tool Kit
Saw Blade
Instruction Manual.
These heavy duty and high precision tools are reasonably priced. Our high speed machines are suitable for fast and bulk cutting. They are built using modern technology to deliver optimum output. Our hydraulic controlled tools are highly dependable, efficient and long lasting. This tool is used for cutting several materials including wood and metal. We supply the finest grade of hacksaw tools that are designed for smooth functioning. They are ruggedly constructed by experts for hustle free operations. We provide various models for this to meet the diverse needs of our customers. They are commonly used in a broad range of industries.
Features:
The hydraulic cutting pressure control system provides different cutting options that make this equipment stay versatile for multiple industries.
It is featured with improved mechanisms to remain supportive for different machining requirements in different industries.
It is one of the best tool room supportive devices.
The vice guide ways have been provided for precisely clamping the work material.
It helps in obtaining parallel cutting operations.
It is incorporated with two speed operating mechanism with which the operator will be able to select the preferable speed for cutting in accordance with the metal compatibility.

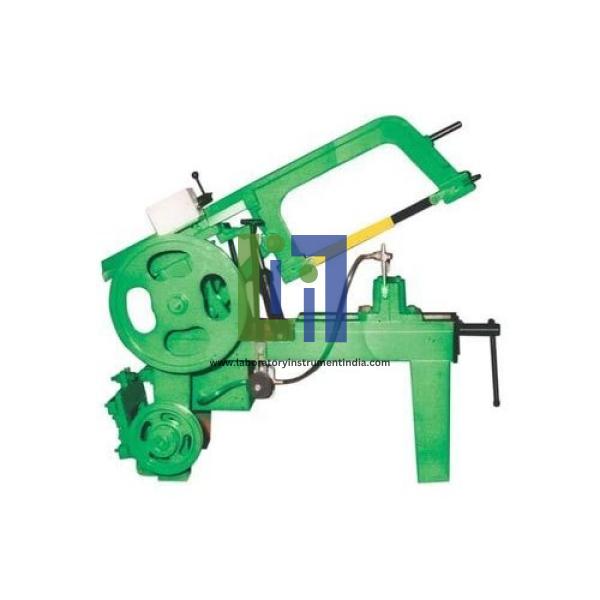

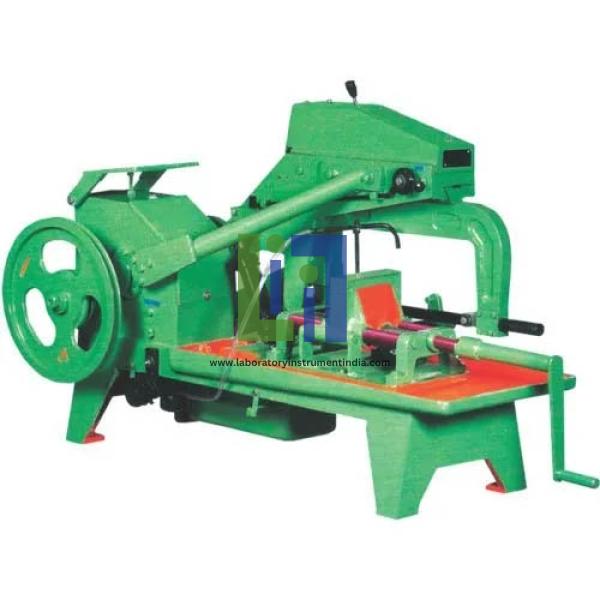

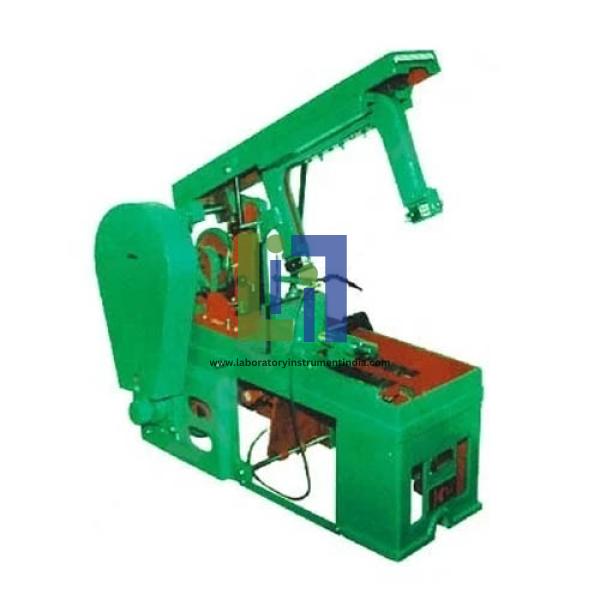

We have both semi-hydraulic and mechanical models of hacksaw machines.
These robust and highly accurate tools are cost-effective. Our high speed equipments are suitable for rapid and large-scale cutting. They are made using latest technology to ensure maximum output. Hydraulic Hacksaw Machineis basically used to cut numerous materials such as wood and metal. Our hydraulic controlled tools are reliable, durable and stable. We offer diverse models of hacksaw equipments to meet the various needs of our clients. They are used in a wide range of industries. We provide top quality hacksaw tools for trouble-free operations. They are manufactured by experts for continuous working.
Features:
Our machine is vibration free because of the heavy and rigid fabricated body that we used to make which also helps to increase machine's lifespan and gives it higher accuracy.
Hydraulic hacksaw machine gives you an option to maintain the pressure level as per job size which helps in reducing the usage of blade.
Our machine provides auto weight balance which helps in jerk-free working.
It consumes less power and provides high accuracy work.

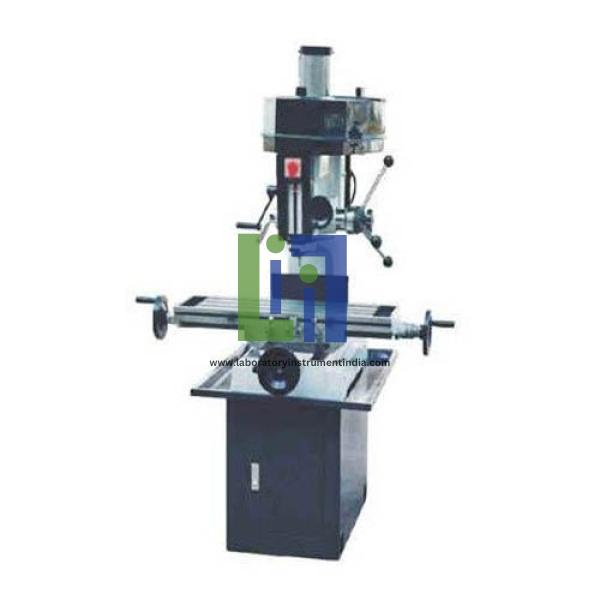

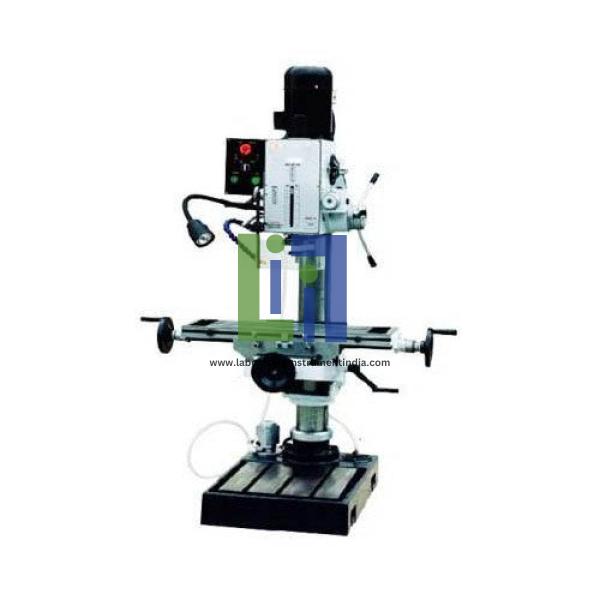

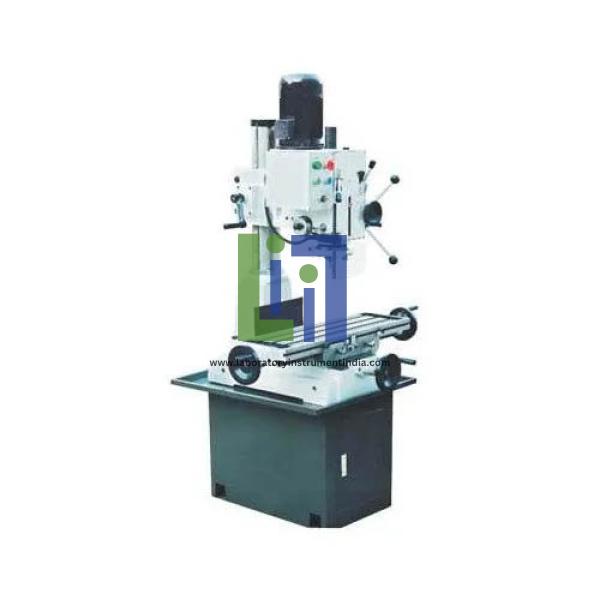

Features:
Spindle speed step-change cyclically, spindle auto feeding and cyclic change of feeding speed
Precision micro feed
Positive spindle lock
Distinct auto device for releasing tools, operate very easily
Gear driven, lower noise
Milling, drilling, and tapping
Super high column
Head swivels Horizontally.
Features:
Headstock and worktable up & down perpendicularly
Positive spindle lock
Distinct auto device for releasing tools, operate very easily
Super high column
Milling, drilling, tapping
Precision micro feed
Gear driven, lower noise
Head swivels 360 Horizontally.

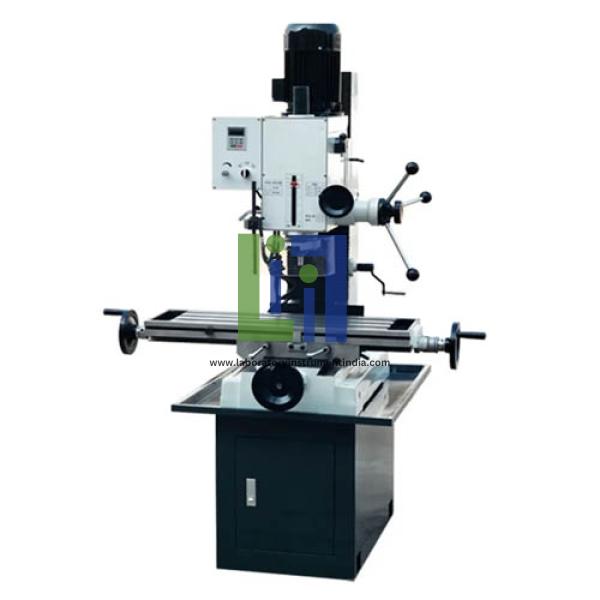

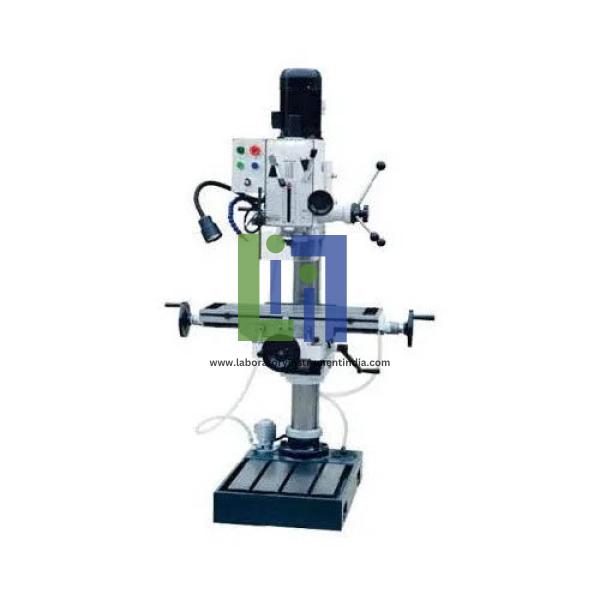

Features:
Milling, drilling, tapping, boring and reaming
Head swivels 90 degree vertically
Milling and Drilling Machine Combine
Strong rigidity, powerful, cutting and precise positioning
Variable speed
Adjustable gibs on table precision
Micro feed precision.
Features:
Adjustable gibs on table precision
Posive spindle lock
Belt driven and round column
Strong rigidity power cutting and precise positioning.
Micro feed precision
12 steps speed
Milling, drilling, tapping, boring and roaming
Headstock swivels ± 360° horizontally.
Features:
Micro feed precision
Adjustable gibs on table precision
Belt driven and round column
Strong rigidity power cutting and precise positioning.
Milling, drilling, tapping, boring and roaming.
Features:
All moving parts Finished to close Tolerance
Spindle Ram is made out of Alloy Steel.
Column, Arm, Work Head And Gears are made out of Closed Grain.
Parts Finished on imported Grinding Machine
Parts Properly Balanced
Prior Assembling of Main Gear And Pully.

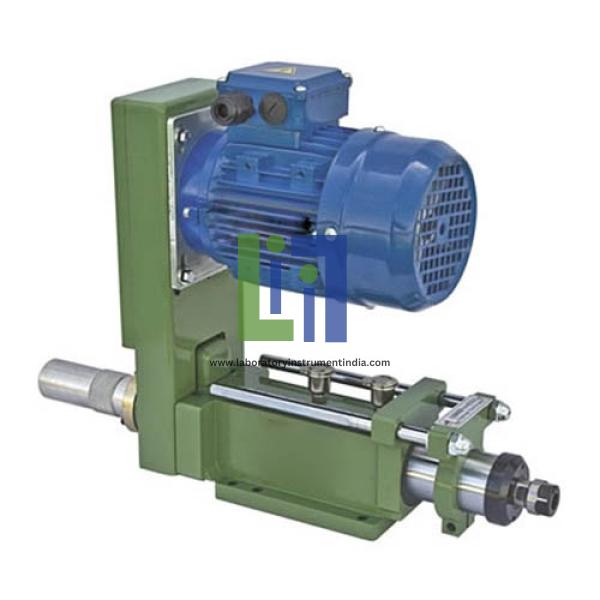

Max. Tapping Capacity: M 10 M 20 M 30
Spindle Travel: 100 120 140
Spindle rpm: 600.1000.1500 Optional Optional
Motor HP: 1 2 3
Spindle Transmission: Lead Screw Lead Screw Lead Screw.

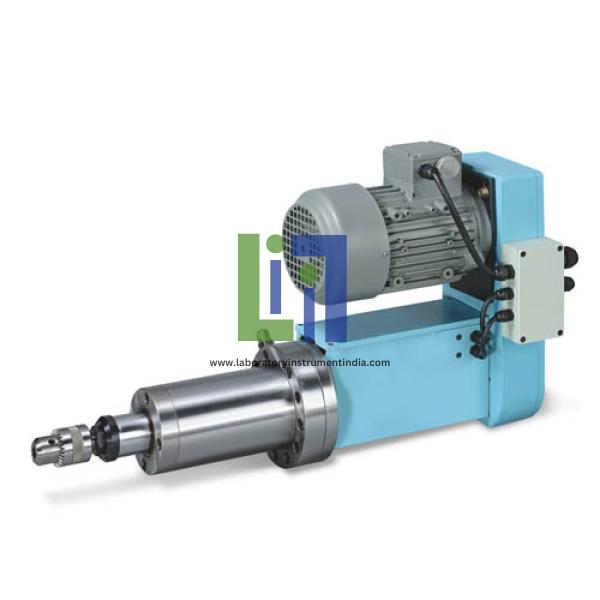

Max. Drilling Capacity:10 16 25 35
Spindle Travel: 100 150 150 150
Spindle rpm / 3 S: 1000.2000.3000 1000.1500.2000 Optional Optional
Motor HP: 1 2 2 3
Pneumatic Power Kg/cm2: 20 20 20 2
Features:
All moving parts Finished to close Tolerance
Spindle Ram is made out of Alloy Steel.
Column, Arm, Work Head And Gears are made out of Closed Grain.
Prior Assembling of Main Gear And Pully
Parts Finished on imported Grinding Machine
Parts Properly Balanced.

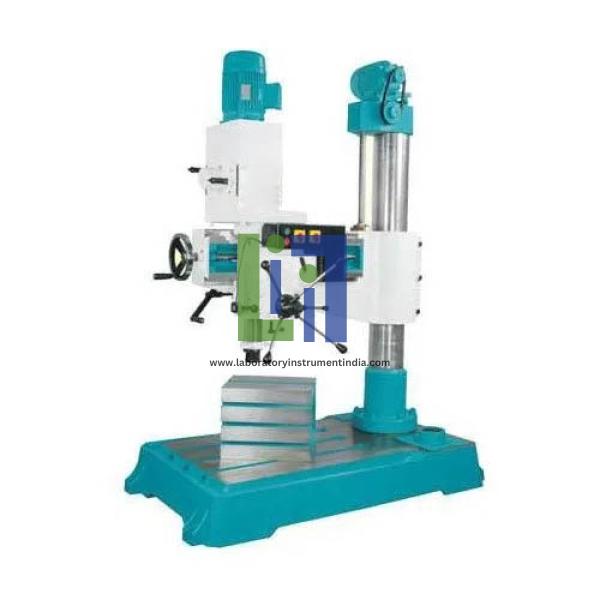

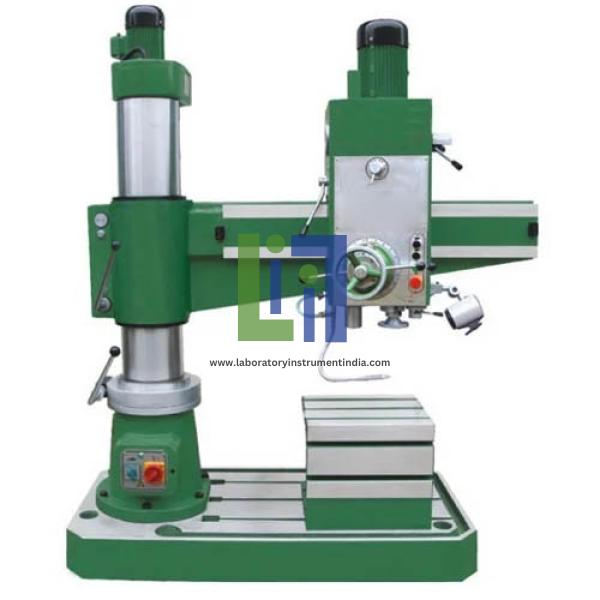

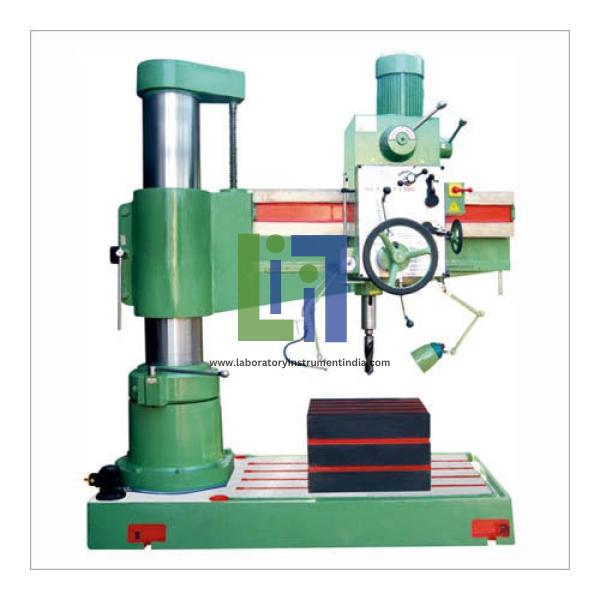

Auto Feed Radial Drilling Machine is designed to drill complicated shapes of work materials. The drill head motor is very powerful compared the above models and it has the capacity of 105HP for 1440 rotations per minute. The RAM diameter is 78mm and the spindle auto feed ranges between 0.05 and 0.09. The spindle speed is comparatively higher and it is interrelated to the rotations it makes per minute which is 88-2600x8. The closed grain cast iron column, making hole arm, work head and gears are fabricated using imported grinding instruments which make them stay precise for assembling. The maximum making hole radius is 1005mm.
....
Features:
Column, Arm, Work Head And Gears are made out of Closed Grain.
All moving parts Finished to close Tolerance
Spindle Ram is made out of Alloy Steel.
Parts Properly Balanced
Parts Finished on imported Grinding Machine
Prior Assembling of Main Gear And Pully.
Column, Arm, Work Head And Gears are made out of Closed Grain.
Spindle Ram is made out of Alloy Steel.
Parts Finished on imported Grinding Machine
All moving parts Finished to close Tolerance
Parts Properly Balanced
Prior Assembling of Main Gear And Pully.

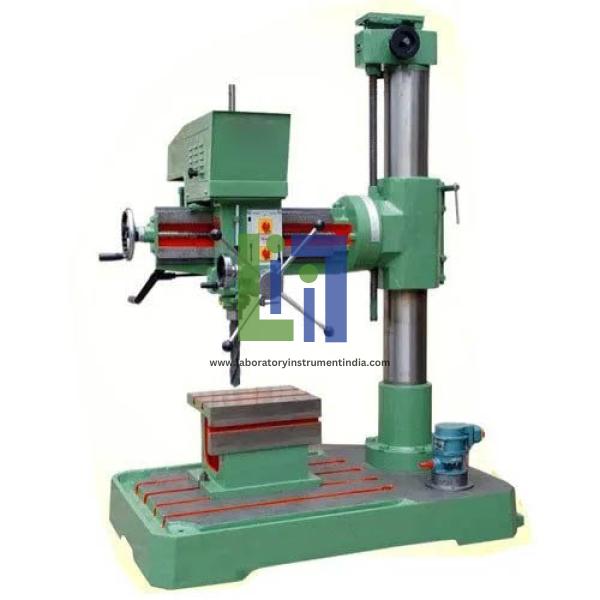

The diameter of the pillar is 170mm so that it can offer the perfect support while the machine is in the operational mode. The drilling capacity of this drill machine is 40mm which is perfect for different types of industries.
....
Features:
Column, Arm, Work Head And Gears are made out of Closed Grain.
Spindle Ram is made out of Alloy Steel.
Parts Properly Balanced
Prior Assembling of Main Gear And Pully
Parts Finished on imported Grinding Machine
All moving parts Finished to close Tolerance.
Features:
All moving parts Finished to close Tolerance
Column, Arm, Work Head And Gears are made out of Closed Grain.
Spindle Ram is made out of Alloy Steel.
Parts Finished on imported Grinding Machine
Parts Properly Balanced
Prior Assembling of Main Gear And Pulley.
Features:
Main Spindle And Pinon are Made out of Forged Steel.
Spindle Ram is made out of Steel.
Parts Properly Balanced
All Moving Parts Finished to Close Tolerance.
Parts finished on imported Grinding M/c.
Prior Assembling of Main Gear And Pulley.
Features:
Used for boring to create holes in different work materials.
Economic in pricing when compared to other boring instruments.
Can drill maximum of 38mm.
Creates less noise and less vibration.
Accuracy in making hole.
Provides consistent boring.
Durable and reliable tool.
No compromise made in quality of machine components.
Requires less or low maintenance but provides excellent machining performance.
Features:
All moving parts Finished to close Tolerance
Spindle Ram is made out of Alloy Steel.
Column, Arm, Work Head And Gears are made out of Closed Grain
Parts Finished on imported Grinding Machine
Main Spindle And Pinon are Made out of Steel.
Parts Properly Balanced
Prior Assembling of Main Gear And Pulley.
