Engineering Fundamentals Lab

Fluid Science Flow Measurement

Utilising the service unit the flow meters experiment rapidly mounts onto the multi functional work panel and is connected to the built-in water supply via quick connect couplings. Differential pressure reading is taken using a digital manometer against varying flow rates.
Combined with the Fluid Science Service Unit, the Fluid Science Flow Measurement Tray, provide shands on experimentation designed to demonstrate flow measurement and the relationship between velocity and pressure drop.

Thetray includes the following flow meters:
Orifice plate The use of anorifice plate to measure flow is demonstrated by measuring the pressure dropacross a defined orifice. The geometry of the orifice is in accordance with standard industrial orifice flow meters.
Venturi Meter : Used to demonstrate Bernoull is equation, showing how low pressure is generated in the throat of aventure tube, and how this is affected by flow. Thegeometry of the venturi orifice is in accordance with standard industrial venturi flow meters, so the use of a venturi to measure flow can also bedemonstrated. The flow recovery is also demonstrated by measuring the total pressure drop across the module.

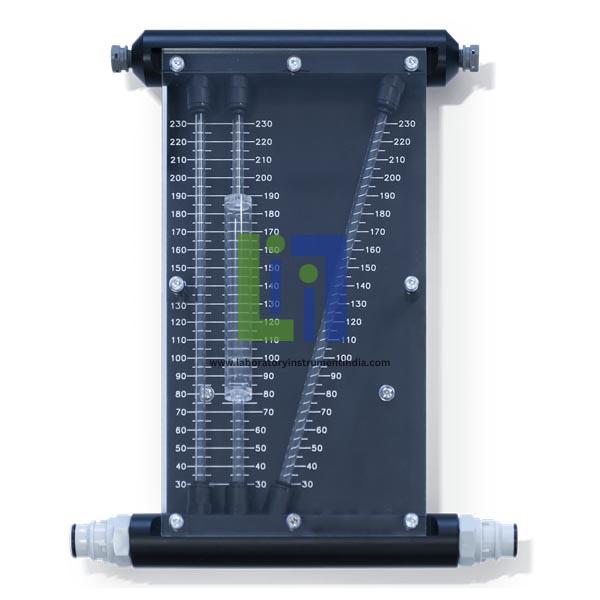

Fluid Science Manometer Inclined

The experiments are supplied with a highly visualuser-friendly operational guide, allowing the students to understand the theoryof the subject by the application of practical experimentation.
The high precision elements are supplied as modulartray-based systems which operate in conjunction with the Fluid Science serviceunit, multifunctional work panel and instrumentation enabling the student toconduct their own individual or group experiments.
The Fluid Science Inclined Manometer tray includesexperiments to measure small pressure differences and the effect of change inmanometer inclination.
The tray additionally includes a stepped manometerthat incorporates changes in cross section to demonstrate that the level of afree surface is not affected by the size or the shape of the tube.
The Fluid range is an innovative suite of productsdesigned to enable students to gain an understanding of the fundamentals ofFluid Mechanics and Thermo Fluids by the process of learning via hands-onexperimentation.

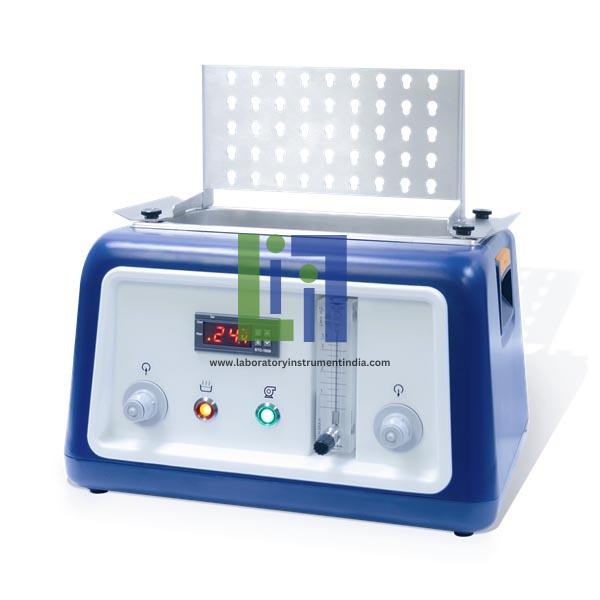

Fluid Science Service Unit

The Fluid Science range for Worldwide use, an innovative suite ofproducts designed to enable student to gain an understanding of thefundamentals of Fluid Mechanics and Thermo Fluids by the process of learningvia hands-on experimentation.
The range includes experimentsranging from simple flow measurements, losses in hydraulic circuits through tomore complex heat exchanger processes. The experiments are supplied with a highly visual user-friendly operational guide,allowing the students to understand the theory of the subject by th eapplication of practical experimentation.
The built-in safety features of the unitinclude a thermal cut out that prevents the hot water circuit exceeding 55cand a low voltage water resistant power supply unit. TheFluid Science Service Unit is designed to be used in conjunction with the fluidscience experiments. The unit incorporates a pump and rotameter to vary thewater flow rate and a heating system.
The high precision elements are supplied as modular tray-based systems whichoperate in conjunction with the Fluid Science service unit, multi functionalwork panel and instrumentation enabling the student to conduct their individualor group experiments.

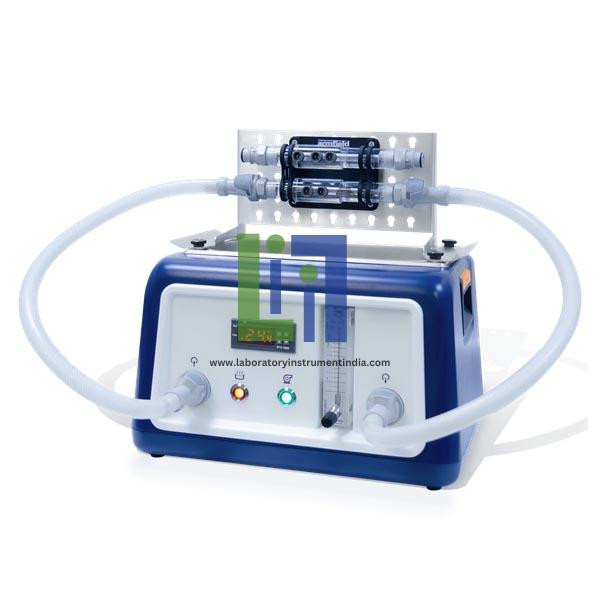

Energy Losses in Straight Pipes

Utilisingthe service unit the experiments rapidly mount onto the multifunctional workpanel and is connected to the built-in water supply via quick connectcouplings. Differential pressure reading is taken using a digital manometeragainst varying flow rates.
The Fluid Energy Losses in Straight Pipes Tray provides hands on experimentation designed to demonstrate energy losses due to the geometry of the flow path atdifferent flow rates.

Th etray includes the following Hydraulic Circuits:
Contractionand expansion 8mm  4mm  8mm diameters
Smooth and Roughened pipe 6mm diameter

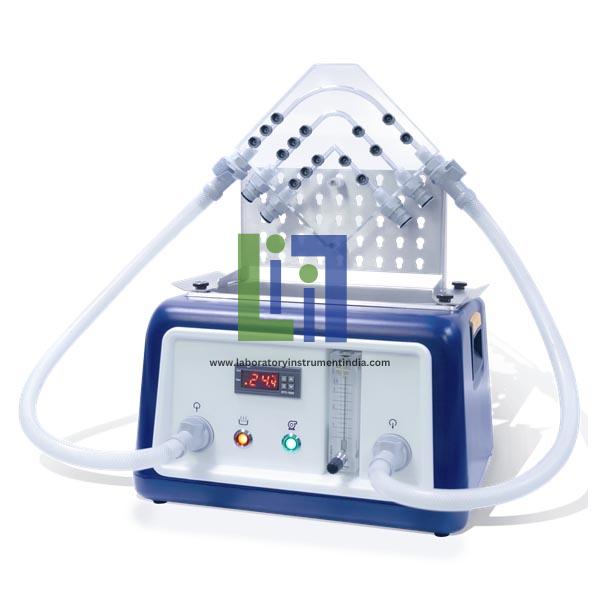

Energy Losses in Bends

The Fluid Science Energy Losses in BendsSystems Tray provides hands on experimentation designed to demonstrate energylosses due to the geometry of the flow path at different flow rates.
Differential pressure reading is takenusing a digital manometer against varying flow rates.
Utilising the service unit theexperiments rapidly mount onto the multifunctional work panel and is connectedto the built-in water supply via quick connect couplings.
The tray includes the following Hydraulic Circuits:
Energy losses in Bends
Mitre Bend, 6mm diameter.
Shallow bend Radii 75mm, 6mm diameter
Tight Bend Radii 25mm, 6mm diameter.

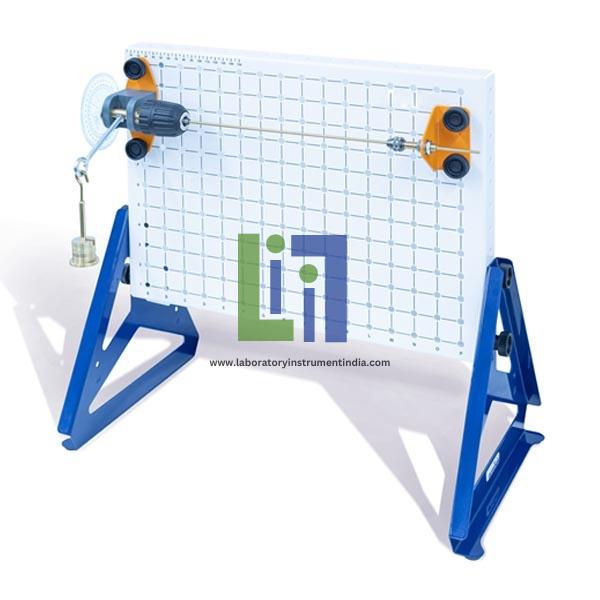

Statics Torsion

The modular hands-on tray based system is supplied in conjunction witha multifunctional Base Unit enabling the student to conduct their ownexperiments in subjects such as Statics, Dynamics, Mechanisms and Kinematics.
The Engineering Fundamentals range is designed to enable students togain an understanding of the fundamentals of engineering by the process oflearning via hands-on experimentation.
Torsion experiment kit enables students to understand the relationshipbetween torsion and the angle of twist for any given material.
Each kit is supplied with a highly visual user friendly operationalguide, enabling the student to understand the theory of the subject by theapplication of practical experimentation.

Features And Benefits:
Hands-on learning
Clear and concise pictorial assembly instructions enhance the learningexperience
Applied student learning via building and experimentation
Multiple experimental capability per self-contained kit
Tool-less assembly.
Supplied with a detailed instruction manual, covering the theory ofTorsion including multiple practical experiments designed to further developthe students understanding in this field.

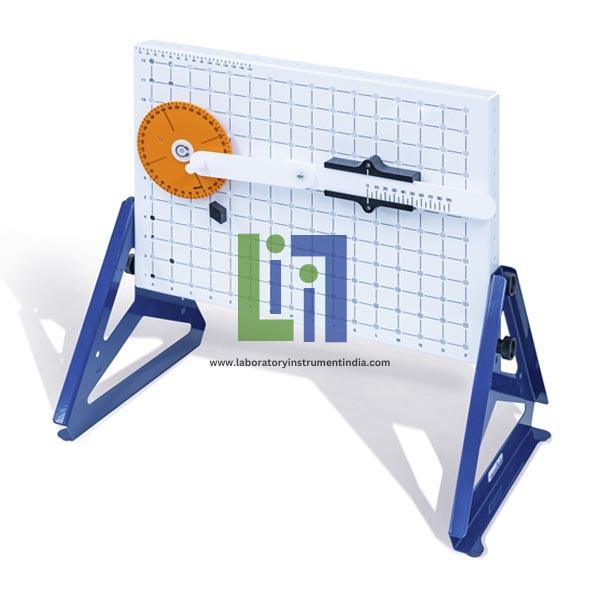

Kinematics Simple Mechanisms

The modular hands-on tray based system is supplied in conjunction with a multi functional Base Unit enabling the student to conduct their own experiments in subjects such as Statics, Dynamics, Mechanisms and Kinematics.
The Engineering Fundamentals range is designed to enable students to gain an understanding of the fundamentals of engineering by the process of learning via hands-on experimentation.
The Simple Mechanisms experiment kit enable sstudents to visualise and understand the different types of mechanical systems and the conversion of linear motion to rotary motion and vice versa.
Each kit is supplied with a highly visual user friendly operational guide, enabling the student to understand the theory of the subject by the application of practical experimentation.

Features And Benefits:
Applied student learning via building and experimentation
Hands-on learning
Clear and concise pictorial assembly instruction senhance the learning experience
Supplied with a detailed instruction manual,covering the theory of Simple Mechanisms including multiple practical experiments designed to further develop the students understanding in this field
Tool less assembly
Multiple experimental capability per self-contained kit.

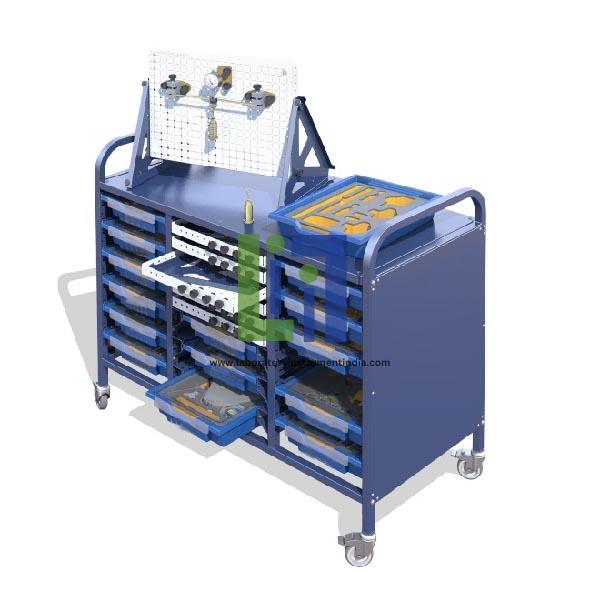

WS Workstation

Castors are fitted to the Workstation which enable it to be easily moved between locations.
The workstation can be used as a demonstration platform at the front of the classroom, but also doubles up as a storage unit for the experiment trays and Base Units.

Features And Benefits:
Ability to store both the experiment trays and base units
The workstation can be configured to store:- Up to 12 base units and a maximum of 18 trays (2 base units occupy the space of 1 tray)
18 trays if storing no base units
12 base units and 12 trays
Castors allow the workstation and its contents to be easily moved between locations
Flat top can be used as a demonstration platform.
