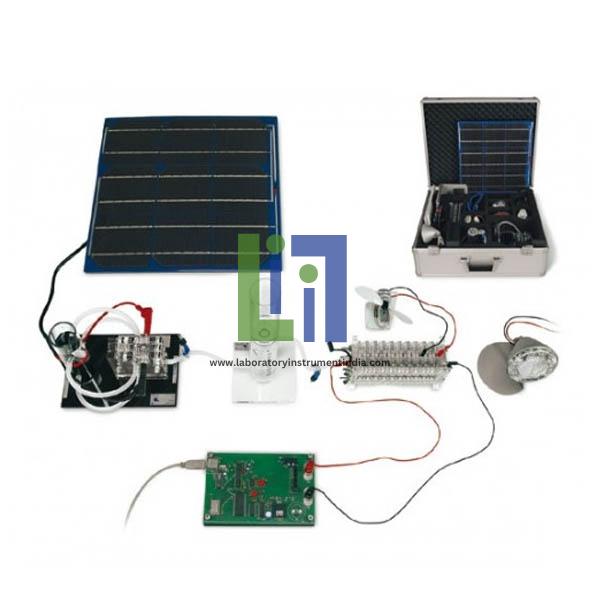

Solar cells, fuel cells, gas storage tanks and fan each have a magnetic base and can be combined for numerous experiments such as solar car, hydrogen production in a solar-hydrogen gas station, air breathing fuel cell car, solar hydrogen system, reversible fuel cell system, dismantle fuel cell and methanol system. Comprehensive in structional materials included. Fuel Cell Tutorial Teacher Set Complete solar hydrogen system in a carrying case. Consist of Solar Module Tutorial, reversible fuel cell /Air for production of hydrogen and oxygen, Electrolyser Cell5 for hydrogen and oxygen production, PEM fuel cell for hydrogen/ oxygen or hydrogen/air operation, Direct Methanol Fuel Cell with built-in methanol tank (runs on 3% methanol-in-distilled-water solution), kit that can be completely disassembled, two hydrogen/oxygen storage tanks for electrolyser and reversible systems, Fan Tutorial and car applications as electric loads, baseplate, Power Supply, Battery Box, connector cables, silicone tubing and 250m1 distilled water.
....
Features:
Includes all of the Following Automobile Systems for Study and Diagnosis:
Transmission (Automatic or Manual)
Heat/Ventilation/Air Conditioning
Engine (4 to 8 Cylinder, Gasoline or Diesel)
Electrical
Emissions
Exhaust
Engine Cooling
Performs Actual Service Manual Diagnostic Procedures
Aids in Developing Real-World System Skills and Knowledge

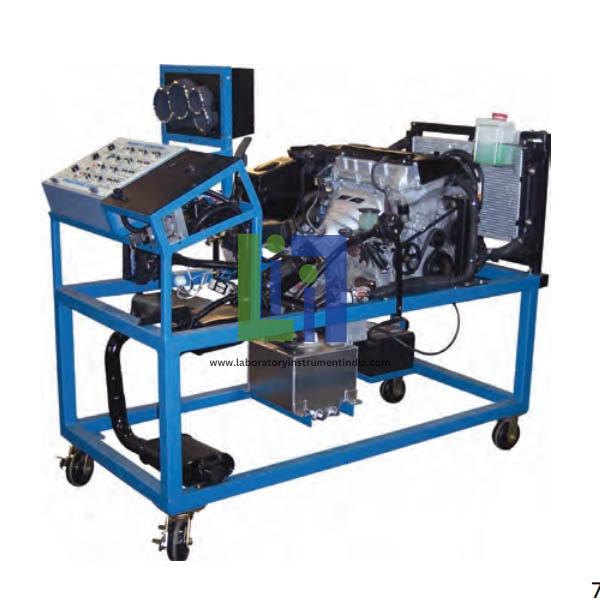

The Engine Performance Trainer is constructed from a late model recycled vehicle (Front Wheel-Drive or Rear-Wheel-Drive)
Includes an Fault/Simulator Panel with Multiple Faulting Options and Features Including:
Interactive Demonstration/Study of Fuel Control by Oxygen Sensor Feed back
Demonstrates Catalytic Convertor Punch-Through
Real-Time voltage readouts for Various Selectable Sensors
Voltage Adjustment Potentiometers for each Sensor
Investigates Downstream Oxygen Sensor Control of Fuel Trim
Individual or Multiple Sensors are selectable for Voltage Substitution
Breakout Box with Test Points for every PCM Pin
Trainer Mounted on Casters for Ease of Mobility
Data Link Connector (DLC) for Scan Tool Diagnostics.
The program includes: Instructional Modules, Audio Nisual Presentations, General Reference Manuals, Instructor's Guide, Hydraulic Tester and Mobile Hydraulic Workstation. The Mobile Hydraulics provides hands on activities with components commonly used in construction equipment, agricultural and utility vehicles. This self contained unit is a turnkey program with all the various components, hoses, pumps, and trays to build dozens of circuits. It has a variable working pressure capacity of 500-1000 and includes a heavy duty workbench with instruments and gauges.
....

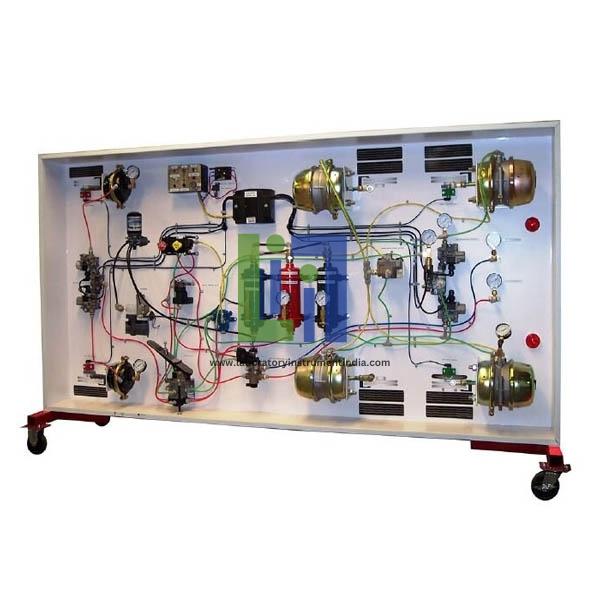

Truck Antilock Brakes is the latest Mentor setup fully functional with all sensors and fault insertion. It follows the factory training program. A power supply and fault panel is located on the rear of the unit. Truck Anti lock Brakes the display is the shadow box type, with all air brake components on the front and power supply, with storage cabinet located on the rear. The rear of the display is painted with melamine paint. Silk screens and actual reluctors convey all the technology in this working trainer. The cabinet main structure is cabinet grade plywood covered with Formica on the front, sides, and top.
....

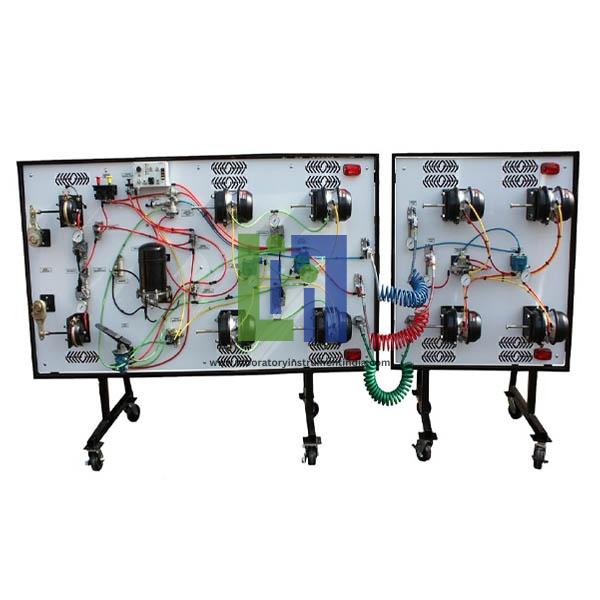

The Truck Air Brakes Trainer is designed to allow for training of tractor/trailer combination vehicles and trucks. The system consists of air valves, reservoirs, brake chambers, air intake tubing, fittings and multicolored components. All meet regulations and are the same valves or components which would be installed on a real truck.
....

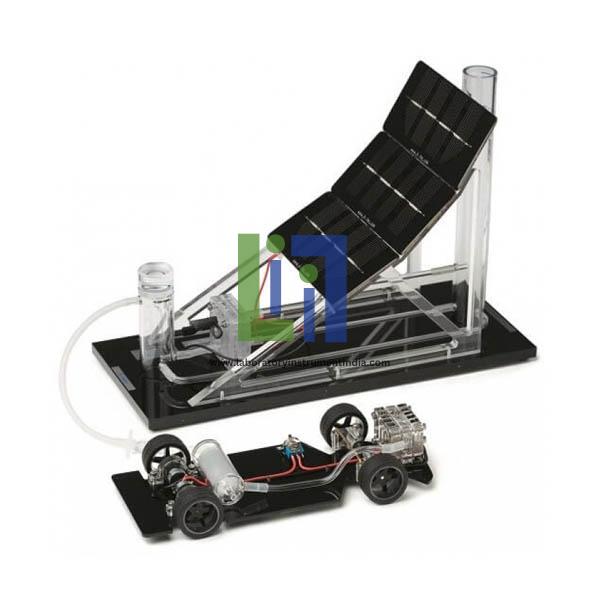

Hydrogen Concept Car And Gas Station then feeds the air-breathing double fuel cell on board the car, producing electricity and driving the car forward. The gas station uses solar power to run an electrolyser and produce hydrogen gas. One tank of hydrogen produces enough power for a 7-minute run time. Power supply and experiment / textbook included. Our most realistic model car set gives observers a glimpse of the transportation technology of the future.
....

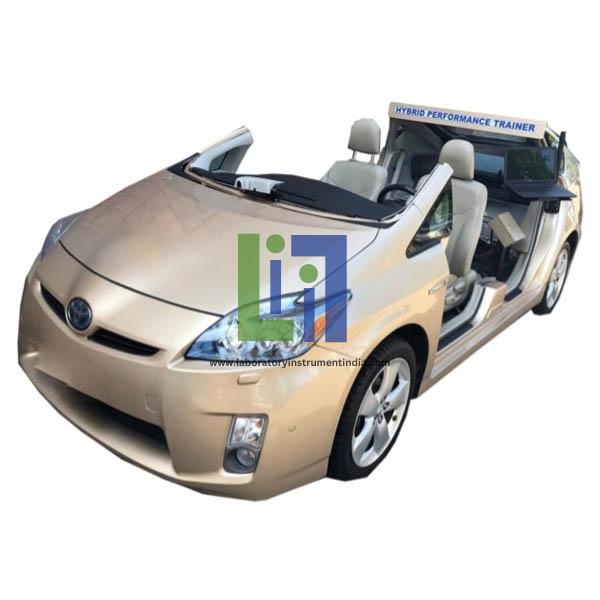

Hybrid Vehicle trainer has a console panel to read DC current, voltage and outputs. A controller is in place for battery charge management. Hybrid Vehicle technology in electric dynamometers has enabled the design of this hybrid vehicle for dual purposes. How solar energy can be integrated with alternative fueled engine power is taught by hands on activities which teaches the basics of hybrid propulsion. The propelled by a 2.5 HP DC motor connected by a bank of batteries. Solar cells provide substantial charging as does the onboard propane powered engine which is coupled to an electric dynogenerator.
....
The trainer simulates the speed of 0-90 mph and demonstrates any wheel lock conditions. Students can be tested with conditions set by thee instructor. Trailer Anit lock Brake Trainer of a 6 wheel system is mostly for truck and heavy duty transport systems. After powering up the controller, the warning light sequence indicates a malfunction and will stay on with vehicle speeds above 6 mph. The teacher will be able to select wheel speed sensor low resistance on the back panel board and have the students search for the system problems.
....
Consist of Ina Fuel Cell Stack 10 (ten cells), rower 15, Fuel Cell Monitor Pro, hydrogen storage tank Storage 80, electric load experimentation Set Lamp, Fan, Solar and magnetic vertical bracket system Holder Set. Fuel Cell Experiment Set system in a sturdy carrying case. The following accessories are also induded: water bottle (with distilled water), protective goggles, silicone tubing, textbook.
....
The stand is to accommodate radiator mount with varied positioning slots and sliding brackets positioned in the front of the engine test stand. The engine mount is a heavy dun, test stand, constructed from 3" x 3" steel mechanical tubing frame, 11 gauge heavy wall type, welded at all joints. The entire test stand is positioned on specially designed vibration dampers and are attached to the main frame.
....

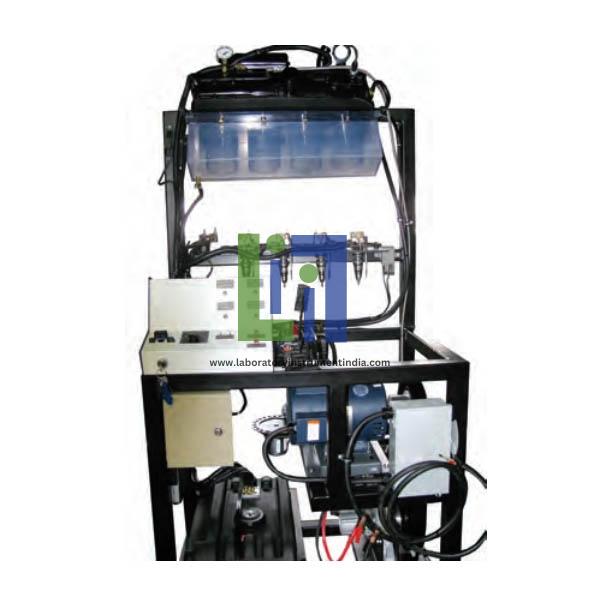

The student obtains further training in diesel timing, fuel-air mixture measurements and injector performance. Single Cylinder Diesel Program provides advanced experiences in operating a single cylinder diesel engine measuring torque and speed. Any malfunction of the engine and loss of power is measured by an electric dynamometer.

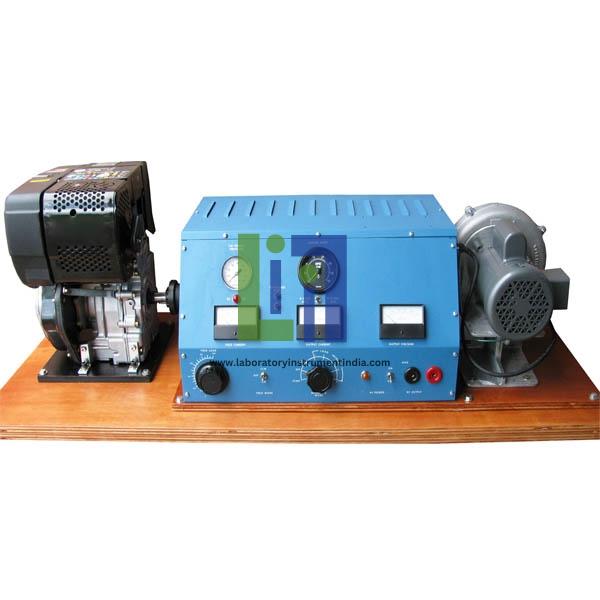

The program includes a Electric Dynamometer, coupled to a Diesel Engine on a baseboard together with Air and Fuel flow meter set-up and interconnection system running on biodiesel. The data aqcuistion system can also be added to the basic Single Cylinder Diesel Program to record data and compare results. Horsepower and Torque can be viewed on screen in a visual graph. Information like can be graphed, and compared on a computer, then saved or printed. Single Cylinder Diesel Program is a powerful training aid for any student learning diesel.
....

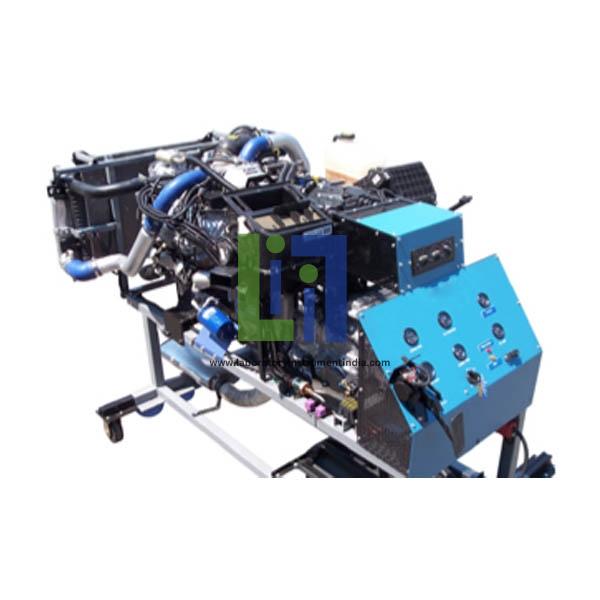

Truck And Heavy Dun Diesel Program introduce the Cummins, Caterpillar, Navistar, Detroit Diesel or other engines with all the components assembled and ready for operation. These units are available with hydraulic water absorption dynamometers for accurate measurements. The manuals provide full information and procedures for troubleshooting diesel engines. Potential problems are listed, diagnostic methods are indicated and repair procedures detailed.
....

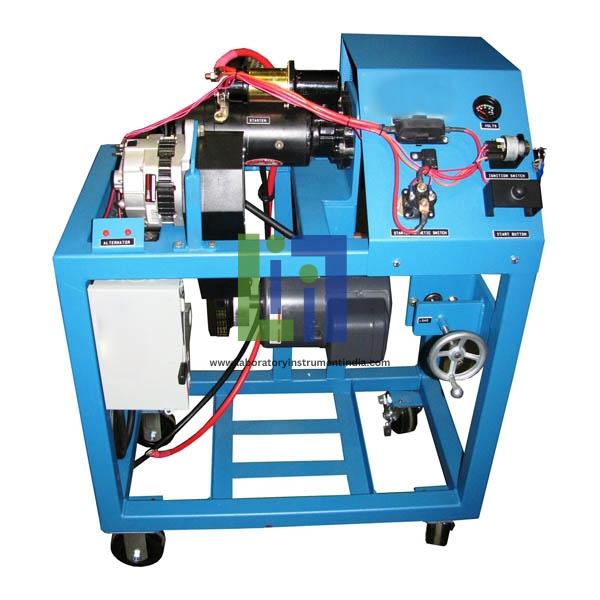

This is the exact unit as designed for Truck and used in their N. Heavy Dun Starting And Charging Designed to incorporate live actual components, providing "real world" electrical measurement values.
....
The program consists of; Instructional Modules on Diesel Engines, Audio Visual Presentations, General Reference Manuals, Instructor's Guide, Diesel Engine Test Bed complete with Engine Test Stand and Fuel/Battery Stand. Light And Mid Dun Diesel Program is intended to offer the person comprehensive training based upon the light and mid duty diesels. Models in-dude Cummins, Ford, General Motors and others.
....
The module includes the components as used in the Prius scaled down for quick and easy instruction. Included is a 12-20 Volt Solar Panel, Solar ECU, Blower, Relay High Output Blower Fan and Ventilation Control Switch. Automotive Solar Ventilation Trainer /program is designed to demonstrate the basic operation of the optional Solar HVAC assist offered. The air inlet/outlet Servo function is simulated with colored lights to show timed operation while the actual air flow comes through the live dash vent.
....
Truck Air brake And Trainer requires external air supply to be connected to the rear of the unit and 115 VAC power source. All parts and important lines are clearly labeled, as are the pressure switches and warning light indicators. Truck Air Brake And Trainer is a fully functioning Bendix Truck Air brake system. All components of the Trainer are real truck brake systems (air valves, brake boosters, control devices). All wiring harness connectors are exposed for trouble shooting purposes.
....
The program consists of a trainer built with genuine equipment and educational materials to teach the fundamentals of Common Rail fuel injection and engine control. The electronics are faulted in order to create problems in the fuel system for student diagnosis and practice. Cummins Diesel Trainer is constructed from a Cummins type vehicle, using an electronically controlled Diesel fuel injection.
....
The various parts are supplied as accurate cutway models, connected together to show thier operation in an easy, immidiately understandable manner. Transmission Assembly fitted to most 4x4 cross country vehicles.
....
With this type of knowledge and preliminary hands on activities, the student can proceed to work on live vehicles to gain service knowledge. Speed Gear With Clutch 4 Forward Speed And Reverse provides the school with workstation where the student can study all the components use the trainers utilize audio visuals and follow the competency based courseware.
....
The components of this unit are pre-assembled with a compressor operating with refrigerant. A large electric moter is mounted with a control housing in a self contrained heavy duty roller cart. Manual Air Conditioning Trainer allows the student to learn the basic test and maintenance procedure for the refrigerant loop. Charging checking for leaks, A replacing components, servicing parts, and other tasks are covered in this program. Included are a set of charging and manifold gauges and battery cables.
....

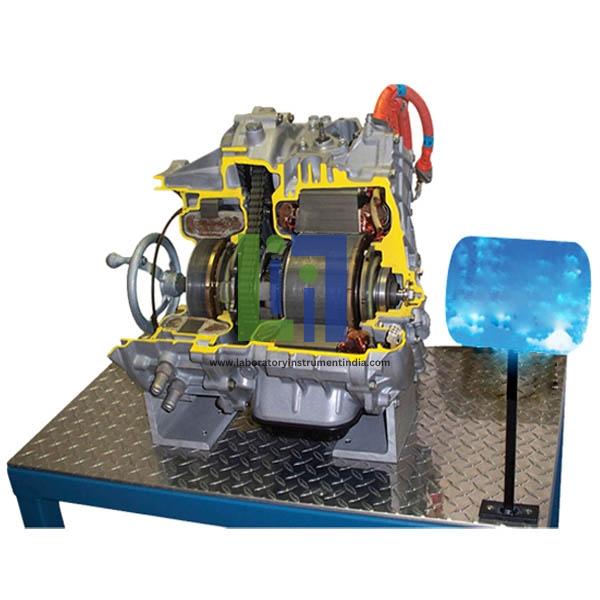

It is a perfect unit to enhance any Hybrid curriculum. Hybrid Drive Cutaway takes a hybrid transmission and fully sections it to allow all major components to be seen.
....

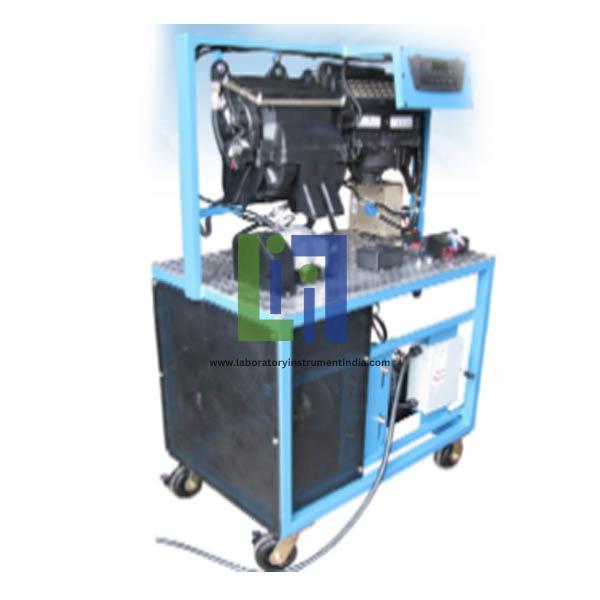

Electronic Climate Control AC Trainer is an automotive air conditioning program designed to offer hands on air conditioning systems for students. The trainer consist of an electronic climate control air conditioning unit including: Compressor, blower, fan, evaporator condenser, accumulator, pressure switch and related parts mounted on an industrial duty mobile cart. The components are based on an AC unit, complete with electronic controls, and comes precharged with refrigerant. Included are a set of charging hoses and manifold gauges and battery cable.
....

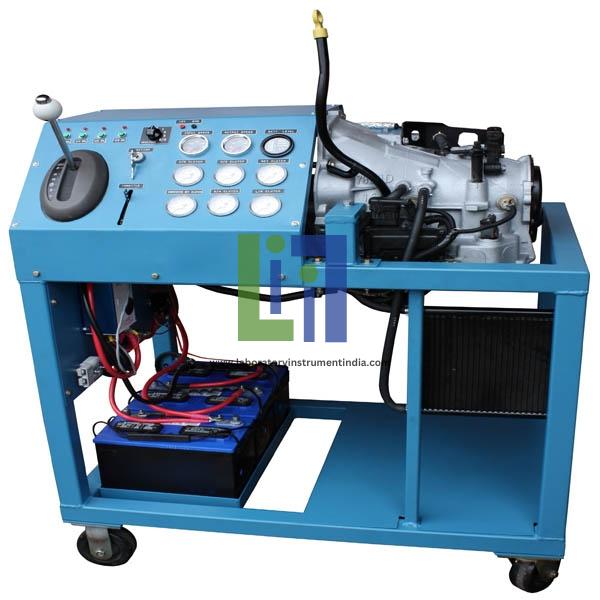

The trainer features a fully functioning Automatic Transaxle Trainer that can be manually shifted through all foreword and reverse gears. It features the popular Automatic Transaxle found on most chrysler front wheel drive cars. The Automatic Transaxle Trainer is designed to assist in educating the fundamentals of a front drive transaxle. The package includes a complete compentency based training program which instructs the student from basic operation and adjustment to complete overhaul of the transmission.
....

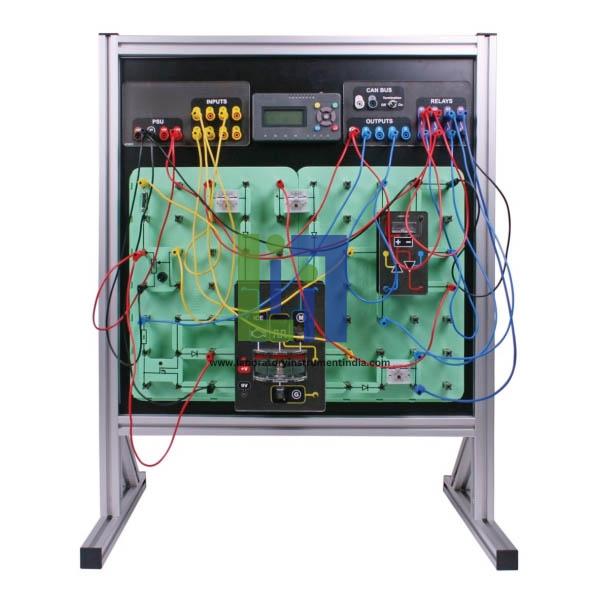

The Hybrid Vehicle Demonstrator includes a Hybrid engine, a battery and an Electronic Control Unit, several meters showing power flow between the units, a brake switch and a potentiometer mimicking the accelerator pedal. The system can also be used to show the effects of regenerative braking. Two models are available: a bench top version and a panel mounted version. The controls the system to show students how the power is routed in a hybrid depending on the State of Charge of the Battery, and to allow them to make measurements on the engine performance under different load conditions.
....
The engine stand provides a stable work bench for major engine service suitable for use by schools, professional mechanics and engine re-builder. Engine Repair Program provides hands on training for those who wish to specilize in engine repair. The engine stand features a rugged tubular frame which supports up to 1,250lbs Include engine, stand, and tools for overhaul with curriculm. The stand has 250 degree rotation heads which lock in any position, a 23" handle to allow easy rotation to the engine and 3" diameter steel wheels to provide smooth maneuvering.
....
A combination of cross sectioned cutways, as fabricated and well selected audio visuals make teaching an easier task. Complete with 5 forward speeds and reverse. As part of the specilization, hese cutways available based on different models.
....

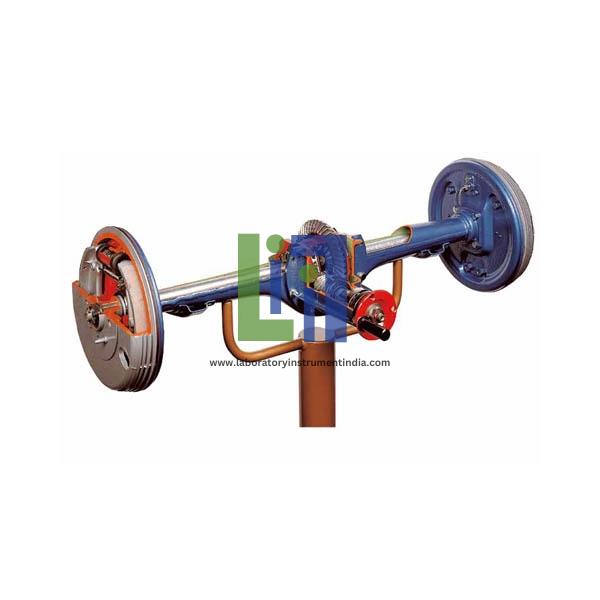

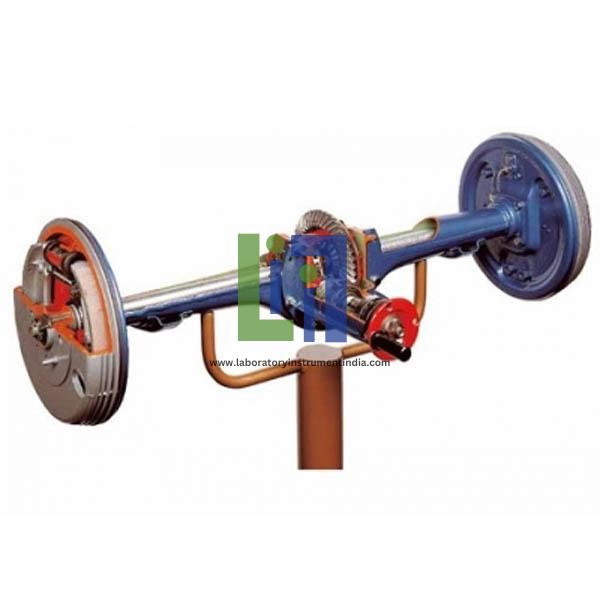

Rigid Rear Axle Cutway complete with differential unit, axle shafts and rear drum brakes. A brake drum and a cylinder are sectioned. Carefully sectioned to show the operation of the differential unit where planetary gears, the ring gear and the pinion are clearly dispalyed.
....
It is complete with a running engine, transaxle, drivetrain, suspension, front brakes, dashboard electrical system and computer. Available, with our NEW Dynamic Fault/Breakout Box. Hybrid Engine Performance Trainer is the same trainer as our only built from a hybrid model and converted into an Engine Performance Trainer with built-in Fault Simulation.
....

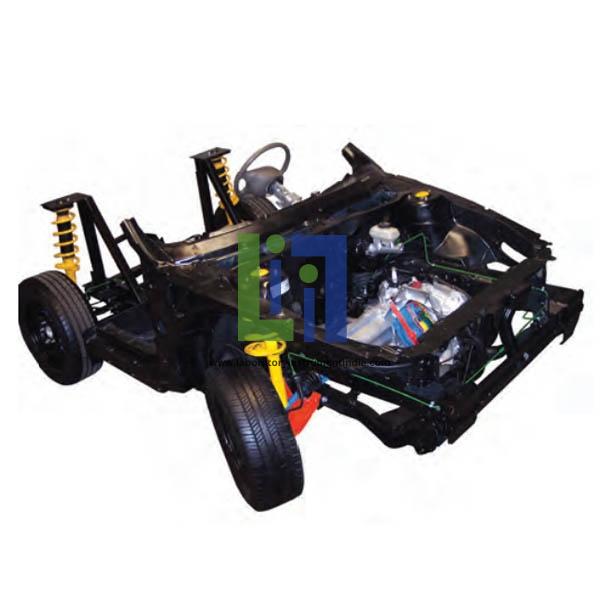

Suspension Steering And Brake Program has the complete strut assembly. tires and wheels. and fully functional hydraulic power steering with complete front disc brake system. Suspension Steering And Brake Program is based on task list and provides the student with a trainer which can simulate various road conditions. The program is completely operational with power steering, tires and front disc brakes. Strut mounting points, which replicate Chrysler factor/ specs. allow alignment/adjustment for aster and camber. The readily accessible components make the instructor's task relatively easier. The Strut Suspension can be loaded with hydraulic double acting pistons that are mounted to allow load to be created under the control arms letting tires spin freely and brakes to function properly. The component operation. identification and diagnosis of problems an be pinpointed and replaced/repaired by the student.
....
This hands-on training program is designed to offer the student a thorough job orientation and skill development for the front-end servicing of vehicles. The Four Wheel Suspension Steering Brake Program system offers complete alignment concept flexibility. from basic front wheel alignment (on the trainer); to a complete four wheel alignment on passenger can.
....
Rear Suspension with independent wheels with oscillating arms and gas shock absorber with helicodal springs.
Drum Brakes.

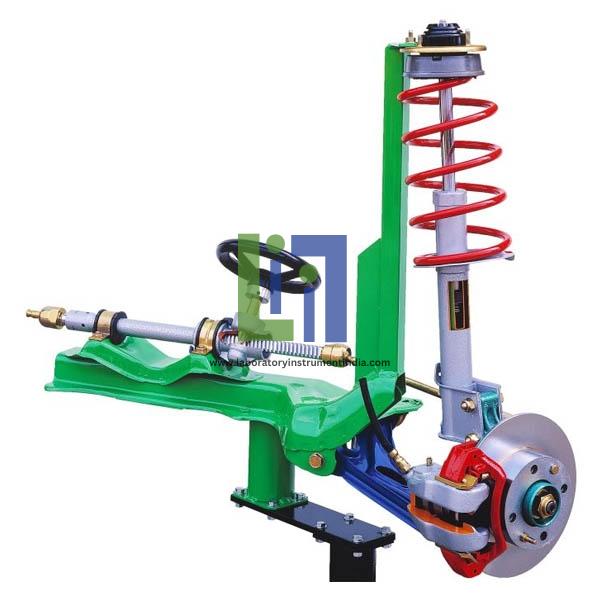

The cutaway includes suspension, shock absorber, spring, rack and pinion steering box, disk brake. and steering wheel. Steering Unit With Suspension trainer is operated manually through a crank handle.
....
This hands-on training program is designed to offer the student a thorough job orientation and skill development for the front-end servicing of vehicles. The Four Wheel Suspension Steering Brake Program system offers complete alignment concept flexibility. from basic front wheel alignment (on the trainer); to a complete four wheel alignment on passenger can.
....
Rear Suspension with independent wheels with oscillating arms and gas shock absorber with helicodal springs.
Drum Brakes.

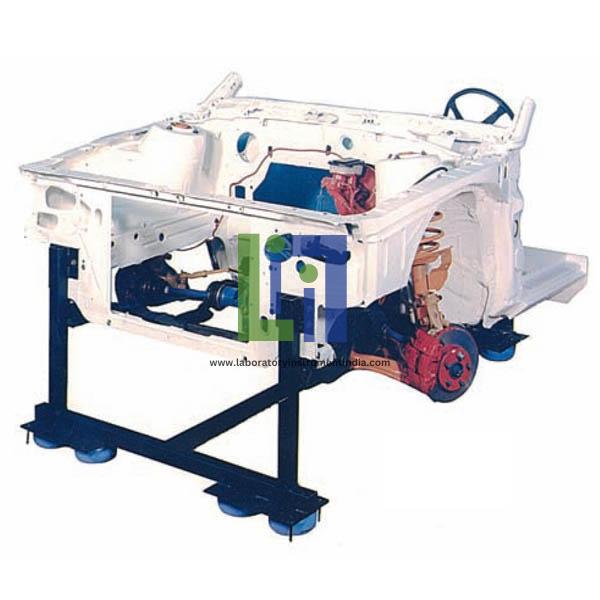

Suspension Steering And Brake Trainer is constructed from a front wheel drive car with a out the engine and with manual or automatic transmission. Suspension Steering And Brake Trainer is a front section assembly of a car, complete with transaxle, front suspension. front brakes and steering is systems. The pans are individually colored to make them easily identifiable. It is cut at the lower terminus of the windshield pillars. and through the rocker channels, floor panels, and central channel of the underbody aft of the gearshift console, and steering mechanism are to be intact.
....

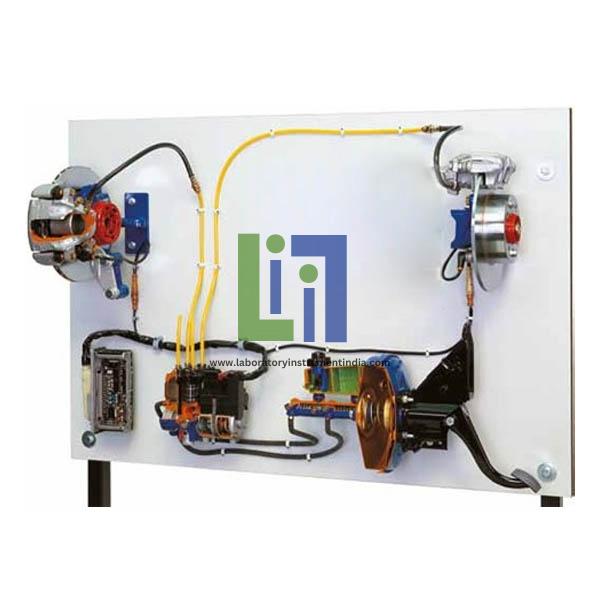

All the brake parts are provided as detailed cutaway models, connected together to enable easy understanding of the brake assembly operation. Educational model of a modern braking system for motorcars.
The assembly consists of:
Servo brake with foot control panel and brake pump
Electronic control unit
Self-ventilating disc brake with phonic wheel and sensor
Rear disc brake with phonic wheel and sensor
Oil tank.
Many parts have been chromium-plated and galvanized for a longer life. Brake Board Cutway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts.
Specification:
Equipment Layout: On Stand with Wheels
Operated: Static.

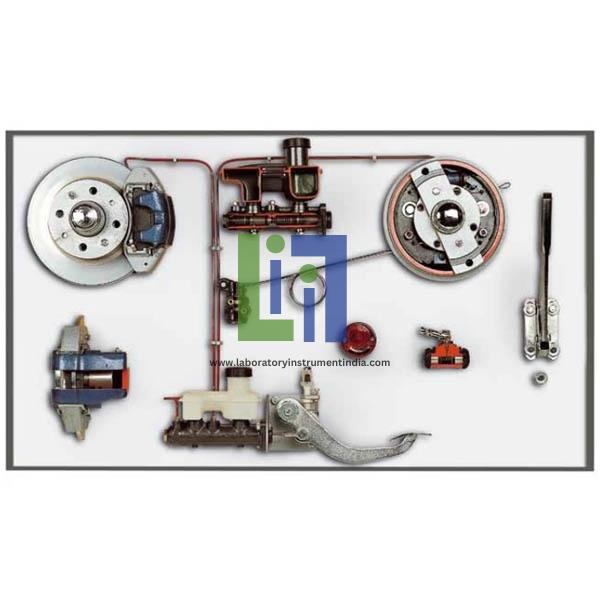

Double Circuit Brakes Cutway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts. A braking adjuster is placed between the pump and the (rear) drum brake in the circuit in order to avoid the rear wheels locking during the braking phase. Wall panel representing a Double Circuit Braking System. The same devices used in the circuit have been sectioned and added in the panel to clearly show their operation. As in real conditions, Double Circuit Brakes Cutway is operated by a hydraulic pump connected to the disc brake and a drum brake. Many parts have been chromium-plated and galvanized for a longer life.
....

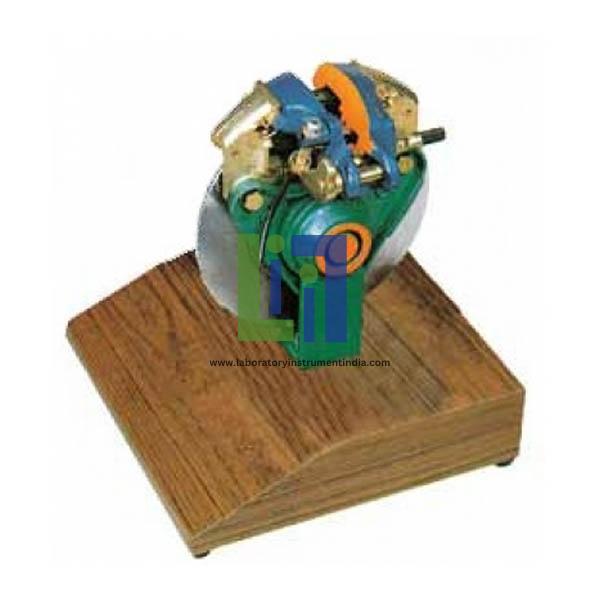

The small piston and tha brake strips are clearly shown. Disk Brake Cutway, floating type.
....
The Chassis VI provides a full array of pressure gauges that show front and rear line pressures and the individual pressure at each wheel. It is a unique hands-on trainer with diagnostics. Four Wheel Trainer system incorporates live components and hydraulic lines, and is a self-contained fully working braking system manufactured with authentic, automotive components.
....
Durm Brake Cutway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts. The cylinder and shoes are clearly shown. Many parts have been chromium-plated and galvanized for a longer life.
....
It is operated through the parking brake lever. Combination of Disk And Drum Brake Cutaway exposed brake pump, oil tank and brake lever and disk brake in which there is a drum brake.
....

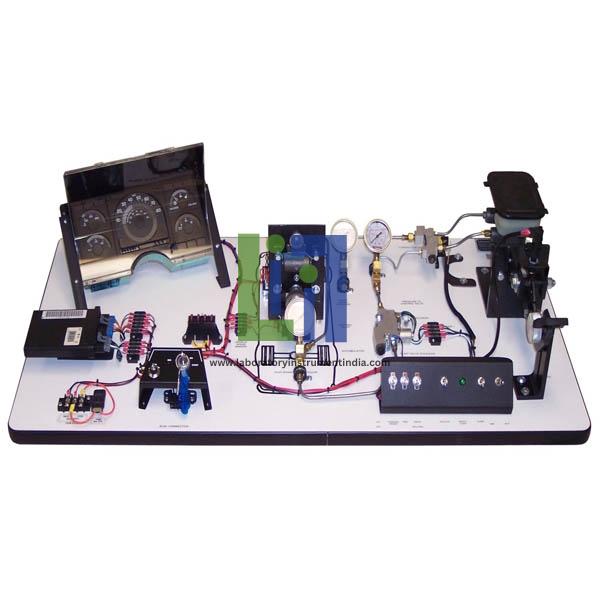

The trainer is a fully functional system, which incorporates all live components, fault insertion and complete on board computer diagnostics in order to give the student a complete understanding of the system. Two Wheel Trainer state of the art program was specifically designed to teach both the hydraulic and electronic aspects of the system.
....
The system uses a fault box that is manually or computer controlled to set challenges for students to diagnose and fix. The Trainers is derived from surface mounted panel trainers with the addition of computerized fault insertion and classroom management software that can be added optionally.
....
Features:
Automotive components with fully functional 4-channel hydraulic system with full traction control
Built in pressure pump for Traction Control operation
Hydraulic pressure gauges at each wheel
Functioning ignition system
Bar graph displays on front panel showing brake pressure at each wheel
Digital instrumentation indicating fuel injector pulse and spark control
Equipped with DLC for scan tool hookup and data stream viewing
Vehicle instrument panel with indicator lamps
Control unit breakout box with OEM matching terminals for hookup of DVOM and oscilloscope
Disc/Drum four wheel brake assemblies
Fully functional parking brake system
55A DC power supply included
Fits through a standard 30 door opening
Functioning braking system with four mechanical gauges to display changes
Fault insertion box with six faults
All routine electrical and mechanical service procedures can be performed on this trainer including component replacement, adjustments and hydraulic bleeding.

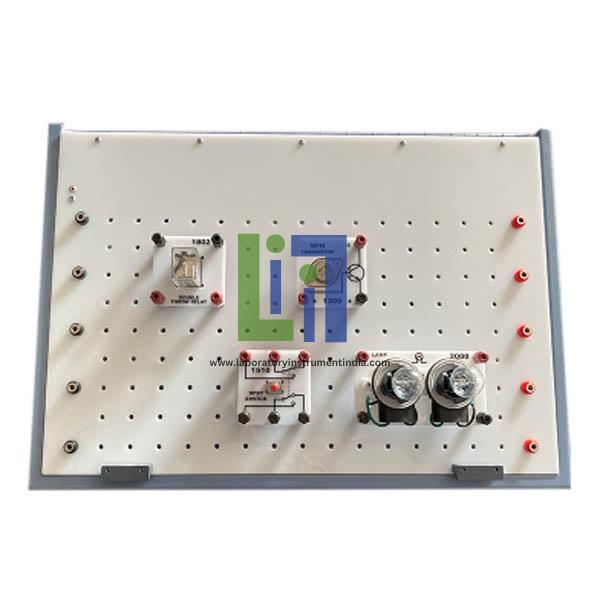

Automotive Electro Trainer provides a "hands-on" working knowledge of voltage, current, and resistance with series and parallel circuits. Over 250 of these currently used to train. Automotive Electro Trainer kit allows students to gain a foundation in the principles of electricity and electronics. Graphic symbols are screened into each component's acyrlic background. This helps students to understand circuit reading and wiring diagrams. It provides a "hands on" working knowledge of voltage, current, and resistance with series and parallel circuits.
....
Basic Electrical Modules And Advanced Electronic Systems has become the language that all modern cars must use in order to function. Collectively, these two terrific programs provide a solid foundation from which anyone serious about obtaining marketable skills in the constantly changing automotive world can learn.
Basic Electrical Modules And Advanced Electronic Systems is divided into two categories: basic electricity program which allows the student to transfer fundamental theory lessons into real work skills, and a basic electronic course that includes solid state components that generate the basic signals.
Basic Electrical Modules And Advanced Electronic Systems covers basic electrical concept,using individual containing actual working automotive components to build different circuits. These flame polished Plexiglas boards are silk screened with tip jacks and numbers to make building circuits easier.
Basic Electrical Modules And Advanced Electronic Systems has become the language that all modern cars must use in order to function. Collectively, these two terrific programs provide a solid foundation from which anyone serious about obtaining marketable skills in the constantly changing automotive world can learn.
Basic Electrical Modules And Advanced Electronic Systems is divided into two categories: basic electricity program which allows the student to transfer fundamental theory lessons into real work skills, and a basic electronic course that includes solid state components that generate the basic signals.
Basic Electrical Modules And Advanced Electronic Systems covers basic electrical concept,using individual containing actual working automotive components to build different circuits. These flame polished Plexiglas boards are silk screened with tip jacks and numbers to make building circuits easier.
Specialized Electronics Training:
Special configurations for John Deere, Caterpillar, Honda and VW
Selected Vehicle Components
12-Volt and 5-Volt DC Power Supplies Included
The most widely used Training System in the World
Hardware design by ATech Training, Inc.
12-Volt AC Power Supply Included
Instructor Guide
Student Workbook
Complete Factory Courseware Available.
The courseware is competency based including; information sheets, instruction sheets, student self-check, instructor's final checklist, and check out activities. Classic Series Trainers is made from live components, mounted on a Mylar (erasable) surface, with heavy rubber trim and are predrilled for steel wall mount brackets for classroom security. Each board can keep 2-3 students active doing hands on skill development.
....

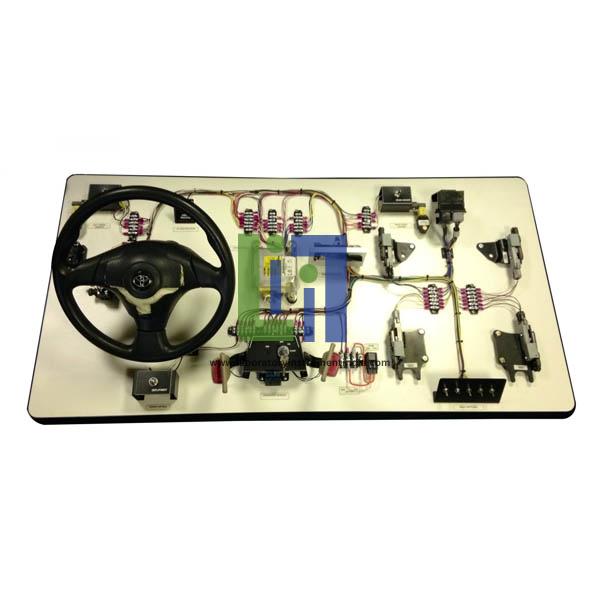

With the Air Bag Trainer, the student can learn the operation, testing and troubleshooting of an actual operating deployable air bag.
Features:
Crash and safety sensors are directly available on the board, without the student getting involved with a live vehicle. The teachings of "Back-Up" power supply are shown on the board with relative ease, in case of battery destruction. Pneumatic operated deployable air bag has a flow rate valve that controls the speed of deployment into a safe range of operation. Components are displayed and accessible. The unit provides for an Air Bag indicator light that flashes trouble codes. Diagnostic Monitoring is performed with a microprocessor which checks the wiring and electrical components.

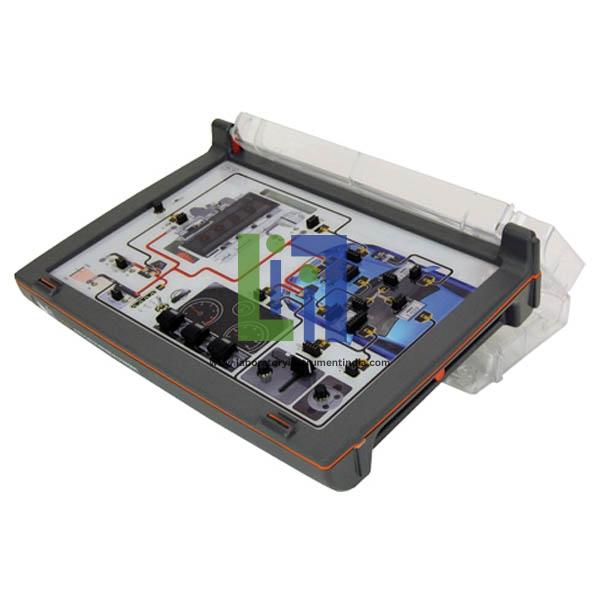

Starting And Charging Trainer is the only unit that uses our "friction" load device to show actual current draw on the starter. Starting And Charging Trainer is designed to incorporate live actual components, providing "real world" electrical measurement values. Additional NATEF tasks such as shimming a starter can be obtained.
....

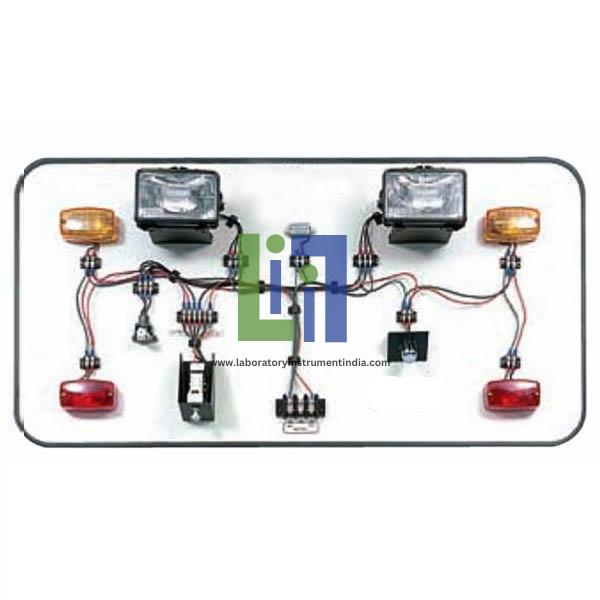

Electrical Program provides for the understanding of circuit reading and knowledge of wiring diagrams. Electrical Program is the basic Electricity Trainer used in training programs. Symbol graphics are screened onto each component with a white acrylic background. Using this Program students gain a foundation in the basic principles of electricity and electronics while getting a "hands on" working knowledge of voltage, current, and resistance through series and parallel circuits.
....
The solution includes component carriers, base board, a power supply, and storage trays and is supplied with a full curriculum pack. CAN Bus System And Operation Trainer kit allows a fully functioning CAN Bus System, mimicking vehicle operation, to be set up using 4 Electronics Control Units representing Instrument panel, Front ECU, Power train control, and Rear ECU. Students are tasked with setting up a fully working CAN Bus System, inserting faults and using hardware and software tools to understand fault diagnosis procedures and practice. A fifth is used for system diagnosis, releasing faults and viewing CAN bus messages.
....

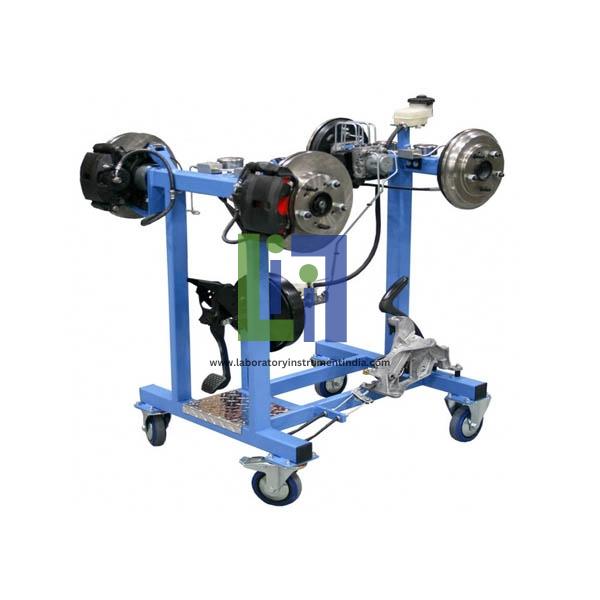

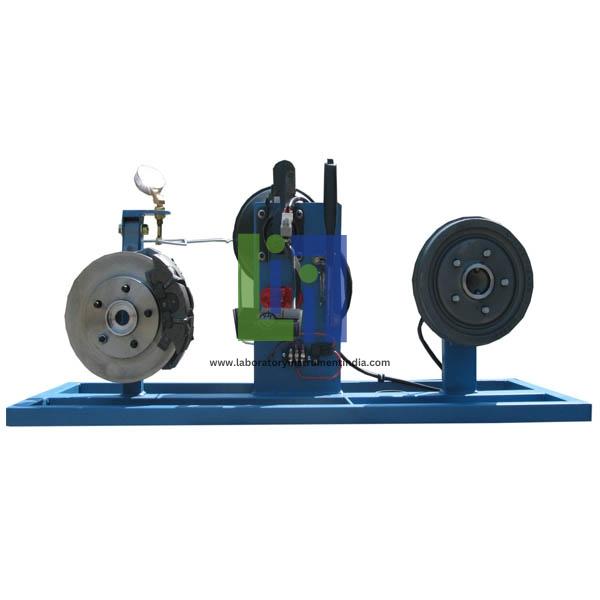

The program covers adjusting brakes, replacing hoses and tubes, servicing master cylinder. Each trainer is large enough to allow two students to be active while learning hands on automotive skills. The hands-on program offers in-depth training in the areas of servicing replacing parts. Power Boost Drum And Disc Brake Trainer has both drum and disc brakes mounted on a welded steel chassis for bench top assembly.
Features:
New and Recycled Drum/Disc Brakes
Powder-Coated Frame
Operating Hydraulic System
Courseware Includes: Instructor Guide, Student Manual, and Service Manual Information.
Includes: Power Assist, Parking Brake, Electrical Circuits and Wheel Bearings
Real World system Skills and Knowledge.

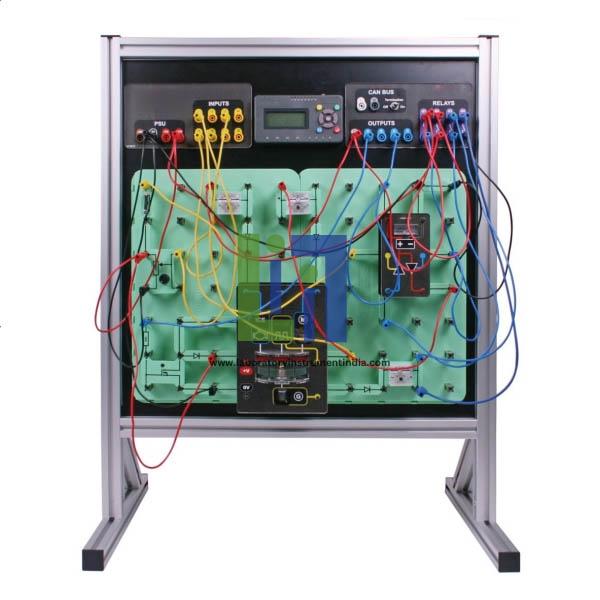

The Hybrid Demonstrator Trainer includes a Hybrid engine, a battery and an Electronic Control Unit, several meters showing power flow between the units, a brake switch and a potentiometer mimicking the accelerator pedal. The system can also be used to show the effects of regenerative braking. Two models are available: a bench top version and a panel mounted version. The controls the system to show students how the power is routed in a hybrid depending on the State of Charge of the Battery, and to allow them to make measurements on the engine performance under different load conditions.
....
Electricity And Electronic Trainer "active schematic" kit allows students to gain a foundation in the principles of electricity and electronics. Electricity And Electronic Trainer provides hands-on working knowledge of voltage, current, and resistance with series and parallel circuits. Circuits are assembled by inserting the component carriers between the metal baseboard pillars which act as connectors. The final uncluttered layout clearly resembles the theoretical circuit diagram where each component is displayed/ accessible over the board. Electricity And Electronic Trainer Locktronics system consists of elctronic components mounted underneath tough molded polystyrene carriers with the appropriate circuit symbol displayed on the upper surface of each carrier and the component mounted securely beneath it. Graphic symbols are screened onto each components acrylic background. A very affordable unit.
....
Study high performance engines, as the engine allows for different compression ratios and timing to be selected, then Horsepower and Torque to be viewed on screen. The software package, is a powerful training aid for any student learning alternate fuels. Students can actually see which fuel produces more torque! Which burns hotter, propane or alcohol? Information like this can be graphed, and compared on a computer, then saved or printed. Graph multiple runs of the, using alternate fuels (propane, methanol, ethanol, etc.), showing the properties of each.
....
This patented and unique engine features transparent engine construction, which exposes all the moving parts of a 4-cycle engine. Since the is oil-less too, it enables the students to observe clearly the crankcase components and internal combustion of the engine. The Oil Less Four Cycle Multi Fuel Engine Performance program has made the study of 4-cycle engines a simple task and opened the door for the student to conduct multiple experiments in alternate fuels. Includes variable timing and compression.
....
Programs are designed to give practical troubleshooting experience with domestic and foreign car manufacturer's engines. With the Variable Fault Feature, the instructor can use the switches to demonstrate the loss of circuits while the engine is running. Today's engines have sophisticated microprocessor based algorithms that control engine performance. Because of these technological changes, the automotive technician must understand each subsystem's unique role in operation as well as it interdependence with other components.
....
The Four-Cylinder Engine trainer should consist of a complete, fully operational Multi Point EFI system. A color coded schematic chart, under a lexon polycarbonate protective screen, of the Fuel Injection Trainer system and circuit's, should also be mounted onto the trainer for reference. Original components should be utilized and clearly laid out on a display board that is mounted on an integrated floor stand, made from powder coated electro galvanized steel, mounted onto wheels for mobility.

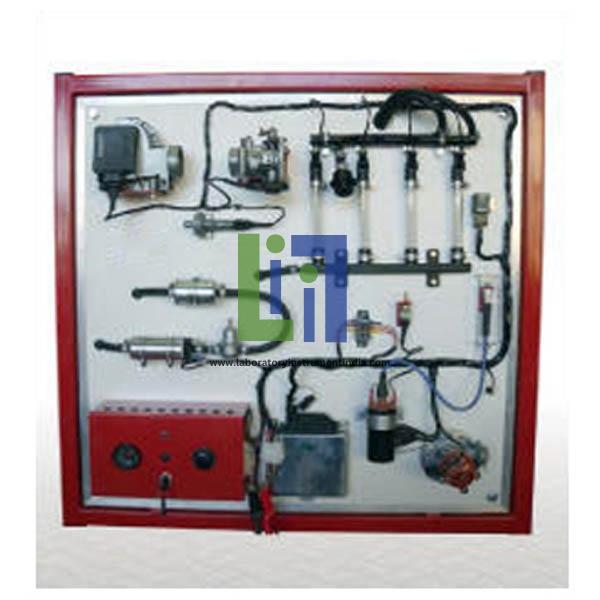

Fuel Injection Trainer engine sensors have a signal generator to simulate various engine conditions and a corresponding electrical meter that continuously monitors the signal. The Electrical wiring diagram is provided in a special design panel to incorporate Input / Output connections from sensors and ECU. The effect of altering the sensor condition should be immediately apparent on the meters. Open source and programmable and have the ability to connect to a PC, for programming and displaying system data.
