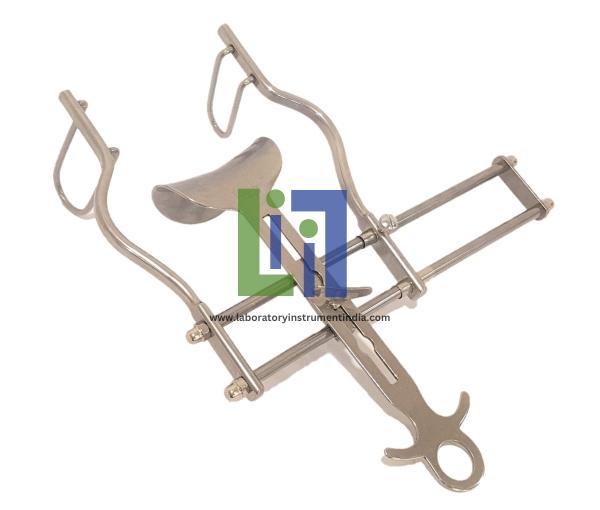

Surgical instrument to separate fatty tissue, muscles or viscera after the abdominal incision to expose the operative field for examination or intervention.
Static function instrument: abdominal self-retaining retractor.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.50% carbon, 12-15% chromium, 0.45-0.90% molybdenum.
The compass (frame) is a support with hinged arms.
2 fenestrated end blades: approx. 35 x 70 mm.
1 center blade, adjustable in height: approx. 45 x 80 mm.
See Martin Catalogue no. 24 Ref: 15 852 00.
Locking mechanism and compass (self-holding).
Maximum wound opening: approx. 180 mm.
Reusable.
Pressure force instrument: towel clamp, springy.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon, 12-13% chromium.
One fine single tooth at each jaw.
Reusable.
Hard ratchet, lockable.
Length: 13 cm.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.16 - 0.20 % carbon; 13 % chromium.
Blade shape: Oval, fenestrated.
Blade edge type: Blunt.
Uterine curette.
Shank type: Rigid.
Length: shaft 26 cm.
Width: spoon 8 mm.
Reusable
For removal of retained products of conception from inside the uterus.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15 - 0.40 % carbon; 13 - 14 % chromium.
Uterine curette.
Blade edge type: Sharp.
Shank type: Rigid.
Blade shape: Oval, fenestrated.
Length: shaft approx. 26 cm.
Width: spoon 7 mm.
Reusable.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.16-0.40 % carbon; 13-14 % chromium.
Blade shape: Oval, fenestrated.
Blade edge type: Sharp.
Uterine curette.
Shank type: Rigid.
Reusable.
Length: Shaft 26 cm.
Width: Spoon 9 mm.
For removal of retained products of conception from inside the uterus.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.40 % carbon, 13-14% chromium.
Uterine curette.
Blade edge type: Sharp.
Length: Shaft 26 cm.
Width: Spoon 12 mm.
Shank type: Rigid.
Blade shape: Oval, fenestrated.
Reusable.
For removal of retained products of conception from inside the uterus during gynaecological procedures.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.16-0.40 % carbon; 14 % chromium.
Shank type: Rigid.
Blade shape: Oval form of a spoon.
Handle: Austenitic steel
Blade edge type: Sharp
Length: Shaft 25 cm.
Width: Spoon 12 mm.
Reusable.
To dilate the cervix of the uterus in order to make room for the insertion of instruments.
Static function instrument: uterine dilator.
Double ended with round, smooth, atraumatic ends.
Material: Austenitic steel (non quenched, non magnetic steel).
Austenitic steel composition: 16 - 18 % chromium; 10-14 % nickel; 2-3 % molybdenum.
See Martin Catalogue no. 24 Ref: 32 430 82.
Provided in sets of 8 (16 dilators).
Reusable.
Sizes: 3 - 4 mm to 17 - 18 mm diameter in canvas roll.
Used in surgery and nursing activities.
Forceps without teeth are used for dissecting delicate tissues.
Dressing forceps for gripping, dissecting tissue and coagulation of vessels.
Dressing forceps for gripping, dissecting tissue and coagulation of vessels.
Forceps without teeth are used for dissecting delicate tissues.
Used in surgery and nursing activities.
Forceps for dressing / swabbing during gynaecological procedures.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon; 12-13% chromium.
Reusable.
Variable setting of ratchet, lockable.
Adjustment of jaws.
Scissors-like hinged design with non-cutting blades.
Flexible arms.
Length: 25 cm.
For haemostasis, clamping of large blood vessels or manipulating heavy tissue.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon, 12-13% chromium.
Reusable.
Variable settings of the ratchet, lockable.
Adjustment of the jaws.
Pressure force instrument: haemostatic forceps, springy.
Curved.
Flexible arms.
Length: 14 cm.
For dissecting, clamping, grasping tissues and for passing a thread around a vein or artery.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.20% carbon; 13% chromium.
Reusable.
Flexible ratchet, lockable.
Jaws which grip the thread well.
Pressure force instrument: threading forceps, springy.
Length: 23 cm.
Multi-purpose use in surgery: For haemostasis, gripping, dissection
Variable setting of the ratchet, lockable.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.20% carbon, 13% chromium.
Adjustment of the jaws.
Pressure force instrument: haemostatic forceps, springy.
Straight.
Flexible arms.
Reusable.
Length: 14 cm.
For clamping larger tissue and vessels for haemostasis in multiple surgical procedures.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon, 12-13% chromium.
Adjustment of jaws.
Length: approx. 20 cm.
Reusable.
Pressure force instrument, haemostatic forceps, springy.
Curved.
Variable setting of ratchet, lockable.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon; 12-13% chromium.
For clamping larger tissue and vessels for haemostasis in multiple surgical procedures.
Pressure force instrument: haemostatic forceps, springy.
Variable setting of ratchet, lockable.
Adjustment of jaws.
Curved.
Length: approx. 24 cm.
Reusable.
For transverse occlusion of a section of intestine while suturing, resection or ananastomosis.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon, 12-13% chromium.
Reusable.
Occlusion: The form and mechanical action must permit precise closing.
Adhesion: Provided by the surface of the jaws.
Smooth, springy jaws with atraumatic longitudinal serrations.
Length: 23 cm.
Pressure force instrument: intestinal clamp, springy
Non-crushing clamp, curved.
Long jaws and shorter shanks.
For clamping vessels for haemostasis in general surgical procedures.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon; 12-13% chromium.
Pressure force instrument: haemostatic forceps, springy.
Slim, curved forceps without teeth.
Flexible arms.
Atraumatic jaws.
Variable setting of the ratchet, lockable.
Length: 12.5 cm.
Reusable.
To grip soft and delicate tissues (particularly intestines)
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon; 12-13% chromium.
Reusable.
Soft ratchet, lockable.
Pronounced but atraumatic ridges of the grippers.
Ridged grippers with aperture (triangular).
Pressure force instrument: grasping forceps, springy
Flexible arms.
Length: 20 cm.
Used in surgery for gripping, dissecting thick tissues and coagulation of vessels.
Adjustment and good gripping of the jaws.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon, 12-13% chromium.
Reusable.
Pressure force instrument: dissecting forceps, springy.
Straight.
With 1 x 2 teeth.
Flexible arms.
Length: 14.5 cm.
For gripping soft and delicate tissues (lungs and intestines).
Material: Martensitic steel (quenched, magnetic steel)
Martensitic steel composition: 0.15-0.20% carbon; 12-13% chromium.
Pressure force instrument: grasping forceps, springy.
Atraumatic ridged grippers, each with aperture (oval).
Soft ratchet, lockable.
Length: 16 cm.
Reusable.
Used in surgery for gripping, dissecting thick tissues and coagulation of vessels.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon, 12-13% chromium.
Adjustment and good gripping of the jaws.
Pressure force instrument: dissecting forceps, springy.
Straight.
With 1 x 2 teeth.
Flexible arms.
Length: 25 cm.
Reusable.
For grasping organs, soft or heavy tissue.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon, 12-13% chromium.
Precise adjustment of the teeth.
Hard ratchet, lockable.
Pressure force instrument: tissue grasping forceps, springy.
4 x 5 teeth.
Length: 15 cm.
Reusable.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20% carbon; 12-13% chromium.
To grip soft and delicate tissues (lungs, intestines, stomach).
Pronounced but atraumatic ridges of the grippers.
Ridged grippers with aperture (triangular).
Pressure force instrument: gripping forceps, springy
Soft ratchet, lockable.
Flexible arms.
Length: 23 cm.
Jaw: approx. 27 mm.
Reusable.
For gripping and immobilisation of thick tissue (uterine traction forceps).
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0-15-0.20% carbon, 12-13% chromium.
Hard ratchet, lockable.
Pressure force instrument: gripping forceps, springy.
Uterine traction forceps, vulsellum / tenaculum, double curved.
Length: 28 cm.
Reusable.
For haemostasis of the arteries, especially uterine arteries.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20 % carbon, 12-13 % chromium.
Pressure force instrument: Hemostatic forceps, slightly springy.
Adjustment of the jaws.
Curved, angled on flat forceps with 1 x 2 teeth.
Flexible arms.
Variable setting of ratchet (lockable).
Length: 21.5 cm.
Reusable.
Used to grip and to immobilise thick tissue (uterine traction forceps) during obstetrical/gynaecological procedures.
Precise adjustment of the teeth.
Hard ratchet, lockable.
Pressure force instrument: gripping forceps, springy
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0-15-0.20 % carbon; 12-13 % chromium.
Uterine traction forceps, vulsellum / tenaculum, curved sideways.
With 2 x 2 teeth.
Length: 24 cm.
Jaws: 8-10 mm.
Reusable.
Surgical instrument to hold a suture needle while stitching through tissue.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.20 % carbon, 12-13 % chromium.
A well-defined longitudinal groove to prevent deformation of the needle.
Jaws with pronounced cross ridges.
Pressure force instrument: needle holder, springy.
Straight with ring handles.
Progressive setting of the ratchet to enable the needle to be gripped with varying tightness.
Reusable.
Length: 18 cm.
To hold compatible blade for surgical incisions.
To be used with: Scalpel blade no. 10, Scalpel blade no. 11.
To be used with: Scalpel blade no. 22.
To hold compatible blade for surgical incisions.
To be used with: Scalpel handle no. 3.
To cut and dissect tissue during surgical incisions.
To cut and dissect tissue during surgical incisions.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel: 0.60-0.70% carbon; 12-14% chromium.
Singe use, disposable.
To be used with: Scalpel handle no. 3.
Surgical blade for use with standard scalpel handle no. 3.
Blade length: approx. 40 mm.
Hardness: 50 to 58 HRC.
Sterile.
To be used with: Scalpel handle no. 4
To cut and dissect tissue during surgical incisions.
Material: Austenitic steel (non-quenched, non-magnetic steel).
Austenitic steel composition: 16-18% chromium, 8-14% nickel, 2-3% molybdenum.
To explore a surgical wound or to explore and/or dilate strictures inside a fistula.
Probe / dilator, straight.
Blunt bulbous shaped ends.
Diameter of the ends: approx. 2 mm.
Length: approx. 145 mm.
Reusable.
Used for aspirating fluids / secretions from the operative area.
Material: Austenitic steel (non-quenched, non-magnetic steel).
Austenitic steel composition: 16-18% chromium, 8-14% nickel, 2-3% molybdenum.
Curved.
Suction tube with removable tip and tubing connector.
Length: approx. 27 cm.
Diameter: approx. 6 mm or 8 mm.
Reusable.
To retract skin, fatty tissue, muscles or viscera after the abdominal incision to expose the operative field.
3 blades, the two lateral blades being mobile and the center blade removable.
Static function instrument: abdominal self-retaining retractor.
With locking mechanism (self-holding).
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.50% carbon, 12-15% chromium, 0.45-0.90% molybdenum.
Reusable.
Solid lateral blades: approx. 38 x 60 mm.
Solid center blade: approx. 38 x 55 mm.
Maximum wound opening: approx. 100 mm.
Static function instrument: vaginal retractor with handle.
Material: Austenitic steel (non-quenched, non-magnetic steel).
Austenitic steel composition: 18 to 20% chromium, 8 to 10% nickel.
Reusable.
Blunt lateral edges.
Blade length: approx. 85 mm.
Blade width: approx. 45 mm.
Length: approx. 24 cm.
To retract skin, fatty tissue, muscles or viscera during superficial surgery.
Material: Austenitic steel (non-quenched, non-magnetic steel).
Austenitic steel composition: 18 to 20% chromium, 8 to 10% nickel.
Smooth blunt blades with slight upward lip at the end.
Static function instrument: retractor with handle.
Double-ended retractor.
Slightly curved blade at each end.
Small: approx. 12 cm.
Supplied in pairs.
Reusable.
Material: Austenitic steel (non-quenched, non-magnetic steel).
Austenitic steel composition: 18 to 20% chromium, 8 to 10% nickel.
To retract skin, fatty tissue, muscles or viscera during superficial surgery.
Slightly curved blade at each end.
Smooth blunt blades with slight upward lip at the end.
Static function instrument: retractor with handle.
Double-ended retractor.
Large: approx. 15 cm.
Supplied in pairs.
Reusable.
Surgical dissecting scissors used for cutting tissue, threads and dressings.
Instrument that cuts by shearing: operating, dissecting scissors.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.40 % carbon; 13-14 % chromium.
Reusable.
Curved, with blunt end blades.
Length: 14 cm.
Surgical dissecting scissors used for cutting tissue, threads and dressings.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.40 % carbon; 13-14 % chromium.
Instrument that cuts by shearing: operating, dissecting scissors.
Curved, with blunt end blades.
Length: 17 cm.
Reusable.
Surgical dissecting scissors used for cutting tissue, threads and dressings.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.40 % carbon; 13-14 % chromium.
Instrument that cuts by shearing: operating, dissecting scissors.
Curved, with blunt end blades.
Length: 23 cm.
Reusable.
Material: Martensitic steel (quenched, magnetic steel).
Surgical scissors used for cutting or dissecting delicate tissue.
Instrument that cuts by shearing: surgical scissors.
Martensitic steel composition: 0.15-0.40 % carbon; 13-14 % chromium.
Reusable.
Thin, curved, with blunt end blades.
Length: 14 cm.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.40 % carbon, 13-14 % chromium.
Surgical scissors used for cutting or dissecting delicate tissue.
Instrument that cuts by shearing: surgical scissors Metzenbaum/Nelson.
Length: 18 cm.
Thin, curved, with blunt end blades.
Reusable.
Surgical scissors used for cutting or dissecting delicate tissue.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.16-0.40 % carbon, 14 % chromium.
Thin, curved, with blunt end blades.
Length: 23 cm.
Reusable.
Instrument that cuts by shearing: surgical scissors Metzenbaum/Nelson.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.40 % carbon, 14 % chromium.
Instrument that cuts by shearing: surgical scissors.
Straight, with one pointed and one blunt end blade.
Length: 14 cm.
Reusable.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.40 % carbon; 14 % chromium.
Curved, with one pointed and one blunt end blade.
Instrument that cuts by shearing: surgical scissors.
Reusable.
Length: 14 cm.
For cutting the perineal skin and tissue to facilitate the passage of the foetal head.
Material: Martensitic steel (quenched, magnetic steel).
Instrument that cuts by shearing: surgical scissors.
Curved, with blunt end blades.
Martensitic steel composition: 0.40 % carbon; 14 % chromium.
Reusable.
Length: 20 cm.
Material: Silver-coated copper with brass handle or Austenitic steel (non-quenched, non-magnetic steel).
Austenitic steel composition: 16 - 18% chromium; 10 - 14% nickel; 2 - 3% molybdenum.
To measure and/or explore the depth or length of the uterus, cervix, and vagina.
Bulbous distal end, mounted on a handle.
Static function instrument: uterine sound.
Malleable shaft graduated in cm.
Reusable.
Length: approx. 32 cm.
Material: Austenitic steel (non-quenched, non-magnetic steel).
To dilate the vagina to examine the vaginal canal and cervix.
Speculum, vaginal, self-retaining.
Double blade with a screw mechanism to keep the blades open.
Austenitic steel composition: 16 - 18% chromium; 10 - 14% nickel; 2 - 3%molybdenum.
Blade length: approx. 75 mm.
Blade width: approx. 20 mm.
Reusable.
Speculum, vaginal, self-retaining.
Double blade with a screw mechanism to keep the blades open.
To dilate the vagina to examine the vaginal canal and cervix.
Material: Austenitic steel (non-quenched, non-magnetic steel).
Austenitic steel composition: 16 - 18% chromium; 10 - 14% nickel; 2 - 3% molybdenum.
Blade length: approx. 95 mm.
Blade width: approx. 35 mm.
Reusable.
To dilate the vagina to examine the vaginal canal and cervix.
Speculum, vaginal, self-retaining.
Material: Austenitic steel (non-quenched, non-magnetic steel).
Austenitic steel composition: 16 - 18% chromium; 10 - 14% nickel; 2 - 3% molybdenum.
Double blade with a screw mechanism to keep the blades open.
Blade length: approx. 115 mm.
Blade width: approx. 35 mm.
Reusable.
Material: Austenitic steel (non-quenched, non-magnetic steel).
To spread and open the posterior wall of the vagina to visualize the uterine cervix.
Static function instrument: vaginal speculum.
With weight which fits on the shank of the blade.
Austenitic steel composition: 18 to 20% chromium, 8 to 10% nickel.
Blade width: approx. 38 mm.
Blade length: approx. 80 mm blade.
Total length: approx. 24 cm.
Reusable.
To hold open fatty tissue, muscle or viscera after an abdominal incision.
Static function instrument: depressor spatula.
Material: Austenitic steel (non-quenched, non-magnetic steel).
Austenitic steel composition: 16-18% chromium, 8-14% nickel, 2-3% molybdenum.
Rectangular with rounded ends.
Malleable: can be bent according to the operative field to be kept open.
Size approx. 25 x 250 mm.
Reusable.
