The controller can operate as a configurable PID controller and as a 2-point controller. In the latter case, as well as the setting of the reference variable, the hysteresis can also be pre-set. The recorder function provides continuous recording of controlled, manipulating and reference variables. The software ideally supports the experimentation and learning process of demonstration models. Its key features are the software controller and the recorder function. It plots responses to changes in the reference (e.g. step input) and disturbance variables. The controller included with each demonstration unit can also be used instead of the software controller. Measured values can be printed out and saved to data media. Connection to a PC is by a USB port. The supplied USB interface module provides an adequate number of analogue inputs and outputs, enabling even complex circuits, such as a cascade to be controlled. In this case, controlled, manipulating and reference variables can be plotted, displayed and saved by the program's recorder function.
....
IC Straightener
IC Puller
PLCC Extractor
DIP IC Extractor.
This fully functional trainer incorporates a pneumatic wing de-ice system using a vacuum/pressure ejector boot control valve and pressure switches. An electric motor driven vacuum pump provides system pressure and suction. The Aircraft Ice & Rain Protection and Control System Trainer incorporate all aspects of de-icing and rain protection system found in an aircraft. Propeller deicing is done with an electrically heated propeller boot. A timer control operates the cycle of the propeller de-ice system. Windshield heating is done through internally built heating elements. The trainer offers the opportunity to the students to physically see the various components and assemblies of the system and to understand the interaction between them.
System Features:
Aircraft components and assemblies
Six separate sub-systems
Actuator
Wiper Arm and Wiper Blade
Windshield Heating System
Windshield Wiper System
Windscreen Wiper
Motor
Windshield with heating elements
Temperature Control Thermostat
Sprayer
Flow regulator
Pitot Tube with electrical heating elements
Windshield De-Icing (Alcohol Dispensing)
Alcohol Tank
Alcohol Pump
Propeller De-Icing System
Prop Slip Ring
Ammeter
De-ice Indicator
Electrically Heated
De-Ice Timer
Brush Block
Propeller Blade with De-ice Boot
Regulator valve
Suction Gauge
Pneumatic De-Ice Boot System
Vacuum pump
Filter assembly
Control valve
Boot Pressure Gauge.

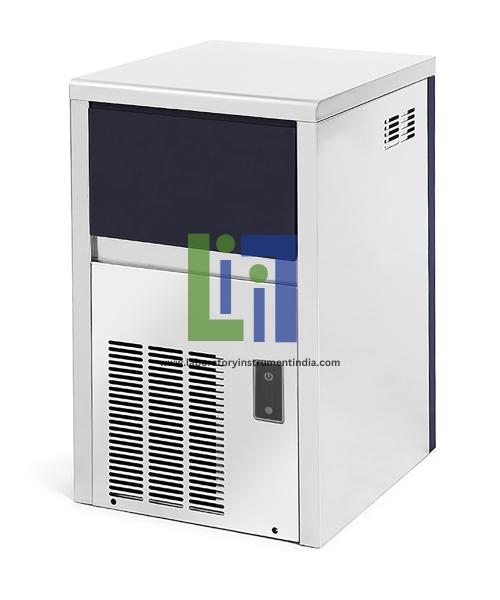

Daily Ice Making Capacity: 20kg/24h
Water Tank Capacity: 1L
Automatic Overflow Protection
Ice Shape: cube of approx. 13gm each
Installation: Freestanding Air Cooled
Minimum Cycle Time for First Ice Made: 30 minutes
Nonremovable ice bin
Voltage: 220V-230V/50Hz
Ice Bucket Capacity: 4kg (approx. 310 ice cubes).
Ice Maker Flakes, Ice Maker Flakes Equipments, Ice Maker Flakes Tools, Ice Maker Flakes Tool Kits, Ice Maker Flakes Manufacturers, Ice Maker Flakes Suppliers from India, China, Kenya
Lab Tender Suppliers Africa and Lab Equipment Africa Kenya, Uganda, Sudan, Algeria, Morocco, Angola, Ghana, Mozambique, Madagascar, South Africa, Ivory Coast, Cameroon, Niger, Burkina Faso, Mayotte, Sao Tome, Seychelles, Zambia, Chad, Somalia, Senegal, Zimbabwe, Guinea, Rwanda, Benin, Burundi, Tunisia, South Sudan, Mali, Malawi, Nigeria, Ethiopia, Egypt, DR Congo, Tanzania, Togo, Sierra Leone, Libya, Congo, Central African Republic, Liberia, Mauritania, Eritrea, Gambia, Botswana, Namibia, Gabon, Lesotho, Guinea Bissau, Equatorial Guinea, Mauritius, Eswatini, Djibouti, Reunion, Comoros, Cape Verde, Western Sahara
....
The unit comprises a typical refrigeration system whereby a small ice maker is used for evaporator. Ice Maker Test Rig table top refrigeration system is intended for studying ice making process. Instruments are provided for measurement of pressures and temperatures.
Experiments:
Coefficient of performance.
Familiarization with ice making system and components.

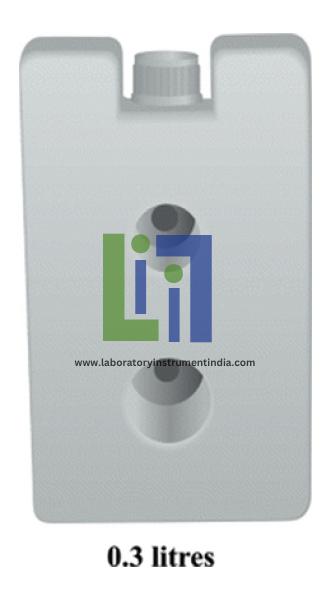

Capacity: 0.3 liters
Icepack with screw cap (Type2)
Water content: 0.25 to 0.3 liters

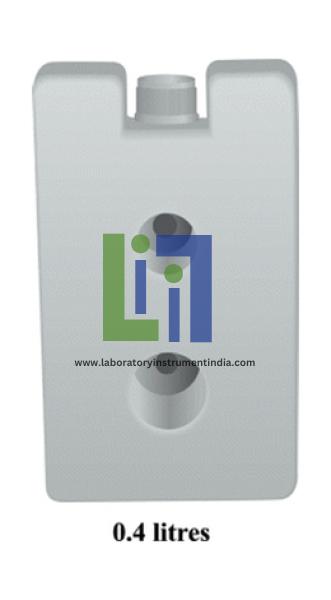

Icepack with screw cap
Water content: 0.35 to 0.4 liters
Capacity: 0.4 liters
External dimensions: 163 x 94 x 34 mm, +/- 2 mm
Removable cap, with internal water seal to prevent leakage.
Filling line indicated on one side.
Walls to be reinforced to prevent swelling
Supplied empty.

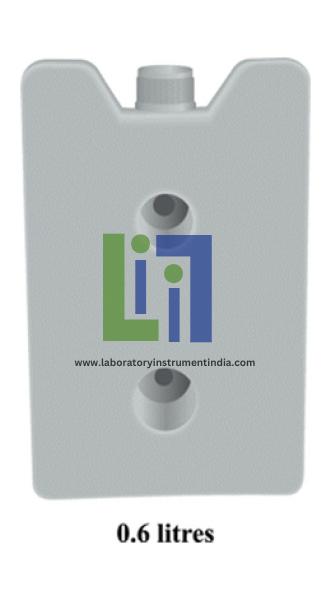

Icepack with screw cap
Capacity: 0.6 litres
External dimensions: 190 x 120 x 34mm, +/- 2mm
Water content: 0.55 to 0.6 litres
Removable cap, with internal water seal to prevent leakage.
Filling line indicated on one side.
Walls to be reinforced to prevent swelling.
Supplied empty.
Closed with a strong, single use clip, that once clicked in to position cannot be removed.
Personal information to be written directly on the bracelet with common ballpoint pen, non-erasable, or in the paper strip then inserted inside the transparent bracelet.
Single use, tamper proof, transparent, non-stretch personal identification bracelet for paediatric use.
Colour: Blue.
Strong and durable, soft to the touch. Atraumatic and hypo-allergenic.
Dimensions: approximately 1 cm x 25 cm (w x l). Length: adjustable at closure, the remaining free end of the strap may be trimmed adjacent its emergence from the clip.
Strong and durable, soft to the touch. Atraumatic and hypo-allergenic.
Closed with a strong, single use clip, that once clicked in to position cannot be removed.
Personal information to be written directly on the bracelet with common ballpoint pen, non-erasable, or in the paper strip then inserted inside the transparent bracelet.
Single use, tamper proof, transparent, non-stretch personal identification bracelet for paediatric use.
Colour: red.
Dimensions: approximately 1cm x 25cm (w x l). Length: adjustable at closure, the remaining free end of the strap may be trimmed adjacent its emergence from the clip.

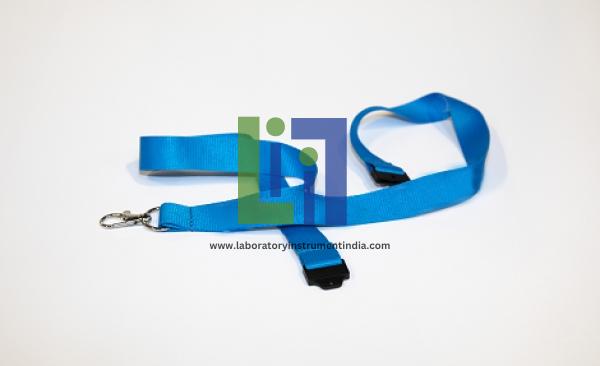

Identity card holder (lanyard), polyester, 20mm wide, in 100% Cyan blue with 1 colour imprint (white) with safety clasp and suspension
clip with PVC strap, packed in a bag of 50.
Ideal Gas Law Apparratus
....

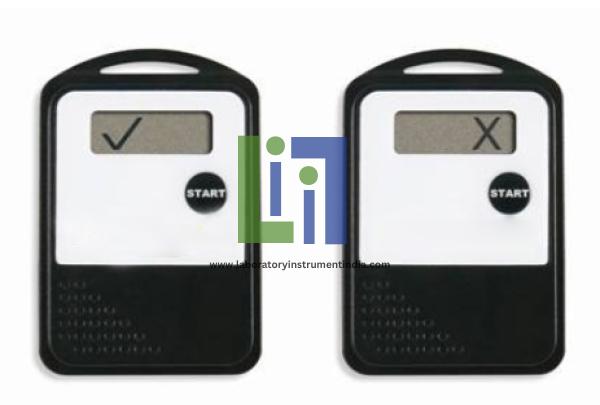

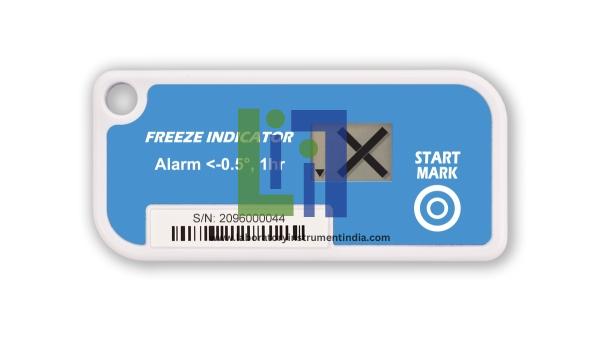

The device indicates via a visual alarm when an exposure to temperatures below -0.5°C for longer than 60 minutes has occurred. The device needs to be activated prior to use and once an alarm has been triggered, cannot be re-used. The Freeze Alert is an electronic Irreversible Freeze Indicator (IFI) with an internal sensor, factory-programmed alarm, and visual display for indicating a freeze event during transport or storage of freeze-sensitive vaccines.
....
The device indicates via a visual alarm when an exposure to temperatures below -0.5°C for longer than 60 minutes has occurred.
An electronic Irreversible Freeze Indicator (IFI) with an internal sensor, factory-programmed alarm, and visual display for indicating a freeze event during transport or storage of freeze-sensitive vaccines.
The device needs to be activated prior to use and once an alarm has been triggered, cannot be re-used.
Features:
Quick loading of test specimen into test chimney measuring 450 × 75mm
Digital display of oxygen percentage in atmosphere during test (no calculations needed)
Compact design
Digital readout for oxygen concentration ± 0.1%
Oxygen cell for assessing accurate oxygen levels (<0.1%)
Digital display of temperature of gas mixture entering the test chimney
Sample holders for both rigid and flexible samples supplied
Compact unit for efficient use inside a laboratory hood, with ventilation
Automatic flow control gives oxygen level adjustment by turning one single valve
Shortened gas path for rapid response
The distributor's mainfunction is to route secondary, or high voltage, current from the ignition coilto the spark plugs in the correct firing order, and for the correct amount oftime. A distributor isan enclosed rotating shaft used in spark-ignition internal combustionengines that have mechanically-timed ignition.
....
All relative signals, such as the output of Hall sensor, knock sensor output, engine speed, the refrigerator temperature, MAP output, A/D input, voltage and current of initial and secondary ignition, stroboscope trigger, end to test points. Ignition System simulator shows how modern Ignition System operate.
The experiments covered by the Ignition System are:
Constant current for various engine speeds
Ignition System operation at various conditions of speed, load and engine temperature
Direct ignition activation system
MAP sensor characteristics
Cooling sensor operation
Different spark types analysis
Dwell timing and control
Operation of the Ignition System with fuel electronic injection
Knock sensor characteristics
Ignition time and dwell measurements.
Self contained, fully operational Ignition Turret trainer, manufactured using realcomponents.
With the useof timing light, timing advance and retard can be observed, effected byvariable speed and vacuum control. Open circuit and high resistance faults areincluded on these trainers to aid diagnostic training.
Operation ofthe Ignition System can be observed through the transparent spark plug cover. A variable spark plug gap adjuster will aid in the demonstration of how voltageis affected by an increased air gap.
These IgnitionTurrets offers an enhanced training resource, hands on training with realcomponents, greater understanding for the student with out the constraints ofthe modern motor vehicle.
Useful aidfor demonstrating primary and secondary ignition patterns.
Testing ofthese Ignition Trainers can be carried out in the same manner as if stillfitted to the original vehicle.
