The teaching unit is suitable for use both inthe laboratory and in a conventional combustion engine vehicle. Such a vehiclewill be supplemented by the main components of a hybrid vehicle, which can thenbe examined in detail
Pilot line with switching relays withintegrated LEDs to illustrate the switching function and system verification
Measurable voltage at the inverterapproximately 210V
Connecting the terminals 30, 31 and 15
Disconnect with original service plug
Signals at the symbolic electric motormeasurable, also filtered in sinusoidal shape, by the smoothing effect of theengine
Signals at the inverter input and outputmeasure, approximately 210V including charging and discharging curves
Inverter generates 3-phase PWM signals, about210V
Signals and messages of the CAN-Buscommunication measurable.
Learning Objectives:
Acquire knowledge about the interaction ofthe electronic components between the high-voltage battery, inverter andelectric motor
Criteria for the use of test devices
Deepen your expertise to optimally adjust oscilloscopes and evaluate the presentations
Represent pulse width modulated signals and sinusoidal wave forms in detail with the oscilloscope, also between individual phases
Recognize the dangers of high-voltage power components, explain accident prevention regulations
Security rules: disconnect, secure against reconnection, ensure that there is no voltage, log the steps.
Material: Dyneema Fiber
Finish: Seamless
Cuff Style: Knit
Length (English): 10 in.
Length (Metric): 25.4 cm.
Children’s T-shirt, assorted colours, 12-14years, pack of 4.
....
Children’s T-shirt, assorted colours, 4-6 years, pack of 4.
....
Material Composition: 45% cotton 45% polyester and 10% elastin. 165 gsm, flat knit with a round neck and short sleeves. The dimensions of the neck allow comfortable wearing and removal by children.
Children's t-shirt, short sleeves. Round neck and twin needle hems, with a hidden seam at the neck.
The material is colour-fast, durable and easy to wash. There is no leaching of colour when the t-shirt comes into contact with water. The colour (material, thread, and print) is able to withstand regular and intensive washing cycles with a mild washing powder. The material and design are suitable for extensive wear in strong sunlight – the colour is durable and does not bleach easily in strong sunlight.
PAC-20-lab-1811725184.jpg "Tabards,red/blue,large(age 13+)/PAC-20")
Red and Blue one size fits all coloured tabards to distinguish a sports team, pack of 20 tabards.
....
Table Dimensions: 600x400 mm
Weight Kg 60
-lab-1422955329.jpg "TABLE VICE (SWIVEL BASE)")
The Vice is made of S.G. Casting
Pipe vice jaw & End of the Spindle rest on Guide hole
360 degree Swivel Base.
Parts are Machined on VMC for Accurate Precision
Nut in Housed in body and gives long service & can be replaced.
Newborn resuscitation and support of transition of infants at birth. Additionally, used to provide thermal support for newborns in the delivery suite and for critically ill infants who require constant nursing intervention. Mobile resuscitation table for neonatal patients equipped with a radiant warmer and supplied with accessories.
....-lab-2045670071.jpg "Tablet Oscilloscope (Book Series)")
Tablet Oscilloscope (Book Series)
....
Tabletop Mechatronics learning system features a pick-and-place, gauging, and inventory station, all of which fit on a standard tabletop! Mechatronics is an integral part of the automotive, pharmaceutical and chemical industries, just to name a few. Tabletop Mechatronics is a portable, durable, affordable learning system that forms a fully automated line to teach real-world mechatronics skills. Each mechatronics station include a PLC control unit that features an inputs, 6 outputs, and much more! These stations also include curriculum that covers basic PLC programming and I/O training simulators with pushbuttons, selector switches, and output indicators so that learners can program and operate the PLC before moving actuators on the station. The impact and applications of mechatronics grows by the day, so industries need skilled workers who understand these complex systems.
Features:
Heavy Duty Industrial Components for Long Life
Plug and Play Interchangeable Controllers
Portable for Training in Multiple Settings
Pneumatic and Electric Stations
Three Individual Stations Form One Mechatronics Line
Affordable Solution for Mechatronics Training
Dual Function: Operator Station and I/O Simulator for PLC Training
Safe 24 VDC Power
Outstanding Automation Curriculum.
Tachometer Apparatus unit display the excitation frequency (in Hz) of the motor exciter being used to excite the beam. A bench top unit that operates in conjunction with the Universal Vibration System. The digital display shows the excitation frequency in units of Hz and to a resolution of 1 decimal place. This module will operate with both the and motor exciter.
Tachometer Apparatus also processes the signals from these sensors and outputs them to two BNC sockets on the rear panel. The connects to the so that the motor exciters can be speed controller. The requires its supply voltage The supplies power to the LVDT sensor and the speed sensor of the motor exciters. This then allows easy connection to an oscilloscope or Data Acquisition System The unit can be operated from either an 115V/230Vac supply, 60/50Hz.
In conjunction withthe control panel Controls CAN-Bus or Bus Technology Basics this unit can beused and connected according to the circuit diagram. The Tail Lights Can Bus module panel expands your system to all standard rear lights of a modern car.
Features:
Connect all original automotive componentsaccording to the wiring diagram
Use standard workshop measuring and testingdevices for diagnosis and troubleshooting
43 x connectors in 4mm safety design, 4 x witha bridge plug, for wiring and for measuring
Quick and easy insertion of hidden practicalerrors in the circuit design, also to be combined with faults from the controlpanel Controls CAN-Bus
Integration of the CAN-Bus trailer controlunit in the networked system
Cross linking of the system by connectingpower supply and bus lines of all control units, thus all lines are measurableand can be separated for diagnostic purposes.
Learning Objectives:
Read and use vehicle wiring diagrams
Selecting and using electrical measuring andtesting devices
Measurement and evaluation of electricalvalues and signals
Data communication with CAN-Bus to trailer
Testing and maintenance of electrical andelectronic circuits
Identify electrical and electronic components,assemblies and systems.
Compact, mobile design
Easily dismantled for inspection and cleaning purposes
Tall Form chamber straight side to diameter ratio of 3:1, conical discharge section
Advanced 2-fluid nozzle atomisation system
Data logging facility for all key operational parameters
Control & measurement of relative humidity
Spark arrester on input and enhanced safety extraction fan
Powder discharges from two points, chamber and cyclone
Low noise levels
Accessory sets are available to quickly change from drying to spray chilling
Individual inlet and exhaust fans with variable speed control.
Supplied with optional nozzle configurations for counter- and co-current atomising.
This Trainer includes see-through operating vessels and selected piping. One vessel has discrete level control, the other analog. The Tank Level Flow Trainer with PLC is a combination of working vessels and pumps, with interconnecting piping that is controlled by a Programmable Logic Controller (PLC).
Function of Tank Level Flow Trainer with PLC
Tank Level Flow Trainer with PLC process trainer pumps water from a storage tank into the first working tank which is fitted with level switches. The second tank has an inner air tank which can be selected to change the response characteristics of the process. Note that with this trainer are a number of student modules for instrumentation training in addition to operator training modules. Two parallel pumps, controlled by the PLC, transfer fluid from the first tank to the second where level is measured by analog instruments. Return flow from the second tank to the storage tank is by gravity and the discharge valve is controlled by the PLC.
It is printed from 0 ~ 1500mm of the scale line and digitalon the surface.
Length: 1500mm, width: 15mm, resolution: 1cm, made by soft plastic.
Non sterile umbilical tape roll.
Material: 100 % cotton.
Ligature thread for umbilical cord.
Braided and flat.
Non-absorbable.
Size selected: Tape umbilical roll.
Length: 50m.
Width: 3mm.
Non-sterile.
Single use.

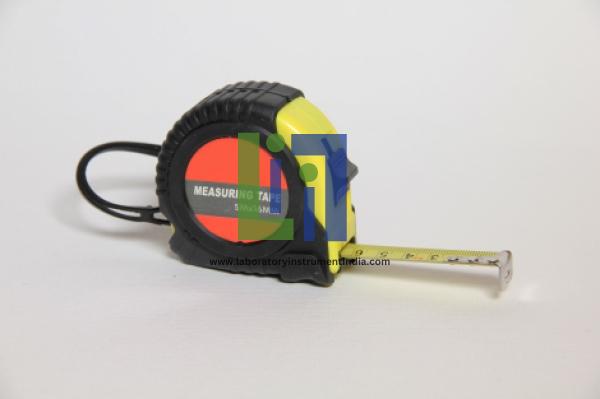

Tape measure, retractable, for measuring sports grounds; length 5m (five metres), width 13mm; made of thin, plastic-coated metal, calibrated on one side with 1mm and 1cm lengths marked in black and 10cm lengths marked in red, for ease of reading. Stored wound-up in plastic case (assorted colours), 7 x 7cm; with locking mechanism and metal clip, for attachment to referee's clothing.
....
