The Electrical Wiring Learning System is an invaluable industrial wiring technician training system for careers like electricians and industrial maintenance technicians that wire control panels and operator panels on manufacturing machines. The Electrical Wiring Learning System includes real-world components such as a 3-phase motor, push buttons, switches, valves, and a 24VDC power supply all mounted on a mobile workstation. Electrical Wiring Learning System learners to study and practice electrical wiring skills like: installing control wiring in an electrical panel; installing wiring into limit switches, solenoids, and pressure switches; and understanding the importance of correct wire size, material, and insulation. This combination of industrial components and comprehensive curriculum will reinforce electrical wiring concepts and skills and build up a learner's confidence and competence. This learning system can also be used to form a strong foundation toward attaining numerous industrial maintenance technician certifications. Learners will use these components to study areas like electrical control system wiring, pneumatic control circuit wiring, conductors, disconnects, and over current protection.
....
Electrical Work Table With Console
....
Electrically assisted steering actuator
Power steering motor
Power steering control unit
Rack steering box.
Many different modules can be connected to a base-unit. For each product line, comprehensive experiment manuals in four colours are available. This equipment and the manuals cover everything you need for basic studies in Electricity and Electronics.
....
Electricity And Electronic Trainer "active schematic" kit allows students to gain a foundation in the principles of electricity and electronics. Electricity And Electronic Trainer provides hands-on working knowledge of voltage, current, and resistance with series and parallel circuits. Circuits are assembled by inserting the component carriers between the metal baseboard pillars which act as connectors. The final uncluttered layout clearly resembles the theoretical circuit diagram where each component is displayed/ accessible over the board. Electricity And Electronic Trainer Locktronics system consists of elctronic components mounted underneath tough molded polystyrene carriers with the appropriate circuit symbol displayed on the upper surface of each carrier and the component mounted securely beneath it. Graphic symbols are screened onto each components acrylic background. A very affordable unit.
....
Electricity and Electronics Fundamentals Trainer
....
Electricity and Electronics Fundamentals Trainer Electronic Engineering Lab
....
The pointer electroscope can test that glass rod is positively charged and the glue rod is negatively charged after the friction. The glass rod material is organic glass with silk, the glue rod material is polycarbonate with fur and the length is 300mm.
....
The Electro Fluid Power Learning System provides learners with the components to set up a variety of industrial relay control circuits using ladder diagrams and Boolean logic. Electro Fluid Power Learning System can be used with eight different basic pneumatic or hydraulic learning systems to teach electrical relay control of hydraulic and pneumatic systems and their industry applications. Some of these components include selector, pushbutton, limit, and pressure switches; control and timer relays and hydraulic and pneumatic directional control valves. Learners will practice industry-relevant skills related to these new topics including developing a sequence of operations given an application, connecting and operating an indicator lamp given a ladder diagram, and many more. In addition to strong curriculum and industry-standard parts, the Electro Fluid Power Learning System includes an instructors guide, install guide, student reference guide, and the option to purchase an interactive multimedia format of the curriculum. The learning systems that can be used with the Electro Fluid Power Learning System include Basic Hydraulics, Basic Pneumatics, Double-Sided Hydraulics, Double-Sided Pneumatics, Basic Fluid Power, or Double-Sided Basic Fluid Power.
Features:
Pre-Mounted Components for quick setup and inventorying
Plug-in Quick Disconnect Component Connections
Industrial Standard Components
Table-top or Bench Mount
Quick Setup
Portable
24 VDC Electrical Control Power.
Electro Hydraulic loading and control system consisting of:
Upper attachment for steel frame cross-mean coupling.
Spherical seat fixed to the ram for an uniform loading.
Double action alloy steel ram + cylinder. The ram is ground.
This product is born with a refined structure that enables more steady loads and precise controls. The mechanical components collaborate with the pioneered modular Test Live computer testing software to ensure the stability, precision and reliability of the whole system. It adopts the leading high-performance Controller, which is usually equipped on high-end material testing machines.
The microchip controlled electro servo hydraulic horizontal tensile testing machine is mainly designed for tensile strength tests on anchor chain, hook, porcelain insulator, wire rope, stopper, electric cable, optical cable, overhead line, steel strand, slings, plastic woven sack, rods, ropes.
Functionalities like fast forward and fast backward are available from the piston. Tests on specimen are performed on the integrated central controlling panel. This product applies a horizontal frame structure. The main frame comprises frame structural component, grip fixating components, cylinder piston set, protective shield, transducers and etc. The pre-installed safety limit unit ensures the usage safety of this product.
Features:
Dynamic display of load, displacement, time and real-time testing curve on the screen.
Closed loop control of channels such as load, displacement, etc. Smooth switching in between.
Servo-controlled loading. Controllable pre stress. Load is applied to specimen uniformly.
Support for holding at constant load or constant displacement.
Software online notification of current working status and operating procedures.
Capable of loading at constant speeds of various levels.
Capable of automatic loading or holding by loading program settings.
Domestically pioneered process-oriented design of testing control. Provides users with intuitive testing control procedures and a wide range of instruction types. Also supports dynamic instruction parameter assignment.
Engineers may set up testing projects then operators may employ the projects for testing, greatly reduced the difficulty of the operations and the requirement in the skills and trainings of the operator.
Multi-channel coordinative digital load control system makes it more convenient to perform tests.
The hydraulic system features a quick withdraw unit to promote efficiency.

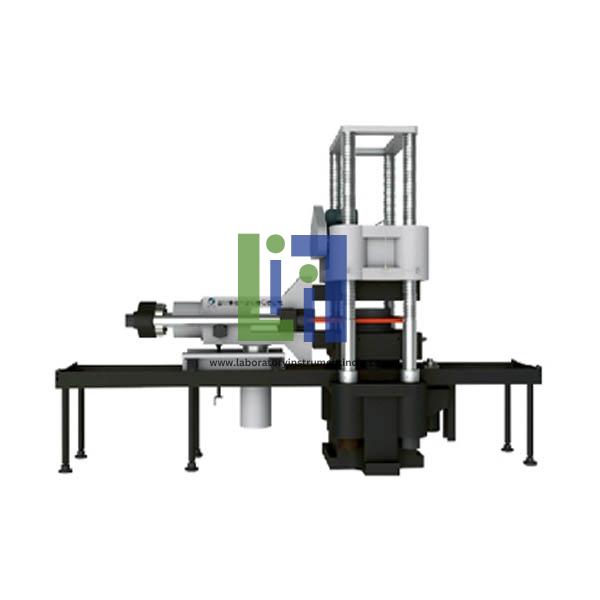

Electromechanically adjustable test space between upper and lower compression platen. Horizontal shear components are moveable electromechanically and easy to operate.
Easy to set testing methods. Administrators may configure in a specific range of settings under related standards, pre-installed with two sets of testing schemas (standard testing schema and custom testing schema).
Support for management permissions for various user types (Operator, administrator and engineer).
Highly automatic testing process. Capable of general functionalities including automatically aligning with zero, smooth continuous loading and un-loading, automatic sustaining. Capable of monitoring the whole testing process, automatic testing data measuring and processing, automatic testing curve displaying, automatic saving the source data and curves of tests.
A wide range of test projects are supported by the testing software (14 categories), perfect support for the latest mechanics performance testing standards on rubber bearing products.
Features:
Support for multi-language user-interface extendibility.
Automatic requesting for testing result data, also capable of launching an advanced analysis to inspect the data.
As many as 20 layers of sensor linear compensation, elevates the precision of the instruments to the next level.
Complies with standard requirements of torsion and compression, as well as a variety of destructive, non-destructive and multi-cycle tests.
Support for multi-level elastic modulus tests.
Closed loop control of channels such as load, displacement, deformation, etc. Smooth switching in between.
Rounding off of numerical testing data complies with Rules of Rounding Off for Numerical Values, supports rounding off in sections and custom rounding off.
Dynamic display of load, displacement, deformation and real-time testing curve on the screen.
Characteristic testing data can be marked on testing graphs.
Capable of statistical operations on testing data (average, standard deviation, coefficient of variance).
Capable of re-analyzing test data and curves, and partial zooming of testing curves at will.
Support saving, instant retrieving and inspection of testing results.
Support Excel report templates and customized editing of test reports.
Electro Hydraulic Testing Station learning system features a hydraulic press module, part clamp module, hydraulic power unit, and more Among other demonstrations, the clamp module will pick up a test valve and the hydraulic press module will hold a test manifold against the valve body. Electro Hydraulic Testing Station allows learners to gain valuable product testing skills used in automated processes by studying topics like station operation and adjustment, module sequencing, and station sequencing. Learners will use these and other components to practice operating, programming, and adjusting real-world mechatronics equipment. Electro Hydraulic Testing Station learning system will allow learners to practice and study how products are tested on an automated line, how these skills are integrated within a larger automated process, and an example of how hydraulics are utilized on an automated line. Uses components that learners will find on-the-job in order to give the best opportunity to build confidence and industrial competencies.
Features:
Allows learners to practice and study how products are tested on an automated line, how these skills are integrated within a larger automated process, and an example of how hydraulics are utilized on an automated line
Allows learners to gain valuable product testing skills used in automated processes by studying topics like station operation and adjustment, module sequencing, and station sequencing
Includes a hydraulic press module with horizontal hydraulic cylinder and electro-hydraulic valve; hydraulic power unit; pressure transducer system; part clamp module; an operator station with lockout.
The board allows performing the most important experiments in industrial electrical plants. All the components are identified through a clear synoptic diagram showing their type and symbol. The components are connected to the board front panel through 2 mm terminals for what concerns the low voltage controls and through 4 mm safety terminals for the connections to the mains. The board includes:
1 bipolar switch, 1 - 0 - 2
1 thermal relay
1 power supply, 24 V
2 timers
5 signaling lamps
5 push-buttons
5 remotely controlled switches with relevant auxiliary contacts.
The board is complete with a kit of connecting leads. On the back side of the board there are switches to allow for the introduction of faults by the teacher. Power supply: single-phase from mains.
....
The trainer includes a metal frame supporting the following modules:
Trainers for demonstrations and experiments in the electropneumatic field.
An air supply vertical board, providing 1 lever main switch, 1 filter, 2 pressure regulators with 2 pressure gauges, 1 mushroom and 3 digital 3/2 push-buttons, 1 lever 5/2 selector and 1 digital 5/2 push button.
An electro-pneumatic board, that, in addition to providing the terminal board for limit switches and valve solenoids, includes: 1 emergency and 4 control push-buttons, 1-2PDT switch, 1 delayed pickup and 1 delayed drop-out time relay, 5 auxiliary contactors with 6 changeover contacts each and 3 signal lamps.
A pneumatic board, where all the components are mounted and identified through a clear symbol. They include: 6 magnetic doub1e-acting cylinders with 12 flow regulators and 12 proximity sensors, 4 stable and 2 unstable 5/2 valves, 10 unstable 2/2 solenoid valves and 1 splitter. Supplied with 50 m of ¸4 and 3 m of ¸6 plastic tube, 1 tee and 5 plugs, as well as 1 pipe cutter, service manual and exercise book with experiments.
It causes selective muscular contractions, more powerful and extended than those that are possible through voluntary efforts; it increases the metabolism of the fats with consequent reduction of the adipose zones; it allows, without physical efforts, amazing results such as the increase of the tone and of the volume of the muscles; it tones up the muscles and it progressively reactivates the functionalities of limbs that need re-education. The Electro Stimulation, or the involuntary muscular contraction that is caused by electrical pulses, is a practice used both in rehabilitation and in sport or fitness.
Circuit blocks of Electro Stimulation
Typical circuit that is used in of Electro Stimulation
Main therapeutical effects in sport and beauty fields
Theoretical topics of Electro Stimulation
The Electro Stimulation for passive gymnastics
The Electro Stimulation
Biomedical techniques for the Electro Stimulation.
Transparent plastic box packaging, electrode types by graphite, copper, zinc, magnesium, iron, tin.
....
